614-93-952-31-018 datasheet, PDF

Datasheet> All Categories > The connector> socket> 614-93-952-31-018

614-93-952-31-018: DescriptionIC Socket, DIP52, 52 Contact(s), 2.54mm Term Pitch, 0.9inch Row Spacing, Solder,; CategoryThe connector socket; File Size136KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

614-93-952-31-018 Overview

IC Socket, DIP52, 52 Contact(s), 2.54mm Term Pitch, 0.9inch Row Spacing, Solder,

614-93-952-31-018 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DIP SOCKET
body width	1 inch
subject depth	0.079 inch
body length	2.6 inch
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP52
Dielectric withstand voltage	1000VAC V
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
Insulation resistance	10000000000 Ω
JESD-609 code	e0
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	52
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.9 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

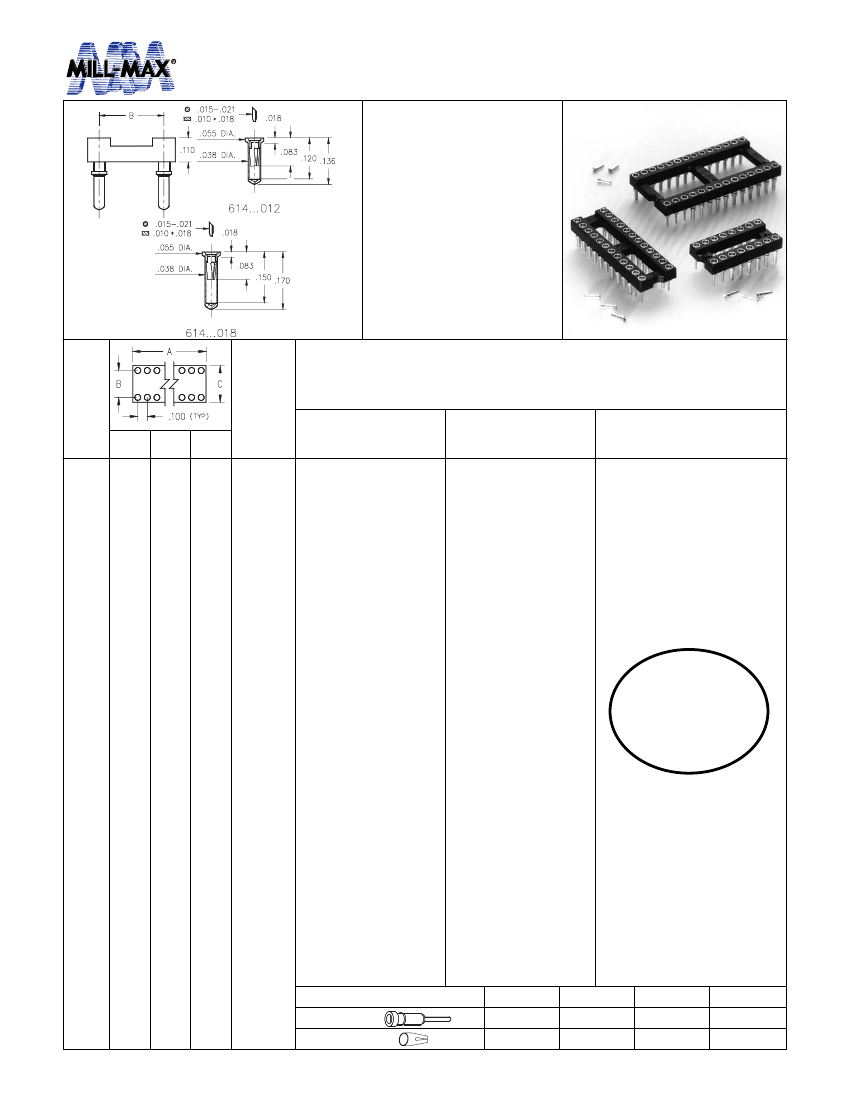

DUAL-IN-LINE SOCKETS

Carrier Type

Ultra Low Profile

•

Ultra low profile

receptacles sit only .018”

high above the board.

•

Removable plastic carri-

ers can be returned for

reloading.

•

Hi-Rel, 3-finger #11

BeCu contact is rated at

3 amps. See page 206

for details.

•

Uses M-M#0552-1 &

0552-2 receptacles. See

page 127 for details.

Total number

of pins

Series 614

Quantity

per tube

Ordering Information

Length = .136

614-XX-210-31-012

614-XX-304-31-012

614-XX-306-31-012

614-XX-308-31-012

614-XX-310-31-012

614-XX-314-31-012

614-XX-316-31-012

614-XX-318-31-012

614-XX-320-31-012

614-XX-322-31-012

614-XX-324-31-012

614-XX-328-31-012

614-XX-420-31-012

614-XX-422-31-012

614-XX-424-31-012

614-XX-428-31-012

614-XX-432-31-012

614-XX-624-31-012

614-XX-628-31-012

614-XX-632-31-012

614-XX-636-31-012

614-XX-640-31-012

614-XX-642-31-012

614-XX-648-31-012

614-XX-650-31-012

614-XX-652-31-012

614-XX-950-31-012

614-XX-952-31-012

614-XX-964-31-012

Sleeve (Pin)

Contact (Clip)

Length = .170

614-XX-210-31-018

614-XX-304-31-018

614-XX-306-31-018

614-XX-308-31-018

614-XX-310-31-018

614-XX-314-31-018

614-XX-316-31-018

614-XX-318-31-018

614-XX-320-31-018

614-XX-322-31-018

614-XX-324-31-018

614-XX-328-31-018

614-XX-420-31-018

614-XX-422-31-018

614-XX-424-31-018

614-XX-428-31-018

614-XX-432-31-018

614-XX-624-31-018

614-XX-628-31-018

614-XX-632-31-018

614-XX-636-31-018

614-XX-640-31-018

614-XX-642-31-018

614-XX-648-31-018

614-XX-650-31-018

614-XX-652-31-018

614-XX-950-31-018

614-XX-952-31-018

614-XX-964-31-018

30µ” Au

200µ”Sn/Pb

200µ” Sn/Pb 200µ”Sn/Pb

0.5

0.2

0.3

0.4

0.5

0.7

0.8

0.9

1.0

1.1

1.2

1.4

1.0

1.1

1.2

1.4

1.6

1.2

1.4

1.6

1.8

2.0

2.1

2.4

2.5

2.6

2.5

2.6

3.2

0.2

0.3

0.4

0.6

0.9

0.3

0.4

0.5

0.7

1.0

102

(.039 Min. Mounting Hole) (.039 Min. Mounting Hole)

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

w w w. m i l l - m a x . c o m

516-922-6000
