SFF2004GAHC0G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SFF2004GAHC0G

SFF2004GAHC0G: DescriptionRectifier Diode, 1 Phase, 2 Element, 10A, 200V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN; CategoryDiscrete semiconductor diode; File Size384KB，4 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/

Download Datasheet Parametric Compare View All

SFF2004GAHC0G Overview

Rectifier Diode, 1 Phase, 2 Element, 10A, 200V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN

SFF2004GAHC0G Parametric

Parameter Name	Attribute value
package instruction	ITO-220AB, 3 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY, LOW POWER LOSS
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.975 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	150 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

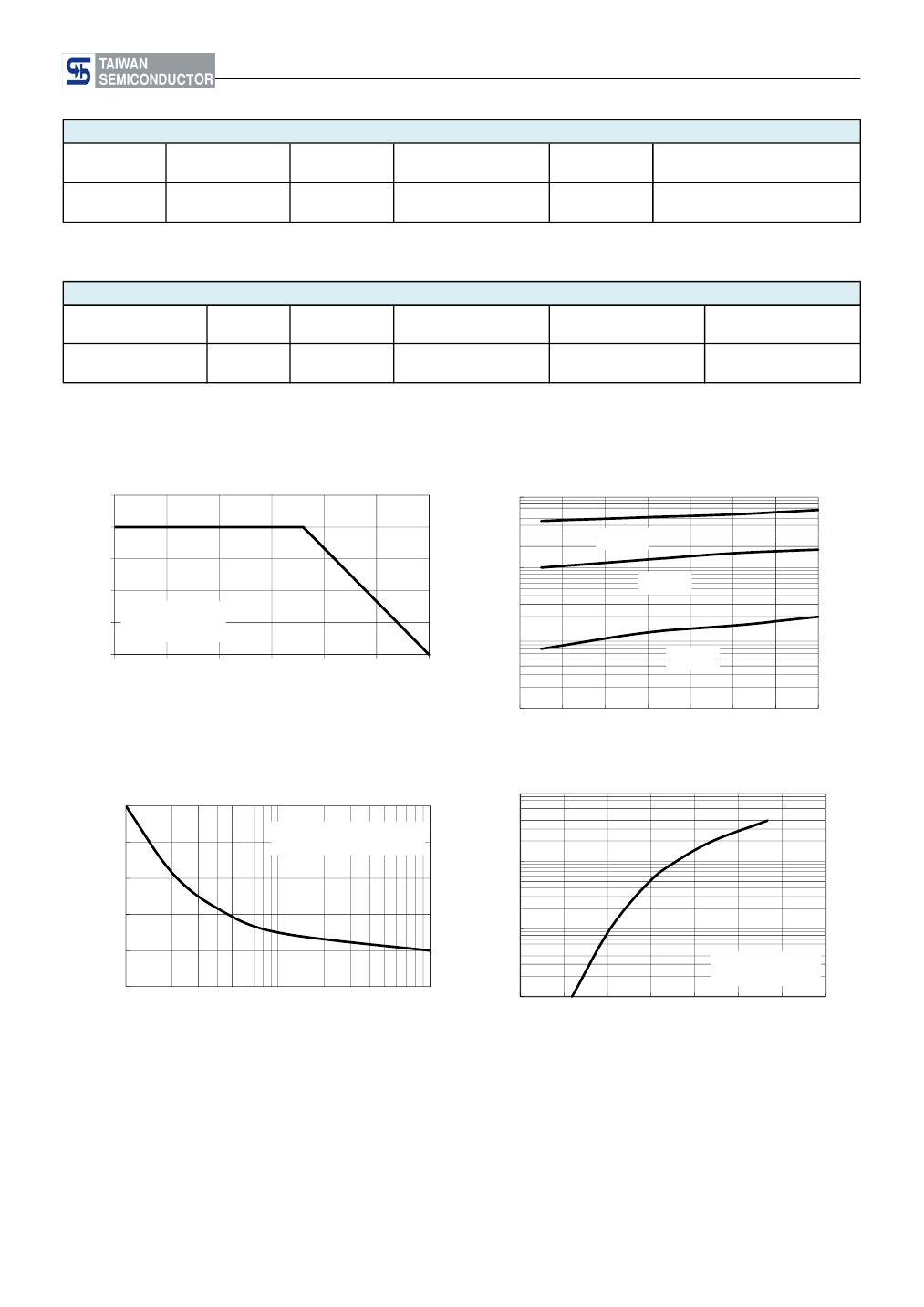

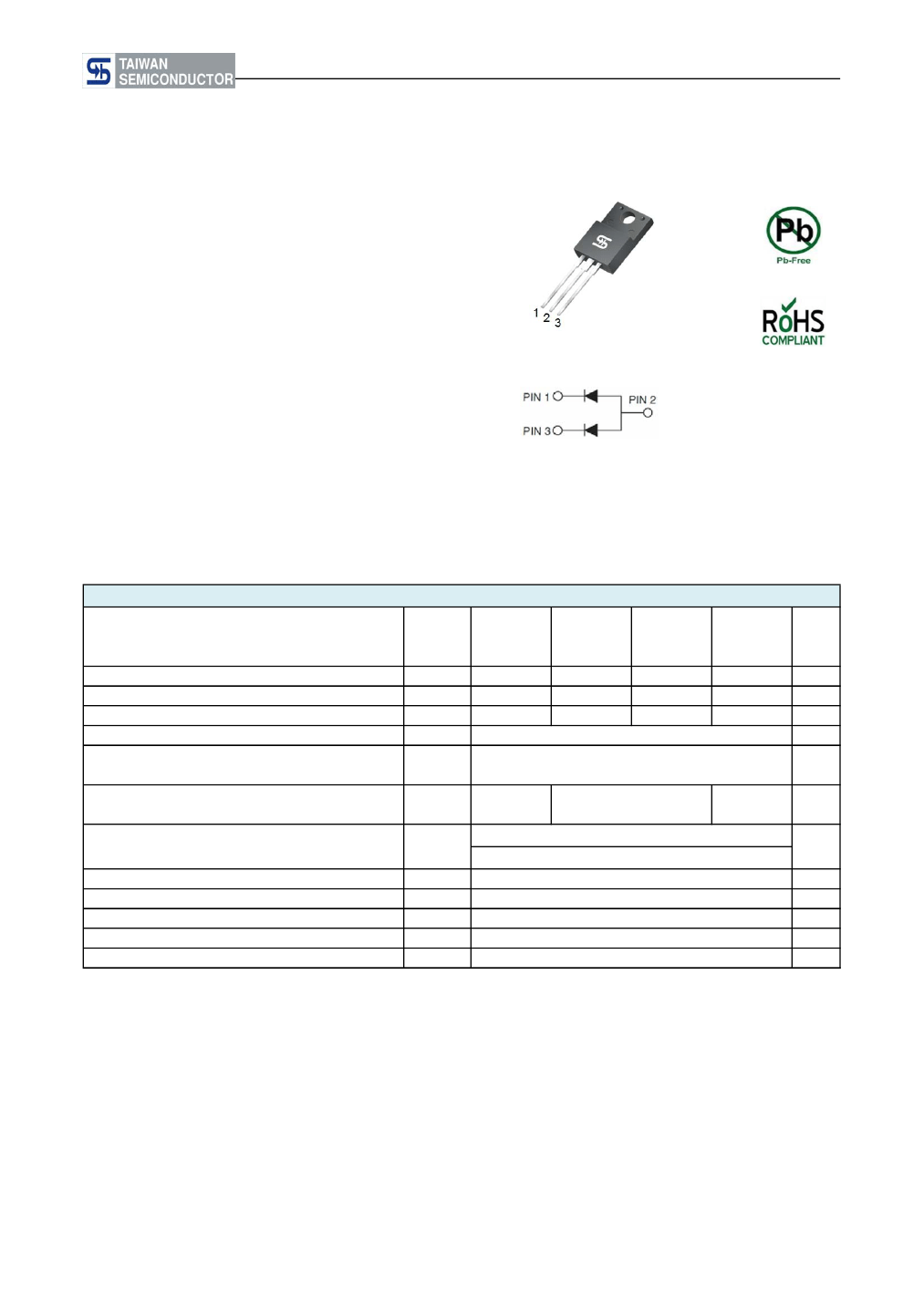

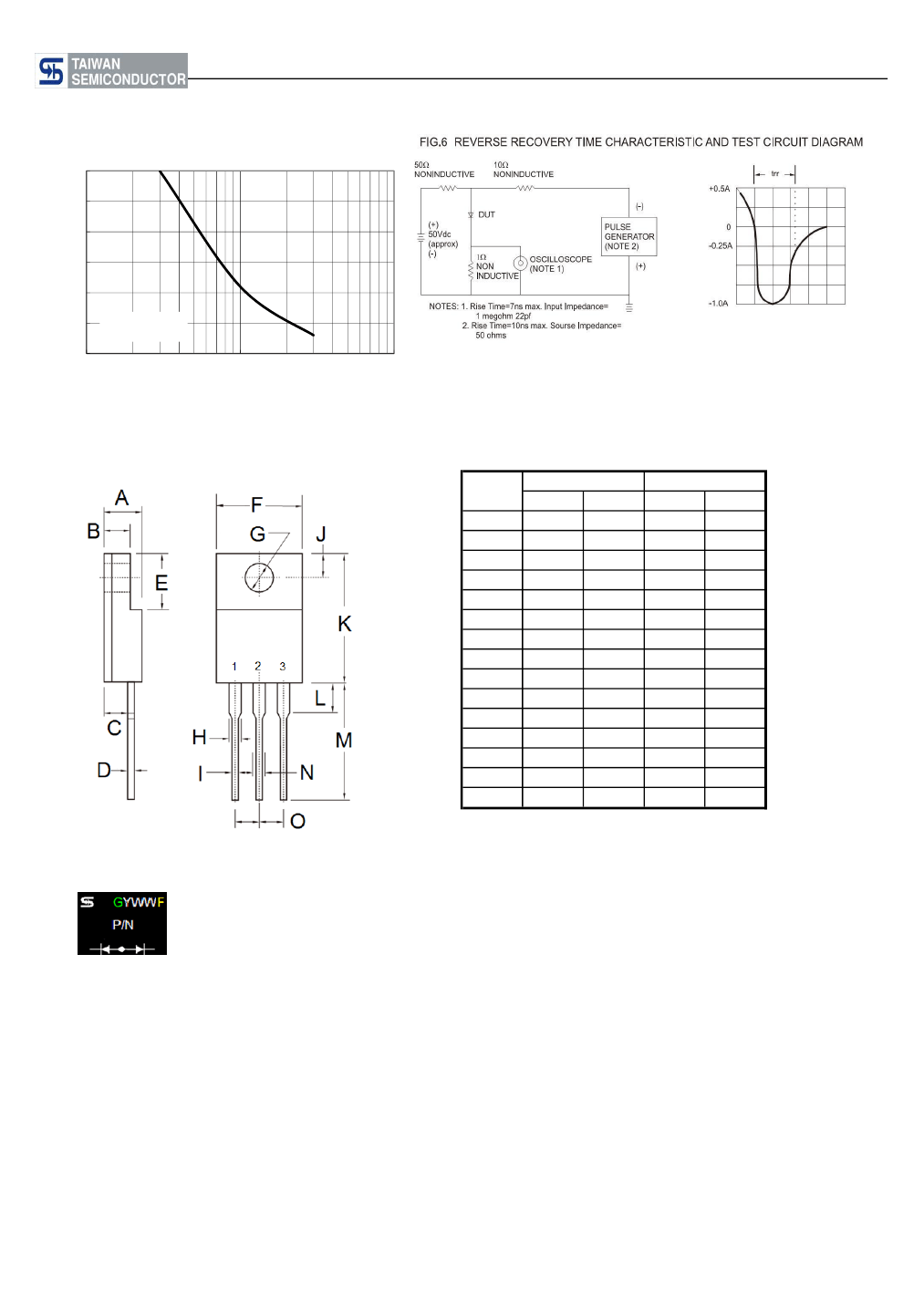

SFF2004GA - SFF2008GA

Taiwan Semiconductor

CREAT BY ART

20A, 200V - 600V Isolated Glass Passivated Super Fast Rectifiers

FEATURES

- High efficiency, low VF

- High current capability

- High reliability

- High surge current capability

- Low power loss

- Compliant to RoHS Directive 2011/65/EU and

in accordance to WEEE 2002/96/EC

- Halogen-free according to IEC 61249-2-21

ITO-220AB

MECHANICAL DATA

Case:

ITO-220AB

Molding compound, UL flammability classification rating 94V-0

Part no. with suffix "H" means AEC-Q101 qualified

Packing code with suffix "G" means green compound (halogen-free)

Terminal:

Matte tin plated leads, solderable per JESD22-B102

Meet JESD 201 class 2 whisker test

Polarity:

As marked

Mounting torque:

5 in-lbs maximum

Weight:

1.7 g (approximately)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

=25°C unless otherwise noted)

SFF

PARAMETER

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current

Peak forward surge current, 8.3 ms single half

sine-wave superimposed on rated load

Maximum instantaneous forward voltage (Note 1)

= 10 A

Maximum reverse current @ rated V

Maximum reverse recovery time (Note 2)

Typical junction capacitance (Note 3)

Typical thermal resistance

Operating junction temperature range

Storage temperature range

Note 1: Pulse Test with PW=300μs, 1% Duty Cycle

Note 2: Reverse Recovery Test Conditions: I

=0.5A, I

=1.0A, I

=0.25A

Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.

=25°C

=125°C

SYMBOL

RRM

RMS

F(AV)

FSM

θJC

STG

0.975

2004

200

140

200

SFF

2005

300

210

300

150

1.3

400

3.1

- 55 to +150

1.7

SFF

2006

400

280

400

SFF

2008

600

420

600

μA

°C/W

°C

UNIT

Document Number: DS_D1401003

Version: E15

SFF2004GAHC0G Related Products

	SFF2004GAHC0G	SFF2005GAHC0G	SFF2006GAHC0G	SFF2008GAHC0G
Description	Rectifier Diode, 1 Phase, 2 Element, 10A, 200V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 10A, 300V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 10A, 400V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN	Rectifier Diode, 1 Phase, 2 Element, 10A, 600V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN
package instruction	ITO-220AB, 3 PIN	ITO-220AB, 3 PIN	ITO-220AB, 3 PIN	R-PSFM-T3
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.975 V	1.3 V	1.3 V	1.7 V
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A
Number of components	2	2	2	2
Phase	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	10 A	10 A	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Guideline	AEC-Q101	AEC-Q101	AEC-Q101	AEC-Q101
Maximum repetitive peak reverse voltage	200 V	300 V	400 V	600 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA
Maximum reverse recovery time	0.035 µs	0.035 µs	0.035 µs	0.035 µs
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
