HM-H125B1-5CP1-TR40B datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM-H125B1-5CP1-TR40B

HM-H125B1-5CP1-TR40B: Description125 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size2MB，5 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric Compare View All

HM-H125B1-5CP1-TR40B Overview

125 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

HM-H125B1-5CP1-TR40B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	3M, METPAK
Board mount options	PEG
body width	0.606 inch
subject depth	0.528 inch
body length	1.963 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (5)/PALLADIUM (4)/PALLADIUM NICKEL (40) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1050VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	10000000000 Ω
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	HM
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	5u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.173 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	125
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1

Preview

Download Datasheet

View All

™

MetPak

™

HM Header

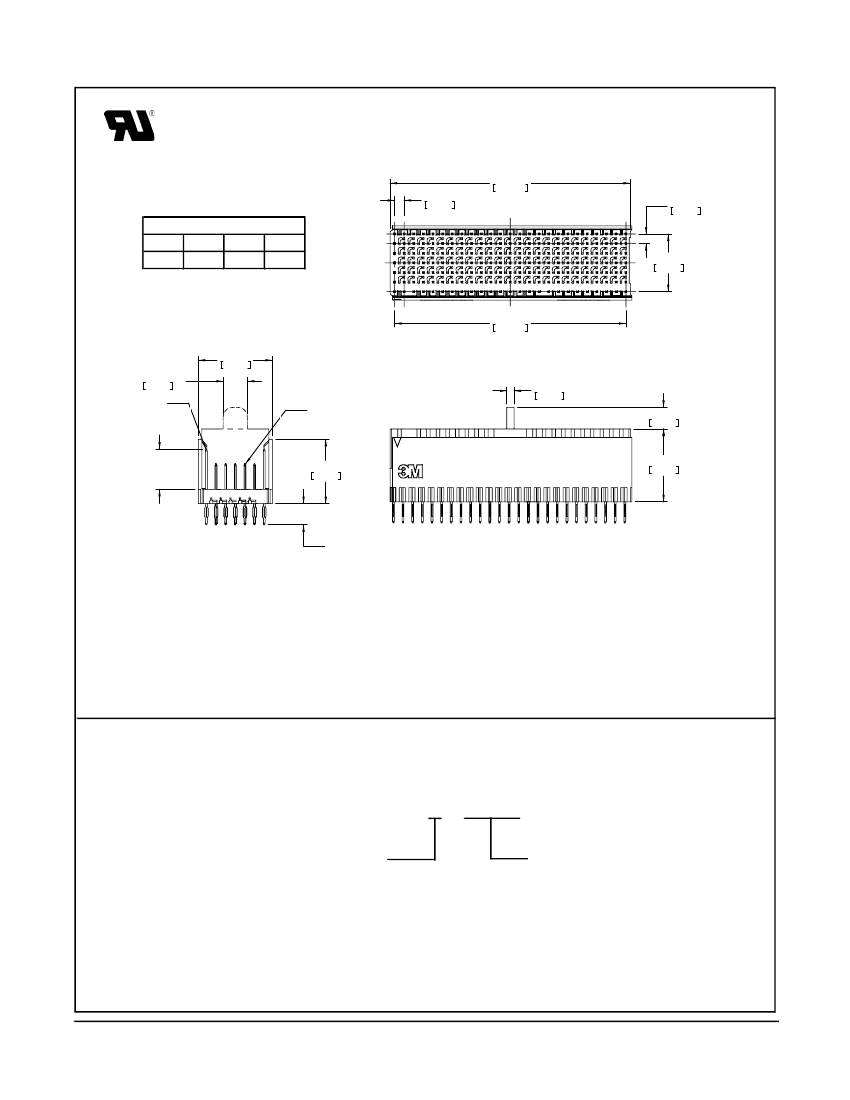

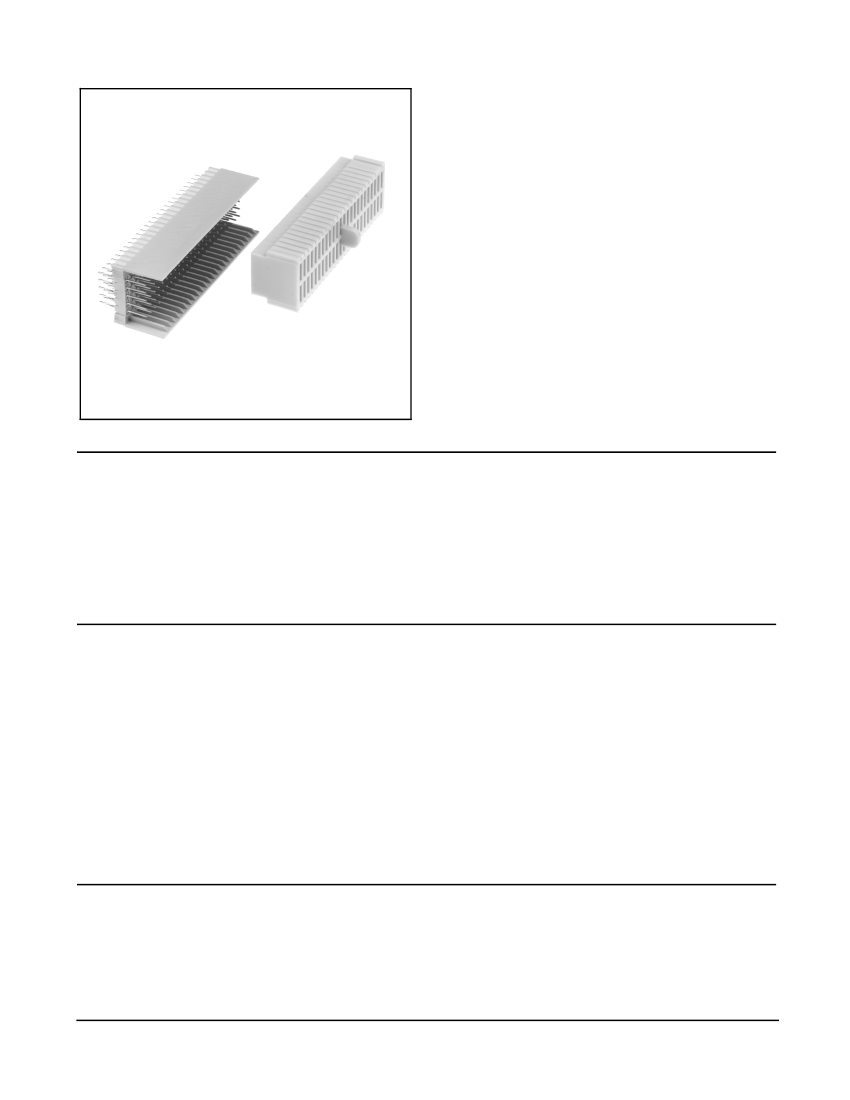

2 mm Type B25, 125/175 Contacts, 5 Row, Straight

•

HM Series

Modular/scalable format IEC 61076-4-101

Press-fit or solder tail version

63 mated lines per linear inch

Ships with protective cap, which also serves as

an insertion tool

• End-to-end stackable with 5 row 3M™

MetPak™ CP2, HM and HSHM products

• See Regulatory Information Appendix (RIA)

for chemical compliance information

Date Modified: April 2, 2007

TS-2006-02

Sheet 1 of 3

Physical

Insulation

Material:

Flammability:

Contact

Material:

Plating:

Marking:

High Temperature Thermoplastic (LCP)

UL 94V-0

Copper Alloy

See Ordering Information

3M Logo, Part Number, Revision, Date Code

Performance

Mechanical

Normal Force (Nominal):

Engagement Force (Nominal):

Separation Force (Nominal):

Wipe (Nominal, Shortest Contact):

Durability:

Application:

Electrical

Current Rating (Fully Loaded):

0.57 N [ 58 g ] Signal

0.32 N [ 33 g ] Signal

0.20 N [ 20 g ] Signal

2.67 mm [ 0.105 in. ] Signal

250 cycles with TR40B plating (Lubricated)

This module is not suitable for stand-alone use.

1 A at 70° C Signal

Insulation Resistance: 1 x 10

MΩ at 100 V

Withstanding Voltage: 750 V

RMS

Environmental

Temperature Rating:

-55°C to +125°C

Process Rating:

Maximum 260°C (per J-STD-020C)

Moisture Sensitivity Level:

1 (per J-STD-020C)

UL File No.: E68080

Interconnect Solutions

http://www.3M.com/interconnects/

Metpak is a trademark of 3M Company.

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373
