CSD-1402MC datasheet, PDF - EEWORLD Datasheet

CSD-1402MC: DescriptionSample and Hold Circuit, 1 Func, Sample, 0.1us Acquisition Time, CDIP24, METAL SEALED, CERAMIC, DDIP-24; CategoryAnalog mixed-signal IC Amplifier circuit; File Size509KB，8 Pages; ManufacturerC&D

Download Datasheet Parametric Compare View All

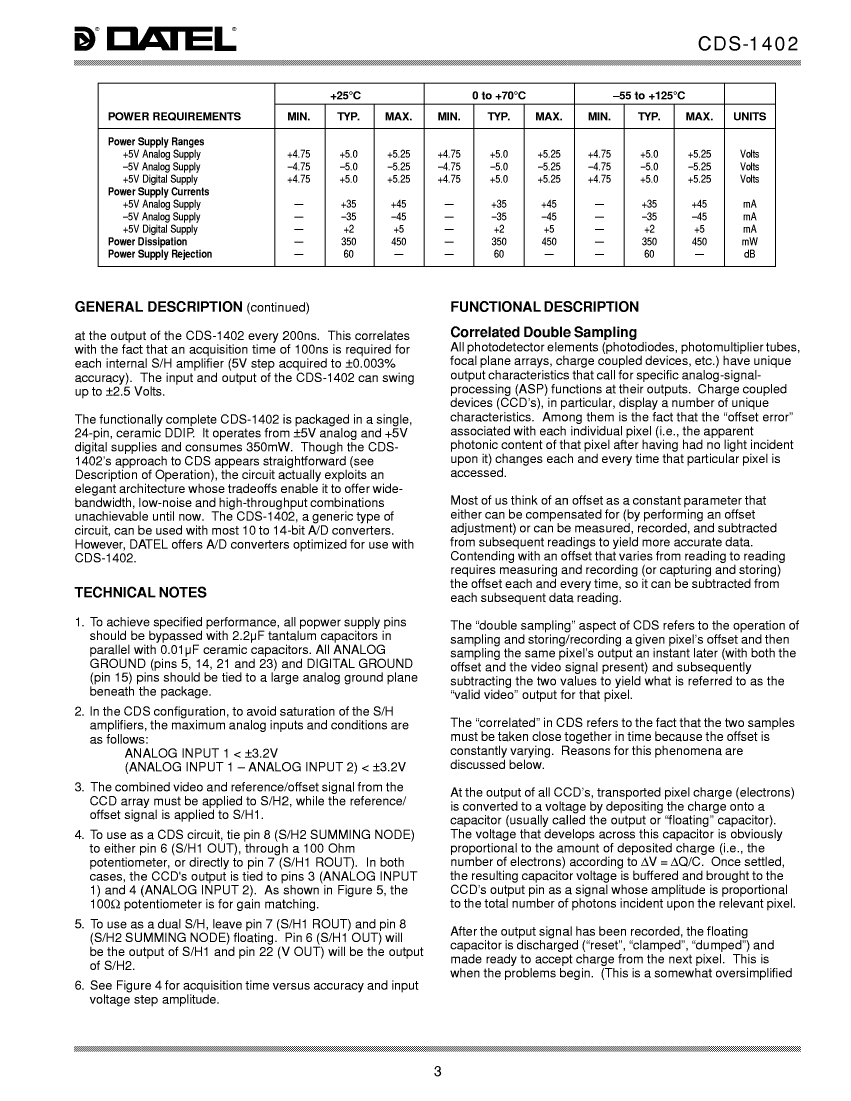

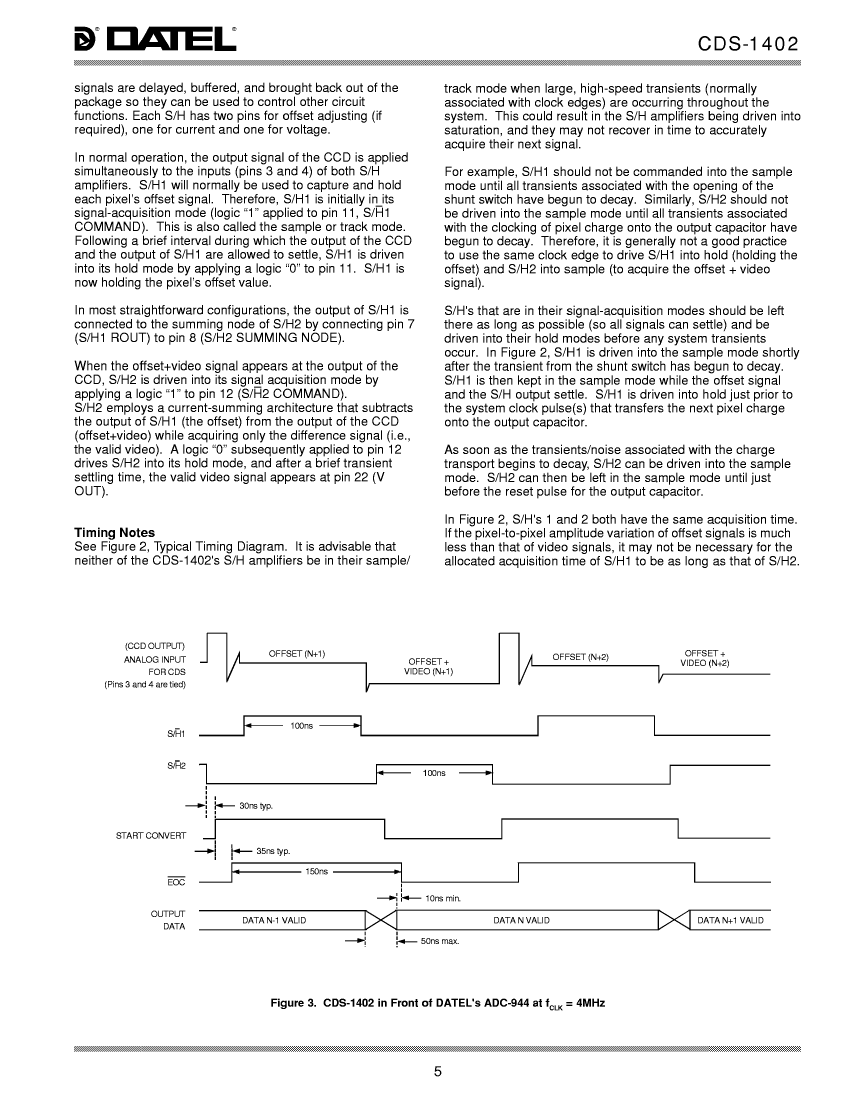

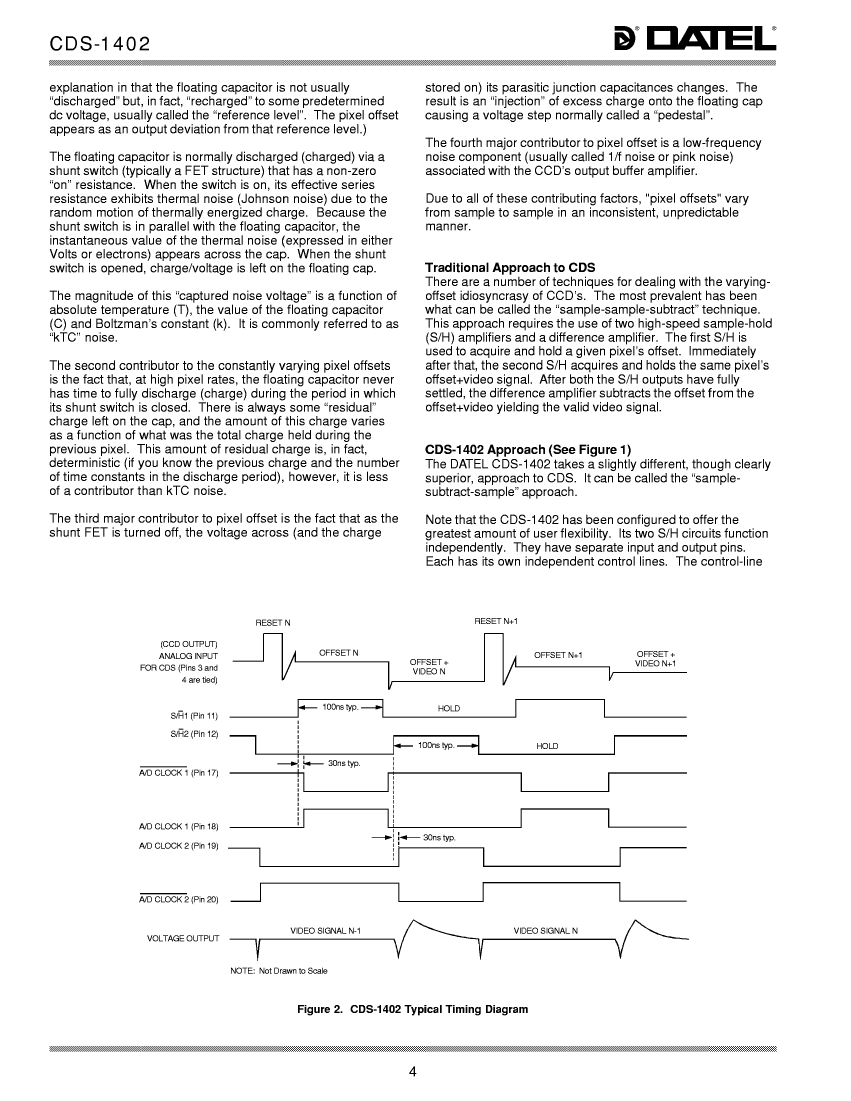

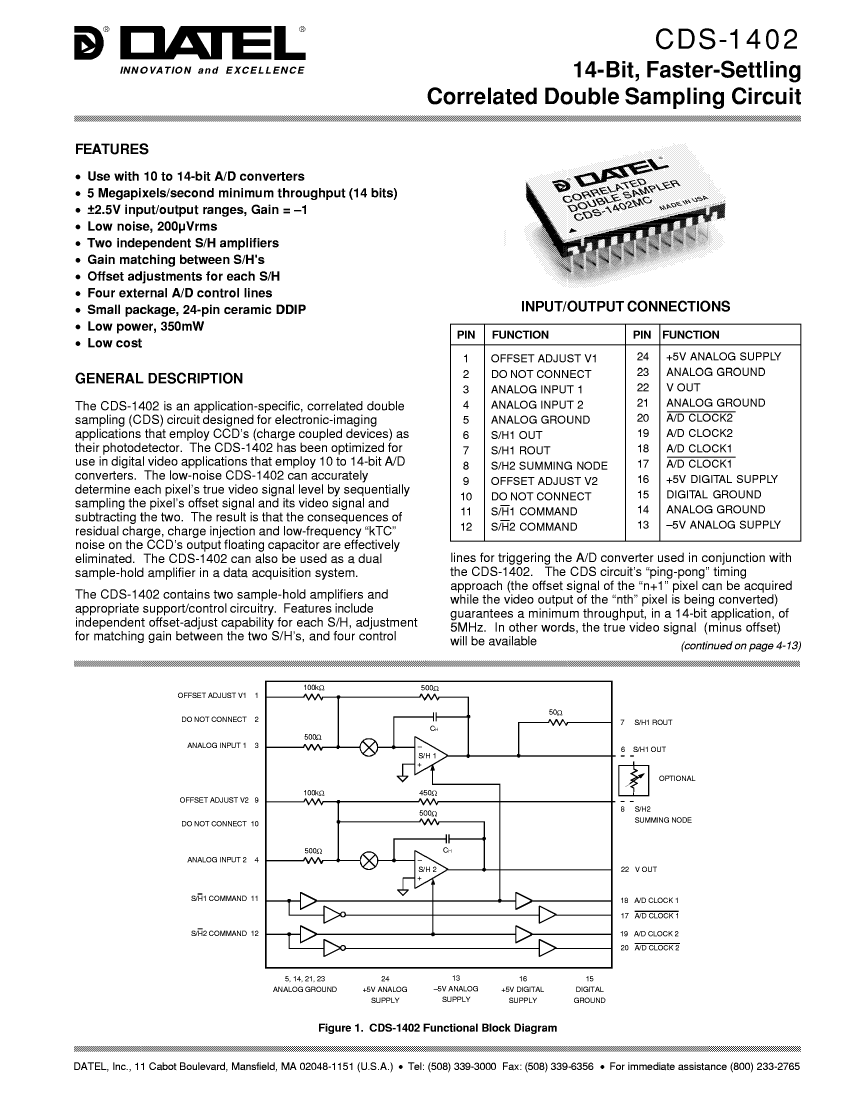

CSD-1402MC Overview

Sample and Hold Circuit, 1 Func, Sample, 0.1us Acquisition Time, CDIP24, METAL SEALED, CERAMIC, DDIP-24

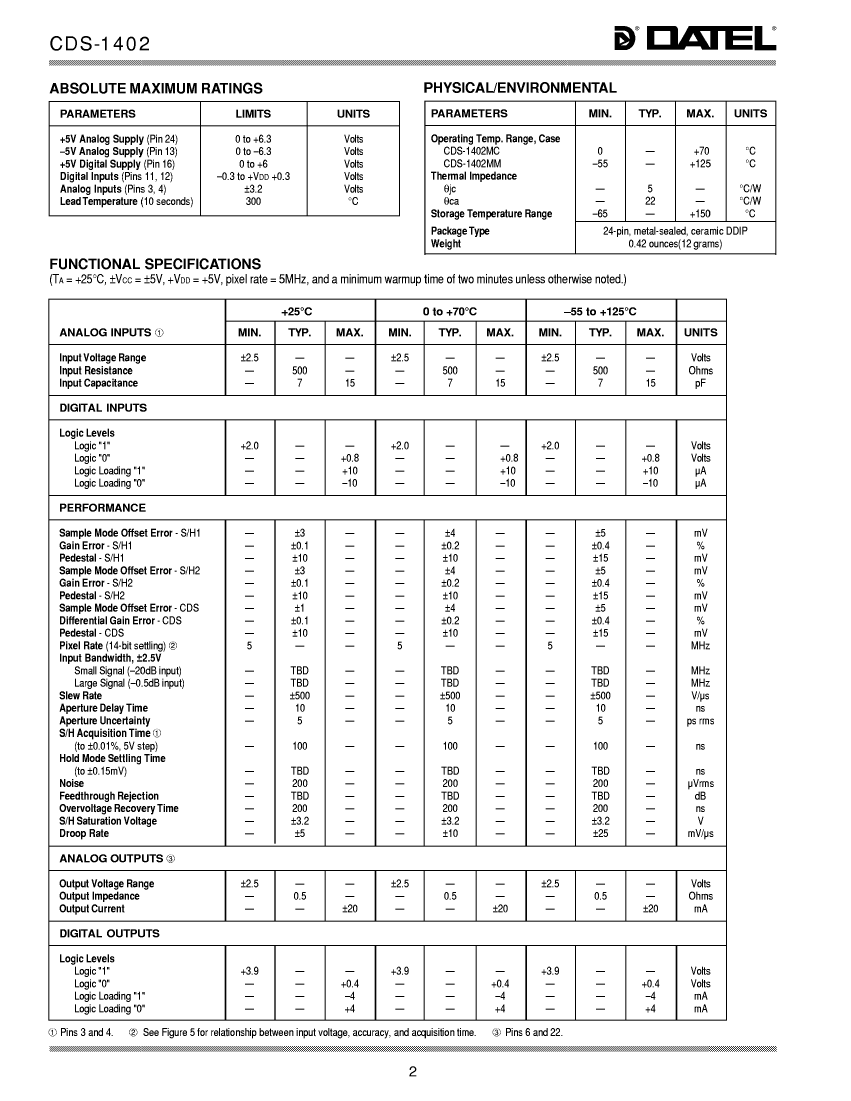

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal acquisition time	0.1 µs
Amplifier type	SAMPLE AND HOLD CIRCUIT
Minimum analog input voltage	2.5 V
JESD-30 code	R-CDIP-T24
Negative supply voltage upper limit	-6.3 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Sample and hold/Track and hold	SAMPLE
Maximum seat height	5.969 mm
Supply voltage upper limit	6.3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
Base Number Matches	1

	CSD-1402MC	CDS-1402MM
Description	Sample and Hold Circuit, 1 Func, Sample, 0.1us Acquisition Time, CDIP24, METAL SEALED, CERAMIC, DDIP-24	Sample and Hold Circuit, 1 Func, Sample, 0.1us Acquisition Time, CDIP24, METAL SEALED, CERAMIC, DDIP-24
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP,
Contacts	24	24
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Nominal acquisition time	0.1 µs	0.1 µs
Amplifier type	SAMPLE AND HOLD CIRCUIT	SAMPLE AND HOLD CIRCUIT
Minimum analog input voltage	2.5 V	2.5 V
JESD-30 code	R-CDIP-T24	R-CDIP-T24
Negative supply voltage upper limit	-6.3 V	-6.3 V
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	70 °C	125 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Sample and hold/Track and hold	SAMPLE	SAMPLE
Maximum seat height	5.969 mm	5.969 mm
Supply voltage upper limit	6.3 V	6.3 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
Temperature level	COMMERCIAL	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm
Base Number Matches	1	1
