CMP05BIGZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> CMP05BIGZ

CMP05BIGZ: DescriptionComparator, 1 Func, 2000uV Offset-Max, 92ns Response Time, BIPolar, CDIP8, MINI, HERMETIC SEALED, CERDIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size297KB，7 Pages; ManufacturerPrecision Monolithics Inc

Download Datasheet Parametric Compare View All

CMP05BIGZ Overview

Comparator, 1 Func, 2000uV Offset-Max, 92ns Response Time, BIPolar, CDIP8, MINI, HERMETIC SEALED, CERDIP-8

CMP05BIGZ Parametric

Parameter Name	Attribute value
package instruction	MINI, HERMETIC SEALED, CERDIP-8
Reach Compliance Code	unknown
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	3.8 µA
Maximum input offset voltage	2000 µV
JESD-30 code	R-GDIP-T8
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output type	TOTEM POLE
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Nominal response time	92 ns
Supply voltage upper limit	6 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

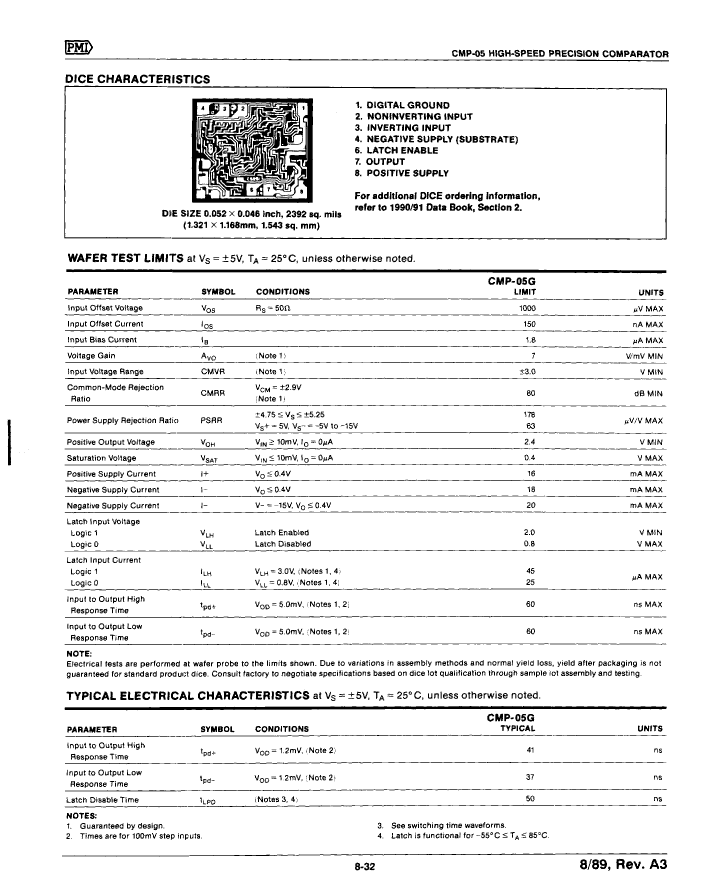

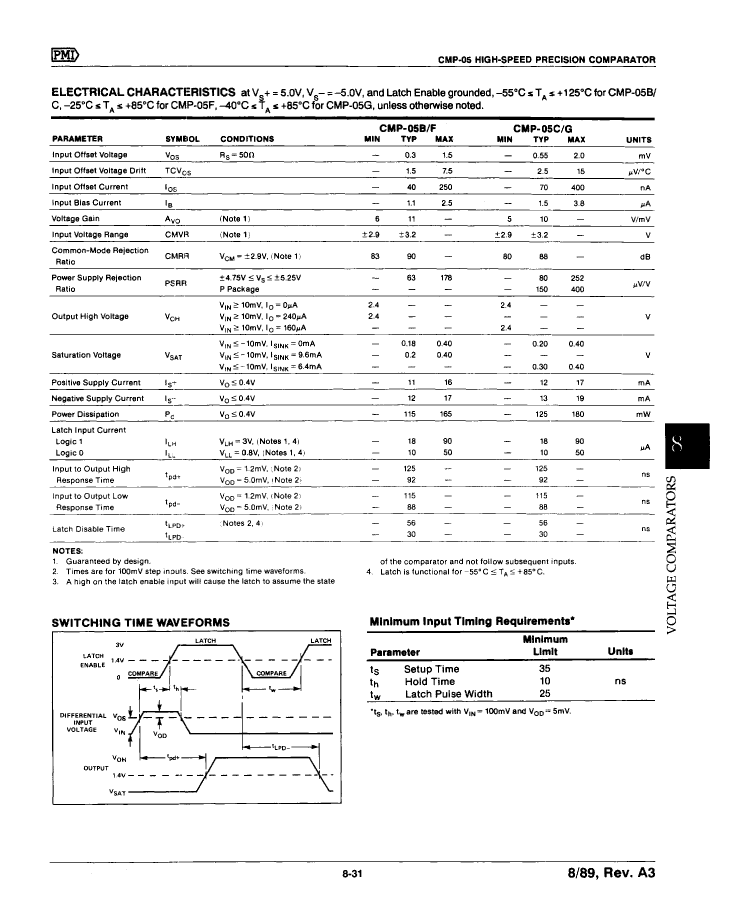

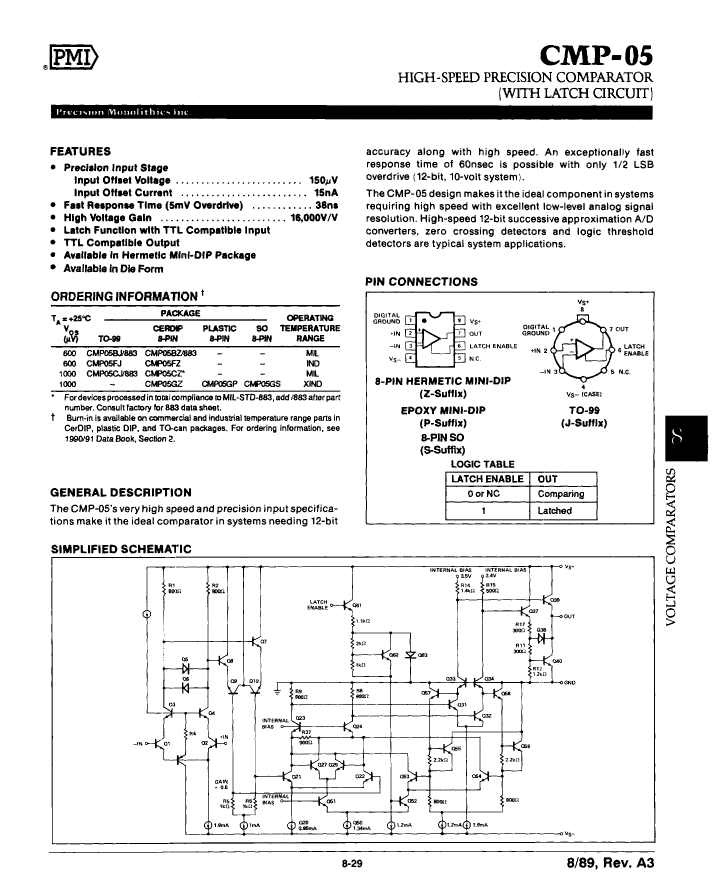

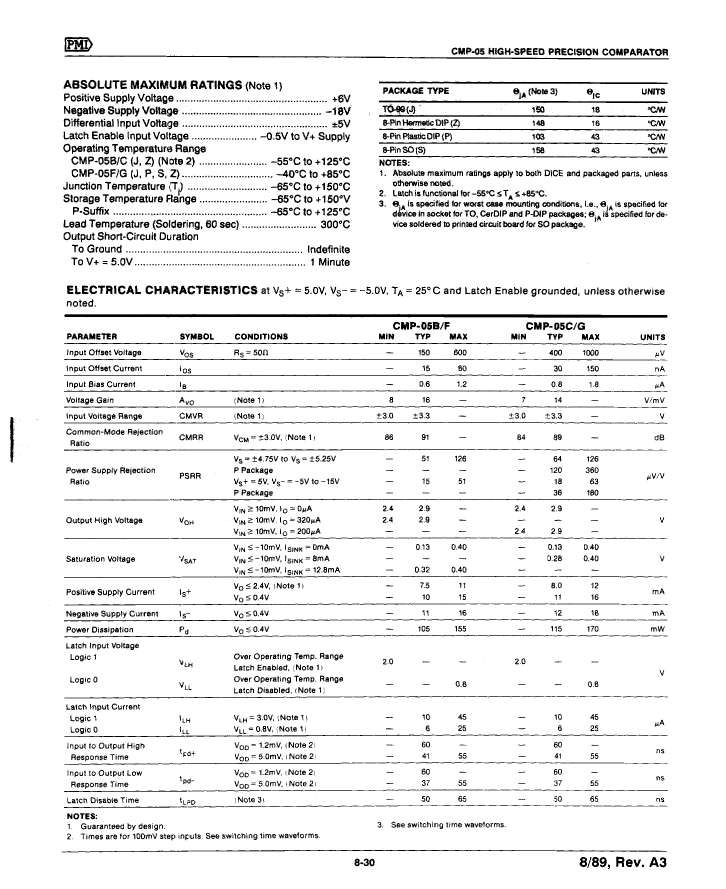

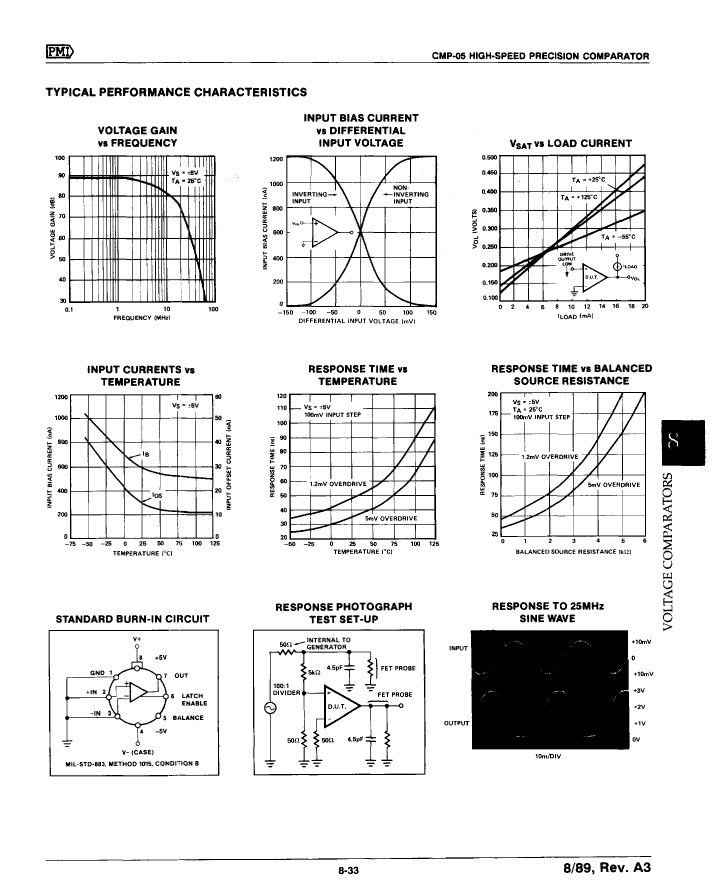

Preview

Download Datasheet

View All

CMP05BIGZ Related Products

	CMP05BIGZ	CMP05BIFJ	CMP05BIFZ	CMP-05G	CMP05GS
Description	Comparator, 1 Func, 2000uV Offset-Max, 92ns Response Time, BIPolar, CDIP8, MINI, HERMETIC SEALED, CERDIP-8	Comparator, 1 Func, 1500uV Offset-Max, 92ns Response Time, BIPolar, MBCY8, TO-99	Comparator, 1 Func, 1500uV Offset-Max, 92ns Response Time, BIPolar, CDIP8, MINI, HERMETIC SEALED, CERDIP-8	Comparator, 1 Func, 1000uV Offset-Max, 41ns Response Time, BIPolar, DIE	Comparator, 1 Func, 2000uV Offset-Max, 92ns Response Time, BIPolar, PDSO8,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	3.8 µA	2.5 µA	2.5 µA	1.8 µA	3.8 µA
Maximum input offset voltage	2000 µV	1500 µV	1500 µV	1000 µV	2000 µV
JESD-30 code	R-GDIP-T8	O-MBCY-W8	R-GDIP-T8	X-XUUC-N7	R-PDSO-G8
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V	-5 V	-5 V	-5 V
Number of functions	1	1	1	1	1
Number of terminals	8	8	8	7	8
Output type	TOTEM POLE	TOTEM POLE	TOTEM POLE	TOTEM POLE	TOTEM POLE
Package body material	CERAMIC, GLASS-SEALED	METAL	CERAMIC, GLASS-SEALED	UNSPECIFIED	PLASTIC/EPOXY
Package shape	RECTANGULAR	ROUND	RECTANGULAR	UNSPECIFIED	RECTANGULAR
Package form	IN-LINE	CYLINDRICAL	IN-LINE	UNCASED CHIP	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal response time	92 ns	92 ns	92 ns	41 ns	92 ns
Supply voltage upper limit	6 V	6 V	6 V	6 V	6 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	THROUGH-HOLE	WIRE	THROUGH-HOLE	NO LEAD	GULL WING
Terminal location	DUAL	BOTTOM	DUAL	UPPER	DUAL
package instruction	MINI, HERMETIC SEALED, CERDIP-8	TO-99	MINI, HERMETIC SEALED, CERDIP-8	DIE	-
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL
Base Number Matches	1	1	1	1	-
