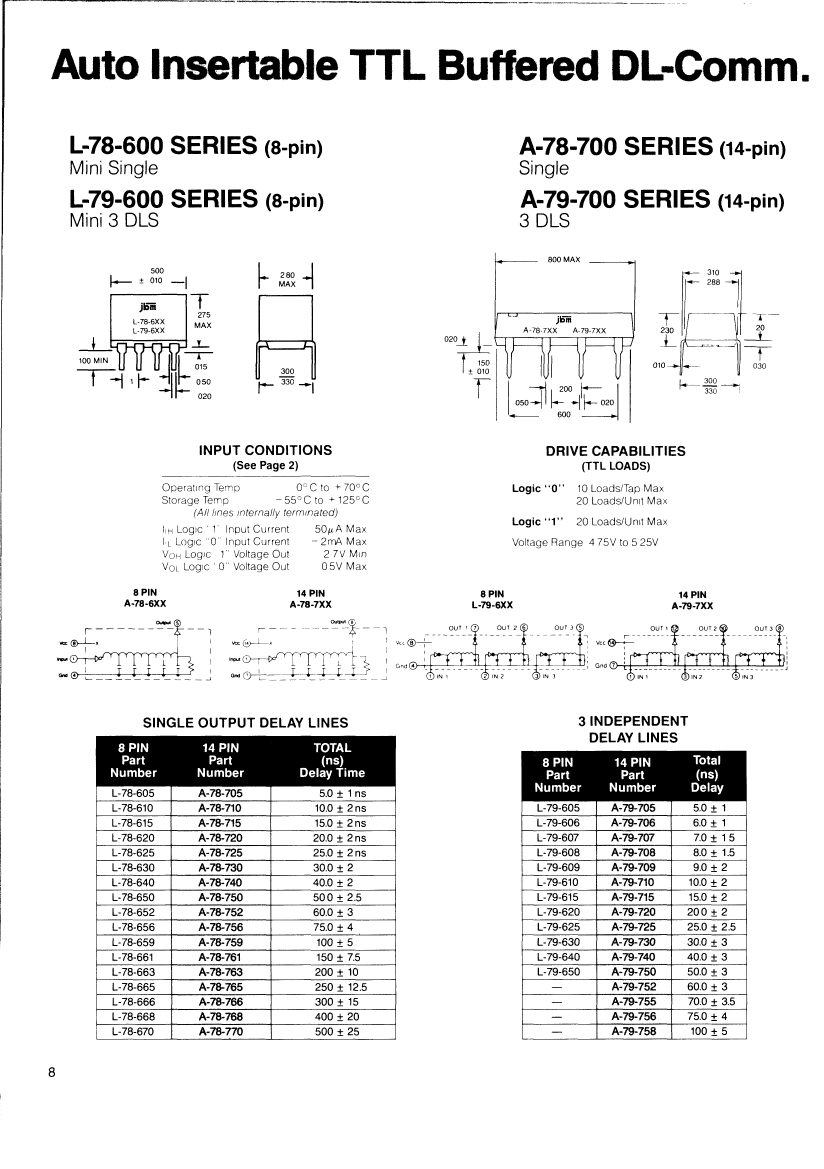

L-78-630 datasheet, PDF - EEWORLD Datasheet

L-78-630: DescriptionActive Delay Line, 1-Func, 1-Tap, Inverted Output; Categorylogic logic; File Size84KB，1 Pages; ManufacturerSIXNET; Websitehttp://www.sixnet.com/index.cfm

Download Datasheet Parametric View All

L-78-630 Overview

Active Delay Line, 1-Func, 1-Tap, Inverted Output

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T8
length	12.7 mm
Load capacitance (CL)	10 pF
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	INVERTED
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	7.366 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	30 ns
width	7.62 mm
Base Number Matches	1
