SOM9100: DescriptionVoltage Controlled Oscillator, 900MHz Min, 1400MHz Max,; CategoryPassive components oscillator; File Size189KB，3 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

SOM9100 Overview

Voltage Controlled Oscillator, 900MHz Min, 1400MHz Max,

SOM9100 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Maximum control voltage	15 V
Minimum control voltage	1 V
Modulation sensitivity	71.4 MHz/V
Installation features	THROUGH HOLE MOUNT
offset frequency	100 kHz
Maximum operating frequency	1400 MHz
Minimum operating frequency	900 MHz
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	13.8 dBm
phase noise	-112 dBc/Hz
physical size	12.7mm x 6.858mm
Nominal supply voltage	12 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

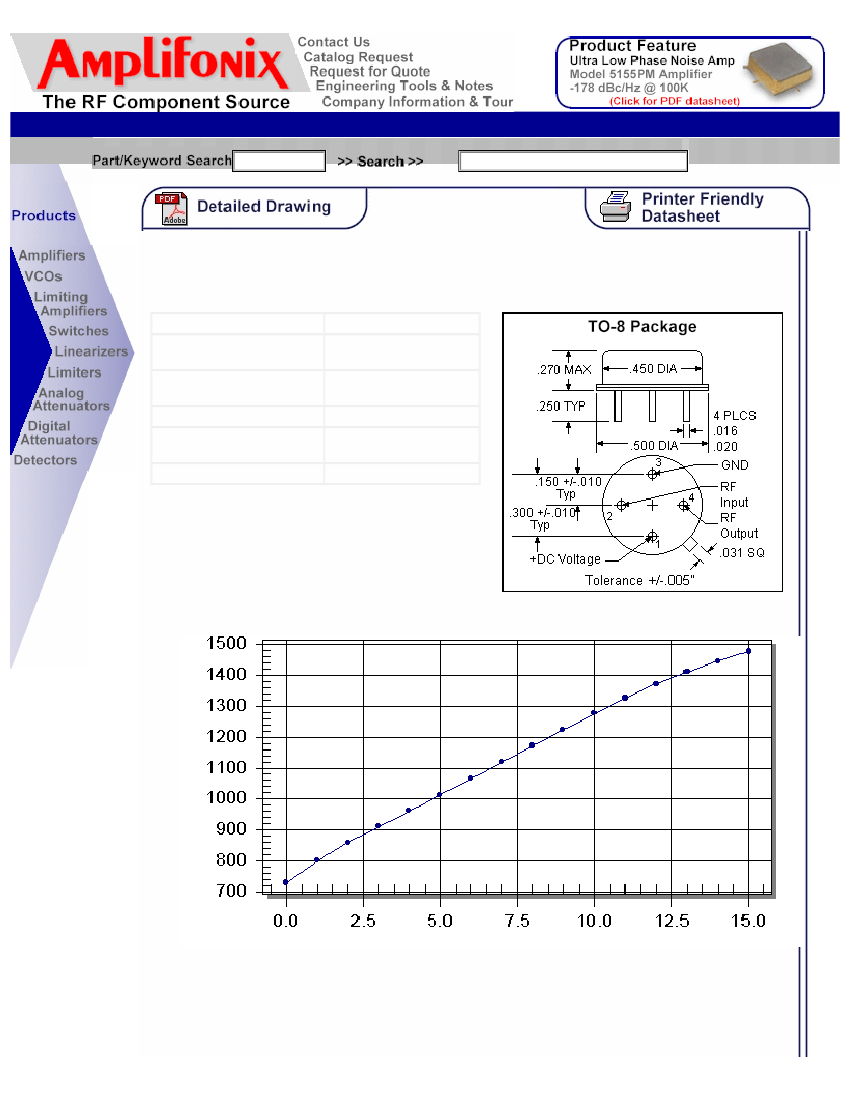

TOM9100 / SOM9100 VCO Performance Datasheet

Cross Reference Guide

TOM9100 / SOM9100*

* Part number for additional environmental screening.

Performance Data

Frequency

P

1dB

Harmonics

Phase Noise @ 100 kHz

Power Supply

Tuning Voltage

900.0 - 1400.0 MHz

13.0 dBm Typical

11.0 dBm Min

-20.0 dBC Typical

-12.0 dBC Max

-112.0 dBC/Hz Typical

12.0 Volts

22.0 mA

1.0 - 15.0 V

Package Drawing

Frequency

MHz

Tuning Voltage (V)

P

1dB

Compression Point

http://www.amplifonix.com/bin/vco_sheet.pl?Pnum=TOM9100&Pack=T4 (1 of 2) [1/24/2005 10:29:43 PM]

SOM9100 Related Products

	SOM9100
Description	Voltage Controlled Oscillator, 900MHz Min, 1400MHz Max,
Reach Compliance Code	compliant
Maximum control voltage	15 V
Minimum control voltage	1 V
Modulation sensitivity	71.4 MHz/V
Installation features	THROUGH HOLE MOUNT
offset frequency	100 kHz
Maximum operating frequency	1400 MHz
Minimum operating frequency	900 MHz
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	13.8 dBm
phase noise	-112 dBc/Hz
physical size	12.7mm x 6.858mm
Nominal supply voltage	12 V
surface mount	NO
Base Number Matches	1
