S E R I E S
R1966
ILLUMINATED ROCKER SWITCHES
SWITCHES
SPECIFICATIONS
Rating:
15A @ 125 VAC
8A @ 250 VAC-UL, CUL, CSA
6A @ 250 VAC-S, N, Fi, VDE
15,000 cycles
10,000 cycles
10 mΩ max. typical, initial @ 2-4 VDC
> 1,000 MΩ
> 1,500 volts 1 minute
> 3,000 volts between poles
-30° C to 85° C
UL, CSA, VDE, NEMKO, SEMKO, FIMKO
Mechanical Life:
Electrical Life:
Contact Resistance:
Insulation Resistance:
Dielectric Strengths:
Operating Temp:
Safety Standard Approval:
MATERIALS
Body:
Rocker:
Terminal:
Contact:
Nylon 66
Polycarbonate
Silver plated copper alloy
Coin silver, silver plated
Series
Circuit
Housing Color
Actuator Color
Marking
Termination
LED Color
R1966
See Below
BLK=Black
WHT=White
GRY=Grey
BLK=Black
WHT=White
GRY=Grey
RED=Red
ORG=Orange
BLU=Blue
A
B
C
D
E*
F
G
H
I
J
K
L
*Standard for use
with LED
F=Faston,
Quick Connect
.187 x .032
G=Faston,
Quick Connect
.187 x .020
S=Solder Lug
P=PC Pin
R=Right Angle
PC Pin
L=Left Angle
PC Pin
(R1966 “A”
Circuit Only)
RED=Red
YEL=Yellow
GRN=Green
(See Next Page
For Description)
CIRCUIT CODE:
A
C
D
E
F
G
H
I
=
=
=
=
=
=
=
=
SPST
SPDT
SPDT
SPST
SPST
SPDT
SPDT
SPDT
On-Off
On-On
On-Off-On
On-(Off)
Off-(On)
On-(On)
On-Off-(On)
(On)-Off-(On)
(
) = Momentary
EXAMPLE
R1966
A
BLK
BLK
E
F
YEL
50
Phone: 763-504-3525
Fax: 763-531-8235
www.e -switch.com
info@e-switch.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
HOW TO ORDER
S E R I E S
R1966
SWITCHES
ILLUMINATED ROCKER SWITCHES
Circuit
Code
A
E
F
Term.
Comm.
POS 1
ON
ON
OFF
2-1
POS 2
OFF
(OFF)
(ON)
OPEN
( ) = Momentary
20.8
(.819)
14.8
(.583)
SPST
Schematic
Circuit
Code
C
D
G
H
I
Term.
Comm.
POS 1
ON
ON
ON
ON
(ON)
2-1
POS 2
NONE
OFF
NONE
OFF
OFF
OPEN
POS 3
ON
ON
(ON)
(ON)
(ON)
2-3
LED
Color
RED = Red
YEL = Yellow
Forward
Volt. Typ.
Rated
Current
3.2
(.150)
12.4
(.488)
SPDT
(V
FD
)
(I
LED
)
Reverse
Intensity
Breakdown Lum. Typ.
(V
R
)
5V
5V
5V
(M
CD
)
Schematic
( ) = Momentary
2.0V
2.1V
20mA
20mA
20mA
4.0mcd
4.0mcd
4.0mcd
GRN = Green 2.2V
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

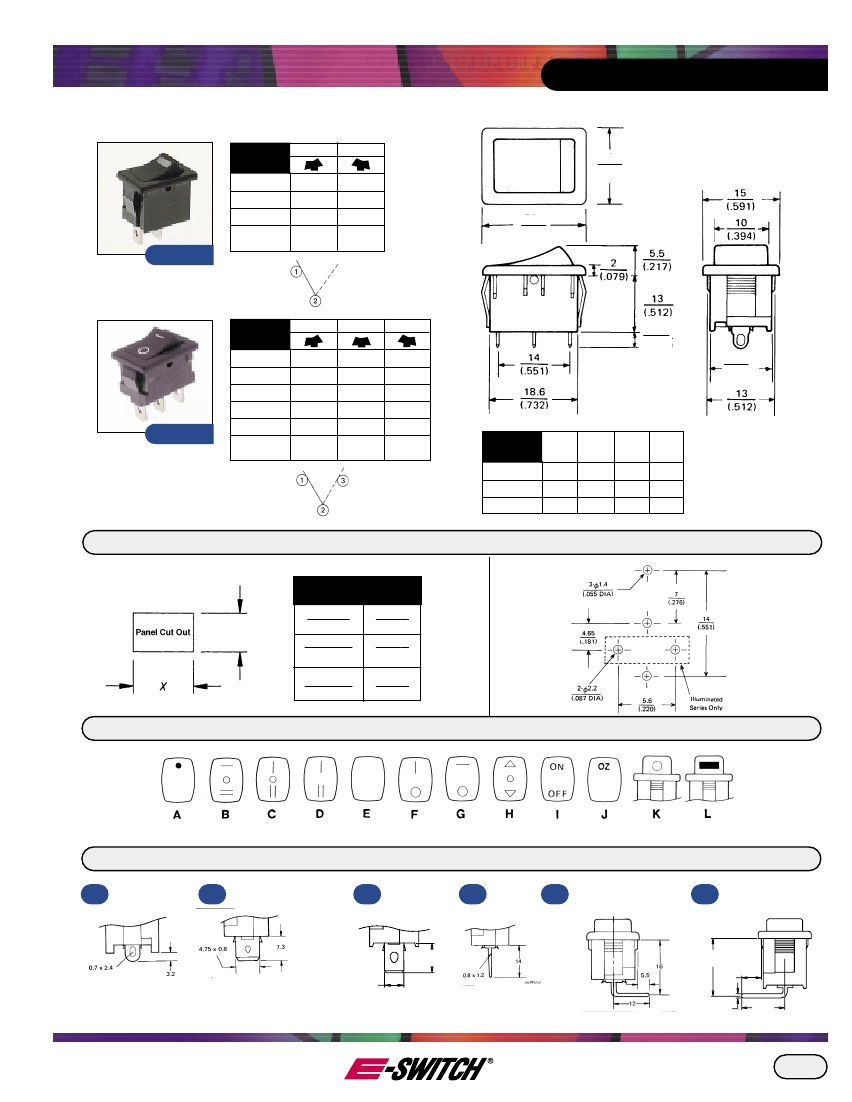

PANEL MOUNTING
Panel
Thickness
13.0±.1mm
(.508)
.75 - 1.25
(.030)-(.049)
1.25 - 2.00
(.049)-(.079)
2.00 - 3.00
(.079)-(.118)
mm
(inch)
19.2±.1
(.756)
19.4±.1
(.764)
19.8±.1
(.780)
P.C. MOUNTING
MARKING OPTIONS
* ‘E’ Marking standard for all LED versions.
TERMINATION OPTIONS
S
Solder Lug
F
Faston
G
Faston
P
PC Pin
R
Right Angle PC Pin
L
Left Angle PC Pin
7.30
[.287
0.81 (.032) THK terminals designed
.75 x 0.75
187 x.020]
for Quick Connect connectors
available from AMP Industries,
Harrisburg, PA 17105.
(Or equivalent).
16.10
[.634]
5.50
[.216]
1.20
[.047]
12.00
[.472]
Phone: 763-504-3525
Fax: 763-531-8235
www.e -switch.com
info@e-switch.com
51
