5mm x 10mm LIGHT BAR
Part Number: L-835/2SURDTK
Hyper Red
Features
Uniform light emitting area.
Easily mounted on P.C. boards or industry standard
sockets.
Flush mountable.
Excellent on/off contrast.
Can be used with panels and legend mounts.
Mechanically rugged.
Bottom surface of epoxy is not flat.
RoHS compliant.
Description
The Hyper Red source color devices are made with Al-
GaInP on GaAs substrate Light Emitting Diode.

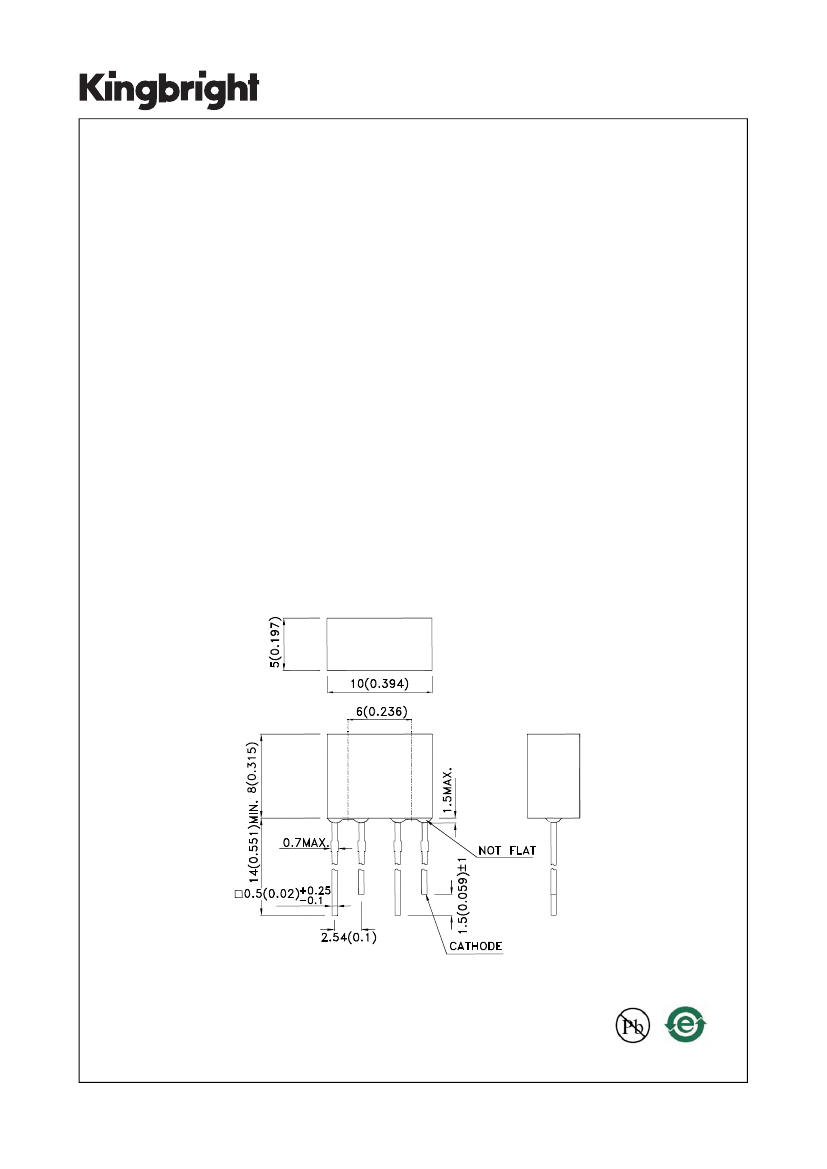

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAK2956
APPROVED: WYNEC
REV NO: V.3A
CHECKED: Allen Liu
DATE: APR/06/2013
DRAWN: Y.Liu
PAGE: 1 OF 6
ERP: 1101007760
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
L-835/2SURDTK
Hyper Red (AlGaInP)
Red Diffused
80
*20
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
*Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Viewing
Angle [1]
2θ1/2
120
°
Typ.
250
*80
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Typ.
645
630
28
35
1.95
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Hyper Red
75
30
185
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAK2956
APPROVED: WYNEC
REV NO: V.3A
CHECKED: Allen Liu
DATE: APR/06/2013
DRAWN: Y.Liu
PAGE: 2 OF 6
ERP: 1101007760

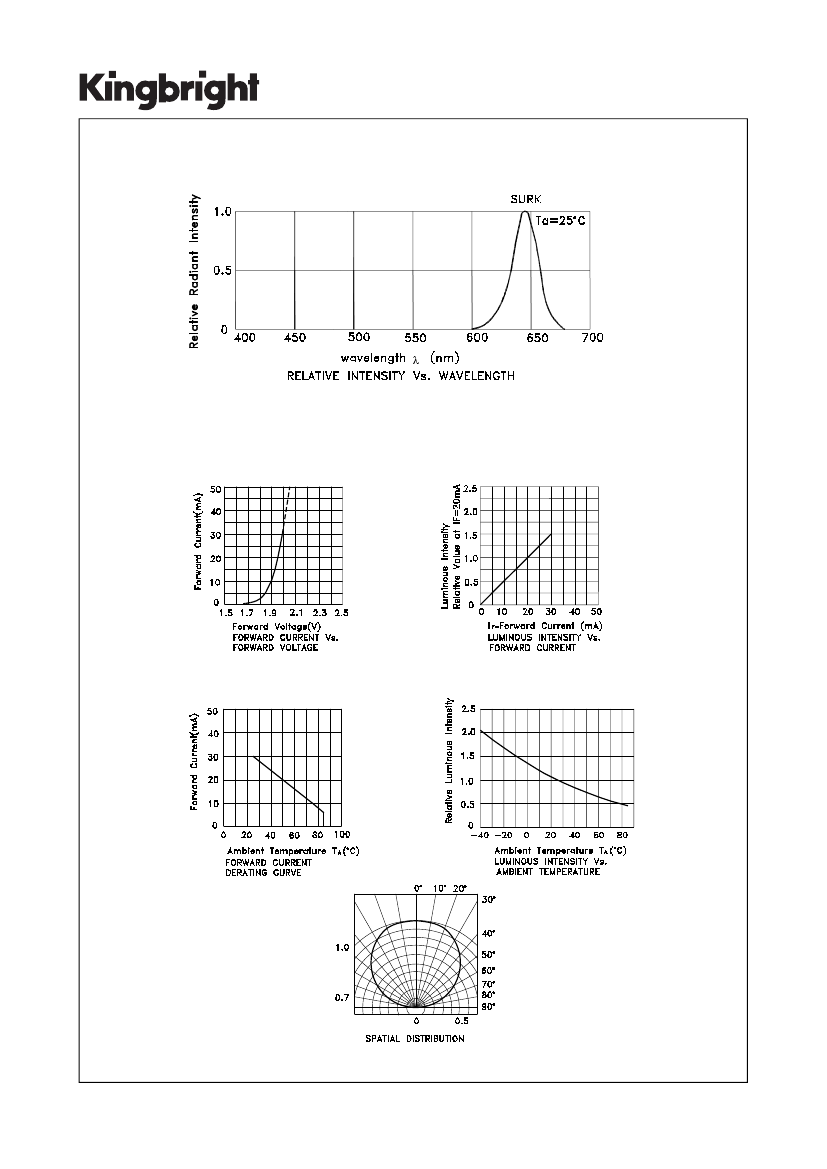

Hyper Red
L-835/2SURDTK
SPEC NO: DSAK2956
APPROVED: WYNEC
REV NO: V.3A
CHECKED: Allen Liu
DATE: APR/06/2013
DRAWN: Y.Liu
PAGE: 3 OF 6
ERP: 1101007760

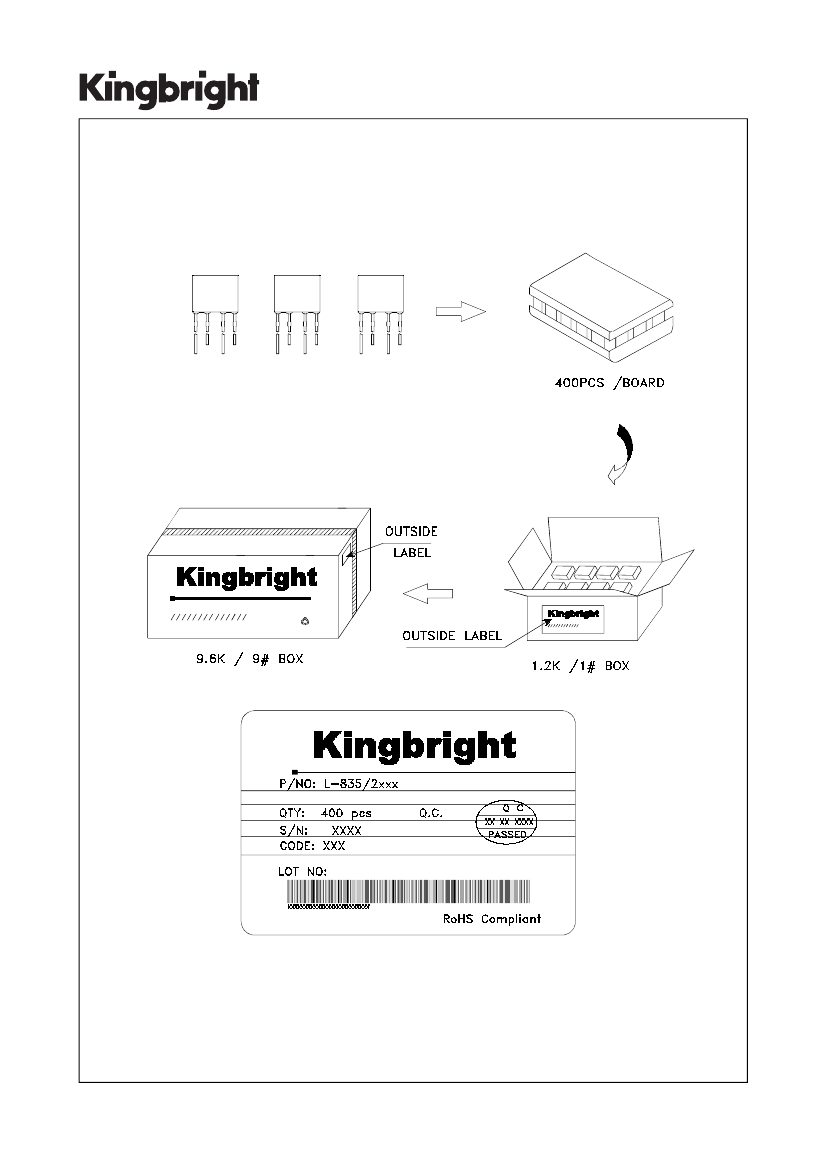

PACKING & LABEL SPECIFICATIONS
L-835/2SURDTK
SPEC NO: DSAK2956
APPROVED: WYNEC
REV NO: V.3A
CHECKED: Allen Liu
DATE: APR/06/2013
DRAWN: Y.Liu
PAGE: 4 OF 6
ERP: 1101007760

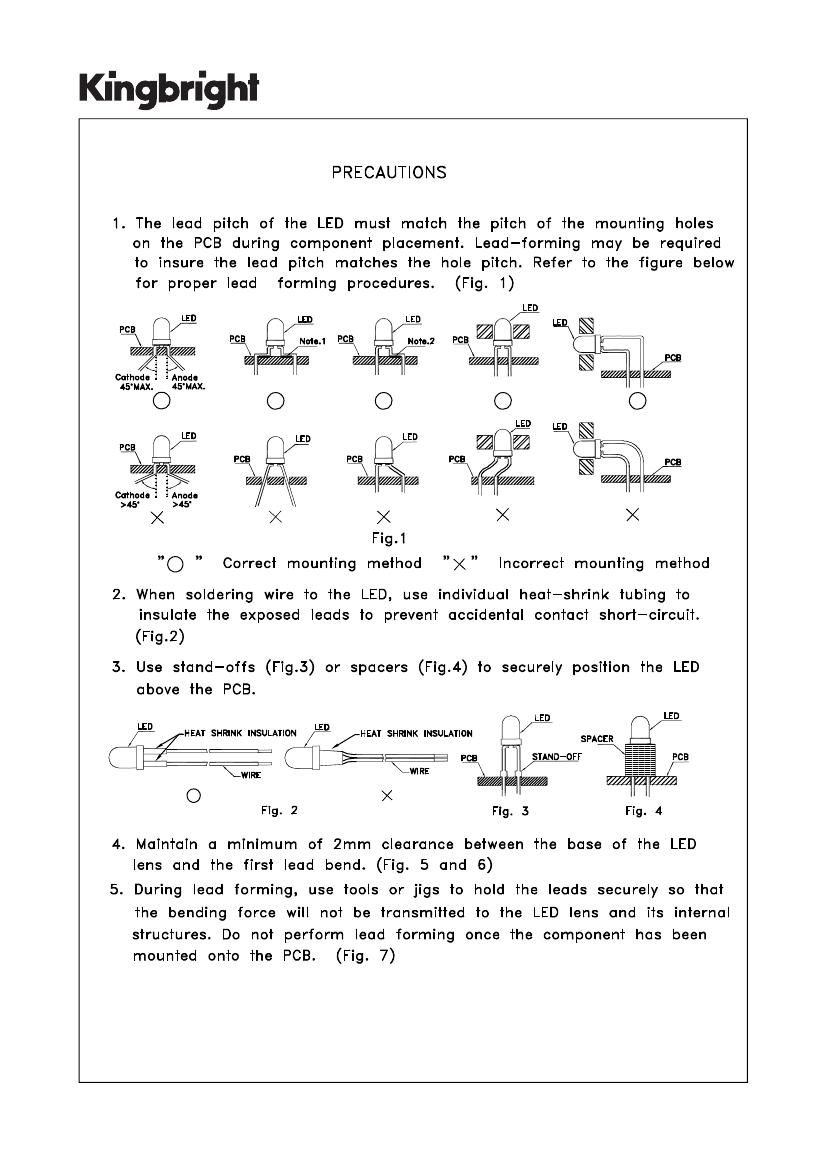

SPEC NO: DSAK2956
APPROVED: WYNEC
REV NO: V.3A
CHECKED: Allen Liu
DATE: APR/06/2013
DRAWN: Y.Liu
PAGE: 5 OF 6
ERP: 1101007760
