LANC2412UW8-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LANC2412UW8-S

LANC2412UW8-S: Description1-OUTPUT 8W DC-DC REG PWR SUPPLY MODULE, ROHS COMPLIANT, PLASTIC, SMT-24; CategoryPower/power management The power supply circuit; File Size243KB，3 Pages; ManufacturerWall Industries,Inc.; Websitehttps://www.wallindustries.com/

Download Datasheet Parametric View All

LANC2412UW8-S Overview

1-OUTPUT 8W DC-DC REG PWR SUPPLY MODULE, ROHS COMPLIANT, PLASTIC, SMT-24

LANC2412UW8-S Parametric

Parameter Name	Attribute value
Parts packaging code	MODULE
package instruction	ROHS COMPLIANT, PLASTIC, SMT-24
Contacts	24
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	9 V
Nominal input voltage	24 V
JESD-30 code	R-PDMA-N24
length	32 mm
Maximum load regulation	1%
Number of functions	1
Output times	1
Number of terminals	24
Maximum operating temperature	81 °C
Minimum operating temperature	-40 °C
Maximum output voltage	12.12 V
Minimum output voltage	11.88 V
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum seat height	11.7 mm
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	NO LEAD
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum total power output	8 W
Fine-tuning/adjustable output	NO
width	20.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

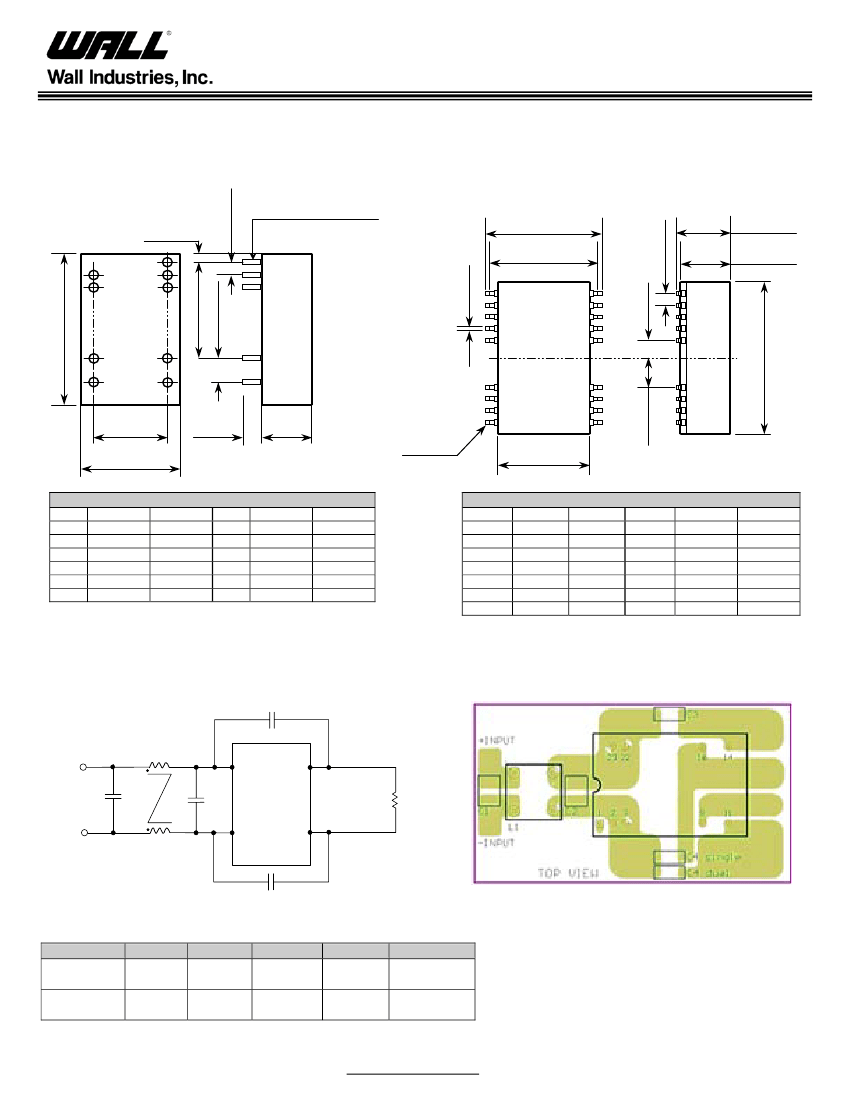

LANC8UW Ultra Wide Series

Single and Dual Output

8 Watt DC/DC Converter

4:1 Ultra Wide Input Voltage

FEATURES

APPLICATIONS

●

Measurement

●

8 Watts Output Power

●

Wireless Network

●

High Efficiency up to 88%

●

Telecom/Datacom

●

Output Current up to 2.4A

●

Industry Control System

●

Five-Sided Continuous Shield

●

Semiconductor Equipment

●

4:1 Ultra Wide Input Voltage Range

●

Fixed Switching Frequency (300KHz)

●

Standard 1.25 x 0.8 x 0.4 Inch Package

●

ISO9001 Certified Manufacturing Facilities

●

Compliant to RoHS EU Directive 2002/95/EC

●

Standard 24 Pin DIP Package & SMT Type Package

SPECIFICATIONS:

LANC8UW Ultra Wide Series

All specifications apply @ 25°C ambient unless otherwise noted

INPUT SPECIFICATIONS

Input Voltage Range ............ 24V nominal input .......................... 9-36VDC

48V nominal input ........................ 18-75VDC

Input Filter ....................................................................................... Pi Type

Input Voltage Variation..................... dv/dt ................................ 5V/ms max

Complies with ETS300 132 part 4.4)

Input Surge Voltage (100ms max) …… 24V input ...........................50VDC

48V input .........................100VDC

Input Reflected Ripple Current (nominal Vin and full load) ...........20mAp-p

Start Up Time (nominal Vin and constant resistive load) ...........450ms typ.

Start Up Voltage................... 24V ......................................................9VDC

48V ....................................................18VDC

Shutdown Voltage................ 24V ......................................................8VDC

48V ....................................................16VDC

Remote ON/OFF (See Note 6)

DC-DC ON .............Open or 3.5V < Vr < 12V

DC-DC OFF .............Short or 0V < Vr < 1.2V

Input Current of Remote Control Pin (nominal Vin) ........ -0.5mA ~ +0.5mA

Remote Off State Input Current (nominal Vin) ..................................2.5mA

PROTECTION SPECIFICATIONS

Over Voltage Protection (single output) ........... 3.3V Output................. 3.9V

5.0V Output................. 6.2V

12V Output................... 15V

15V Output................... 18V

Over Load Protection (% of full load at nominal input) ................. 150% typ.

Short Circuit Protection...............................Continuous, automatic recovery

GENERAL SPECIFICATIONS

Efficiency ........................................................................................see table

Switching Frequency .................................................................300KHz typ.

Isolation Voltage

Input to Output ............................................................... 1600VDC min.

Input (Output) to Case (DIP).......................................... 1600VDC min.

Input (Output) to Case (SMT) ........................................ 1000VDC min.

Isolation Resistance ...............................................................10 ohms min.

Isolation Capacitance ............................................................. 1500pF max.

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature

Vo = 5V, 12V, 15V, ±12V, ±15V .............. -40°C to +81°C (w/o derating)

+81°C to 105°C (w/ derating)

Vo = 3.3, ±5V............................................. -40°C to +74°C (w/o derating)

+74° to +105°C (w/ derating)

Storage Temperature .......................................................... -55°C ~ +125°C

Maximum Case Temperature ............................................................. 105°C

Relative Humidity (non-condensing) .....................................5% to 95% RH

Thermal Impedance (Natural Convection) ................................. 20°C / Watt

Thermal Shock .................................................................... MIL-STD-810D

Vibration ................................10~55Hz, 10G, 30 minutes along X, Y, and Z

MTBF (See Note 1) ........BELLCORE-TR-NWT-000332 ....... 2.35 x 10 hrs

MIL-STD-217F ............................. 1.078 x 10 hrs

OUTPUT SPECIFICATIONS

Output Voltage ..............................................................................see table

Voltage Accuracy (nominal Vin and full load) ...................................... ±1%

Output Current ..............................................................................see table

Output Power .......................................................................... 8 watts max.

Line Regulation (LL to HL at FL)....................................................... ±0.2%

Load Regulation (no load to full load) ...... Single Output (DIP) ....... ±0.5%

Single Output (SMT).......... ±1%

Dual Output (SMT, DIP) .... ±1%

Cross Regulation (Dual) (Asymmetrical load 25% / 100% FL) ............ ±5%

Minimum Load ....................................................................................... 0%

Ripple/Noise (20 MHz BW) ...........................................................50mVp-p

Temperature Coefficient ................................................. ±0.02% / °C max.

Transient Response Recovery Time (25% load step) ...................... 250us

PHYSICAL SPECIFICATIONS

Weight ..................................................................................... 18g (0.63 oz)

Dimensions................... 1.25 x 0.80 x 0.40 inches (31.8 x 20.3 x 10.2 mm)

Case Material ..............................................................Nickel-coated copper

Base Material...................................................Non-conductive black plastic

Potting material..................................................................Epoxy (UL94-V0)

Shielding..................................................................................... five – sided

Due to advances in technology, specifications subject to change without notice

Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833

603-778-2300 www.wallindustries.com Fax 603-778-9797
