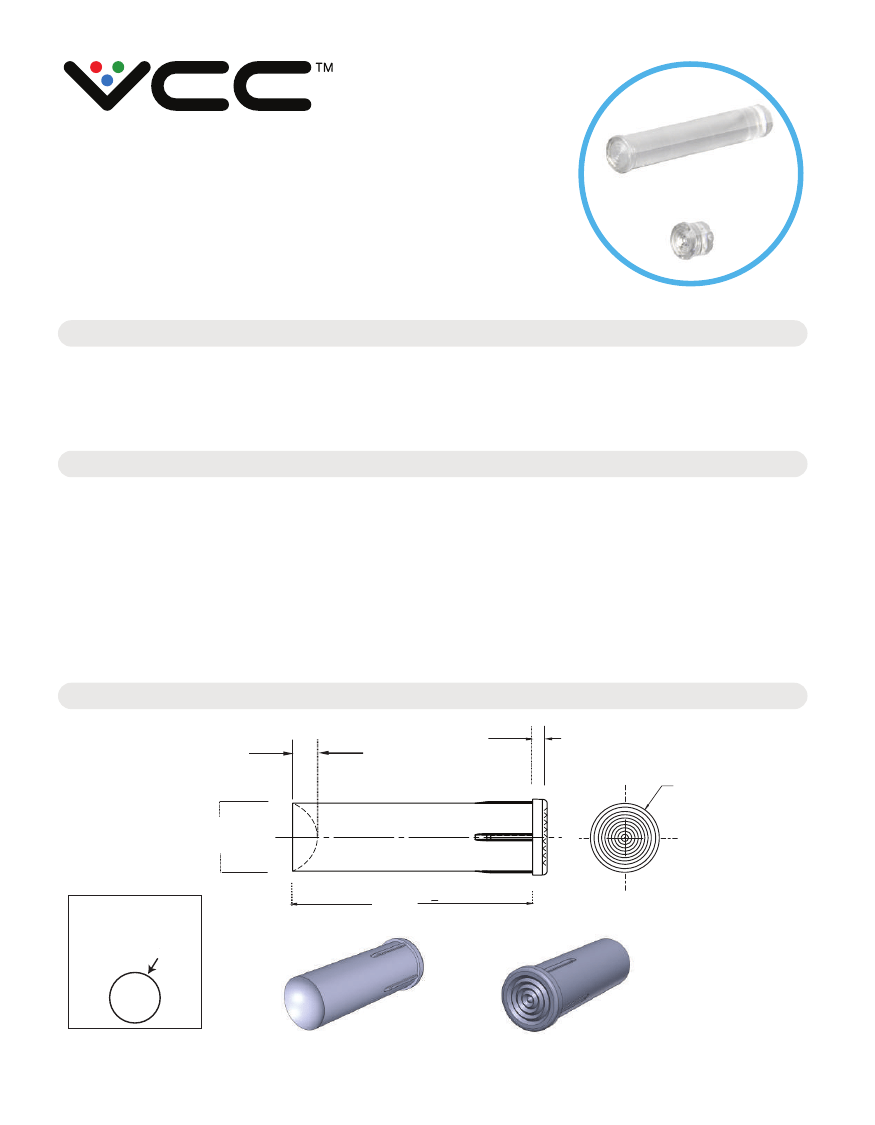

LPCR Series 0.171” (4.34mm)
Press Fit, Low Profile, Fresnel Lens
Vertical Rigid Light Pipe
Applications
•
•
•
•
audio/video
communication
dark room equipment
electrical panels
•
•
•
•
entertainment
industrial
medical
IoT
LPCR Series litepipe
TM
features fresnel lens round
surface for super wide viewing angle at 160 degrees
•
•
•
security
studio control
transportation
Key Features
•
for use with surface-mount or through-hole
•
press fit (front panel mount) with crushable ribs
•
•
•
•
LEDs
optical grade polycarbonate for maximum
light transmission
low profile, flush panel design
wide viewing angle at 160 degrees
fresnel lens provides more uniform
brightness
•
•
•
•
that simplifies installation
no physical connection between light pipe and
LED provides versatility for assembly
standard lengths from 0.125” to 1.000”
custom lengths available
RTN_150 and RTN_250 retainers provide a reliable
solution for high-vibration environments (optional)
Dimensions
0.151± 0.005
[1.3 ± 0.13]
0.030± 0.005
[0.8 ± 0.13]
Ø
0.190
[Ø 4.826]
+ 0.001
Ø0.170 - 0.004
[Ø4.32
mounting hole size
+ 0.002
Ø0.171
- 0.0
+ 0.05
[Ø4.34
- 0.00
+ 0.03
- 0.10
]
LENGTH±0.012 [+0.30]
“SEE ORDERING DATA”
]
Dimensions in inches [mm]
your first call for illuminated components
www.vcclite.com
1
1.800.522.5546
10/17 Rev 1

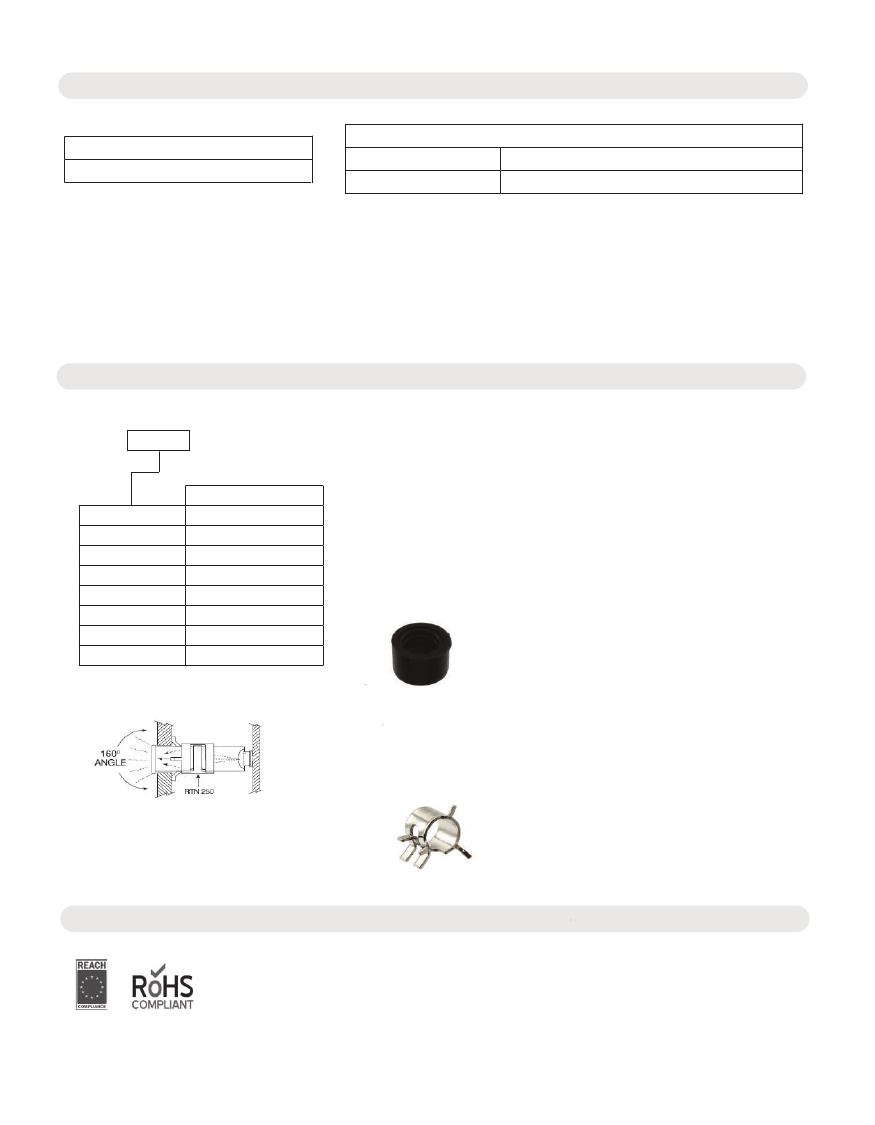

Product Specifications
Material
Polycarbonate, clear, UL 94-V0
Recommended Installation Specifications
mounting hole
0.171” + 0.002” (4.34mm + 0.05mm)
panel thickness
0.040” (1.02mm) to 0.093”(2.36mm)
Recommendation: Maximum (clearance) between LED and light pipe:
• 0.050” [1.3mm]
Ordering Data and Optional Accessory
LPCR
012
025
035
037
050
063
075
100
CTP
Length
0.125” (3.2mm)
0.250” (6.4mm)
0.350” (8.9mm)
0.375” (9.5mm)
0.500” (12.7mm)
0.625” (15.9mm)
0.750” (19.0mm)
1.000” (25.4mm)
Retainers for Light Pipe (order separately):
• recommended for high vibration applications
• secure and uniform placement of the light pipe
to the panel
• field-proven design
Length from 0.250” to 0.500”
Grommet for LPCR Series Light Pipe
RTN_150
RTN_250
Length from 0.500” to 1.000”
Spring retainer for LPCR Series Light Pipe
Compliances and Approvals
your first call for illuminated components
www.vcclite.com
2
1.800.522.5546
10/17 Rev 1
