DVMC28 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> DVMC28

DVMC28: DescriptionData Line Filter, 1 Function(s), 28V, 4A, WELDED, HERMATIC PACKAGE-5; CategoryAnalog mixed-signal IC filter; File Size494KB，13 Pages; ManufacturerVPT Inc

Download Datasheet Parametric Compare View All

DVMC28 Overview

Data Line Filter, 1 Function(s), 28V, 4A, WELDED, HERMATIC PACKAGE-5

DVMC28 Parametric

Parameter Name	Attribute value
package instruction	WELDED, HERMATIC PACKAGE-5
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum attenuation frequency	0.5 MHz
Attenuation at maximum frequency	40 dB
Maximum DC resistance	0.15 Ω
filter type	DATA LINE FILTER
high	10.59 mm
JESD-609 code	e3
length	53.98 mm
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
physical size	L53.98XB28.58XH10.59 (mm)/L2.125XB1.125XH0.417 (inch)
Rated current	4 A
Rated voltage	28 V
Terminal surface	TIN
width	28.58 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DVMC28 Series

HIGH RELIABILITY HYBRID

EMI FILTERS

DESCRIPTION

The DVMC series of hybrid EMI filters is operable

over the full military (-55 °C to +125 °C) temperature

range with no power derating. The DVMC EMI filter

is designed to filter conducted emissions of two

DVTR or one DVFL series DC-DC converters.

These filters are designed and manufactured in a

facility qualified to ISO9001 and certified to MIL-

PRF-38534 and MIL-STD-883.

This product may incorporate one or more of the

following U.S. patents:

5,784,266

5,790,389

5,963,438

5,999,433

6,005,780

6,084,792

6,118,673

FEATURES



High Reliability

Wide Input Voltage Range: 0 to 50 Volts per

MIL-STD-704

Up to 4.0 Amp Maximum Current

40 dB Minimum Attenuation at 500 kHz

Industry Standard Pinout

High Input Transient Voltage: 80 Volts for 1 sec

per MIL-STD-704A

Precision Seam Welded or Solder Seal

Hermetic Package

Custom Versions Available

Additional Environmental Screening Available

Meets MIL-STD-461C and MIL-STD-461D EMC

Requirements

Protects Against Conducted Susceptibility

Specified in MIL-STD-461C, CS01 and CS02

Flanged and Non-flanged Versions Available

MIL-PRF-38534 Element Evaluated

Components

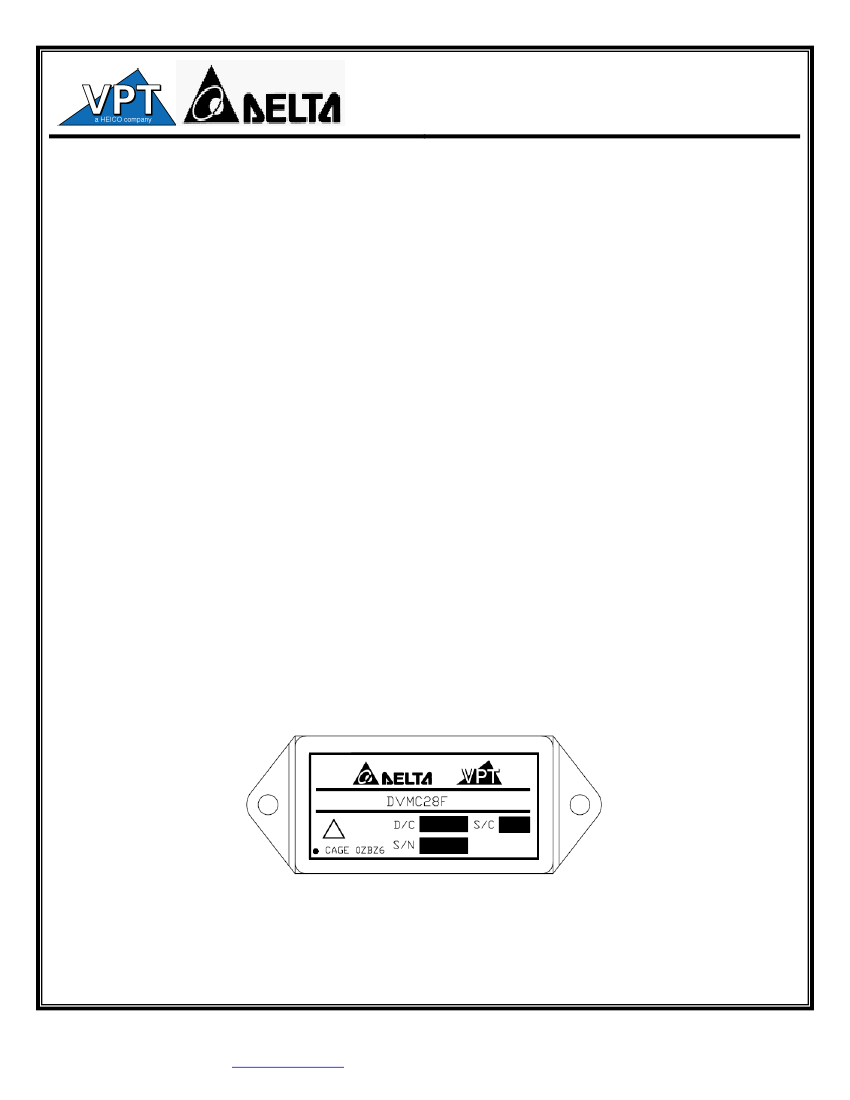

Figure 1

– DVMC28 / DVMC28F EMI Filter

(Exact

marking may differ from that shown)

DS1X015-2.0

11314 4th Avenue

West, Suite 206

Everett, WA 98204

http://www.vpt-inc.com

Sales Information:

Phone: (425) 353-3010

Fax: (425) 353-4030

E-mail: vptsales@vpt-inc.com

DVMC28 Related Products

	DVMC28	DVMC28/H	DVMC28/K	DVMC28/ES	DVMC28F/HB	DVMC28F/K	DVMC28F/ES	DVMC28/HB	DVMC28F/H	DVMC28F
Description	Data Line Filter, 1 Function(s), 28V, 4A, WELDED, HERMATIC PACKAGE-5	Data Line Filter, 1 Function(s), 28V, 4A, WELDED, HERMATIC PACKAGE-5	Data Line Filter, 1 Function(s), 28V, 4A, WELDED, HERMATIC PACKAGE-5	Data Line Filter, 1 Function(s), 28V, 4A, WELDED, HERMATIC PACKAGE-5	Data Line Filter, 1 Function(s), 28V, 4A, FLANGED, WELDED, HERMATIC PACKAGE-5	Data Line Filter, 1 Function(s), 28V, 4A, FLANGED, WELDED, HERMATIC PACKAGE-5	Data Line Filter, 1 Function(s), 28V, 4A, FLANGED, WELDED, HERMATIC PACKAGE-5	Data Line Filter, 1 Function(s), 28V, 4A, WELDED, HERMATIC PACKAGE-5	Data Line Filter, 1 Function(s), 28V, 4A, FLANGED, WELDED, HERMATIC PACKAGE-5	Data Line Filter, 1 Function(s), 28V, 4A, FLANGED, WELDED, HERMATIC PACKAGE-5
package instruction	WELDED, HERMATIC PACKAGE-5	WELDED, HERMATIC PACKAGE-5	WELDED, HERMATIC PACKAGE-5	WELDED, HERMATIC PACKAGE-5	FLANGED, WELDED, HERMATIC PACKAGE-5	FLANGED, WELDED, HERMATIC PACKAGE-5	FLANGED, WELDED, HERMATIC PACKAGE-5	WELDED, HERMATIC PACKAGE-5	FLANGED, WELDED, HERMATIC PACKAGE-5	FLANGED, WELDED, HERMATIC PACKAGE-5
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum attenuation frequency	0.5 MHz	0.5 MHz	0.5 MHz	0.5 MHz	0.5 MHz	0.5 MHz	0.5 MHz	0.5 MHz	0.5 MHz	0.5 MHz
Attenuation at maximum frequency	40 dB	40 dB	40 dB	40 dB	40 dB	40 dB	40 dB	40 dB	40 dB	40 dB
Maximum DC resistance	0.15 Ω	0.15 Ω	0.15 Ω	0.15 Ω	0.15 Ω	0.15 Ω	0.15 Ω	0.15 Ω	0.15 Ω	0.15 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	10.59 mm	10.59 mm	10.59 mm	10.59 mm	10.59 mm	10.59 mm	10.59 mm	10.59 mm	10.59 mm	10.59 mm
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
length	53.98 mm	53.98 mm	53.98 mm	53.98 mm	73.91 mm	73.91 mm	73.91 mm	53.98 mm	73.91 mm	73.91 mm
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	THROUGH HOLE MOUNT	PANEL MOUNT	PANEL MOUNT
Number of functions	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
physical size	L53.98XB28.58XH10.59 (mm)/L2.125XB1.125XH0.417 (inch)	L53.98XB28.58XH10.59 (mm)/L2.125XB1.125XH0.417 (inch)	L53.98XB28.58XH10.59 (mm)/L2.125XB1.125XH0.417 (inch)	L53.98XB28.58XH10.59 (mm)/L2.125XB1.125XH0.417 (inch)	L73.91XB28.58XH10.59 (mm)/L2.91XB1.125XH0.417 (inch)	L73.91XB28.58XH10.59 (mm)/L2.91XB1.125XH0.417 (inch)	L73.91XB28.58XH10.59 (mm)/L2.91XB1.125XH0.417 (inch)	L53.98XB28.58XH10.59 (mm)/L2.125XB1.125XH0.417 (inch)	L73.91XB28.58XH10.59 (mm)/L2.91XB1.125XH0.417 (inch)	L73.91XB28.58XH10.59 (mm)/L2.91XB1.125XH0.417 (inch)
Rated current	4 A	4 A	4 A	4 A	4 A	4 A	4 A	4 A	4 A	4 A
Rated voltage	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V
Terminal surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
width	28.58 mm	28.58 mm	28.58 mm	28.58 mm	28.58 mm	28.58 mm	28.58 mm	28.58 mm	28.58 mm	28.58 mm
Base Number Matches	1	1	1	1	1	1	1	1	1	-
