DUR01-33S12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> DUR01-33S12

DUR01-33S12: DescriptionPower Supply Module,; CategoryPower/power management The power supply circuit; File Size89KB，2 Pages; ManufacturerPower Mate Tech; Environmental Compliance

Download Datasheet Parametric View All

DUR01-33S12 Overview

Power Supply Module,

DUR01-33S12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum input voltage	3.6 V
Minimum input voltage	3 V
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.084 A
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP4,.18
Certification status	Not Qualified
surface mount	NO
Temperature level	INDUSTRIAL
Terminal pitch	2.54 mm
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

•

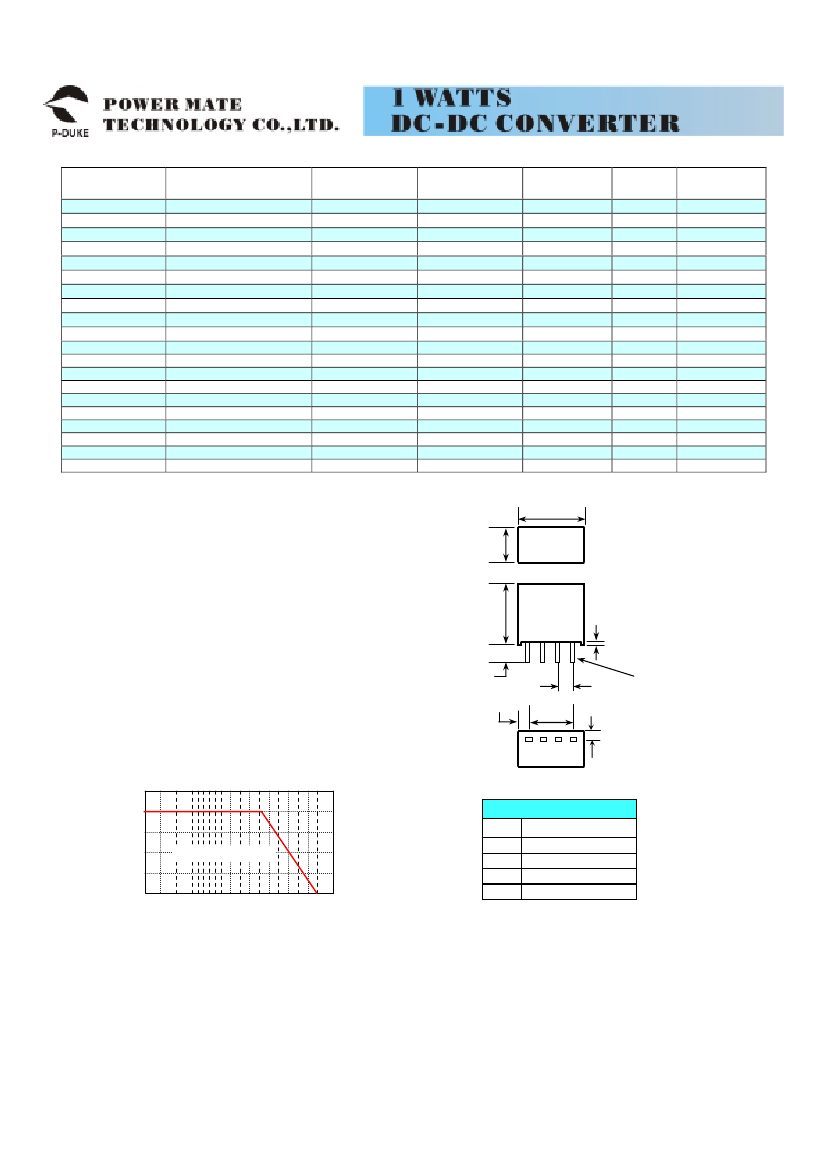

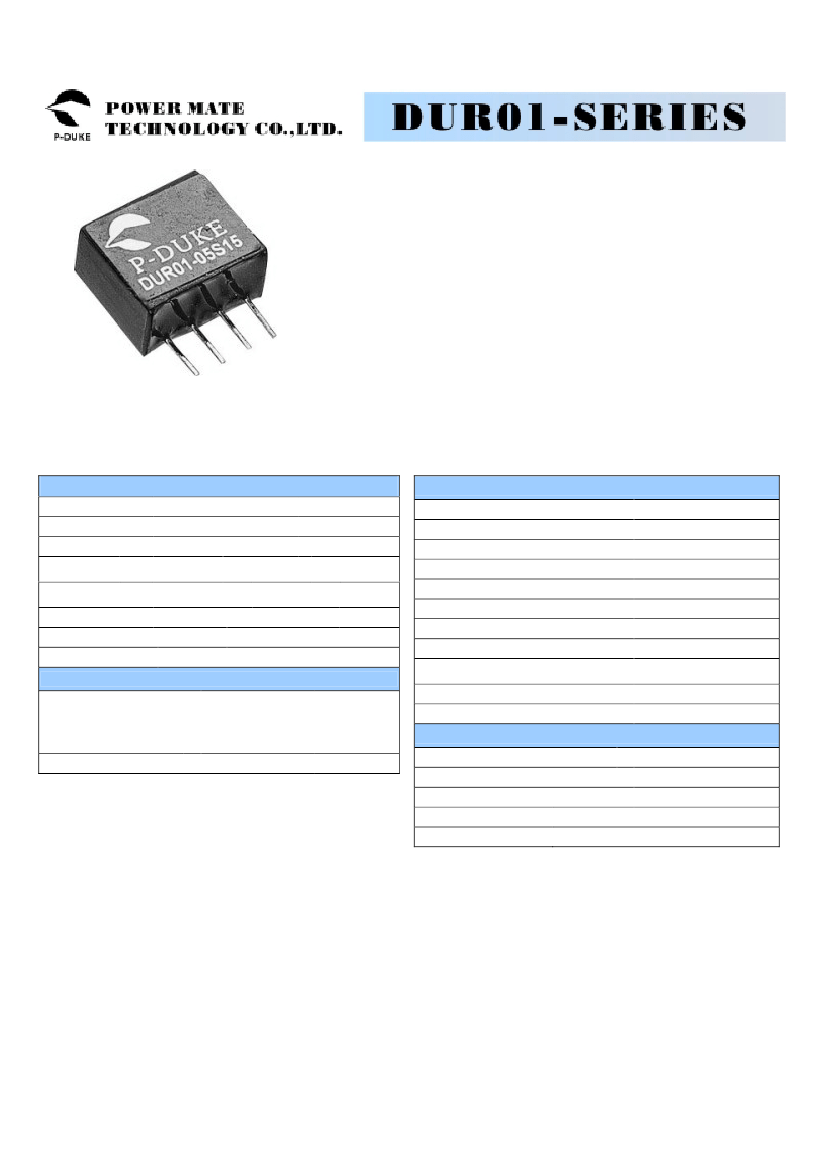

1 WATT UNREGULATED OUTPUT POWER

•

4 PIN SINGLE-IN-LINE PACKAGE (SIP)

•

HIGH EFFICIENCY FOR LOW POWER APPLICATION

•

UL 94-V0 NON-CONDUCTED CASE

•

INTERNAL INPUT & OUTPUT FILTER

•

INPUT / OUTPUT ISOLATION UP TO 1KVDC

The DUR01 series are the standard building blocks for on-board distributed power

systems. They are ideally suited to providing single and dual supplies on primarily

digital boards with added benefit of galvanic isolation to reduce switching noise. All

of the rated power may be drawn from a single pin provided the total load does not

exceed 1 watt.

T E C H N I C A L S P E C I F I C AT I O N

OUTPUT SPECIFICATIONS

Output power

Voltage accuracy

Minimum load (Note 1)

Line regulation LL to HL at Full Load

Load regulation

Ripple and noise

Temperature coefficient

Short circuit protection

Full load and nominal Vin

All specifications are typical at nominal input, full load and 25ºC otherwise noted

GENERAL SPECIFICATIONS

1 Watt max

± 5%

10% of FL

of Vin

± 15%

± 10%

Efficiency

Isolation voltage

Isolation resistance

Isolation capacitance

Switching frequency

Design meet safety standard

Case material

Potting material

Dimensions

See table

1000VDC, min

10 ohms, min

80pF, typ.

90KHz, typ

UL1950, EN60950

Non-conducted black plastic

Epoxy (UL94-V0)

0.45 X 0.24 X 0.40 Inch

(11.5 X 6.0 X 10.2 mm)

1.5g (0.053oz)

1.137 x 10

hrs

3.3V & 5V output 1.3%/1%

others

1.2%/1%

3.3V & 5V output

10% to 100% FL

others

20MHz bandwidth

100mVp-p

I0.1%

/ ºC, max

Short term

INPUT SPECIFICATIONS

Input voltage range

3.3V nominal input

5V nominal input

12V nominal input

15V nominal input

24V nominal input

3.0 – 3.6VDC

4.5 – 5.5VDC

10.8 – 13.2VDC

13.5 – 16.5VDC

21.6 – 26.4VDC

Capacitor

Weight

MTBF (Note 2)

ENVIRONMENTAL SPECIFICATIONS

Operating temperature range

Storage temperature range

Thermal shock

Vibration

Relative humidity

-40ºC ~ +85ºC (with derating)

-55ºC ~ +105ºC

MIL-STD-810D

10~55Hz, 2G, 30minutes along X,Y and Z

5% to 95% RH

Input filter
