DT1608C-152 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> DT1608C-152

DT1608C-152: DescriptionGeneral Purpose Inductor, 1.5uH, 20%, 1 Element, Ferrite-Core, SMD, 2618,; CategoryPassive components inductor; File Size102KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

DT1608C-152 Overview

General Purpose Inductor, 1.5uH, 20%, 1 Element, Ferrite-Core, SMD, 2618,

DT1608C-152 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	2618
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2618
structure	Magnetic Shielded
core material	FERRITE
DC Resistance	0.07 Ω
Nominal inductance(L)	1.5 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	2.92 mm
Package length	6.6 mm
Package form	SMT
Package width	4.45 mm
Maximum rated current	1.9 A
self resonant frequency	120 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	MAXIMUM SWITCHING FREQUENCY IS 1 MHZ
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

Document 178-1

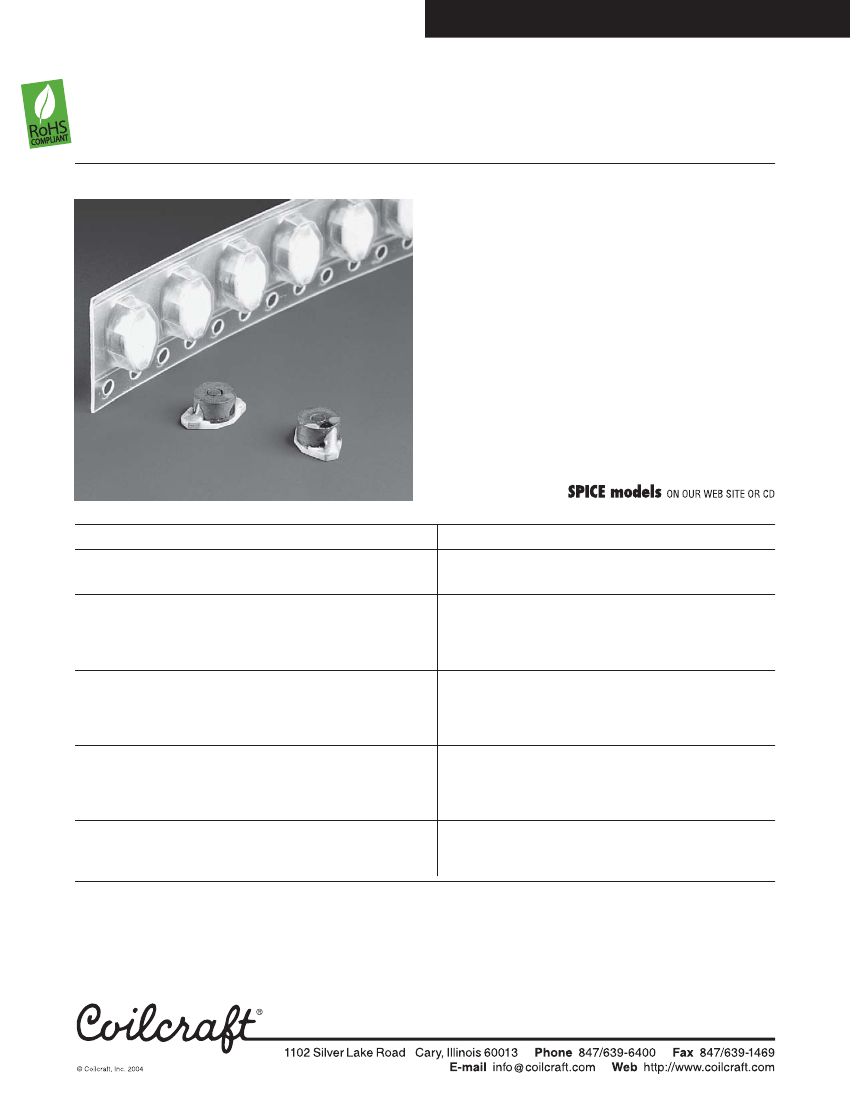

SMT Power Inductors – DT1608 Series

The Coilcraft DT1608 Series represents the ultimate in

cost-effective, miniature power inductors. The DT Series is

magnetically shielded and the materials used provide

natural heat sinking. This allows these parts to be used at

relatively high currents. Even at 150% of rated current, the

temperature rise is less than 15°C.

Because of their “swinging” inductance vs current char-

acteristics, the DT1608 Series can be used as ultra high

L inductors at zero or low current.

For free evaluation samples or to order, contact Coilcraft

or visit

www.coilcraft.com.

Specifications

Part

number

DT1608C-102

DT1608C-152

DT1608C-222

DT1608C-332

DT1608C-472

DT1608C-682

DT1608C-103

DT1608C-153

DT1608C-223

DT1608C-333

DT1608C-473

DT1608C-683

DT1608C-104

DT1608C-154

DT1608C-224

DT1608C-334

DT1608C-474

DT1608C-684

DT1608C-105

Inductance

±20%

(µH)

1.0

1.5

2.2

3.3

4.7

6.8

100

150

220

330

470

680

1000

DCR max

(Ohms)

0.065

0.070

0.075

0.080

0.085

0.090

0.125

0.135

0.160

0.275

0.300

0.575

1.10

1.40

2.25

2.90

3.60

4.55

8.10

SRF typ

(MHz)

180

120

100

3.5

2.5

Inductance

rating

(µH)

0.60

0.80

0.90

1.5

2.0

3.0

5.0

6.0

100

150

200

400

Operating Parameters

Current

rating

(A)

2.0

1.9

1.5

1.2

1.0

0.7

0.6

0.5

0.45

0.34

0.29

0.24

0.20

0.17

0.16

0.14

0.12

0.08

Energy

Switching

storage max frequency

(µJoules)

max

1.8

1.4

1.6

1.9

1.2

1.1

1.2

1.5

1.3

1.4

1.5

1.4

1.6

1.4

1.5

1.4

1 MHz

500 kHz

1. Part number on reel label will have a suffix to indicate packaging: C = machine ready 7″ reel, B = partial reel, D = machine-ready 13″ reel.

2. Inductance tested at 0.1 Vrms, 100 kHz, 0 Adc.

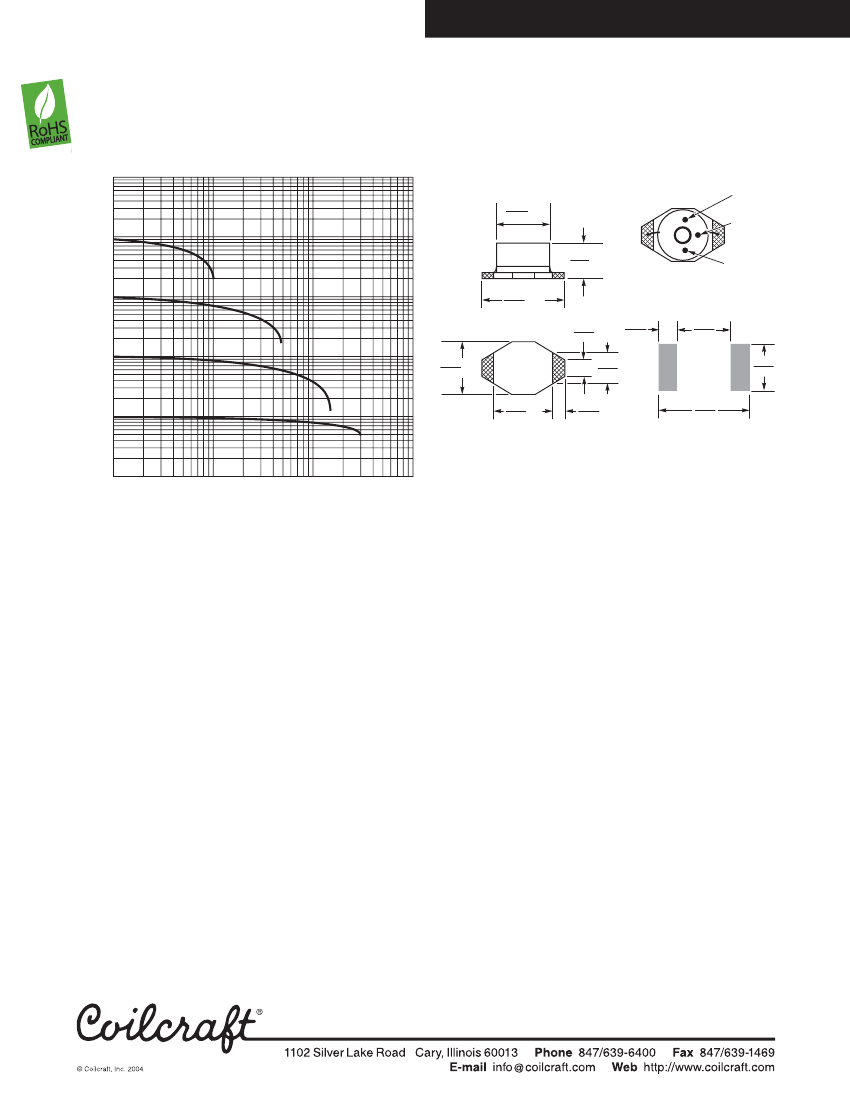

3. Measured at the rated current. Refer to L vs Current curves for more detail.

4. Average maximum allowable current. DT Series inductors are designed for current spikes as high as 2 × the current rating.

5. Operating temperature range –40°C to +85°C.

6. Electrical specifications at 25°C.

See Qualification Standards section for environmental and test data.

See Color Coding section for part marking information.

Specifications subject to change without notice.

Document 178-1

Revised 10/31/03
