LH1592 datasheet, PDF - EEWORLD Datasheet

LH1592: DescriptionLiquid Crystal Driver, 93-Segment, CMOS, TCP-147; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size3MB，48 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

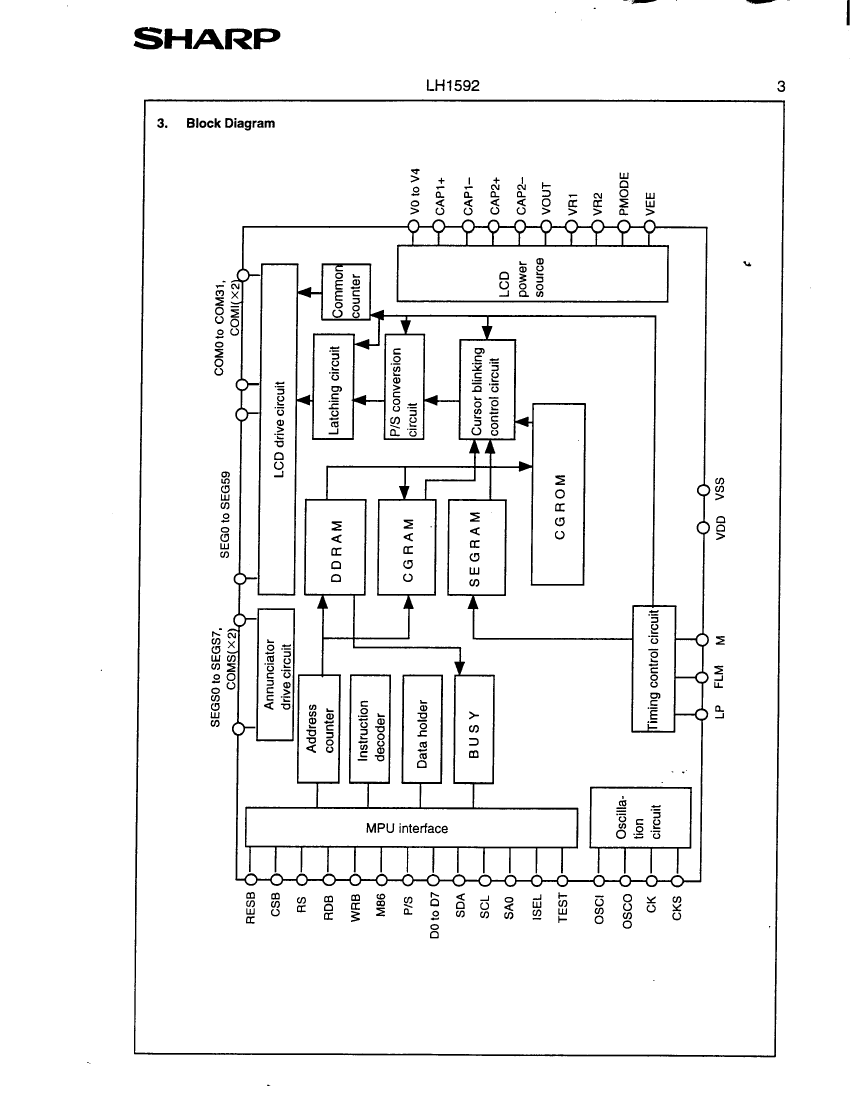

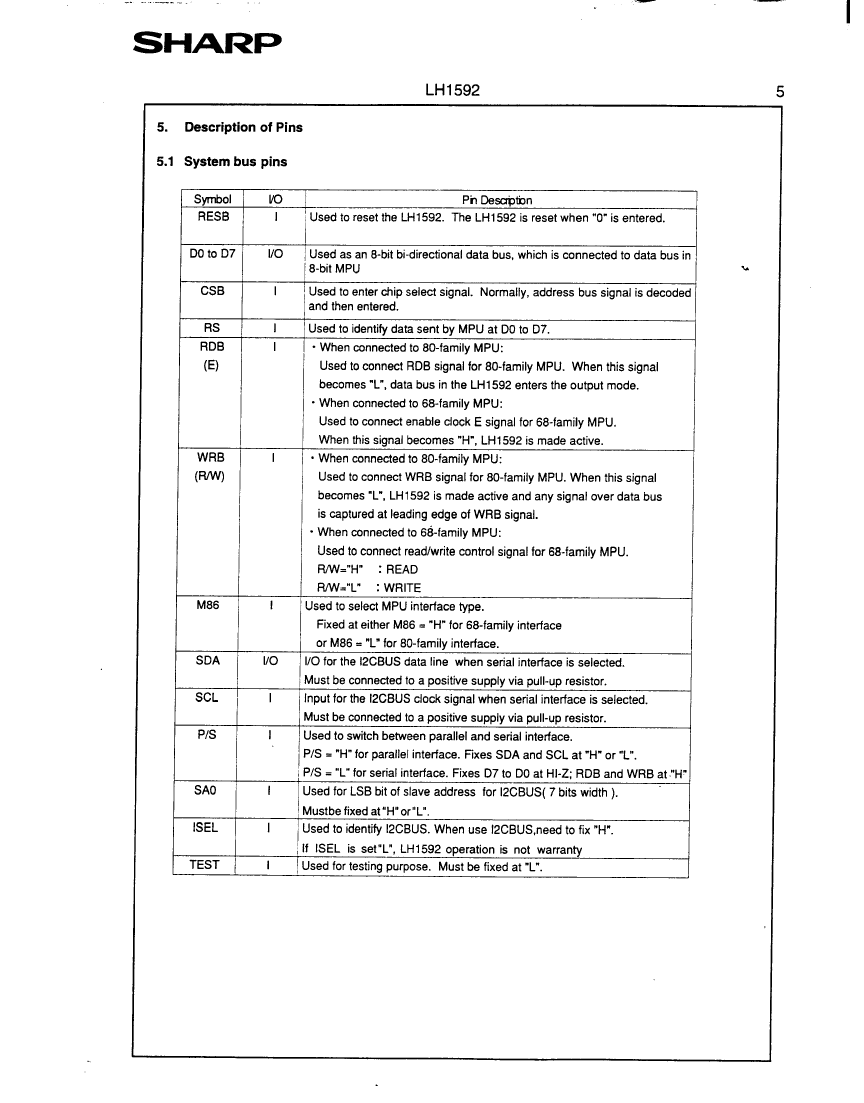

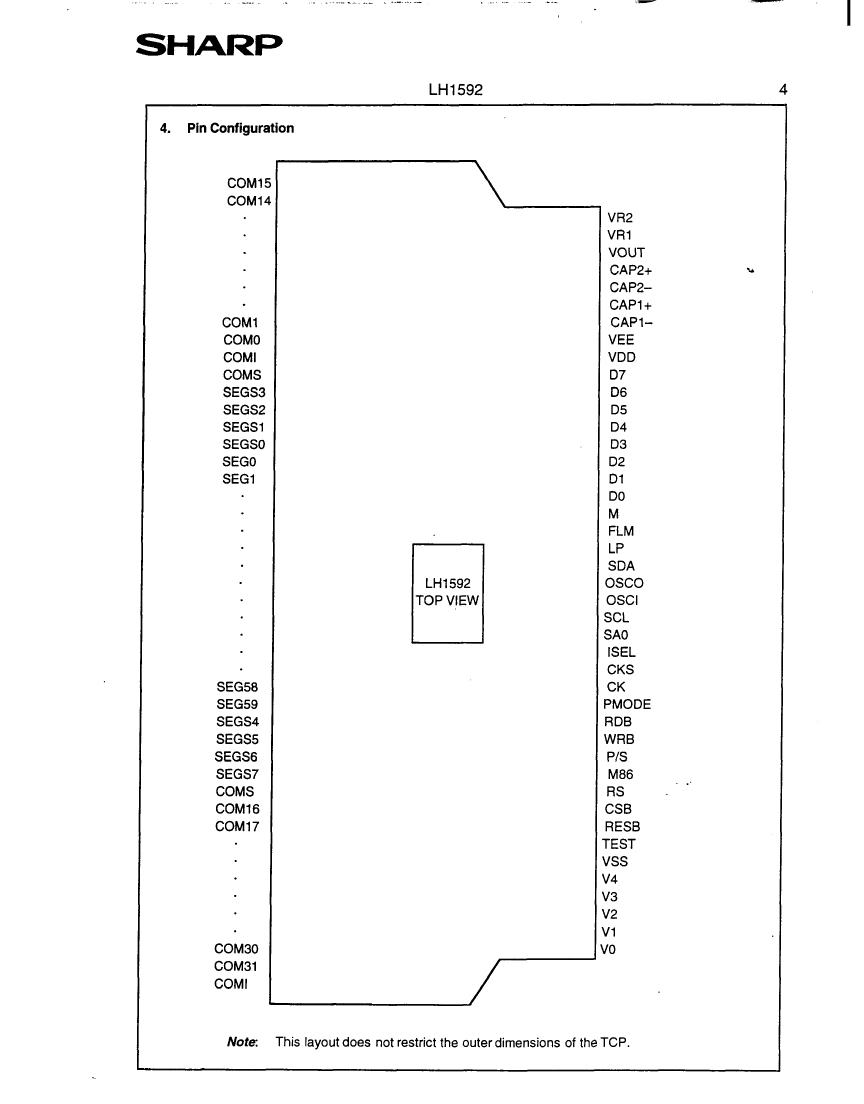

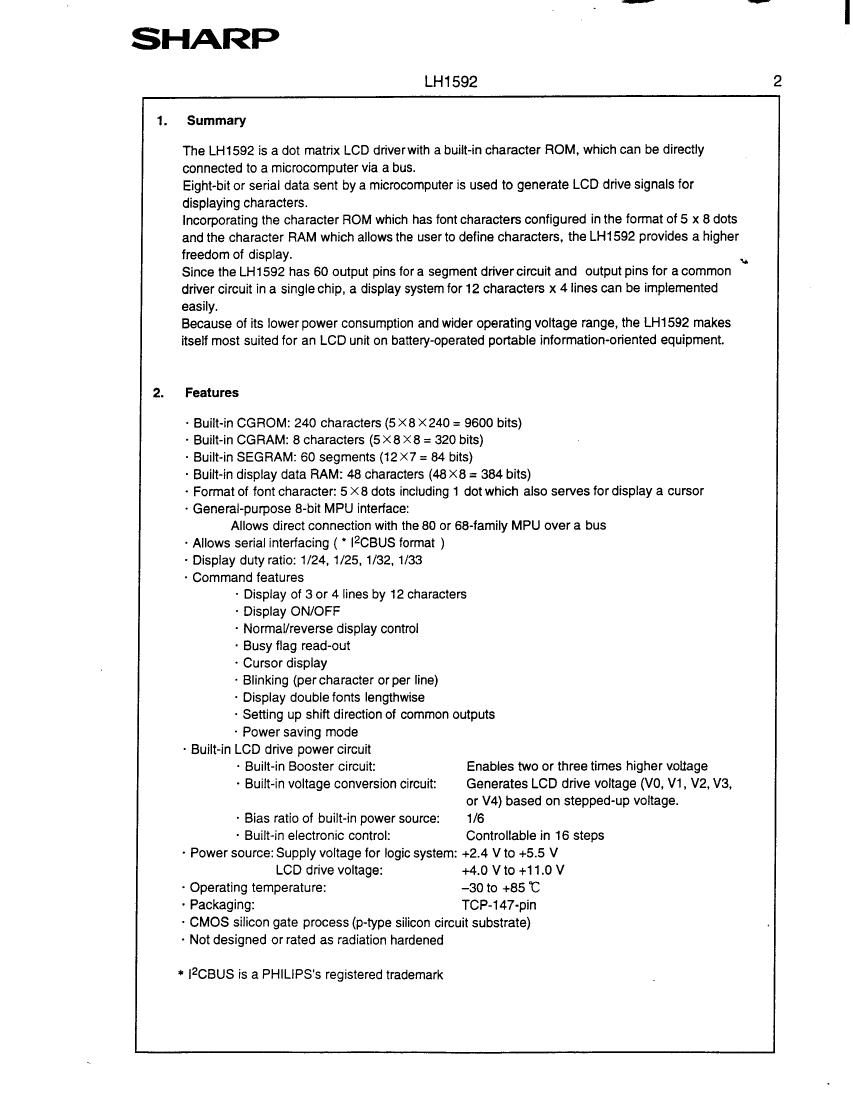

LH1592 Overview

Liquid Crystal Driver, 93-Segment, CMOS, TCP-147

Parameter Name	Attribute value
package instruction	TCP-147
Reach Compliance Code	unknown
data entry mode	PARALLEL
display mode	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-XUUC-N147
Multiplex display function	NO
Number of functions	1
Number of segments	93
Number of terminals	147
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	2.4 V
Supply voltage 1-max	11 V
Mains voltage 1-minute	4 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	NO LEAD
Terminal location	UPPER
minfmax	0.08 MHz
Base Number Matches	1

	LH1592	LH1593
Description	Liquid Crystal Driver, 93-Segment, CMOS, TCP-147	Liquid Crystal Driver, 93-Segment, CMOS, TCP-147
package instruction	TCP-147	TCP-147
Reach Compliance Code	unknown	unknown
data entry mode	PARALLEL	PARALLEL
display mode	DOT MATRIX	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-XUUC-N147	R-XUUC-N147
Multiplex display function	NO	NO
Number of functions	1	1
Number of segments	93	93
Number of terminals	147	147
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIE	DIE
Package shape	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	UNCASED CHIP
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	2.4 V	2.4 V
Supply voltage 1-max	11 V	11 V
Mains voltage 1-minute	4 V	4 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal form	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER
minfmax	0.08 MHz	0.08 MHz
Base Number Matches	1	1
