BP07YT: DescriptionSLIDE SWITCH,RIGHT ANGLE,SPST,7,PC TAIL TERMINAL,14; CategoryMechanical and electronic products switch; File Size65KB，3 Pages; ManufacturerC&K

Download Datasheet Parametric Compare View All

BP07YT Overview

SLIDE SWITCH,RIGHT ANGLE,SPST,7,PC TAIL TERMINAL,14

BP07YT Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Actuator length	0.079 inch
Actuator material	GLASS FILLED POLYESTER
Actuator type	SLIDE
Other features	ROHS COMPLIANT
body width	8.001 mm
body height	10.9982 mm
Body length or diameter	20.4724 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	TIN
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.025A@25VDC
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	25 V
Dielectric withstand voltage	500VRMS V
Electrical life	1000 Cycle(s)
End contact material	PHOSPHOR BRONZE
End contact plating	TIN
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	BP
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of positions	7
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
PCB hole count	14
seal	EPOXY
Solderability	MIL-STD
surface mount	NO
switch function	SPST
Terminal length	0.11 inch
Terminal material	PHOSPHOR BRONZE
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

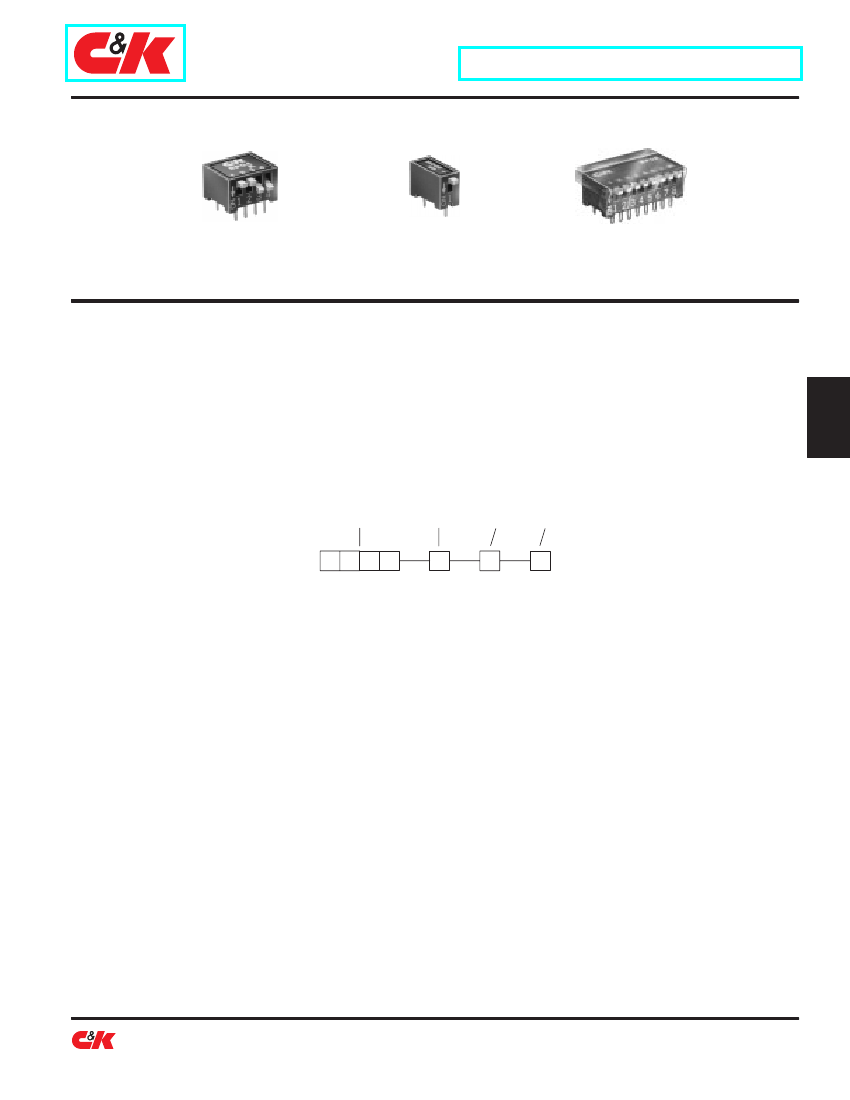

BP Series

Side Actuated DIP Switches

BP04KE

BP01KE

BP08KT

Easy Build-A-Switch

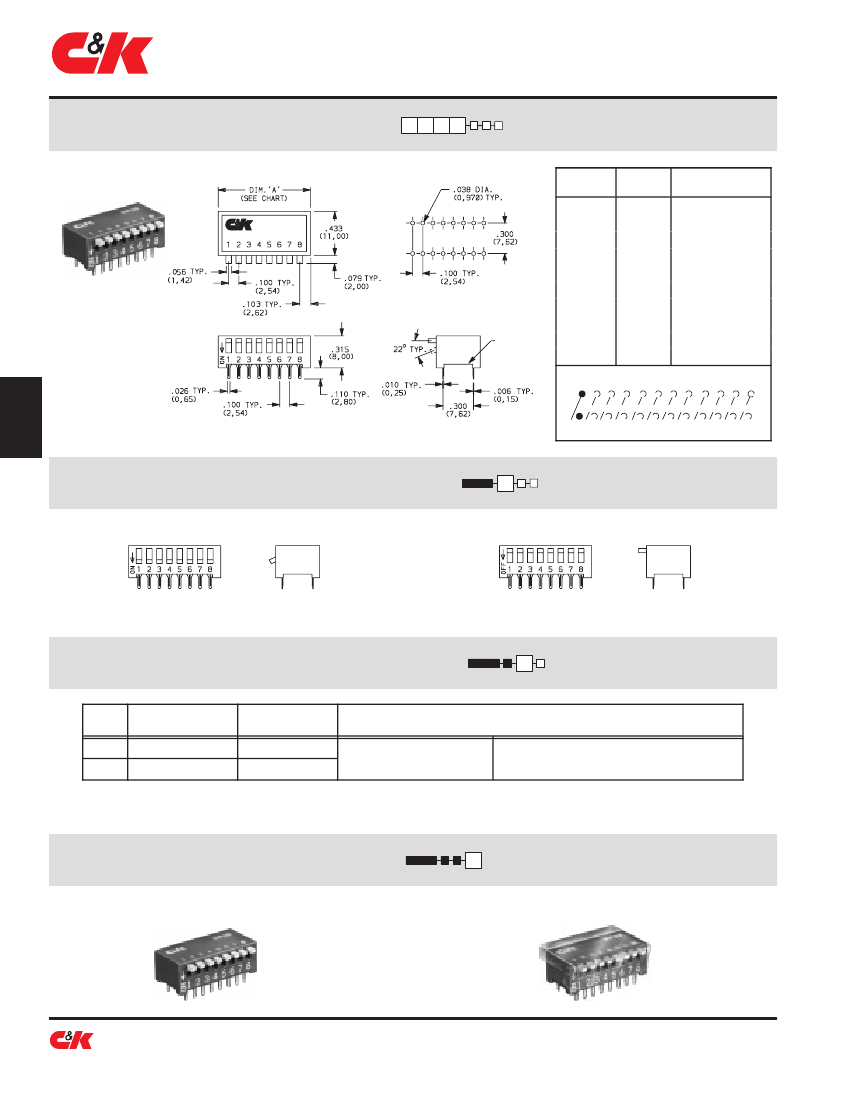

Below is a complete listing of available options for BP SERIES SIDE ACTUATED DIP SWITCHES. Build-A-Switch allows you to
