IRKV170-06

Description
Silicon Controlled Rectifier, 377A I(T)RMS, 170000mA I(T), 600V V(DRM), 600V V(RRM), 2 Element, POWER, MAGN-A-PAK-7
CategoryAnalog mixed-signal IC    Trigger device
File Size146KB,6 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Download Datasheet Parametric View All

IRKV170-06 Overview

Silicon Controlled Rectifier, 377A I(T)RMS, 170000mA I(T), 600V V(DRM), 600V V(RRM), 2 Element, POWER, MAGN-A-PAK-7

IRKV170-06 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionFLANGE MOUNT, R-PXFM-X7
Contacts7
Reach Compliance Codeunknown
Shell connectionISOLATED
Nominal circuit commutation break time150 µs
ConfigurationCOMMON ANODE, 2 ELEMENTS
Critical rise rate of minimum off-state voltage1000 V/us
Maximum DC gate trigger current200 mA
Maximum DC gate trigger voltage3 V
Quick connection description2G-2GR
Description of screw terminals2K-CA
Maximum holding current500 mA
JESD-30 codeR-PXFM-X7
Maximum leakage current50 mA
Humidity sensitivity level1
On-state non-repetitive peak current5300 A
Number of components2
Number of terminals7
Maximum on-state current170000 A
Maximum operating temperature130 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)225
Certification statusNot Qualified
Maximum rms on-state current377 A
Maximum repetitive peak off-state leakage current50000 µA
Off-state repetitive peak voltage600 V
Repeated peak reverse voltage600 V
surface mountNO
Terminal formUNSPECIFIED
Terminal locationUNSPECIFIED
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeSCR
Base Number Matches1
Bulletin I27102 rev. C 05/02
IRK. SERIES
SCR / SCR and SCR / DIODE
Features
High voltage
Electrically isolated base plate
3000 V
RMS
isolating voltage
Industrial standard package
Simplified mechanical designs, rapid assembly
High surge capability
Large creepage distances
UL E78996 approved
MAGN-A-pak Power Modules
170A
230A
250A
Description

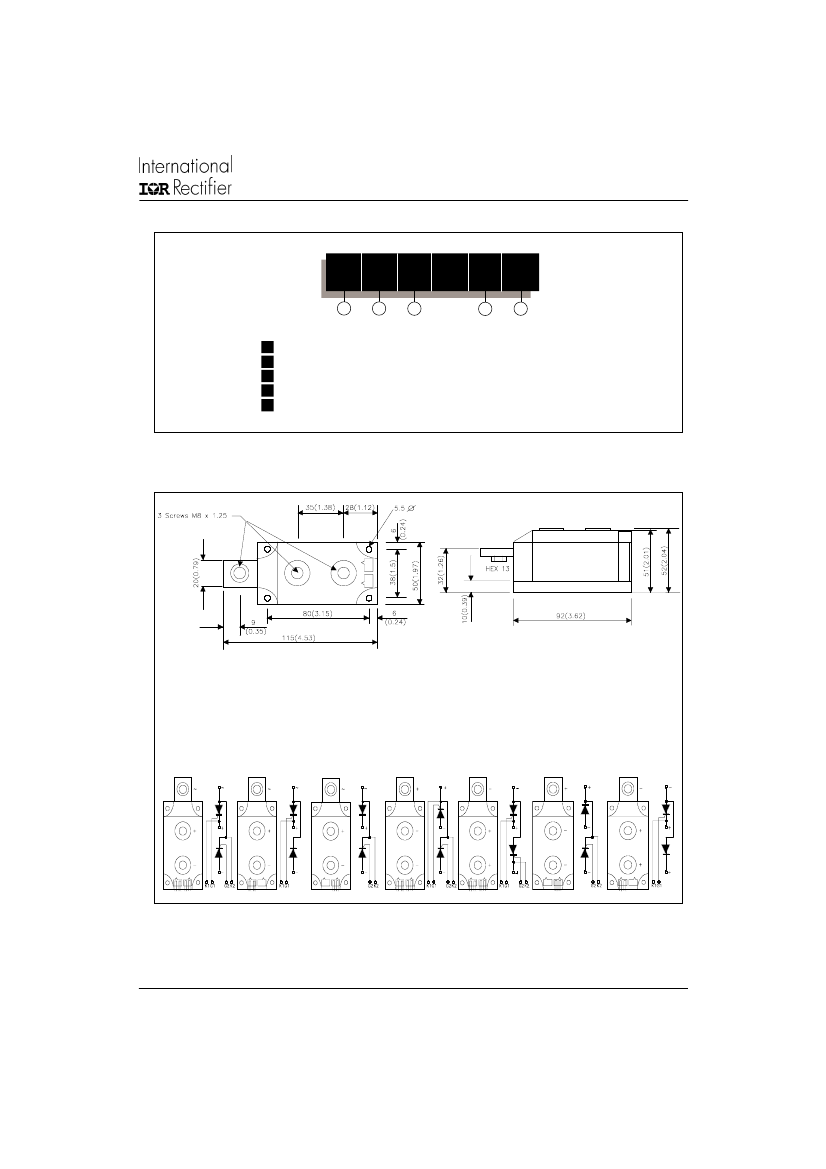

This new IRK serie of MAGN-A-paks modules uses high
voltage power thyristor/thyristor and thyristor/diode in
seven basic configurations. The semiconductors are
electrically isolated from the metal base, allowing com-
mon heatsinks and compact assemblies to be built. They
can be interconnected to form single phase or three
phase bridges or as AC-switches when modules are
connected in anti-parallel mode.
These modules are intended for general purpose appli-
cations such as battery chargers, welders and plating
equipment and where high voltage and high current are
required (motor drives, U.P.S., etc.).
Major Ratings and Characteristics
Parameters
I
T(AV)
@ 85°C
I
T(RMS)
I
TSM
I
2
t
@ 50Hz
@ 60Hz
@ 50Hz
@ 60Hz
I
2
√t
V
DRM
/ V
RRM
T
J
range
IRK.170..
170
377
5100
5350
131
119
1310
IRK.230.. IRK.250..
Units
230
510
7500
7850
280
256
2800
250
555
8500
8900
361
330
3610
A
A
A
A
KA
2
s
KA
2
s
KA
2
√s
V
o
Up to1600 Up to 2000 Up to1600
-40 to 130
C
www.irf.com
1
