MEH28ZAX-R133.0000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MEH28ZAX-R133.0000MHZ

MEH28ZAX-R133.0000MHZ: DescriptionPECL 10KH Output Clock Oscillator, 133MHz Nom, GULL WING, DIP-8/4; CategoryPassive components oscillator; File Size241KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MEH28ZAX-R133.0000MHZ Overview

PECL 10KH Output Clock Oscillator, 133MHz Nom, GULL WING, DIP-8/4

MEH28ZAX-R133.0000MHZ Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
maximum descent time	2.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Installation features	SURFACE MOUNT
Nominal operating frequency	133 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	PECL 10KH
Output load	130 OHM
longest rise time	2.5 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %
Base Number Matches	1

Preview

Download Datasheet

View All

MEH Series

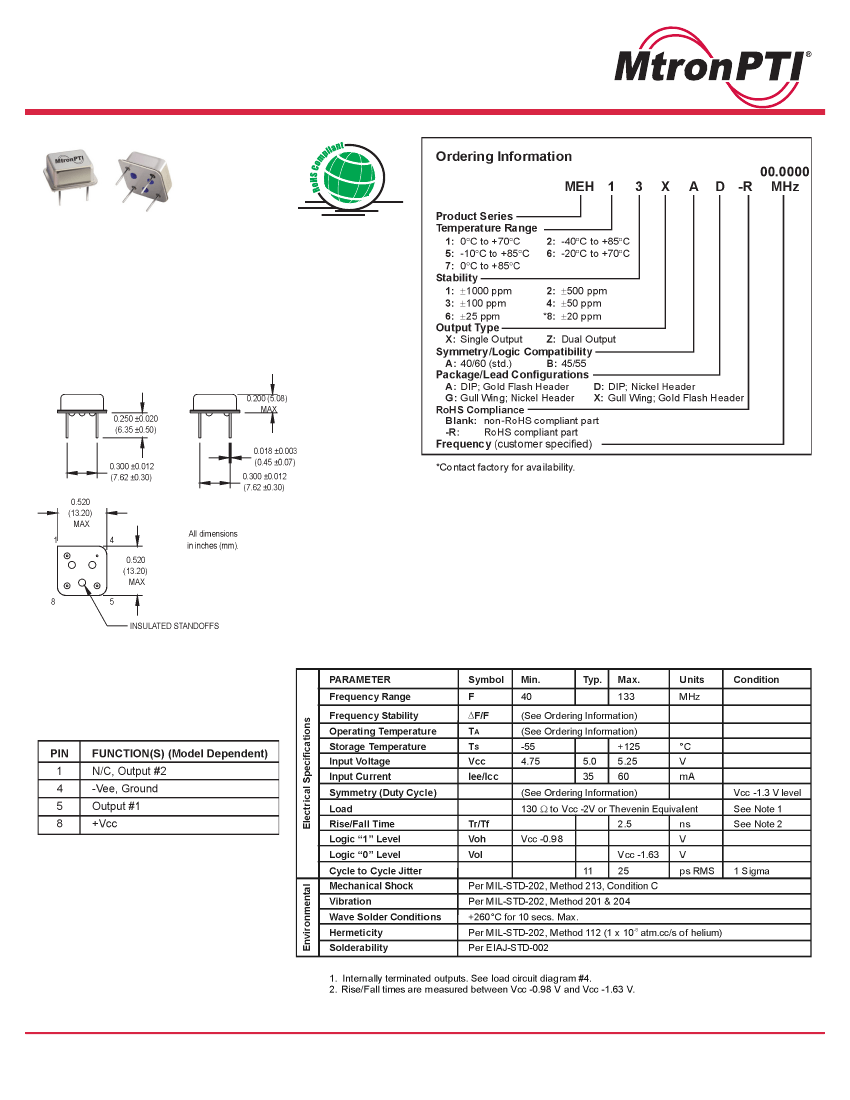

8 pin DIP, 5.0 Volt, ECL, PECL, Clock Oscillators

OBSOLETE

MEH Series ECL/PECL Half-Size Clock Oscillators, 10

KH Compatible with Optional Complementary Outputs

Pin Connections

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com for our complete offering and detailed datasheets. Contact us for your application speciﬁc requirements: MtronPTI 1-800-762-8800.

Revision: 7-27-07
