HIGH DENSITY RECTANGULAR
RIGHT ANGLE
PRINTED BOARD MOUNT CONNECTORS
H
igh
D
ensity
R
ectangular
Size 22 Contacts
Conforms to
MIL-DTL-28748
IEC Publication 807-1
Telecommunication
U.L. File #E140980
Di
rec
tive
2002
/9
SMPL SERIES TECHNICAL CHARACTERISTICS
MILITARY SPECIFICATIONS:
Conforms to MIL-DTL-28748.
Contact Retention in
Insulator:
Contact Termination:
Locking Systems:
Polarization:
Mechanical Operations:
Jackscrews:
6 lbs. [26.5N] minimum.
0.025 inch [0.64 mm] diameter.
Friction, vibration locks and jackscrews.
Polarized guides, polarized shells and
jackscrew system.
1000 operations per IEC 512-5.
Standard threads, 2-56 UNC. M2X0.4
metric threads available.
INTERNATIONAL STANDARDS:
IEC 807-1
MATERIALS AND FINISHES:
Insulator:
Glass filled DAP per ASTM-D-5948 type
SDG-F. Grey color is standard, black or
green available.
Copper alloy, 0.000015 inch [0.38
microns] gold over nickel. Other finishes
available upon request.
Passivated stainless steel.
Copper alloy with nickel plate or passi-
vated stainless steel.
Copper alloy with nickel plate.
Fixed Contacts:
ELECTRICAL CHARACTERISTICS:
Contact Current Rating
[maximum]:
Initial Contact Resistance:
Flash over Voltage:
Test Voltage:
Insulation Resistance
[minimum]:
Clearance and Creepage
Distance [minimum]:
Working Temperature:
Working Voltage:
5 amps.
0.012 ohms
2200 V.AC [rms]
1000 V.AC [rms]
5 G ohms
0.028 inch [0.71 mm]
-55°C to 135°C
250 V.AC [rms]
Jackscrew System:
Polarizing Guides:
Vibration Locks:
MECHANICAL CHARACTERISTICS:
Fixed Contacts:
Male
– Size 22: 0.030 inch [0.76 mm]
diameter.
Female
– “Closed entry” design for
highest reliability.
22
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
5/

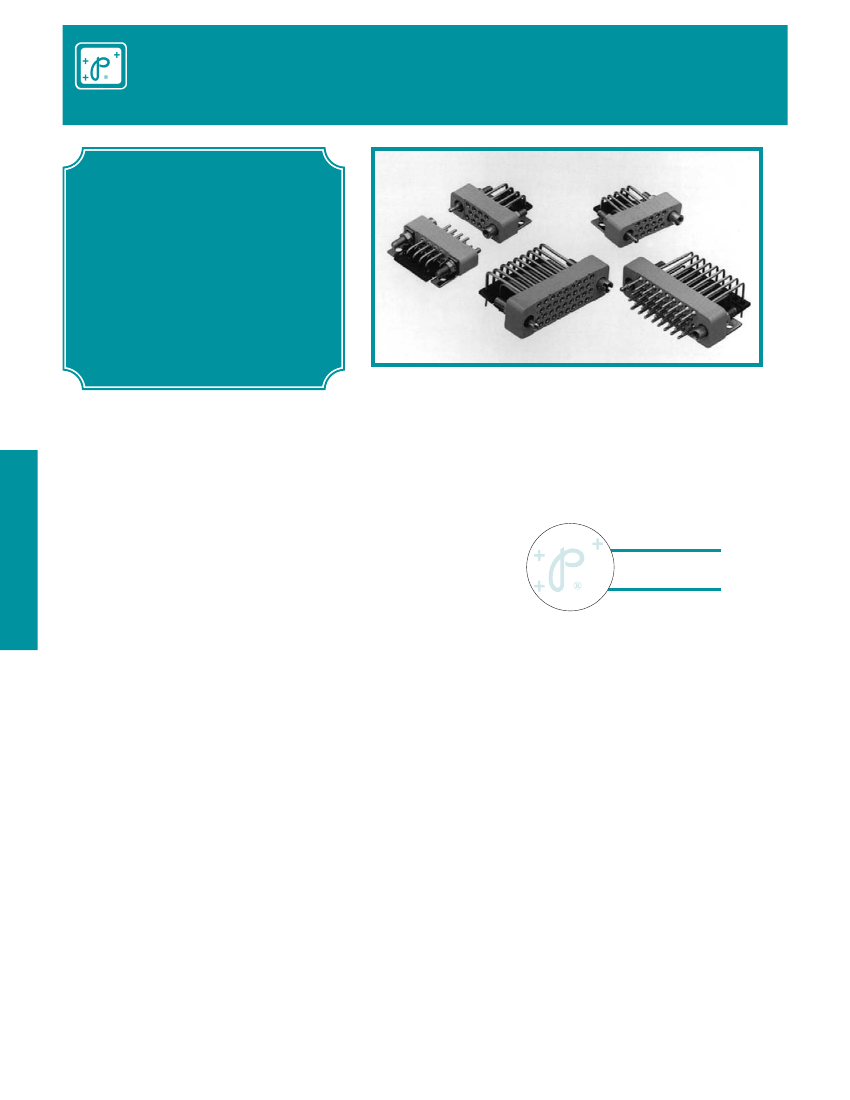

SMPL Series connectors are high reliability, high density, rec-
tangular connectors meeting the performance requirements of
MIL-DTL-28748. Termination style is right angle printed board
mount. SMPL Series connectors are intermateable with
Positronic SGM and SGMC series connectors.
Twelve connector variants, four through 50 poles, are offered.
Contact spacing is 0.094 inch [2.39mm] between centers, and
contact diameters are 0.030 inch [0.76mm], rated to five
amperes per contact.
A complete array of mounting, locking and polarizing acces-
sories is available for the SMPL Series. For details, see the
High Density Rectangular Connector Accessories section.
Ideal applications for the SMPL Series are where low weight
and high density are requirements. The high reliability of the
“closed entry” female contacts insures numerous couplings of
the connector without substantial degradation of contact resis-
tance. SMPL Series connectors are used in the aerospace,
avionics, telecommunications, instrumentation, medical and
robotics industries.
SMPL SERIES
EC
RoHS
Compliant
IT
R
O
NIC
INDU
S
TR
POS
IES
For RoHS options
see page 25.
•
pe
•
U
rE
H
igh
D
ensity
R
ectangular
HIGH DENSITY RECTANGULAR
RIGHT ANGLE
PRINTED BOARD MOUNT CONNECTORS

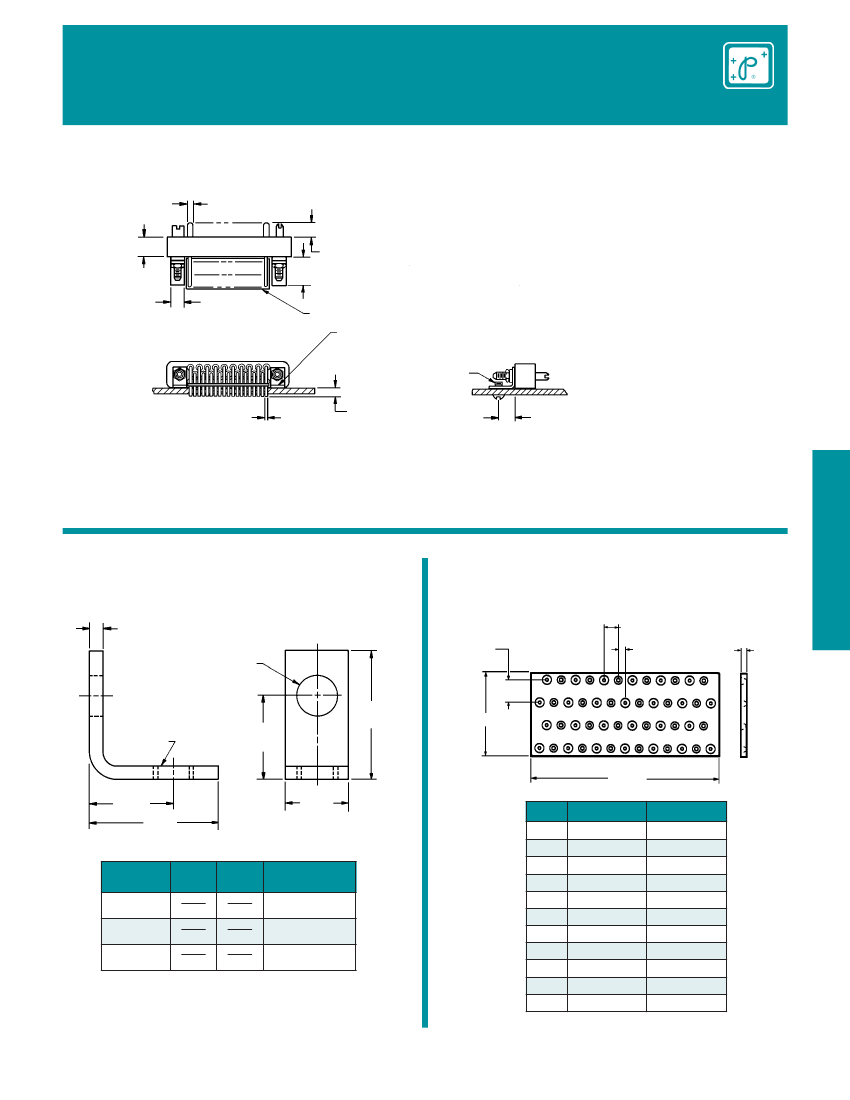

RIGHT ANGLE SOLDER CONTACTS
MALE CONNECTOR SHOWN
0.030 [0.76] Ø TYP.
CONTACT MATERIAL: COPPER ALLOY
Positronic Industries
connectpositronic.com
0.240
[6.10]
0.285
[7.24]
0.140 [3.56]
0.156 [3.96]
CONTACT FINISH: 0.000015 [0.38 MICRONS] GOLD
OVER NICKEL OR COPPER
ALIGNMENT BAR
MOUNTING HOLE
HAS 2-56 THREADS
SCREW SUPPLIED
AS SPECIAL OPTION
0.100 [2.54] NOMINAL
0.020
Ø TYP.
[0.51]
0.175
[4.45]
CONTACTS NOT
SHOWN FOR CLARITY
STANDARD POSITION OF INSULATOR
REQUIRES CONTACT “A” TO BE
ADJACENT TO THE PRINTED BOARD
FOR FACE DIMENSIONS OF INSULATOR VARIANT DESIRED,
SEE SGM SERIES INSULATOR DIMENSION PAGE 18.
CONNECTOR
MOUNTING BRACKET
0.031
[0.79]
0.088 [2.24]
Ø HOLE
CONNECTOR
ALIGNMENT BAR
0.095 TYP.
[2.41]
0.150
[3.81]
TYP.
0.047 TYP.
[1.19]
0.040
[1.02]
B
2-56
UNC-2B
A
B
A
0.175
[4.45]
0.285
[7.24]
0.140
[3.56]
SIZE
5
7
A
0.314 [7.98]
0.394 [10.01]
0.488 [12.40]
0.364 [9.25]
0.456 [11.58]
0.646 [16.41]
0.832 [21.13]
0.926 [23.52]
0.864 [21.95]
1.112 [28.24]
1.240 [31.50]
B
0.290 [7.37]
0.290 [7.37]
0.290 [7.37]
0.415 [10.54]
0.415 [10.54]
0.415 [10.54]
0.415 [10.54]
0.415 [10.54]
0.550 [13.97]
0.550 [13.97]
0.550 [13.97]
PART
NUMBER
80213-0
80213-1
80213-2
A
0.105
[2.67]
0.140
[3.56]
0.195
[4.95]
B
0.205
[5.21]
0.240
[6.10]
0.295
[7.49]
CONNECTOR
VARIANTS
4, 5, 7, 9
11, 14, 20, 26, 29
34, 44, 50
9
11
14
20
26
29
34
44
50
MATERIAL: PHOSPHOR BRONZE
FINISH: ZINC PLATE WITH CHROMATE SEAL
MATERIAL: NYLON, BLACK
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
23
SMPL SERIES
ADD 0.030 [0.76] TO THE HOLE LOCATION DIMENSION 0.175 [4.48] WHEN MOUNTING
BRACKET (LB) AND VIBRATION LOCK TAB (V) ARE USED IN COMBINATION ON CONNECTOR
Positronic Industries
connectpositronic.com
HIGH DENSITY RECTANGULAR
RIGHT ANGLE
PRINTED BOARD MOUNT CONNECTORS

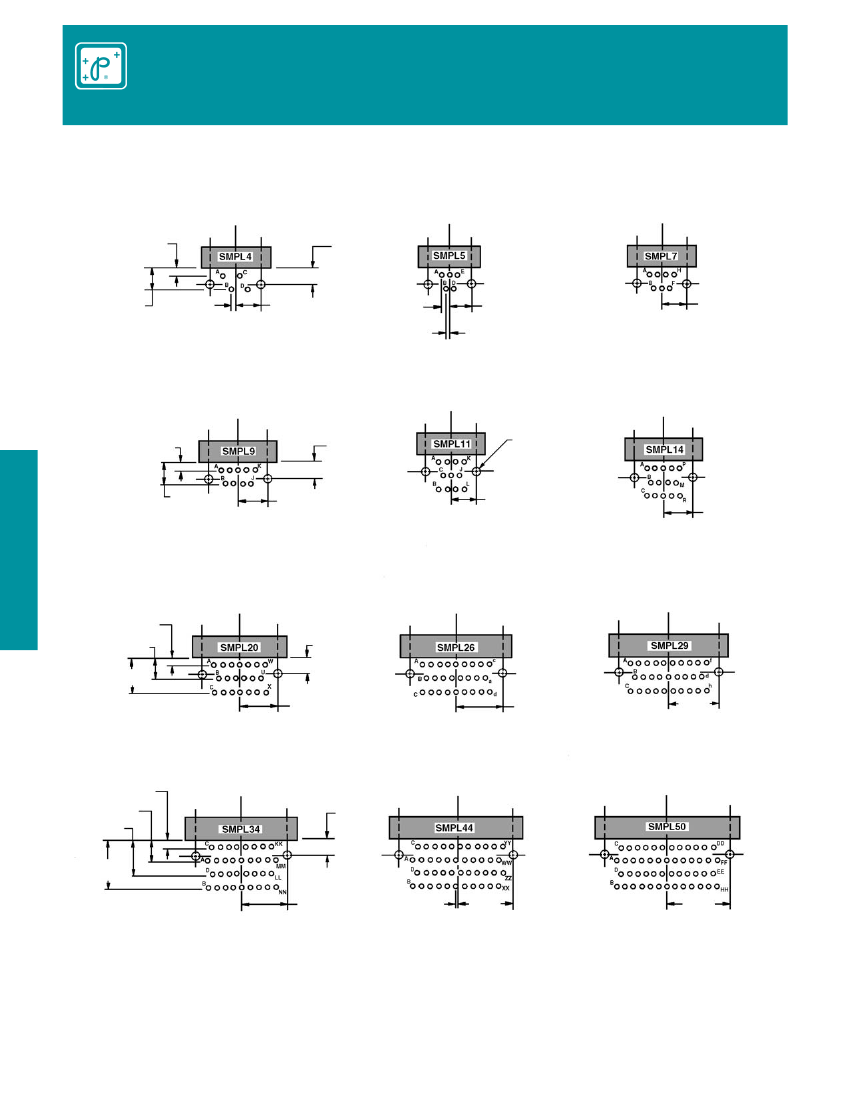

RIGHT ANGLE PRINTED BOARD HOLE PATTERN
HOLE IDENTIFICATION SHOWN IS FOR MALE CONNECTOR
USE MIRROR IMAGE FOR FEMALE CONNECTOR
H
igh
D
ensity
R
ectangular
0.070
[1.78]
0.175 TYP.
[4.45]
0.220
[5.59]
0.045
[1.14]
TYP.
0.281
[7.14]
0.094 TYP.
[2.39]
0.047 TYP.
[1.19]
0.241
[6.12]
0.281
[7.14]
0.070 [1.78]
0.175 TYP.
[4.45]
0.105 [2.67] Ø
MOUNTING HOLE
TYP.
0.220
[5.59]
0.328
[8.33]
0.266
[6.76]
SMPL SERIES
0.070 [1.78]
0.220 [5.59]
0.370 [9.40]
0.070 [1.78]
0.220 [5.59]
0.370 [9.40]
0.520 [13.21]
0.312
[7.92]
0.175 TYP.
[4.45]
0.407
[10.34]
0.500
[12.70]
0.547
[13.89]
0.175
[4.45]
TYP.
0.516
[13.11]
0.024
[0.61]
0.640
[16.26]
0.704
[17.88]
SUGGEST 0.105 [2.66] Ø HOLES IN PRINTED BOARD FOR CONNECTOR MOUNTING HOLES
SUGGEST 0.040 [1.01] Ø HOLES IN PRINTED BOARD FOR CONTACT TERMINATIONS
ADD 0.030 [0.76] TO THE MOUNTING HOLE POSITION WHEN MOUNTING BRACKET (LB) AND
VIBRATION LOCK TAB (V) ARE USED IN COMBINATION ON CONNECTOR
24
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
H
igh
D
ensity
R
ectangular
HIGH DENSITY RECTANGULAR
RIGHT ANGLE
PRINTED BOARD MOUNT CONNECTORS
Positronic Industries
connectpositronic.com

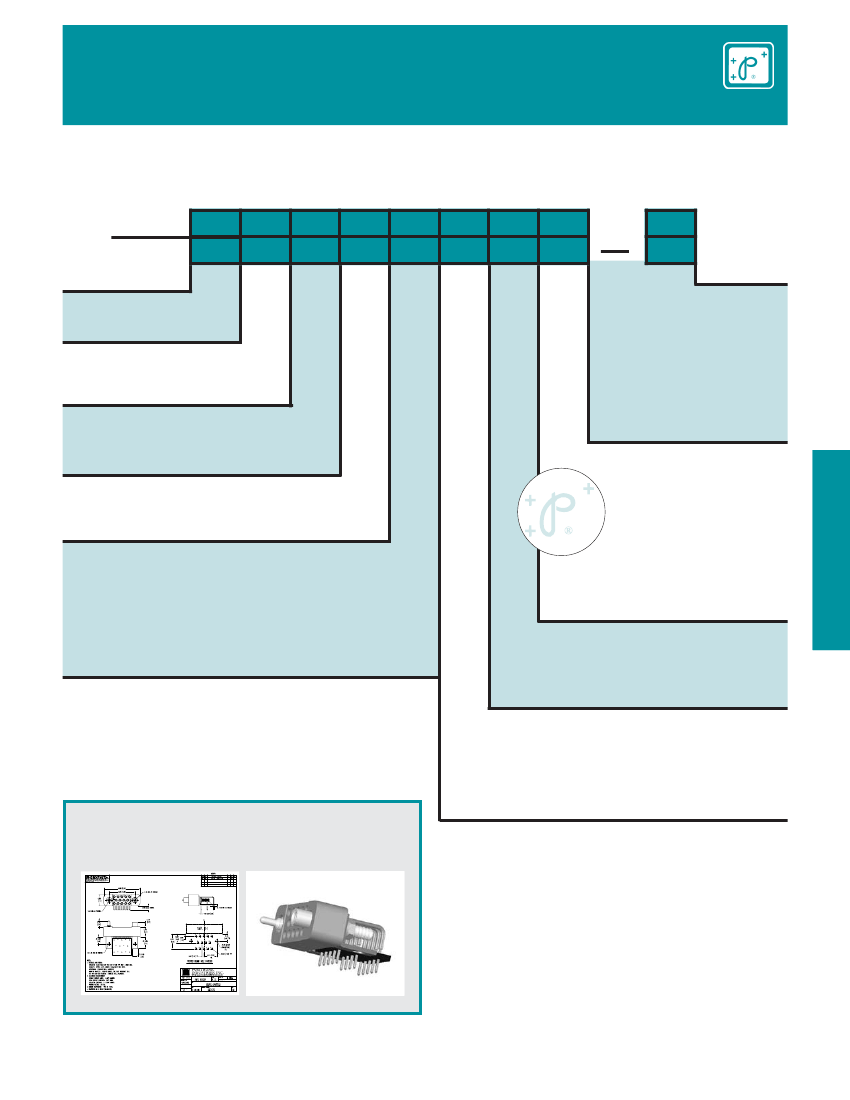

ORDERING INFORMATION - CODE NUMBERING SYSTEM
Specify Complete Connector By Selecting An Option From Step 1 Through 7
STEP
EXAMPLE
1
SMPL
2
14
3
F
4
0
5
T
6
0
7
LB
8
/AA
9
-14
STEP 1 - BASIC SERIES
SMPL Series.
STEP 9 - SPECIAL OPTIONS
-14 – Signal contacts plated
0.000030 [0.76µ] gold over
nickel.
-50 – Signal contacts plated
0.000050 [1.27µ] gold over
copper.
STEP 2 - CONNECTOR VARIANTS
4, 5, 7, 9, 11, 14, 20, 26,
29, 34, 44, 50
STEP 3 - CONNECTOR GENDER
M - Male Insulator
F - Female Insulator
CONTACT TECHNICAL SALES
FOR SPECIAL OPTIONS
POS
0 –
Standard termination, 90° angle.
Di
rec
tive
2002
/9
5/
Compliant
EC
/AA - Compliant per EU Directive
2002/95/EC (RoHS)
NOTE:
If compliance to environ-
mental legislation is not required,
this step will not be used.
Example: SMPL14F0T0LB
*STEP 5 - POLARIZING GUIDES AND
JACKSCREW SYSTEMS
N
NSS
T
0
–
–
–
–
Polarizing guides.
Stainless steel polarizing guides.
Fixed jackscrews.
If no polarizing guides or jackscrews are required.
STEP 7 - MOUNTING BRACKETS
LB – Mounting bracket.
0 – If no mounting bracket is required.
*STEP 6 - LOCKING DEVICES
V –
VL –
0 –
Lock tab.
Lock lever.
If no locking devices are required.
NOTE:
Once you have made a connector selection,
contact Technical Sales if you would like to receive a
drawing in DXF, PDF format or a 3-dimensional IGES file.
*
NOTE:
FOR DETAILS OF ITEMS LISTED IN
STEPS 5 AND 6, SEE HIGH DENSITY
RECTANGULAR CONNECTOR
ACCESSORIES SECTION ON
PAGES 26-34.
SK Drawing
3-dimensional model
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
25
SMPL SERIES
STEP 4 - CONTACT TERMINATION TYPE
RoHS
IT
R
O
NIC
INDU
S
STEP 8 - ENVIRONMENTAL
COMPLIANCE
OPTIONS
TR
IES
•
pe
•
U
rE
