VHD6031035GA Overview

3.3V VCXO CMOS Oscillator

Preview

Download Datasheet

View All

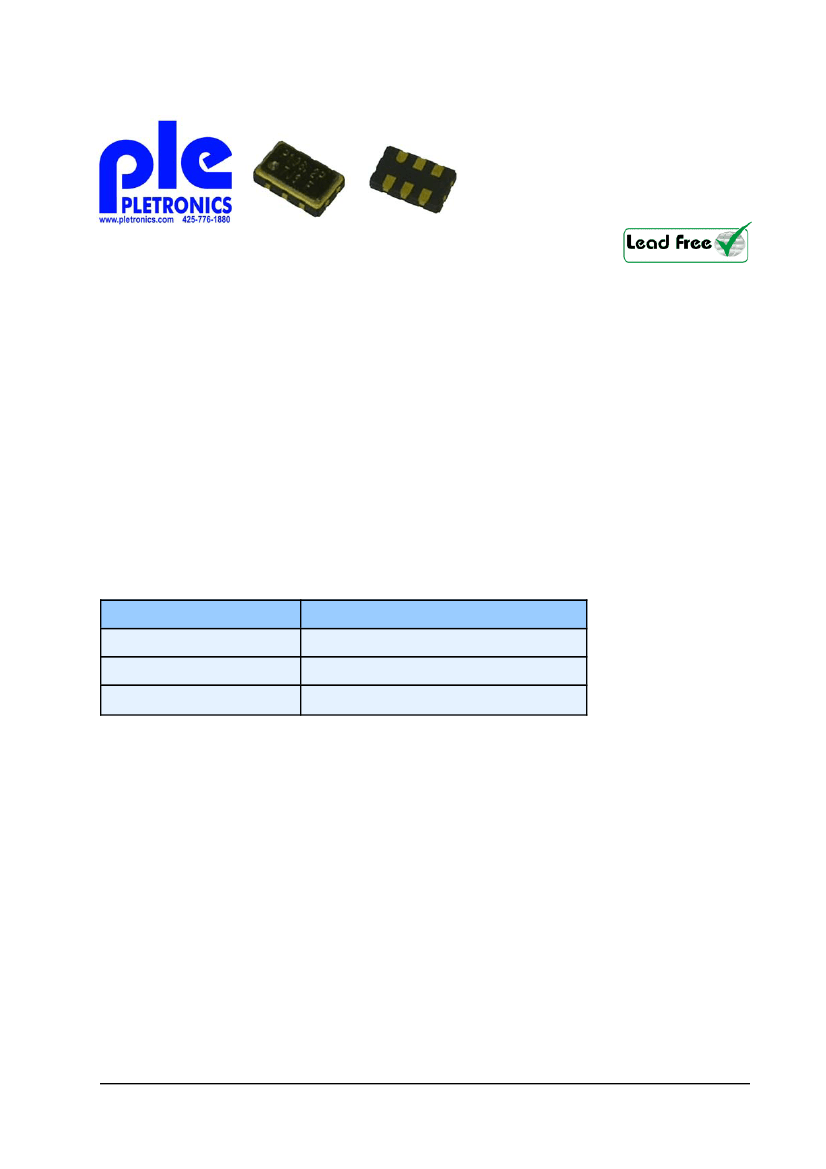

VHD6 Series 3.3V

VCXO CMOS Oscillator

December 2008

• Pletronics’ VHD6 Series is a voltage controlled

crystal oscillator with a CMOS output.

• This model uses fundamental mode crystals

with no multiplication circuits.

• Tape and Reel or tube packaging is available.

•

10 to 108 MHZ

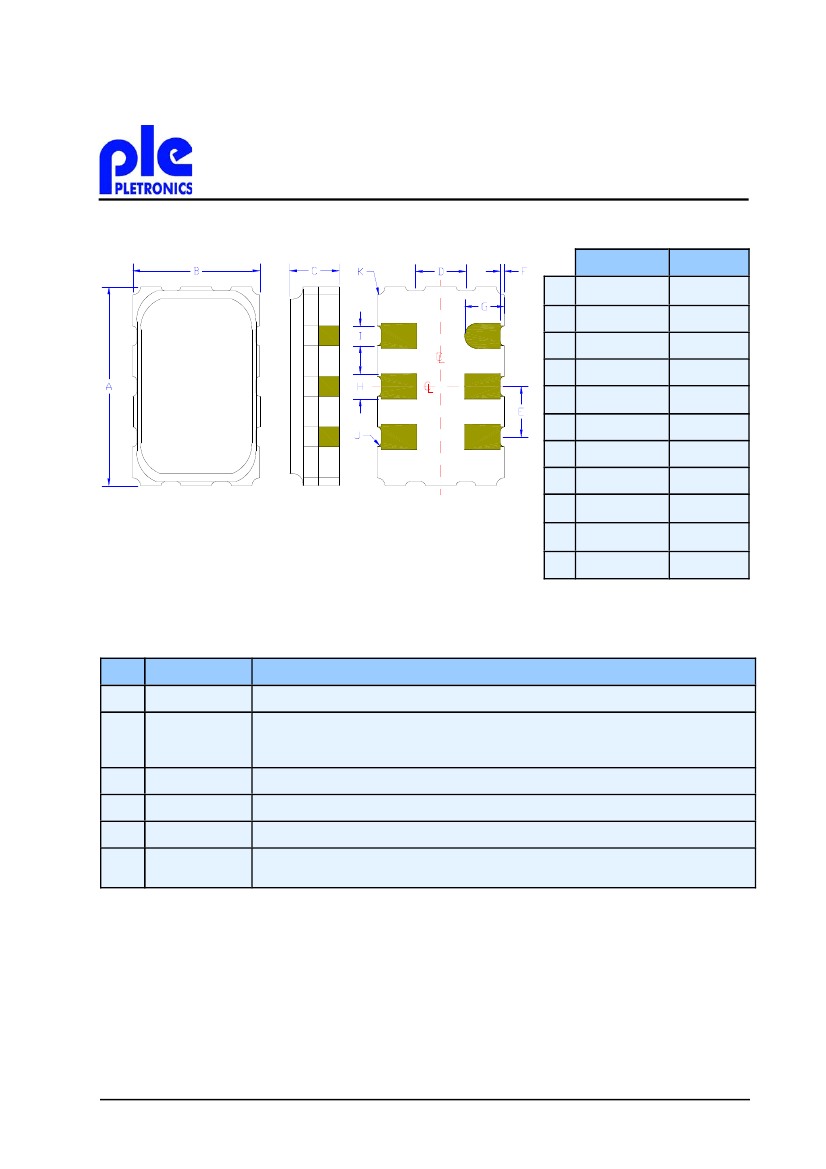

3.2 x 5 mm Ceramic LCC Package

Voltage Control Function on pad 1

Enable/ Disable Function on pad 2

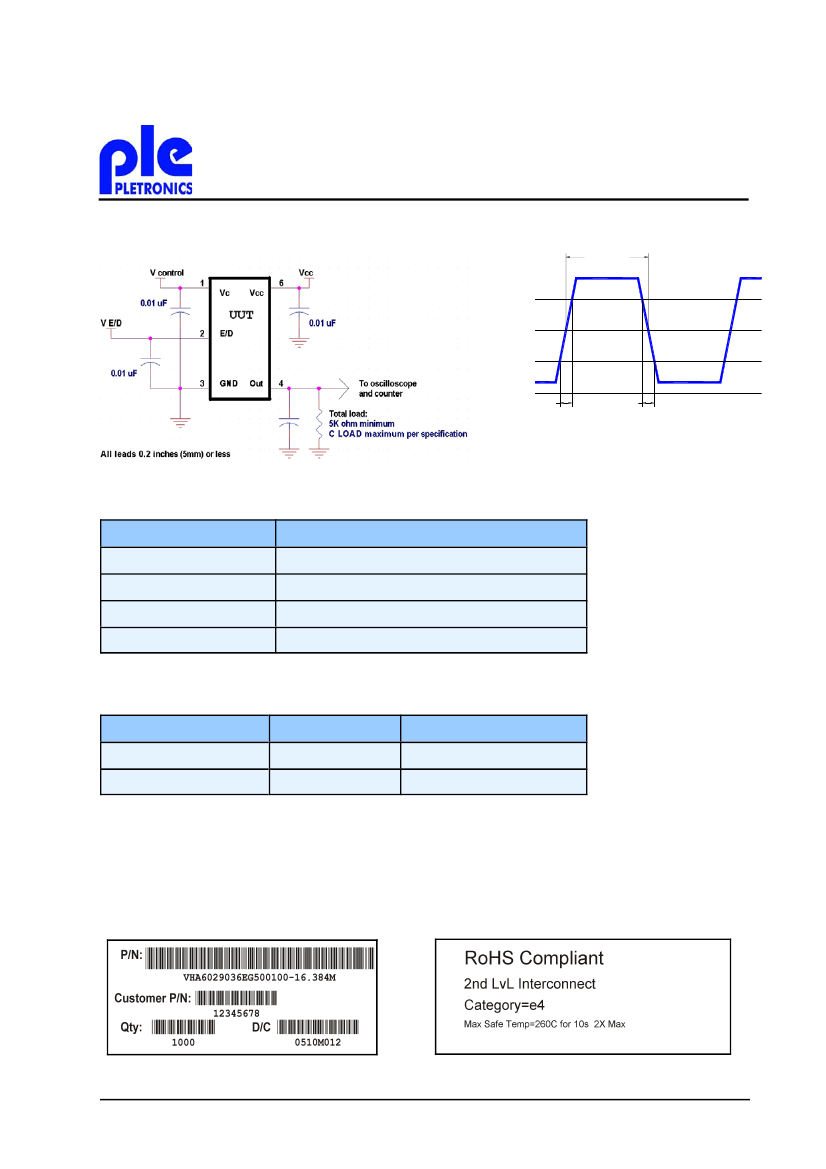

Pletronics Inc. certifies this device is in accordance with the

RoHS 6/6 (2002/95/EC) and WEEE (2002/96/EC) directives.

Pletronics Inc. guarantees the device does not contain the following:

Cadmium, Hexavalent Chromium, Lead, Mercury, PBB’s, PBDE’s

Weight of the Device: 0.09 grams

Moisture Sensitivity Level: 1 As defined in J-STD-020C

Second Level Interconnect code: e4

Absolute Maximum Ratings:

Parameter

Supply Voltage

Input Voltage

Output Voltage

Unit

-0.5V to +5.5V

-0.5V to V

+ 0.5V

-0.5V to V

+ 0.5V

Thermal Characteristics

The maximum die or junction temperature is 155

The thermal resistance junction to board is 60 to 100

C/Watt depending on the solder pads, ground plane

and construction of the PCB.

Product information is current as of publication date. The product conforms

to specifications per the terms of the Pletronics standard warranty. Production

processing does not necessarily include testing of all parameters.
