95253-303LF datasheet, PDF - EEWORLD Datasheet

95253-303LF: DescriptionBoard Connector, 7 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size79KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

95253-303LF Overview

Board Connector, 7 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.19 inch
subject depth	0.15 inch
body length	0.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (79) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN (79) OVER NICKEL (50)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	95253
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.461 mm
Plating thickness	79u inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

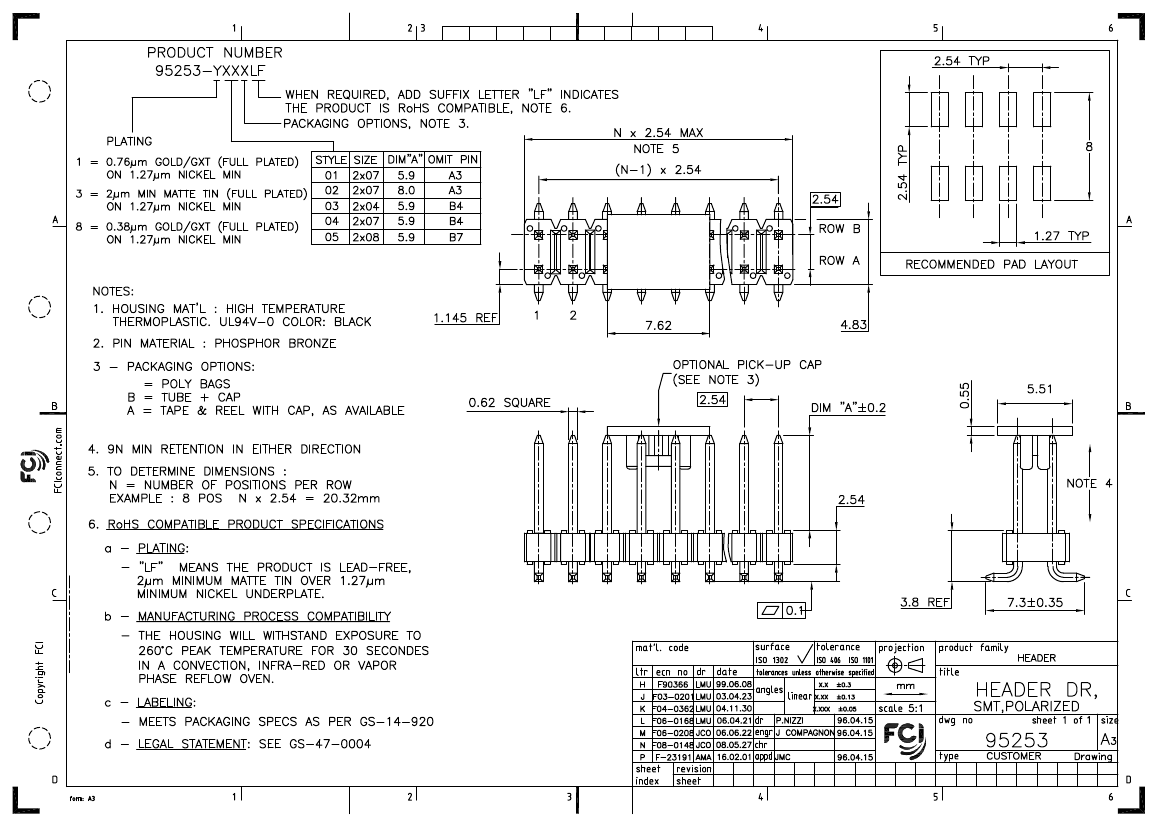

PDS: Rev :P

STATUS:Released

Printed: Feb 12, 2016
