DL306-031TG datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> DL306-031TG

Preview

DL306-031TG: DescriptionIC Socket, DIP6, 6 Contact(s),; CategoryThe connector socket; File Size98KB，1 Pages; ManufacturerAdvanced Interconnections Corp.

Download Datasheet Parametric View All

DL306-031TG Overview

IC Socket, DIP6, 6 Contact(s),

DL306-031TG Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER/COPPER ALLOY
Device slot type	IC SOCKET
Type of equipment used	DIP6
Shell material	POLYBUTYLENE TEREPHTHALATE-POLYESTER
JESD-609 code	e0
Number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

Closed Frame

LED Sockets

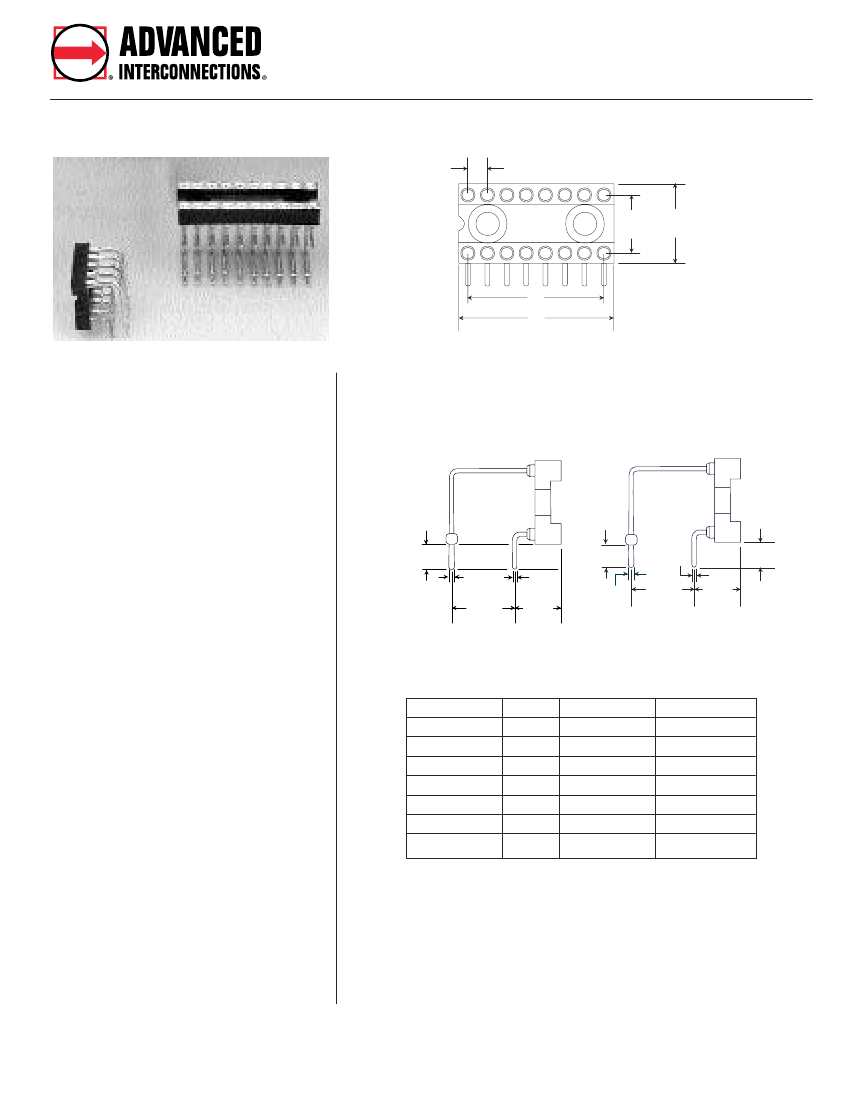

5 Energy Way, P.O. Box 1019, West Warwick, RI 02893 USA Tel. 800-424-9850/401-823-5200 • Fax 401-823-8723 • Email info@advintcorp.com • Internet http://www.advintcorp.com

Closed Frame LED (Light Emitting Diode) Sockets

.100 Typ.

(2.54)

.300

(7.62)

.400

(10.16)

B

A

Features:

• Right angle design allows readable position

of LED on PCB.

• Multiple finger contact for reliability.

• Tapered entry for ease of insertion.

• Closed bottom sleeve for 100% anti-

wicking of solder.

Type -370

Terminals

Type -31

Terminals and Contacts:

Terminal: Brass - Copper Alloy (C36000)

ASTM-B-16

Contact: Beryllium Copper - Copper

Alloy (C17200), ASTM-B-194

.126

(3.20)

.018 Dia.

(.46)

.300

(7.62)

.218

(5.54)

.170

(4.32)

.020 Dia.

(.51)

.300

(7.62)

.218

(5.54)

.185

(4.70)

.018 Dia.

(.46)

Plating:

Terminal: Gold over Nickel or

Tin-Lead over Nickel

Contact: Gold over Nickel or

Tin-Lead over Nickel

Part Number

# of Pins

6

8

10

14

16

18

20

A

.295 (7.49)

.395 (10.03)

.495 (12.57)

.695 (17.65)

.795 (20.19)

.895 (22.73)

.995 (25.27)

B

.200 (5.08)

.300 (7.62)

.400 (10.16)

.600 (15.24)

.700 (17.78)

.800 (20.32)

.900 (22.86)

Gold per MIL-G-45204

Tin-Lead per MIL-P-81728

Nickel per QQ-N-290

DL306-XXXTG

DL308-XXXTG

DL310-XXXTG

DL314-XXXTG

DL316-XXXTG

DL318-XXXTG

DL320-XXXTG

XXX denotes terminal type

Body Material:

Glass Filled Thermoplastic Polyester

(P.B.T.), U.L. Rated 94V-O, -60˚C to 140˚C

(-76˚F to 284˚F)

inch/(mm)

Products shown covered by patents issued and/or pending. Specifications subject to change without notice.

Page 89
