Side View LED
EAPL3809BA0
Features
․Side
view LED.
․Lead
frame package with individual 2 pins.
․Wide
viewing angle.
․Soldering
methods: IR reflow soldering.
․Pb-free.
․The
product itself will remain within RoHS
compliant version.
Descriptions
The
EAPL3809BA0
is available in soft orange,
green, blue and yellow. Due to the
package design, the LED has wide viewing angle and optimized light coupling by
inter reflector. This feature makes the LED ideal for light guide application.
Applications
․LCD
Back Light.
․Mobile
phones.
․Indicators.
․Illuminations.
․Switch
Lights.
1 of 11
Rev. 0.01
DATASHEET
Side View LED
EAPL3809BA0
Device Selection Guide
Chip
Emitted Color
Material
InGaN
Blue
Water Clear
Resin Color
Bin Range of Luminous Intensity
Bin Code
S1
S2
T1
T2
Groups
Bin
A9
A10
A
A11
A12
Min.
180
225
285
360
Min
464.5
467.5
470.5
473.5
Max.
225
285
360
450
Max
467.5
470.5
473.5
476.5
nm
I
F
=20mA
Unit
Condition
mcd
I
F
=20mA
Unit
Condition
Bin Range of Dominant Wavelength
Bin Range of Forward Voltage
Groups
Bin Code
34
35
36
B12
37
38
39
40
Min.
2.7
2.8
2.9
3.0
3.1
3.2
3.3
Max.
2.8
2.9
3.0
3.1
3.2
3.3
3.4
V
I
F
=20mA
Unit
Condition
Notes:
1. Tolerance of Luminous Intensity : ±11%
2. Tolerance of Dominant Wavelength : ±1nm
3. Tolerance of Forward Voltage : ±0.1V
2 of 11
Rev. 0.01
DATASHEET
Side View LED
EAPL3809BA0
Absolute Maximum Ratings (Ta=25
℃
)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @10ms)
Power Dissipation
Electrostatic Discharge(HBM)
*1
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
V
R
I
F
I
FP
Pd
ESD
Topr
Tstg
Tsol
Rating
20
25
100
110
2000
-40 ~ +85
-40 ~ +90
Unit
V
mA
mA
mW
V
℃
℃
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Note:
1. The products are sensitive to static electricity and care must be fully taken when
handling products.
Electro-Optical Characteristics (Ta=25
℃
)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation Bandwidth
Forward Voltage
Symbol
I
V
2θ1/2
λ
P
λ
d
△λ
V
F
Min.
180
-----
-----
464.5
-----
2.7
Typ.
-----
110
468
-----
35
---
Max.
450
-----
-----
476.5
-----
3.4
Unit
mcd
deg
nm
nm
nm
V
I
F
=20mA
Condition
Notes:
1. Tolerance of Luminous Intensity : ±11%
2. Tolerance of Dominant Wavelength : ±1nm
3. Tolerance of Forward Voltage : ±0.1V
3 of 11
Rev. 0.01
DATASHEET
Side View LED
EAPL3809BA0

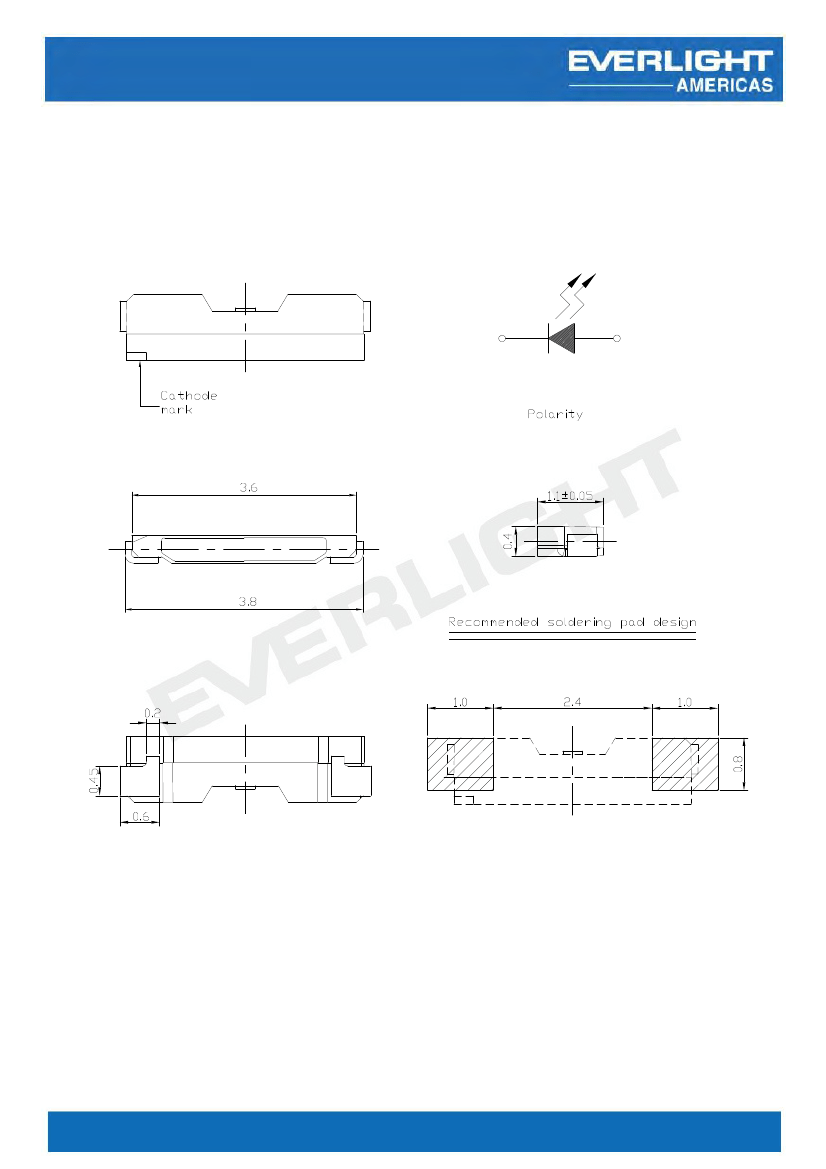

Package Outline Dimensions
-
+
Note:
The tolerance unless mentioned is ±0.1mm,Unit = mm
4 of 11
Rev. 0.01
DATASHEET
Side View LED
EAPL3809BA0

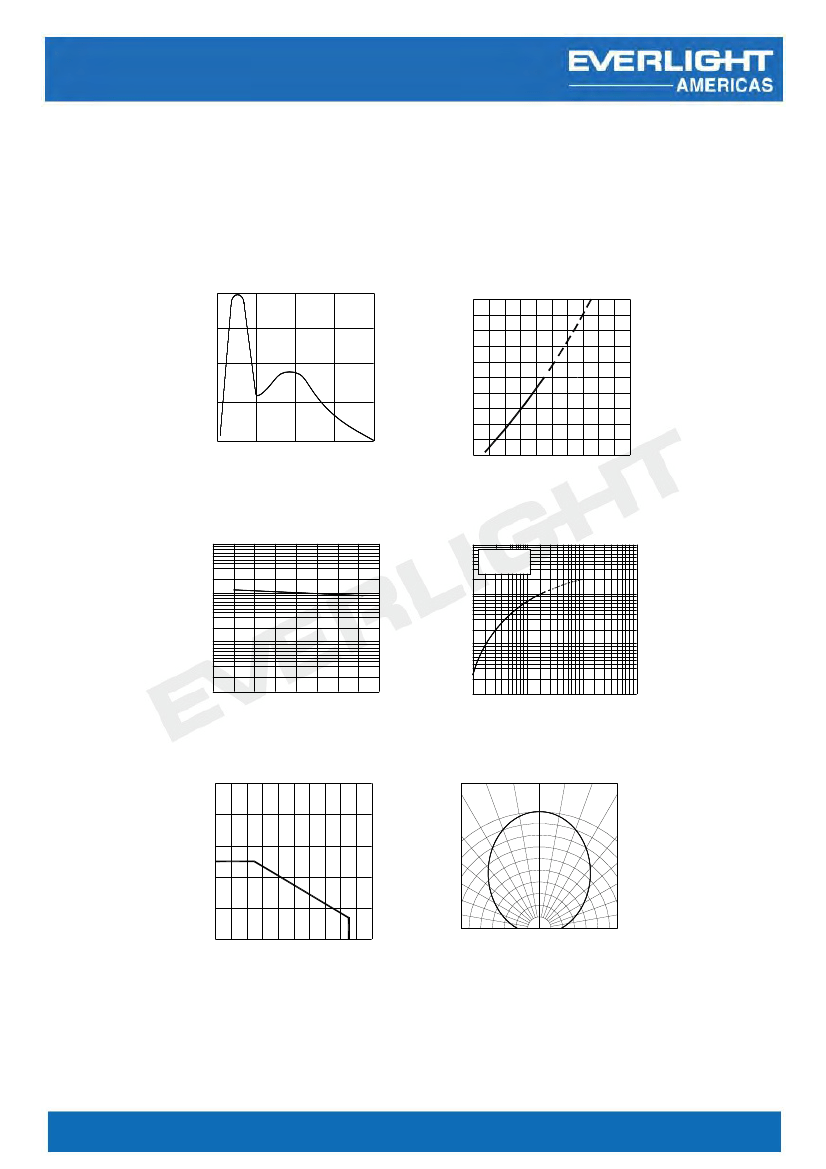

Typical Electro-Optical Characteristics Curves
Spectrum Distribution
Relative luminous intensity (%)
100
75
50
25
Ta=25°C
50
Forward Current I
F
(mA)
40
30
20
10
0
2.6
Forward Current vs.
Forward Voltage
Ta=25°C
0
400
500
600
700
800
Wavelength
λ
(nm)
2.9 3.2
3.5 3.8 4.1
Forward Voltage V
F
(V)
Luminous Intensity vs.
Relative luminous intensity (%)
1000
Ambient Temperature
1000
Relative luminous intensity (%)
Luminous Intensity vs.
Forward Current
f=1KHz
Duty=1/10
Ta=25°C
100
100
10
10
1
-60 -40 -20
0 20 40 60 80 100
1
0
10
Ambient Temperature Ta (°C)
10
10
10
Forward Current I
F
(mA)
1
2
3
Forward Current Derating Curve
Forward Current I
F
(mA)
50
40
30
20
10
0
1.0
0.9
0.8
0.7
Radiation Diagram
0°
10°
Ta=25°C
20°
30°
40°
50°
60°
70°
80°
90°
0.5 0.3
0.1 0.2 0.4 0.6
0
20
40
60
80
100
Ambient Temperature Ta (°C)
5 of 11
Rev. 0.01
