PE-64974-001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> PE-64974-001

PE-64974-001: DescriptionDatacom Transformer, TOKEN RING Application(s), 1:1:1:1; CategoryPower management transformer; File Size151KB，6 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

PE-64974-001 Overview

Datacom Transformer, TOKEN RING Application(s), 1:1:1:1

PE-64974-001 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
application	TOKEN RING
high	7.49 mm
Insulation voltage	750 V
length	25.4 mm
Installation features	THROUGH HOLE MOUNTED
Number of functions	2
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TUBE
physical size	L25.4XB9.78XH7.49 (mm)
Primary inductance	2600 µH
Maximum pulse rise time	15 ns
surface mount	NO
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:1:1:1
width	9.78 mm
Base Number Matches	1

Preview

Download Datasheet

View All

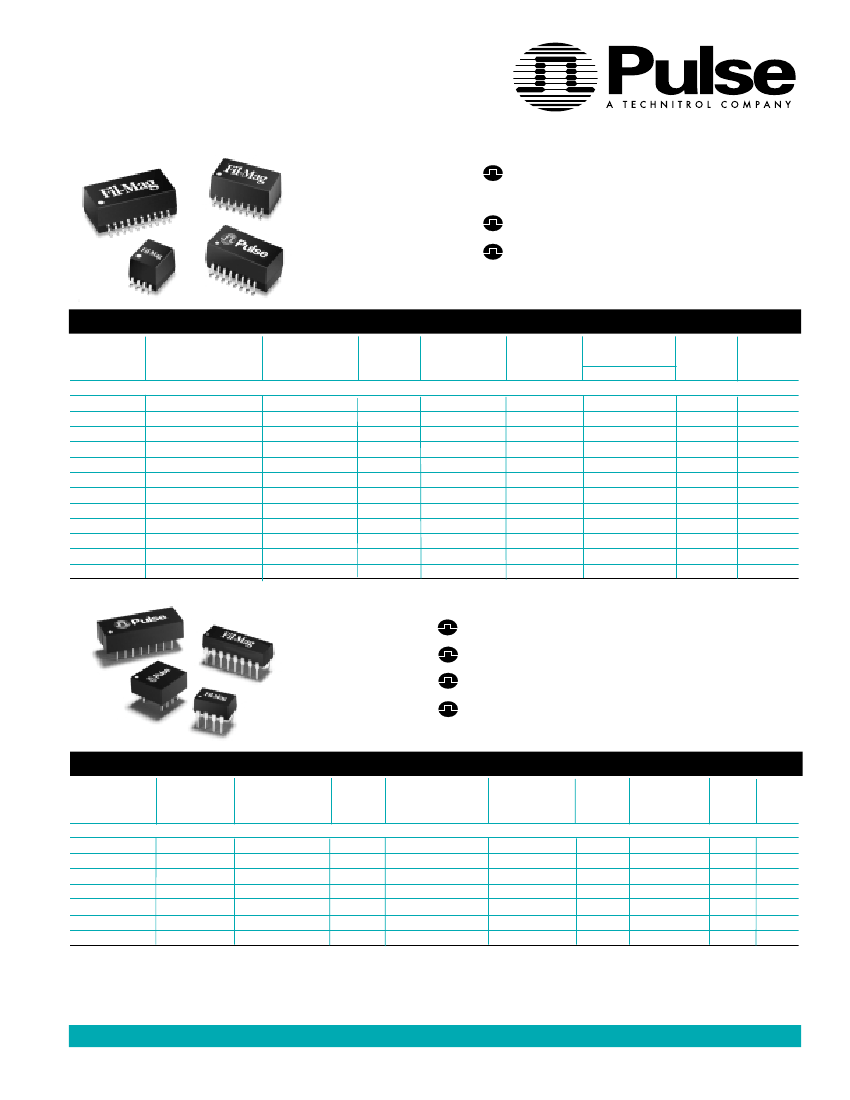

TOKEN RING

ISOLATION TRANSFORMERS

Designed for 4 and 16 Mbps Applications

Dual low-profile surface mount

packages

Low cost front-end solution

Ideal for concentrator and

adapter card applications

Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C

Part

Number

Turns

Ratio

(±2%)

Sine Wave

Inductance OCL

(µH MIN)

710

100

75 ±30%

250

225

Rise

Time

(ns MAX)

—

Interwinding

Capacitance

(pF MAX)

—

Leakage

Inductance

(µH MAX)

0.18

—

0.70

0.30

0.20

0.30

0.60

0.20

0.50

0.20

0.30

DC Resistance

(Ω MAX)

Pri

Sec

0.3

0.22

—

0.2

0.3

0.2

0.6

1.0

0.4

0.5

0.4

0.3

1.0

—

0.4

0.3

0.4

0.6

1.0

0.4

0.5

0.4

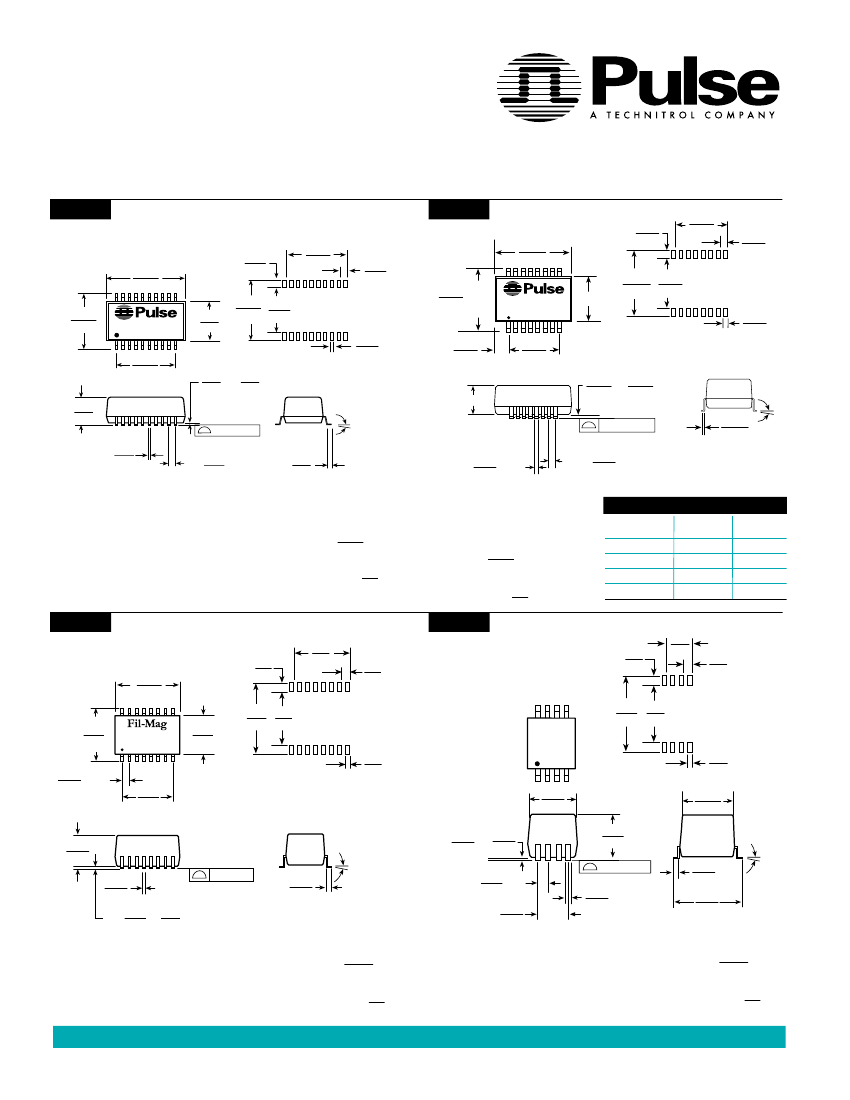

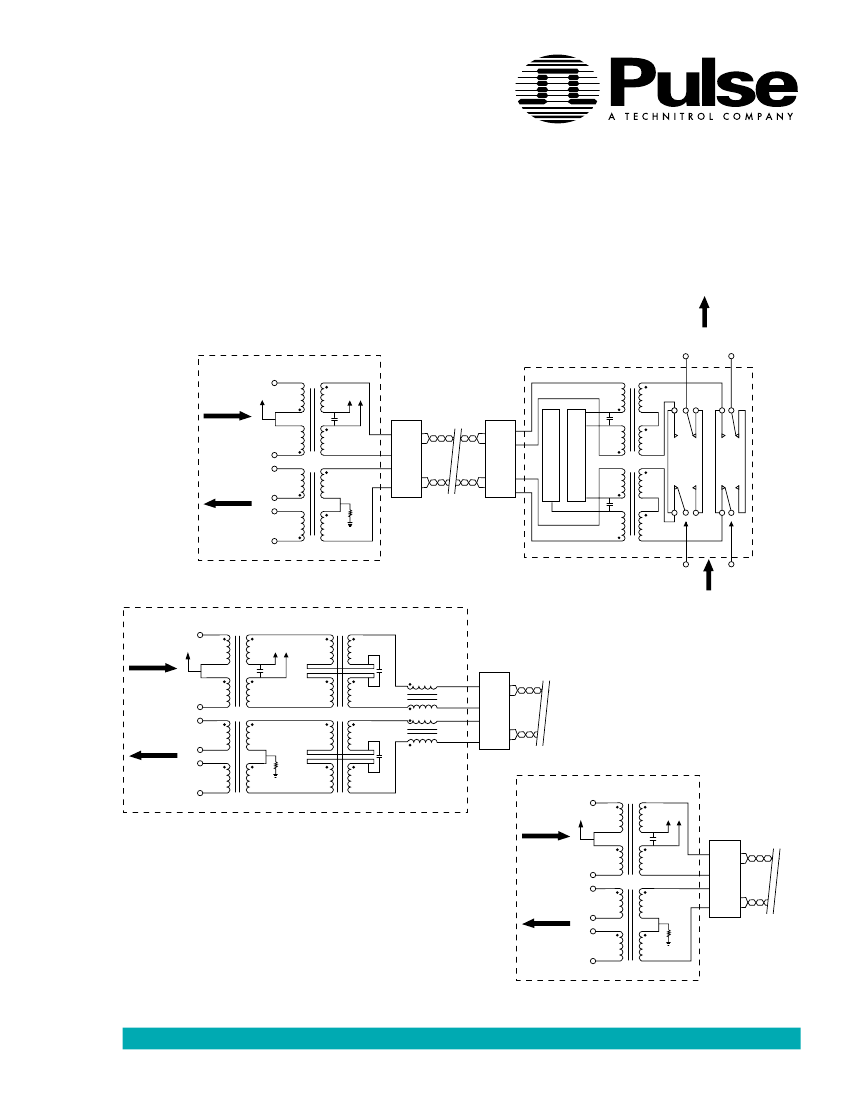

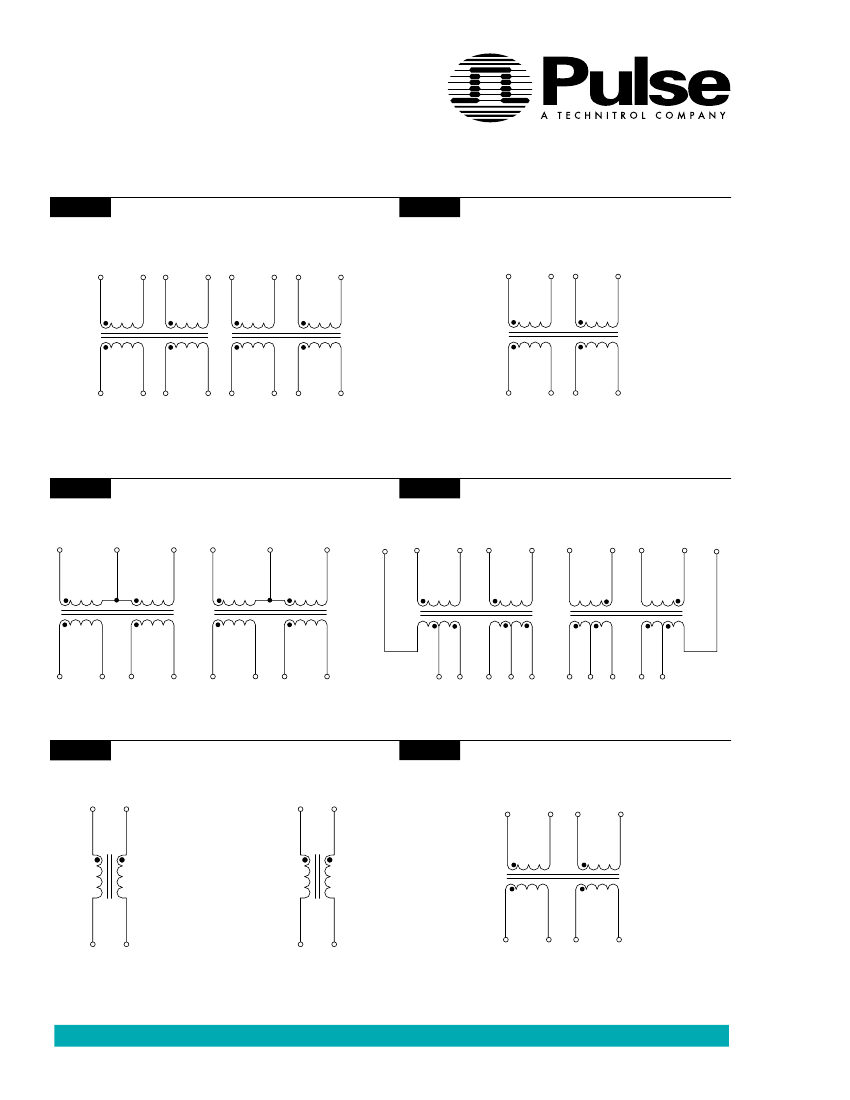

Schematic Mechanical

URFACE

OUNT

PE-65736

1:1

PE-65737

1:1.21:1:1.21

PE-65738

1:1

PE-67562

1:1:2CT dual

23Z110SM

1:1:2:2

23Z111SM

1.22:1.22:1:1 ±5%

23Z112SM

1:1:2:2

23Z116SM

1:1:1:1

23Z126SM

1:1:1:1 ±3%

23Z133SM

1.22:1.22:1:1 ±5%

23Z354SM

0.5:0.5:1.22:1.22

23Z807SM

1:1:2:2 ±3%

SMT2

SMT4

SMT3

SMT4

SMT3

SMT4

SMT1

NOTE:

Transformers are packaged in tubes, unless Tape & Reel is specified. Please add the suffix “T” for all Tape & Reel orders. For example: PE-67562T.

IEEE 802.5 compatible

Single and dual low profile packages

Proven reliable designs

Recommended by Texas Instruments

since 1984

Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C

Part

Number

HROUGH

OLE

PE-63838-001

PE-64974-001

PE-65871

PE-67537

PE-67541

23Z111

23Z806

Turns

Ratio

(±5%)

1:1:2:2

1:1:1:1

1:1:2:2

1:1:1:1

1.22:1.22:1:1

1:1:1:1 ±3%

Sine Wave

Rise

Interwinding

Inductance OCL

Time

Capacitance Cww

(µH MIN)

(ns MAX)

(pF MAX)

500

2600

500

900

1200

100 (±20%)

750

—

3.0

5.0

—

Leakage

Inductance L

(µH max)

0.7

0.5

0.2

—

0.2

DCR

(Ω MAX)

.80

1.0

.25

1.2

1.0

.30

1.00

Primary

Pins

1-2/3-4

1-2/3-4/5-6/7-8

1-2/3-4

1-2/3-4/5-6/7-8

1-2/3-4

1-2/3-4/5-6/7-8

Schem.

Mech.

TH1

TH2

TH1

TH2

TH4

TH3

NOTES:

1. Measured at 20 mVrms, 100 KHz.

2. Measured at 20 mVrms, 10 KHz.

3. Measured at 50 mV, 100 KHz.

4. Insertion Loss is 0.5 dB MAX from 1-16 MHz. Return Loss is 15 dB MIN from 10-16 MHz and 20 dB MIN from 1-5 MHz.

U.S: 858 674 8100

•

U.K: 44 1483 401 700

•

France: 33 3 84 35 04 04

•

Singapore: 65 287 8998

•

Taiwan: 886 2 2698 0228

•

http://www.pulseeng.com

EC200.A (12/00)
