QSS-075-01-F-D-A-LS2-TR datasheet, PDF

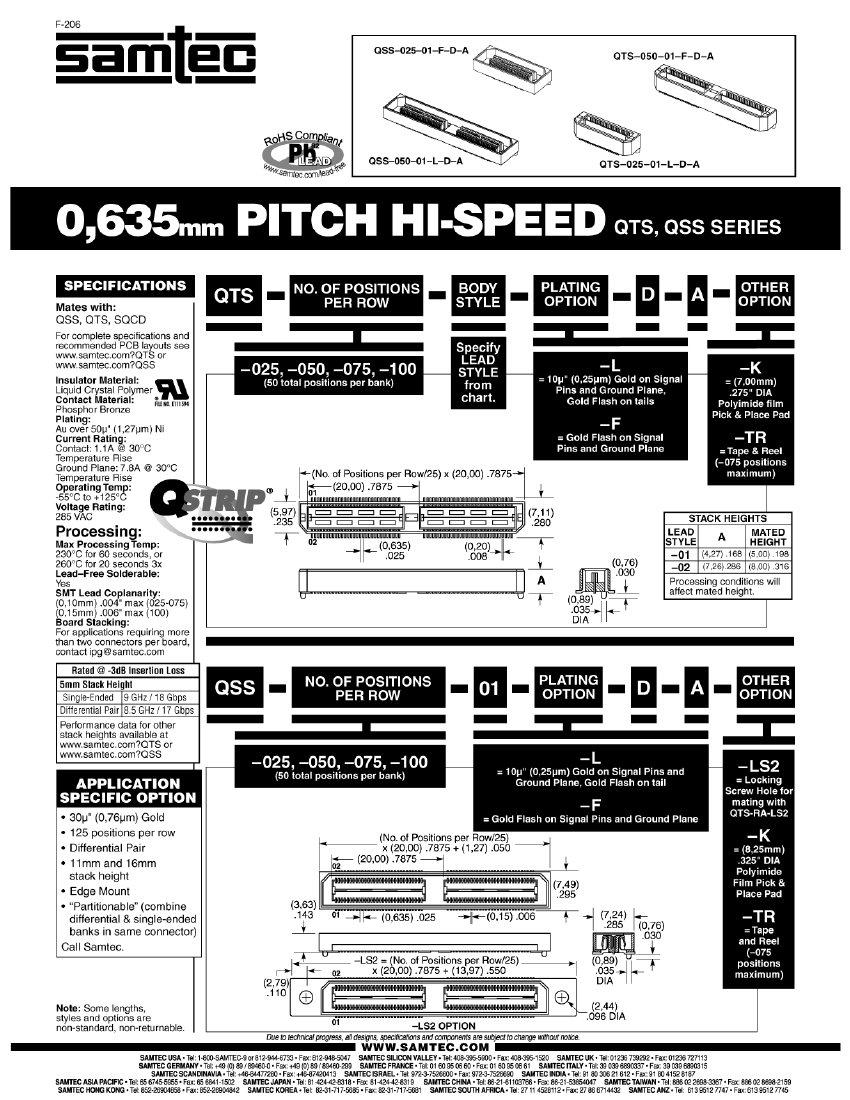

QSS-075-01-F-D-A-LS2-TR: DescriptionBoard Connector, 150 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Hole .087-.098, Receptacle; CategoryThe connector The connector; File Size186KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

QSS-075-01-F-D-A-LS2-TR Overview

Board Connector, 150 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Hole .087-.098, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	3 weeks
Other features	ROHS COMPLIANT,TAPE/REEL PKG
Board mount options	POLARIZATION POST
body width	0.285 inch
subject depth	0.143 inch
body length	2.912 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD FLASH
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	938VAC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	QSS
Plug contact pitch	0.025 inch
Installation option 1	HOLE .087-.098
Installation option 2	SCREWLOCKS
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.096 mm
Plating thickness	FLASH inch
polarization key	ENDS
Rated current (signal)	1.1 A
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	150
Base Number Matches	1
