FAI4D-M07 datasheet, PDF - EEWORLD Datasheet

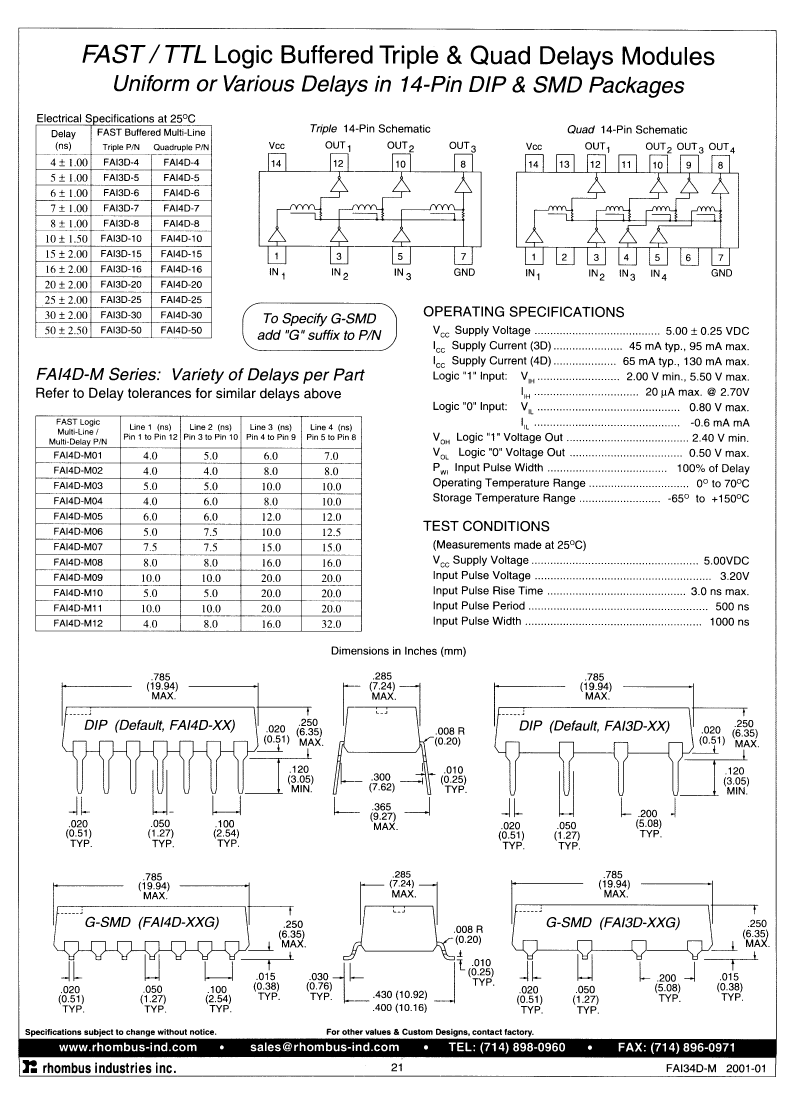

FAI4D-M07: DescriptionActive Delay Line, 1-Func, 4-Tap, True Output, TTL, PDIP14, DIP-14; Categorylogic logic; File Size88KB，1 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

Download Datasheet Parametric View All

FAI4D-M07 Overview

Active Delay Line, 1-Func, 4-Tap, True Output, TTL, PDIP14, DIP-14

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T14
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	6.35 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	15 ns
width	7.62 mm
Base Number Matches	1
