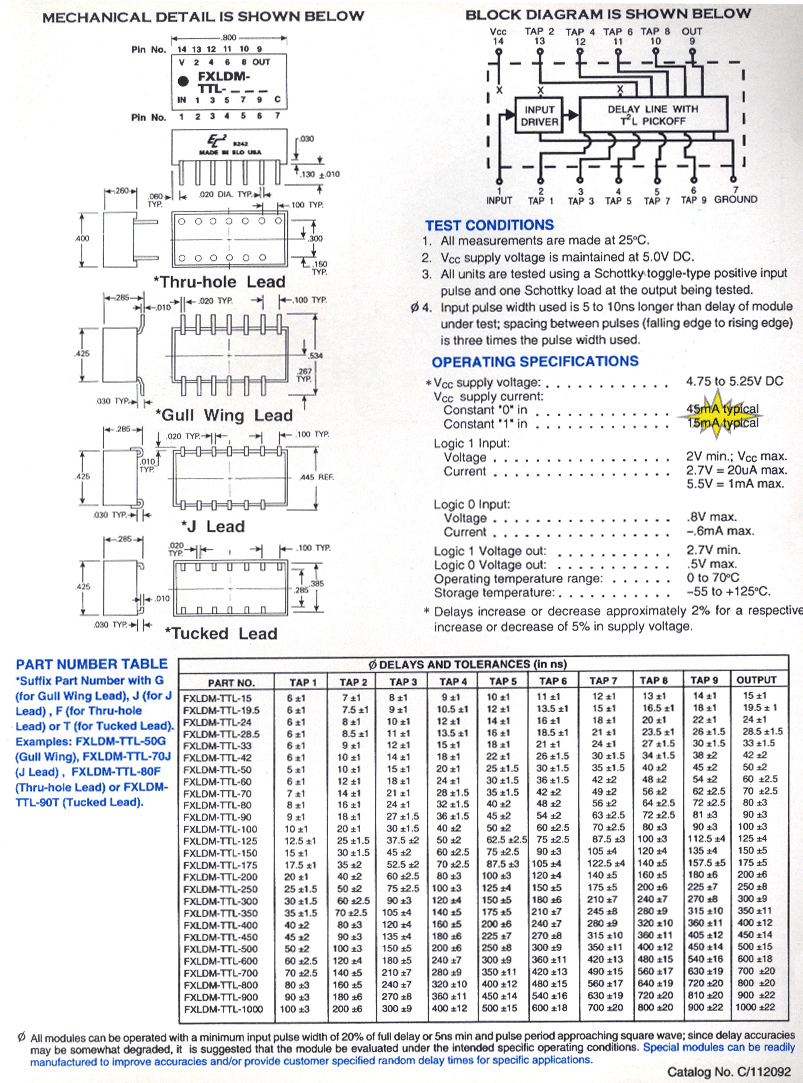

Active Delay Line, 1-Func, 10-Tap, True Output, TTL, TUCKED LEAD, MODULE-14/13
| Parameter Name | Attribute value |
| Parts packaging code | MODULE |
| package instruction | SOL, |
| Contacts | 14/13 |
| Reach Compliance Code | unknown |
| Other features | TAP TO TAP DELAY TOL.[NS] VARIES; INTERNAL TERMINATION; MAX RISE TIME CAPTURED |
| series | F |
| JESD-30 code | R-XDSO-L13 |
| Logic integrated circuit type | ACTIVE DELAY LINE |
| Number of functions | 1 |
| Number of taps/steps | 10 |
| Number of terminals | 13 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output polarity | TRUE |
| Package body material | UNSPECIFIED |
| encapsulated code | SOL |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| programmable delay line | NO |
| Certification status | Not Qualified |
| Maximum seat height | 7.239 mm |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal form | L BEND |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Total delay nominal (td) | 175 ns |
| Base Number Matches | 1 |
