EURO
QUARTZ
Package pin compatible with 14 pin DIL
Wide frequency range: 1.25MHz to 156.0MHz
Supply voltage 2.8, 3.0, 3.3 or 5.0 Volts
Frequency stability from ±1ppm over -30 to +75°C
EM39T Series TCXO
HCMOS, 14 pin DIL compatible, MHz Range

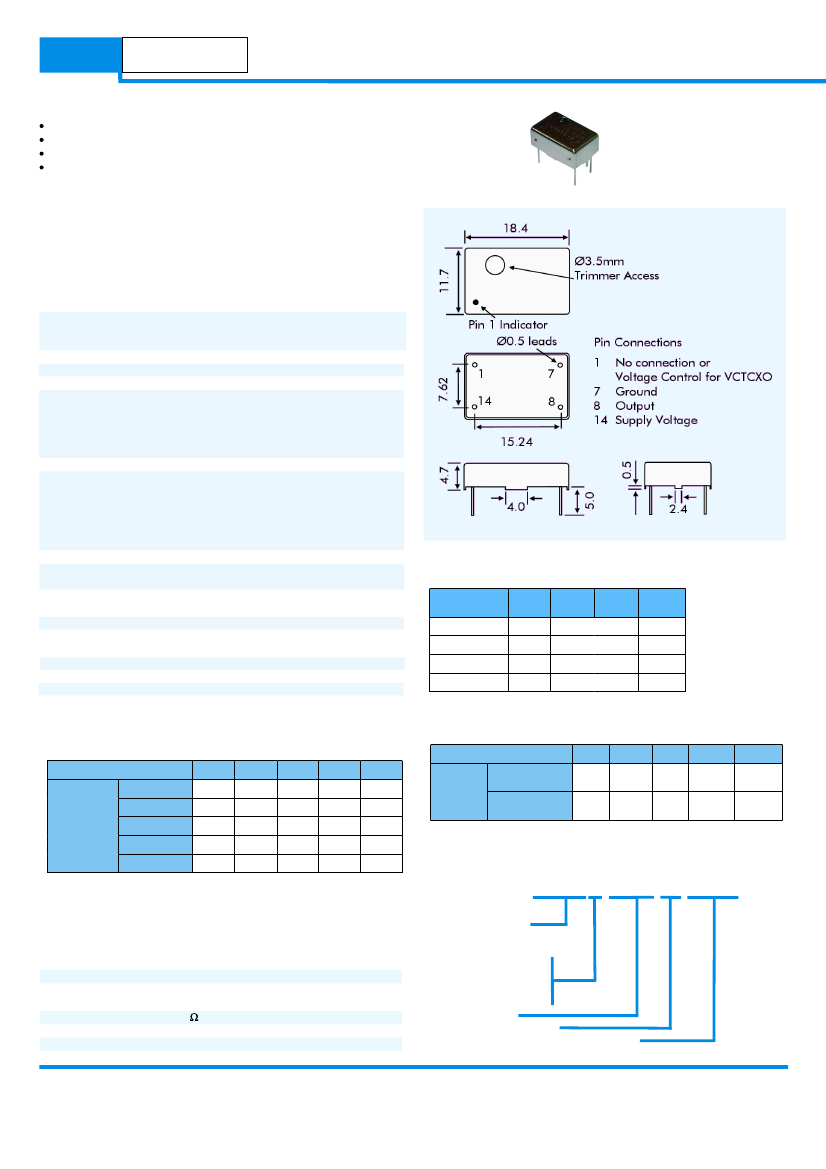

EM39T - OUTLINES AND DIMENSIONS
DESCRIPTION
EM39T series TCXOs are packaged in a conventional through hole-
mounted package compatible with 14 pin DIL. With squarewave
(CMOS) output, tolerances are available from ±1.0ppm over -30° to
+75°C. The part has a 0.01mF decoupling capacitor built in.
SPECIFICATION
Product Series Code
TCXO:
VCTCXO:
Frequency Range:
Output Waveform:
Initial Calibration Tolerance:
Standard Frequencies:
EM39T
VEM39T
1.25MHz to 156.0MHz
Squarewave, HCMOS
<±1.0ppm at +25°±2°C
10.0, 12.8, 13.0, 14.4, 15.36,
16.384, 19.2, 19.440, 19.68,
25.0, 20.0, 27.0, 38.880,
40.0, 77.760, 125.0, 155.520
(Partial
list)
See table
±1.0 ppm max. first year
±0.3 ppm max. ±5% change
±0.3 ppm max. ±10% change
±1.0ppm max. for one reflow
(Measured
after 24 hours)
±3ppm minimum
+2.8, +3.0, +3.3 or +5.0V
(See
table)
Logic High: 90% Vdd min.
Logic Low: 10% Vdd max.
10ns max.
50%±10% standard,
50%±5% option
5ms typical, 10ms max.
See table below
15pF
-55~+125°C
Operating Temperature Range:
Frequency Stability
vs. Ageing:
vs. Voltage Change:
vs. Load Change:
vs. Reflow (SMD type):
Mechanical Frequency Tuning:
Supply Voltage:
Output Logic Levels:
Rise and Fall Times:
Duty Cycle:
Start-up Time:
Current Consumption:
Output Load:
Storage Temperature:
INPUT VOLTAGE & CURRENT CONSUMPTION
Input Voltage/
Frequency
8.192MHz
10.0MHz
77.760MHz
155.520MHz
+2.8V
2mA
3mA
14mA
26mA
+3.0
+3.3V
2mA
4mA
17mA
35mA
+5.0 V
5mA
7mA
32mA
50mA
SSB PHASE NOISE at 25°C
FREQUENCY STABILITY
Frequency Stability (ppm)
0 ~ +50
-10 ~ +60
Temperature
Range (°C)
-20 ~ +70
-30 ~ +75
-40 ~ +85
P
±0.5
ASK
x
x
x
x
±1.0
P
P
x
x
x
±1.5
P
P
P
x
x
±2.0
P
P
P
P
x
±2.5
P
P
P
PP
P
Part =
M39T33
Offset
at 10.0Mhz
(dBc/Hz)
at 155.250Mhz
(dBc/Hz)
10Hz
-115
-72
100Hz
-135
-110
1kHz
-148
-125
10kHz
-152
-132
100kHz
-155
-125
PART NUMBERING SCHEDULE
Example:
= available, x = not available, ASK = call Technical Sales
EM39T33-38.880-2.5/-30+75
VEM39T VOLTAGE CONTROL SPECIFICATION
Control Voltage:
Standard = +1.5±1.0Volts for all input
voltages.
(Contact technical sales if
+2.5±2.0 Volts is required.)
Frequency Deviation: ±6.0 ppm min. (Vcon = +4.5V±1.0V)
Slope Polarity:
Positive
(increase of control voltage increases
output frequency.)
Input Impedance:
50k minimum
Modulation Bandwidth: 20kHz minimum
Linearity:
±10% maximum
Series Description
TCXO = EM39T
VCTCXO = VEM39T
Supply Voltage
28 = 2.8VDC
3 = 3.0VDC
33 = 3.3 VDC
5 = 5.0 VDC
Frequency (MHz)
Stability over OTR (±ppm)
Operating Temperature Range (OTR) (°C)
Lower and upper limits.
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk
www.euroquartz.co.uk
