Bulletin I0503J 12/99
SC105.....5. Series
SCHOTTKY DIE 105 x 125 mils
a
c
0.35 ± 0.01
(0.14 ± 0.0004)
NOTES:
1. ALL DIMENSIONS ARE SHOWN IN MILLIMETERS (INCHES).
2. CONTROLLING DIMENSION: (INCH).
C
A
D
3. DIMENSIONS AND TOLERANCES:
a = 3.18 + 0, - 0.05
(0.125 + 0, - 0.002)
b = 2.67 + 0, - 0.05
(0.105 + 0, - 0.002)
c = 3.02 + 0, - 0.003
(0.119 + 0, - 0.0001)
d = 2.51 + 0, - 0.003
(0.099 + 0, - 0.0001)
Ø = 0.7 ± 0.1
(0.03 ± 0.004)
4. LETTER DESIGNATION:
A = Anode (Top Metal)
C = Cathode (Back Metal)
D = Reject Ink Dot (only on non-conforming dies)
5. SAWING:
Recommended Blade
SEMITEC S1025 QS00 Blade
b
d
Ø
40 (1.57)
Wafer flat alligned with
side b of the die
Ø 125 (4.92)
NOT TO SCALE
NOTE:
10 mils die thickness is available on specific request only.
Contact factory for information.
www.irf.com
1
SC105.....5. Series
Bulletin I0503J 12/99
Electrical Characteristics
Device
#
SC105
R
015x5x
SC105
S
020x5x
SC105
S
030x5x
SC105
S
045x5x
SC105
S
060x5x
SC105
H
045x5x
SC105
H
100x5x
SC105
H
150x5x
T
J
Max.
(°C)
125
125
150
150
150
175
175
175
V
R
(V)
15
20
30
45
60
45
100
150
220
150
110
35
12
15
Typ. I
R
@ 25°C
(µA)
3000
Typ. I
R
@ 125°C
(mA)
Max. V
F
@ I
F
(V)
n.a. contact factory
n.a. contact factory
100
75
60
10
7
7
0.49 @ 15A
0.54 @ 15A
0.60 @ 15A
0.62 @ 15A
0.86 @ 15A
1.00 @ 15A
TO-220
TO-247
TO-247
TO-220
TO-247
TO-220
Package
Style
Mechanical Data
Device
#
SC105xxxx
A
5x
SC105xxxx
S
5x
Bondable
Solderable
--
Ti 2 kÅ
Metal Thickness
Front Metal
Al/Si 30 kÅ
Ni 6 kÅ
--
Ag 35 kÅ
Cr 1 kÅ
Cr 1 kÅ
Metal Thickness
Back Metal
Ni 4 kÅ
Ni 4 kÅ
Ag 6 kÅ
Ag 6 kÅ
Recommended Storage Environment: Store in original container, in dessicated nitrogen, with no contamination.
Shelf life for parts stored in above condition is 2 years.
If the storage is done in normal atmosphere shelf life is reduced to six months.
Packaging
Device
#
SC105xxxxx5
B
SC105xxxxx5
R
SC105xxxxx5
P
SC105xxxxx5
F
Description
Minimum Order Quantity
Wafer in Sale Package
1150
3000
1150
1150
Inked Probed Unsawn Wafer (Wafer in Box)
Probed Die in Tape & Reel
Probed Die in Waffle Pack
Inked Probed Sawn Wafer on Film
2
www.irf.com
SC105.....5. Series
Bulletin I0503J 12/99
Ordering Information Table
Device Code
SC
1
1
2
3
4
5
6
7
-
-
-
-
-
-
-
Schottky Die
Chip Dimension in Mils
105
2
H
3
100
4
S
5
5
6
B
7
H = 830 Process
Process (see Electrical Characteristics Table)
Voltage code: Code = V
RRM
Chip surface metallization (see Mechanical Data Table)
Wafer Diameter in inches
Packaging (see Packaging Table)
R = OR'ing Process
S = Standard Process
Wafer on Film
STEEL FRAME
www.irf.com
3
SC105.....5. Series
Bulletin I0503J 12/99

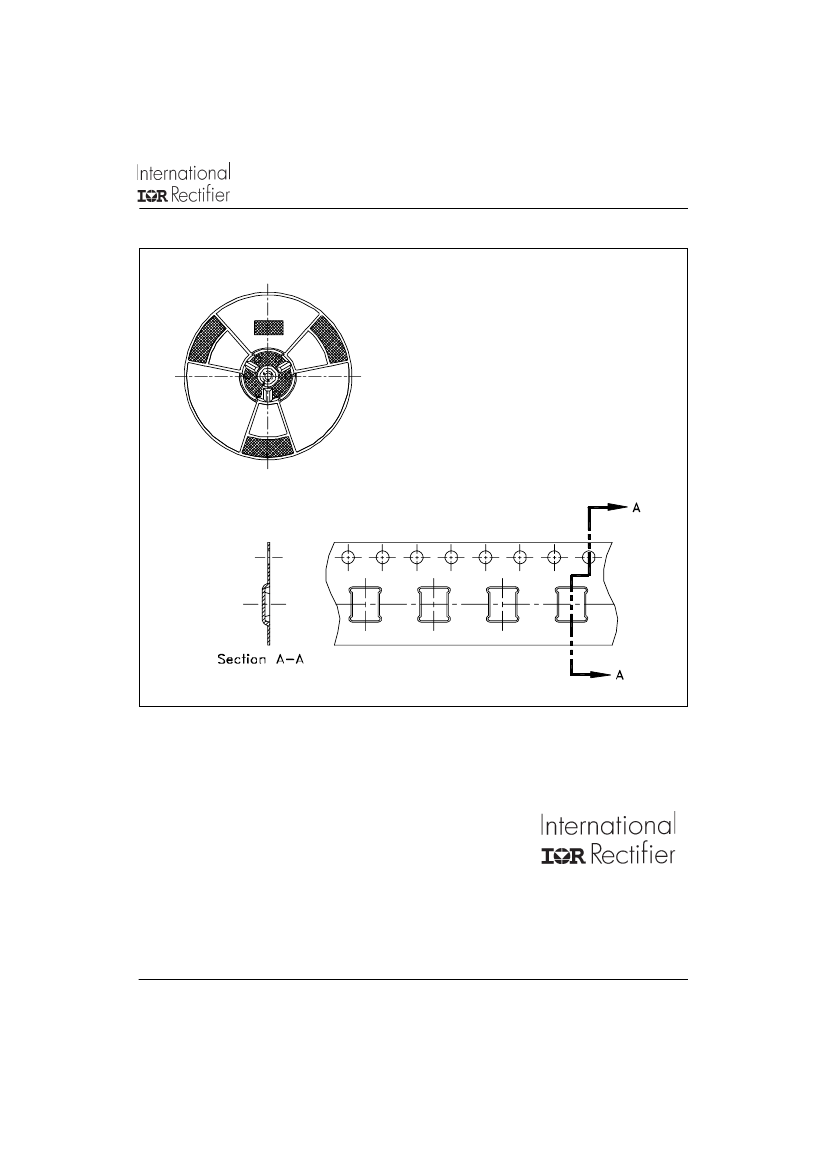

Tape and Reel
REEL FRAME
BARE DIE CARRIER TAPE
WORLD HEADQUARTERS:
EUROPEAN HEADQUARTERS:
IR CANADA:
IR GERMANY:
IR ITALY:
IR FAR EAST:
IR SOUTHEAST ASIA:
IR TAIWAN:
http://www.irf.com
233 Kansas St., El Segundo, California 90245 U.S.A. Tel: (310) 322 3331. Fax: (310) 322 3332.
Hurst Green, Oxted, Surrey RH8 9BB, U.K. Tel: ++ 44 1883 732020. Fax: ++ 44 1883 733408.
15 Lincoln Court, Brampton, Markham, Ontario L6T3Z2. Tel: (905) 453 2200. Fax: (905) 475 8801.
Saalburgstrasse 157, 61350 Bad Homburg. Tel: ++ 49 6172 96590. Fax: ++ 49 6172 965933.
Via Liguria 49, 10071 Borgaro, Torino. Tel: ++ 39 11 4510111. Fax: ++ 39 11 4510220.
K&H Bldg., 2F, 30-4 Nishi-Ikebukuro 3-Chome, Toshima-Ku, Tokyo, Japan 171. Tel: 81 3 3983 0086.
1 Kim Seng Promenade, Great World City West Tower,13-11, Singapore 237994. Tel: ++ 65 838 4630.
16 Fl. Suite D.207, Sec. 2, Tun Haw South Road, Taipei, 10673, Taiwan. Tel: 886 2 2377 9936.
Data and specifications subject to change without notice.
Fax-On-Demand: +44 1883 733420
www.irf.com
