835-00220 Overview

Power Transformer

835-00220 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1:1:1:1:1
Center click function 1	NO
Center click function 2	NO
high	10 mm
Insulation voltage	500 V
length	18 mm
Manufacturer's serial number	835-00220
Installation features	SURFACE MOUNT
Number of secondary windings	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	18.0mm X 24.6mm X 10.0mm
surface mount	YES
Transformer type	POWER TRANSFORMER
width	24.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

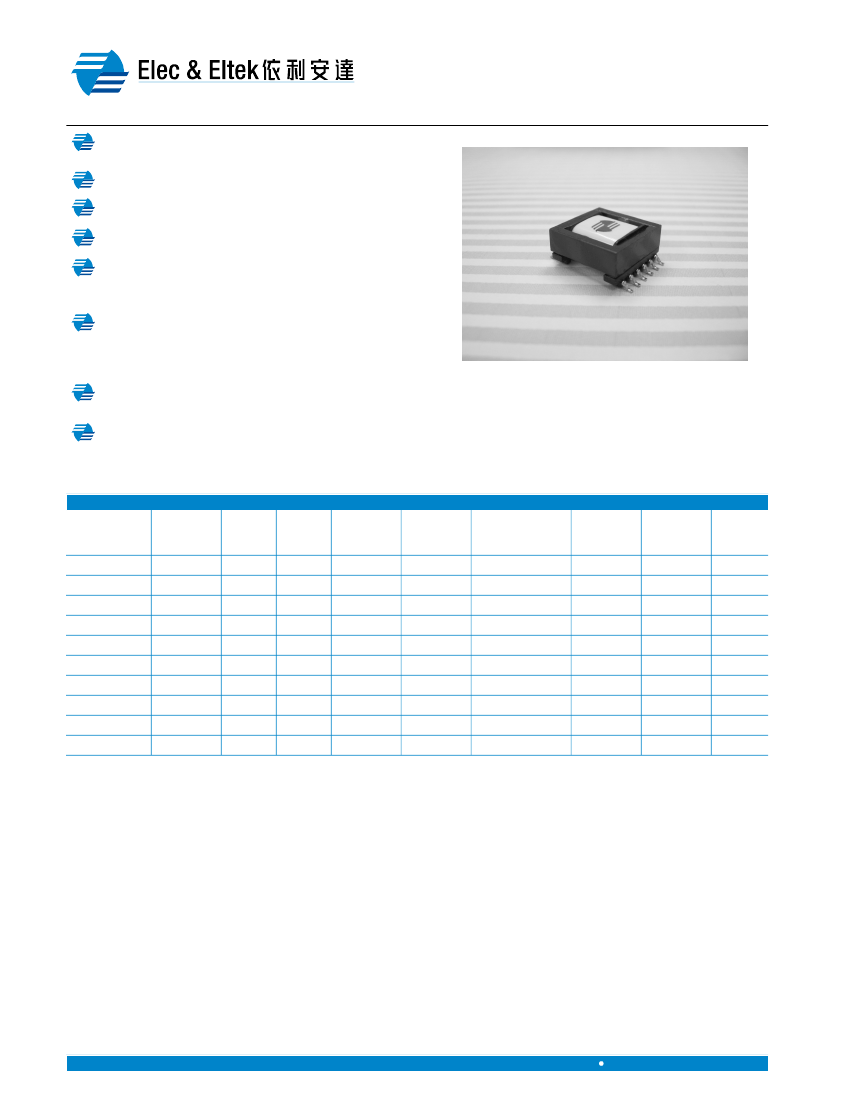

E & E Magnetic Products Limited

SURFACE MOUNT

POWER TRANSFORMER

12 PIN, EXT. TEMP.

Six winding design offers numerous usable inductor

CHEMATICS

or transformer configurations

High power density and low profile

Frequency range to over 1MHz

500 VAC isolation between winding

Inductor applications: buck, boost, coupled, choke,

filter, resonant, noise filtering, differential, forward,

common mode

Transformer applications: flyback, feed forward, push-

pull, multiple output, inverter, step-up, step-down,

gate drive, base drive wide band, pulse, control,

impedance, isolation, bridging, ringer, converter, auto

Operating temperature range: -40°C to +85°C(range is

application specific)

Lead(Pb)-free versions are available

LECTRICAL

PECIFICATION @

25°C

Part

Number

835-00214

835-00215

835-00216

835-00217

835-00218

835-00219

835-00220

835-00221

835-00222

835-00223

OCL

Isat

Irms

(

H) Nom. (A) Typ. (A) Typ.

145±30%

69.7±30%

23.7±20%

11.3±20%

12.7±20%

6.1±20%

10.1±20%

4.9±20%

7.94±20%

3.8±20%

0.11

0.15

0.65

0.95

1.21

1.75

1.52

2.18

1.94

2.81

1.41

1.70

1.41

1.70

1.41

1.70

1.41

1.70

1.41

1.70

DCR

E.T.

Maximum energy Leakage

Thermal

Marking

capacity

Inductance Resistance

(xxx)

Ω)

Max. (V·

s) Max.

(

J) Typ.

(

H) Typ. (°C/W) Typ.

39.4

214

82.8

64.6

0.57

0.156

57.0

82.8

57.0

82.8

57.0

82.8

57.0

82.8

57.0

44.7

64.6

44.7

64.6

44.7

64.6

44.7

64.6

44.7

0.57

3.54

6.55

8.16

10.52

0.075

0.156

0.075

0.156

0.075

0.156

0.075

0.156

0.075

39.4

215

216

217

218

219

220

221

222

223

Notes:

Peak current, Isat, is the current that result in 30% saturation of the core, assumes that equal current flows in all

six winding.

RMS current, Irms, will result in a surface temperature of approximately 40°C above ambient when it flows

through each of the six winding.

Maximum energy capacity of each winding is based on 30% saturation of the core.

Thermal resistance is the approximate surface temperature rise per Watt of heat loss under still-air conditions,

assumes the underlying PCB copper area equals 150% of the component area.

The internal “hot spot” temperature defines the maximum allowable currents, which are limited to 130°C,

including ambient.

Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2954 3333

Fax: (852) 2954 3304

PX104(02)

Revised in 04/06
