B43693A2476Q007 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> B43693A2476Q007

B43693A2476Q007: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 47uF, THROUGH HOLE MOUNT, AXIAL LEADED; CategoryPassive components capacitor; File Size421KB，14 Pages; ManufacturerEPCOS (TDK)

Download Datasheet Parametric Compare View All

B43693A2476Q007 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 47uF, THROUGH HOLE MOUNT, AXIAL LEADED

B43693A2476Q007 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: IEC60384-4
capacitance	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	18 mm
dielectric materials	ALUMINUM (WET)
ESR	1100 mΩ
JESD-609 code	e3
leakage current	0.21591 mA
length	30 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Axial
polarity	POLARIZED
positive tolerance	30%
Rated (DC) voltage (URdc)	250 V
ripple current	1780 mA
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Base Number Matches	1

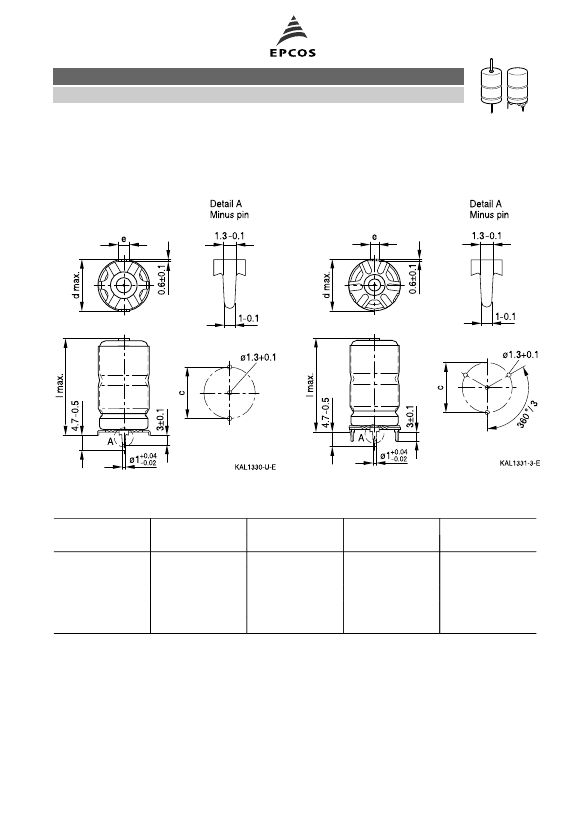

Preview

Download Datasheet

View All

Aluminum electrolytic capacitors

Axial-lead and soldering star capacitors

Series/Type:

Date:

B43693, B43793

February 2011

information contained therein without EPCOS' prior express consent is prohibited.

B43693A2476Q007 Related Products

	B43693A2476Q007	B43693A2226Q007	B43693A2226Q009	B43693A2686Q007	B43793A2137Q000	B43793A2107Q000	B43793A2226Q000	B43793A2476Q000	B43793A2686Q000
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 47uF, THROUGH HOLE MOUNT, AXIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 22uF, THROUGH HOLE MOUNT, AXIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 22uF, THROUGH HOLE MOUNT, AXIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 68uF, THROUGH HOLE MOUNT, AXIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 130uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 100uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 22uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 47uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 250V, 68uF, THROUGH HOLE MOUNT, RADIAL LEADED
Reach Compliance Code	compliant	compliant	compliant	compliant	unknown	unknown	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: IEC60384-4	STANDARD: IEC60384-4	STANDARD: IEC60384-4	STANDARD: IEC60384-4	STANDARD: IEC60384-4	STANDARD: IEC60384-4	STANDARD: IEC60384-4	STANDARD: IEC60384-4	STANDARD: IEC60384-4
capacitance	47 µF	22 µF	22 µF	68 µF	130 µF	100 µF	22 µF	47 µF	68 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	18 mm	14 mm	14 mm	18 mm	21 mm	21 mm	14 mm	18 mm	18 mm
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
ESR	1100 mΩ	2300 mΩ	2300 mΩ	750 mΩ	400 mΩ	520 mΩ	2300 mΩ	1100 mΩ	750 mΩ
leakage current	0.21591 mA	0.12856 mA	0.12856 mA	0.27844 mA	0.43596 mA	0.36349 mA	0.12856 mA	0.21591 mA	0.27844 mA
length	30 mm	30 mm	30 mm	39 mm	49 mm	39 mm	30 mm	30 mm	39 mm
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	10%	10%	10%	10%	10%	10%	10%	10%	10%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	TUBULAR PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	Axial	Axial	Axial	Axial	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	30%	30%	30%	30%	30%	30%	30%	30%	30%
Rated (DC) voltage (URdc)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
ripple current	1780 mA	1200 mA	1200 mA	2410 mA	4230 mA	3330 mA	1200 mA	1780 mA	2410 mA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	WIRE	WIRE	WIRE	WIRE	FLAT	FLAT	FLAT	FLAT	FLAT
Base Number Matches	1	1	1	1	1	1	1	1	1
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	-	-	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-	-	incompatible	incompatible	incompatible
JESD-609 code	e3	e3	e3	e3	-	-	e3	e3	e3
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	-	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
method of packing	-	-	TR	-	CARDBOARD	CARDBOARD	CARDBOARD	CARDBOARD	CARDBOARD
