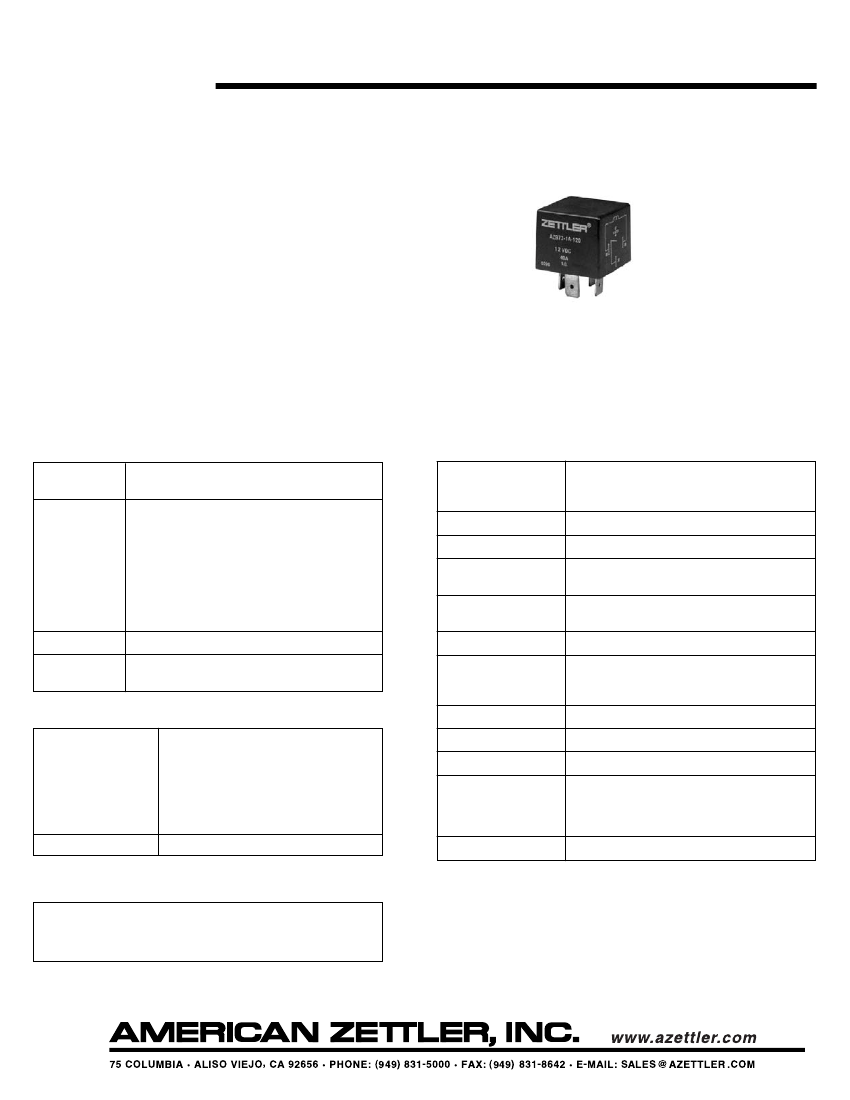

AZ973
40 AMP MINI-ISO
AUTOMOTIVE RELAY
FEATURES
•
•
•
•
•
•
•
•
•
Quick connect terminals
40 Amp contact rating
High momentary carry current (60A)
High operating temperature (110°C)
SPST (1 Form A), SPDT (1 Form C)
Epoxy sealed versions available
Metal or plastic mounting bracket available
Resistor or diode parallel to coil available
ISO/TS 16949, ISO14000
CONTACTS
Arrangement
Ratings
SPST (1 Form A)
SPDT (1 Form C)
Resistive load:
Max. switched power: 560W (SPST)
560W (N.O.)
420W (N.C.)
Max. switched current: 40A (SPST)
40A (N.O.)
30A (N.C.)
Max. switched voltage: 75VDC
Material
Resistance
Silver tin oxide
< 100 milliohms initially
(6V, 1A voltage drop method)
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (max.)
Release Time (max.)
Minimum operations
1 x 10
7
1 x 10
6
at 40A, 14VDC Res.
7ms at nominal coil voltage
5ms at nominal coil voltage
Dielectric Strength
500Vrms coil to contact
(at sea level for 1 min.)
500Vrms contact to contact
Insulation Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
100 megohms min. at 500VDC, 20°C
50% RH
Greater than 10% of nominal coil voltage
-55°C (-67°F) to 110°C (230°F)
-55°C (-67°F) to 155°C (311°F)
0.062” DA at 10-40 Hz
100 m/s
2
P.B.T. polyester
Tinned copper alloy
0.25 Quick Connect
Note: Allow suitable slack on leads when wiring, and do
not subject the terminals to excessive force.
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
0.68W
5.1W at 20°C (68°F)
52°C (94°F) at nominal coil voltage
Max. 155°C (311°F)
Enclosure
Terminals
Weight
Approx. 35
grams
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
2/02/16
AZ973
RELAY ORDERING DATA
COIL SPECIFICATIONS
Nominal Coil
VDC
6
12
24
Must Operate
VDC
3.9
7.8
15.6
Max. Continuous
VDC
10.1
20.2
40.5
Coil Resistance
± 10%
22
85
350
RELAY ORDERING DATA
AZ973-1C-12DC2R1
Blank - Standard no diode, no resistor
R1 - 680 Ohm, ½ w resistor in parallel with 12 V coil
2700 Ohm ½ w resistor in parallel with 24 V coil
R2 - 820 Ohm, ½ w resistor in parallel with 12 V coil
3200 Ohm ½ w resistor in parallel with 24 V coil
D1 - 1N4007 diode in parallel with coil, anode
on #86 terminal
D2 - 1N4007 diode in parallel with coil, cathode
on #86 terminal
D3 - 1N4004 diode in parallel with coil, anode
on #86 terminal
D4 - 1N4004 diode in parallel with coil, cathode
on #86 terminal
C1 - Plastic dust cover with steel mounting bracket
C1E - Plastic dust cover with steel mounting bracket,
sealed
C2 - Plastic dust cover with plastic mounting bracket
C2E - Plastic dust cover with plastic mounting bracket,
sealed
C3 - Plastic dust cover
C3E - Plastic dust cover, sealed
C4 - Plastic dust cover, shrouded, sealed, with metal
mounting bracket
24D - 24 volt coil
12D - 12 volt coil
6D - 6 volt coil
1A - SPNO Single pole normally open
1C - SPDT Single pole double throw
Basic series designation - AZ973
2/02/16
AZ973

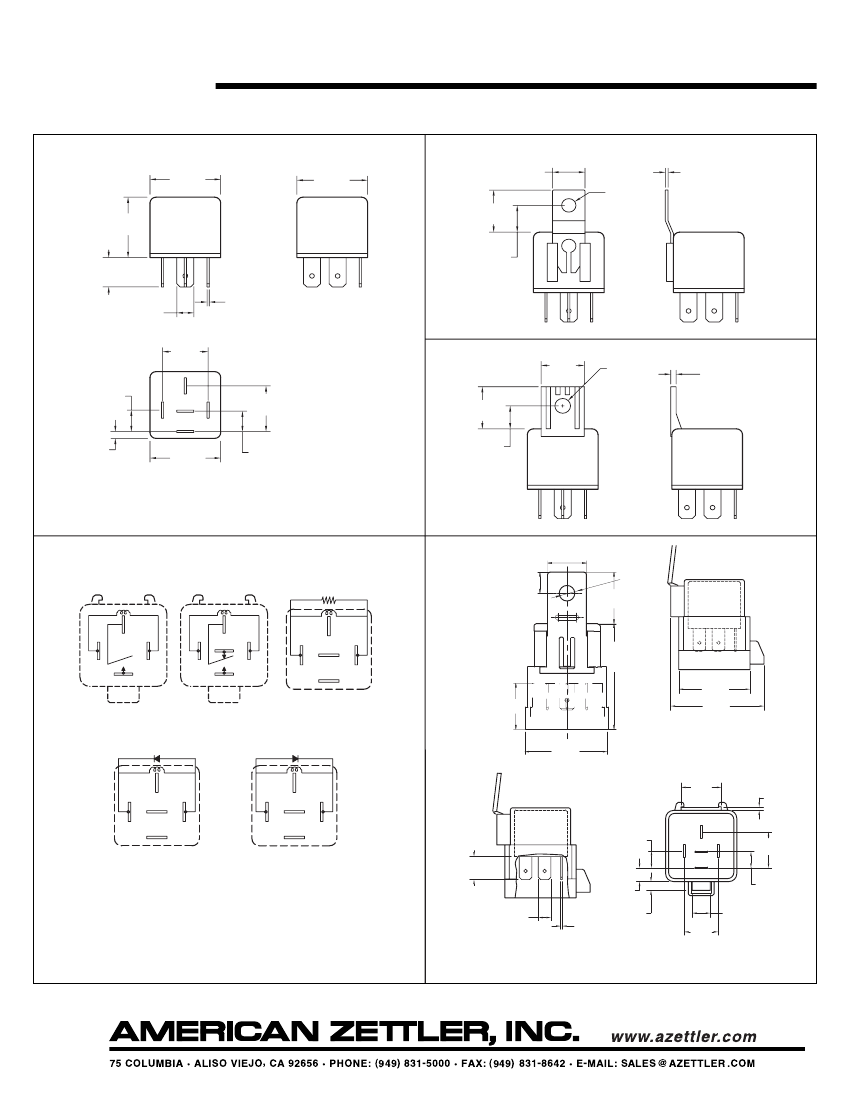

MECHANICAL DATA
Version C3
1.032
(26.2)
1.032
(26.2)
.681
(17.3)
Version C1
.472
(12.0)
ø.209
(ø5.3)
.039
(1.0)
.933
(23.7)
.453
(11.5)
.032
(0.8)
.445
(11.3)
.248
(6.3)
.665
(16.9)
Version C2
.630
(16.0)
ø.228
(ø5.8)
.079
(2.0)
.331
(8.4)
.705
(17.9)
.650
(16.5)
.354
(9.0)
.106
(2.7)
1.032
(26.2)
.315
(8.0)
Note:
Dimensions shown for Version C3
are typical for all other versions
WIRING DIAGRAMS
Version C4
.354
(0.900)
.650
(16.6)
.262
5
)
(
6.6
.858
(21.8)
30
30
87A
85
86
85
86
85
86
1.79 MAX
(45.5)
87
87
R1,R2
FORM A
FORM C
.776
(19.7)
1.398
(35.5)
1.831
(46.5)
1.40
(35.5)
.787
(20.0)
.071
(1.8)
85
86
85
86
.331
(8.4)
30
85
87A
86
.705
(17.9)
D1,D3
Viewed Toward Terminals
D2,D4
5 x .453
(11.5)
.272
(6.9)
5 x .248
(6.3)
.173
(4.4)
5 x .032
(0.8)
87
.315
(8.0)
.354
(9.0)
.665
(16.9)
Connector for use with Version C4-
Connectors to mate with AZ973 relay
with the version C4 cover are available from Delphi Connection Systems
(www.delphiconnect.com). (Typical Delphi part number is 12065685)
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
2/02/16
AZ973

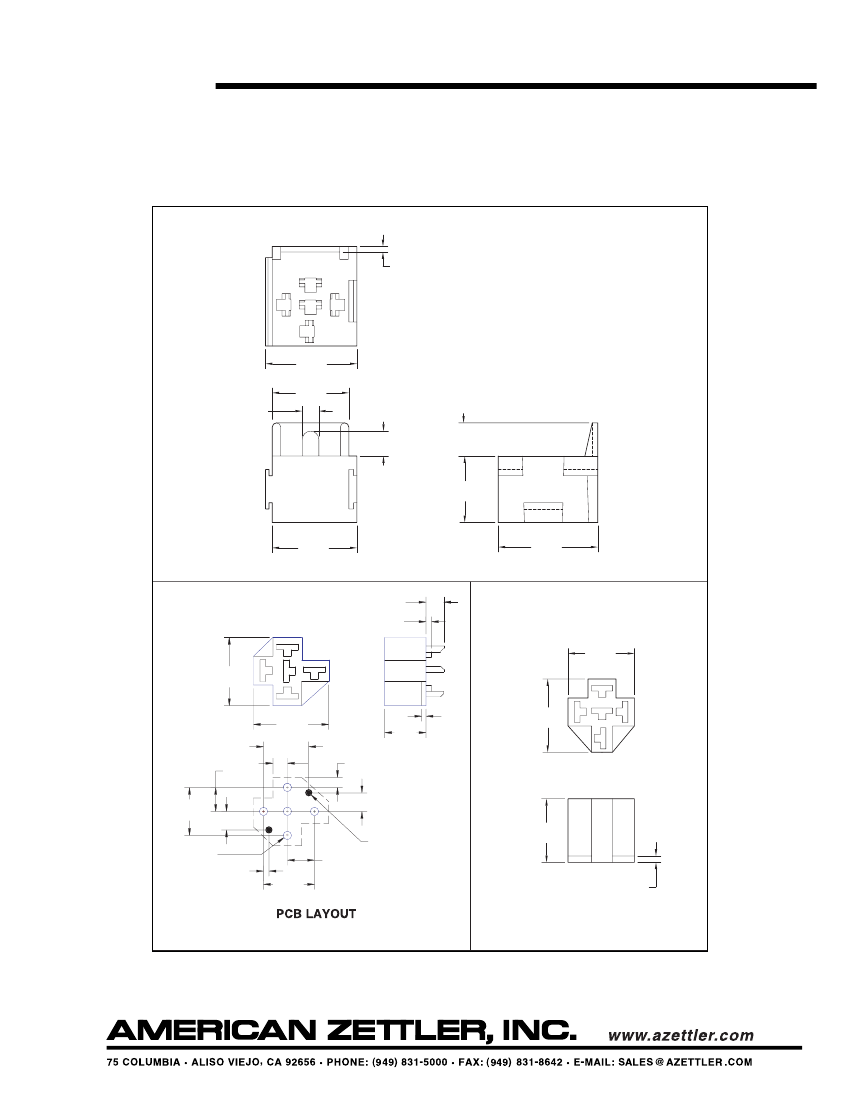

Sockets & Hardware for AZ973
ST9721-U1
.079
(2.0)
1.300
(33.0)
1.091
(27.7)
.236
(6.0)
.472
(12.0)
.354
(9.0)
.945
(24.0)
1.205
(30.6)
1.417
(36.0)
[1]
ST9721-U2
.245
(6.2)
.075
(1.9)
ST9721-U3
.945
(24.0)
.945
(24.0)
1.043
[26.5)
.626
(15.9)
.332
(8.4)
.200
(5.1)
.138
(3.5)
.059
(1.5)
.571
(14.5)
1.043
(26.5)
.664
(16.9)
.256
(6.5)
.256
(6.5)
2X TAB
Ø.083
(Ø2.1)
.905
(23.0)
Ø.116
(Ø2.9)
.075
(1.9)
.705
(17.9)
.375
(9.5)
.090
(2.3)
[1]
VIEWED TOWARDS TERMINALS
[1] Recommended receptical connector Amp Part numbers are 5-160558-9 or 5-1605-26-9
2/02/16
