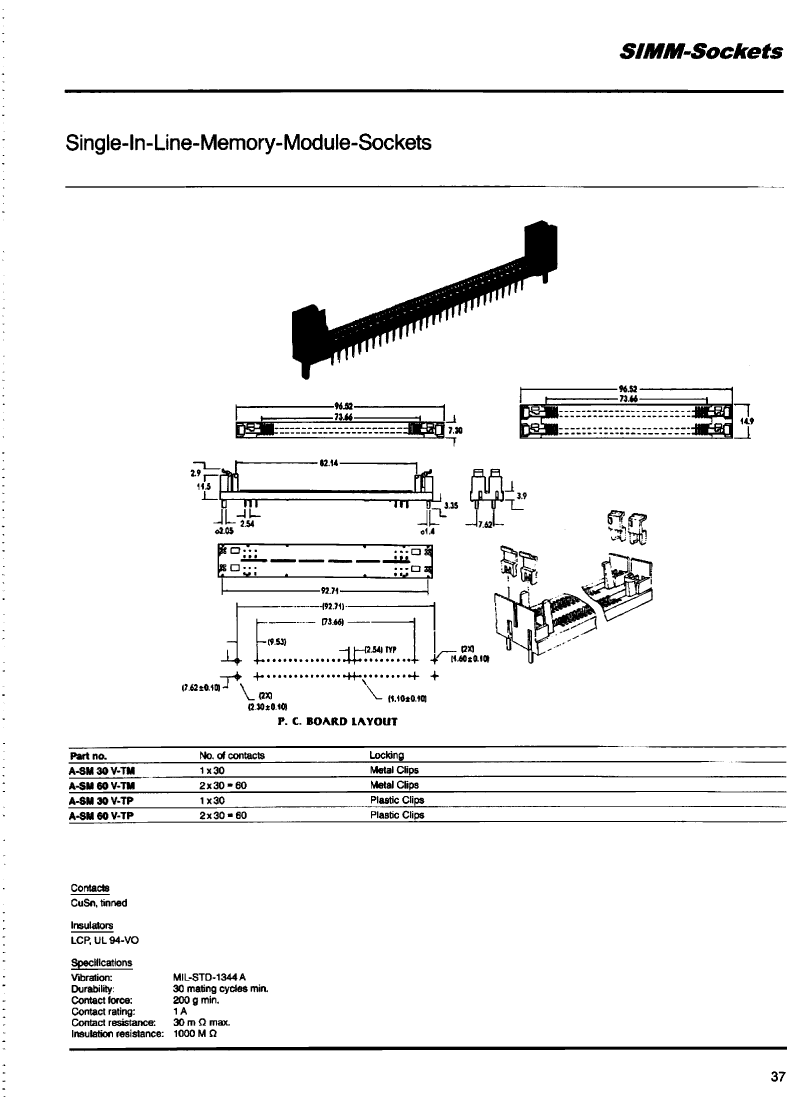

Card Edge Connector, 30+30 Contact(s), 1+1 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Receptacle
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| body width | 0.587 inch |
| subject depth | 0.567 inch |
| body length | 3.8 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact completed and terminated | GOLD |
| Contact material | COPPER ALLOY |
| Contact resistance | 30 mΩ |
| Contact style | COMPRESSION |
| Durability | 30 Cycles |
| Insulation resistance | 1000000000 Ω |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| Manufacturer's serial number | A-SM |
| Plug contact pitch | 0.1 inch |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | TWO |
| Number of rows loaded | 1+1 |
| PCB contact pattern | RECTANGULAR |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.132 inch |
| Terminal pitch | 0.1 mm |
| Termination type | SOLDER |
| Total number of contacts | 60 |
| Base Number Matches | 1 |
| A-SM60V-TP | A-SM30V-TM | A-SM30V-TP | A-SM60V-TM | |
|---|---|---|---|---|
| Description | Card Edge Connector, 30+30 Contact(s), 1+1 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Receptacle | Card Edge Connector, 30 Contact(s), 1 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Receptacle | Card Edge Connector, 30 Contact(s), 1 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Receptacle | Card Edge Connector, 30+30 Contact(s), 1+1 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Receptacle |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| body width | 0.587 inch | 0.287 inch | 0.287 inch | 0.587 inch |
| subject depth | 0.567 inch | 0.567 inch | 0.567 inch | 0.567 inch |
| body length | 3.8 inch | 3.8 inch | 3.8 inch | 3.8 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Contact completed and terminated | GOLD | GOLD | GOLD | GOLD |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| Contact resistance | 30 mΩ | 30 mΩ | 30 mΩ | 30 mΩ |
| Contact style | COMPRESSION | COMPRESSION | COMPRESSION | COMPRESSION |
| Durability | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) |
| Manufacturer's serial number | A-SM | A-SM | A-SM | A-SM |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | TWO | ONE | ONE | TWO |
| Number of rows loaded | 1+1 | 1 | 1 | 1+1 |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A |
| Guideline | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.132 inch | 0.132 inch | 0.132 inch | 0.132 inch |
| Terminal pitch | 0.1 mm | 0.1 mm | 0.1 mm | 0.1 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 60 | 30 | 30 | 60 |
| Base Number Matches | 1 | 1 | 1 | 1 |
