ISPLSI2064V-60LT datasheet, PDF

Datasheet> All Categories > Programmable logic devices> Programmable logic> ISPLSI2064V-60LT

ISPLSI2064V-60LT: DescriptionEE PLD, 20ns, CMOS, PQFP100, TQFP-100; CategoryProgrammable logic devices Programmable logic; File Size208KB，3 Pages; ManufacturerLattice; Websitehttp://www.latticesemi.com

Download Datasheet Parametric Compare View All

ISPLSI2064V-60LT Overview

EE PLD, 20ns, CMOS, PQFP100, TQFP-100

ISPLSI2064V-60LT Parametric

Parameter Name	Attribute value
Parts packaging code	QFP
package instruction	LFQFP,
Contacts	100
Reach Compliance Code	unknown
ECCN code	EAR99
maximum clock frequency	51.3 MHz
JESD-30 code	S-PQFP-G100
length	14 mm
Dedicated input times
Number of I/O lines	64
Number of terminals	100
organize	0 DEDICATED INPUTS, 64 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Programmable logic type	EE PLD
propagation delay	20 ns
Certification status	Not Qualified
Maximum seat height	1.6 mm
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	14 mm
Base Number Matches	1

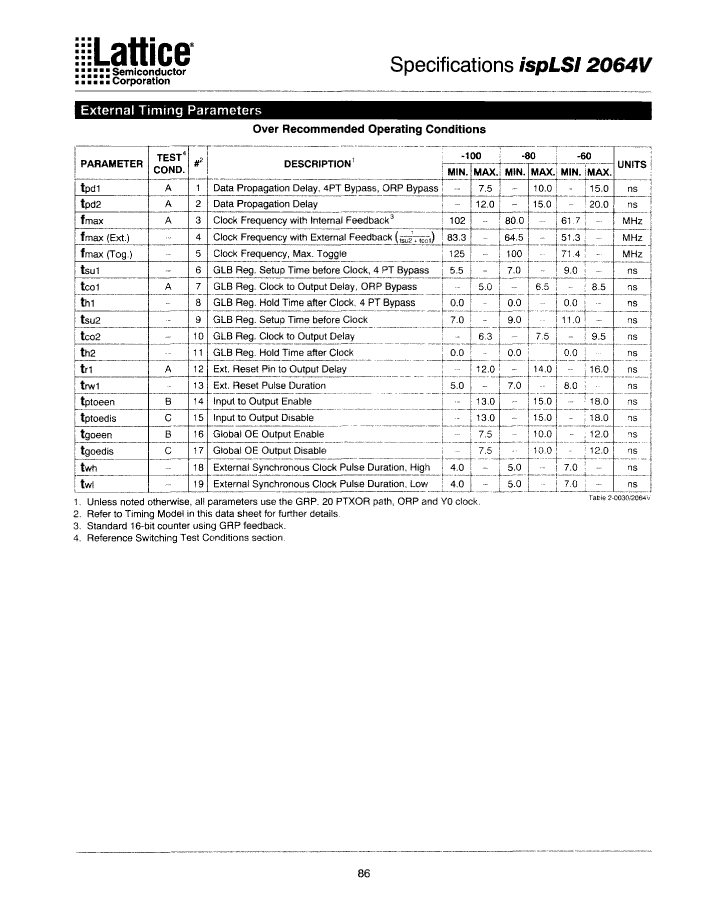

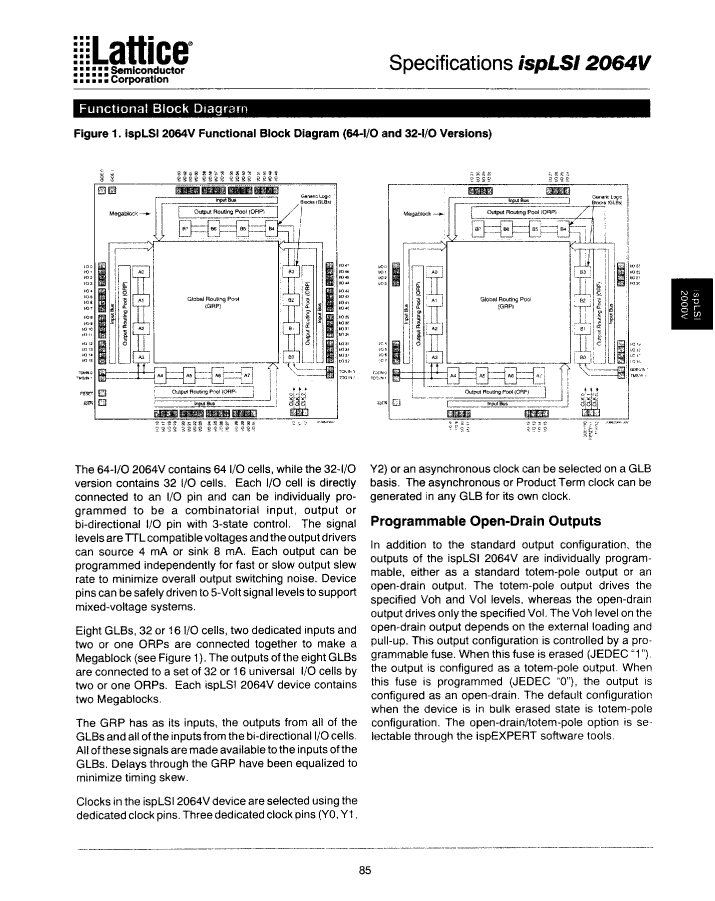

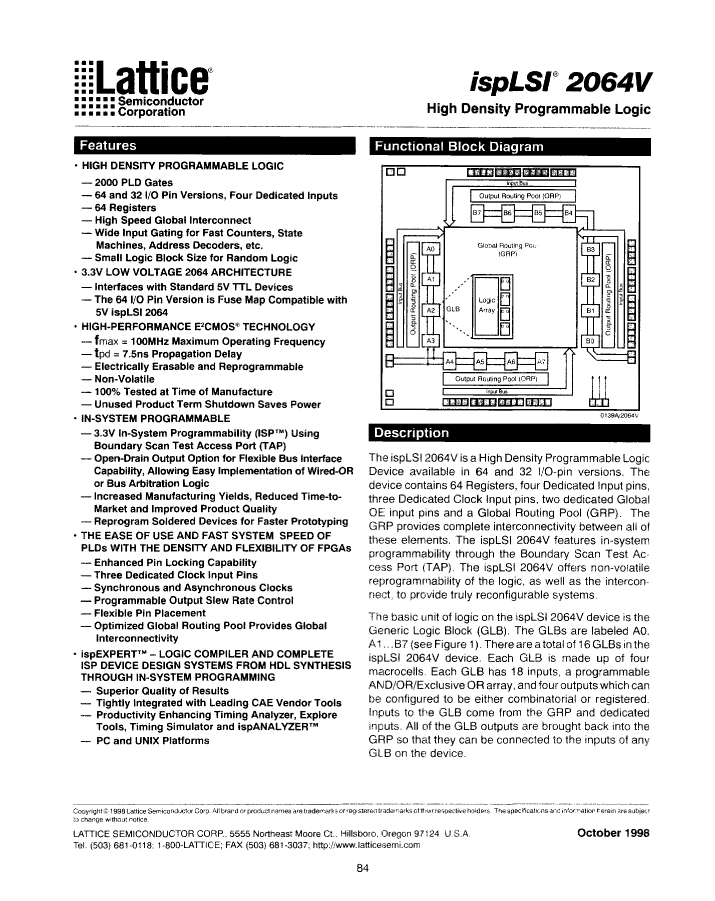

Preview

Download Datasheet

View All

ISPLSI2064V-60LT Related Products

	ISPLSI2064V-60LT	ISPLSI2064V-80LT	ISPLSI2064V-60LTI	ISPLSI2064V-100LT	ISPLSI2064V-80LJ	ISPLSI2064V-60LJ	ISPLSI2064V-60LJI	ISPLSI2064V-100LJ
Description	EE PLD, 20ns, CMOS, PQFP100, TQFP-100	EE PLD, 15ns, CMOS, PQFP100, TQFP-100	EE PLD, 20ns, CMOS, PQFP100, TQFP-100	EE PLD, 12ns, CMOS, PQFP100, TQFP-100	EE PLD, 15ns, CMOS, PQCC84, PLASTIC, LCC-84	EE PLD, 20ns, CMOS, PQCC84, PLASTIC, LCC-84	EE PLD, 20ns, CMOS, PQCC84, PLASTIC, LCC-84	EE PLD, 12ns, CMOS, PQCC84, PLASTIC, LCC-84
Parts packaging code	QFP	QFP	QFP	QFP	LCC	LCC	LCC	LCC
package instruction	LFQFP,	LFQFP,	LFQFP,	LFQFP,	QCCJ,	QCCJ,	QCCJ,	QCCJ,
Contacts	100	100	100	100	84	84	84	84
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
maximum clock frequency	51.3 MHz	64.5 MHz	51.3 MHz	83.3 MHz	64.5 MHz	51.3 MHz	51.3 MHz	83.3 MHz
JESD-30 code	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100	S-PQCC-J84	S-PQCC-J84	S-PQCC-J84	S-PQCC-J84
length	14 mm	14 mm	14 mm	14 mm	29.2862 mm	29.2862 mm	29.2862 mm	29.2862 mm
Number of I/O lines	64	64	64	64	64	64	64	64
Number of terminals	100	100	100	100	84	84	84	84
organize	0 DEDICATED INPUTS, 64 I/O	0 DEDICATED INPUTS, 64 I/O	0 DEDICATED INPUTS, 64 I/O	0 DEDICATED INPUTS, 64 I/O	0 DEDICATED INPUTS, 64 I/O	0 DEDICATED INPUTS, 64 I/O	0 DEDICATED INPUTS, 64 I/O	0 DEDICATED INPUTS, 64 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	LFQFP	LFQFP	LFQFP	QCCJ	QCCJ	QCCJ	QCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Programmable logic type	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD
propagation delay	20 ns	15 ns	20 ns	12 ns	15 ns	20 ns	20 ns	12 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	1.6 mm	1.6 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	J BEND	J BEND	J BEND	J BEND
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	14 mm	14 mm	14 mm	14 mm	29.2862 mm	29.2862 mm	29.2862 mm	29.2862 mm
Base Number Matches	1	1	1	1	1	1	1	1
