381L271M350A032 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 381L271M350A032

381L271M350A032: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 20% +Tol, 20% -Tol, 270uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size143KB，13 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

381L271M350A032 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 350V, 20% +Tol, 20% -Tol, 270uF, Through Hole Mount, RADIAL LEADED

381L271M350A032 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	270 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
Custom functions	PVC Insulated Can
diameter	35 mm
dielectric materials	ALUMINUM (WET)
ESR	737 mΩ
JESD-609 code	e3
leakage current	0.922225 mA
length	35 mm
Manufacturer's serial number	381L
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	350 V
ripple current	1100 mA
series	381L
surface mount	NO
Terminal surface	Tin (Sn)
Terminal pitch	10 mm
Terminal shape	SNAP-IN
Base Number Matches	1

Preview

Download Datasheet

View All

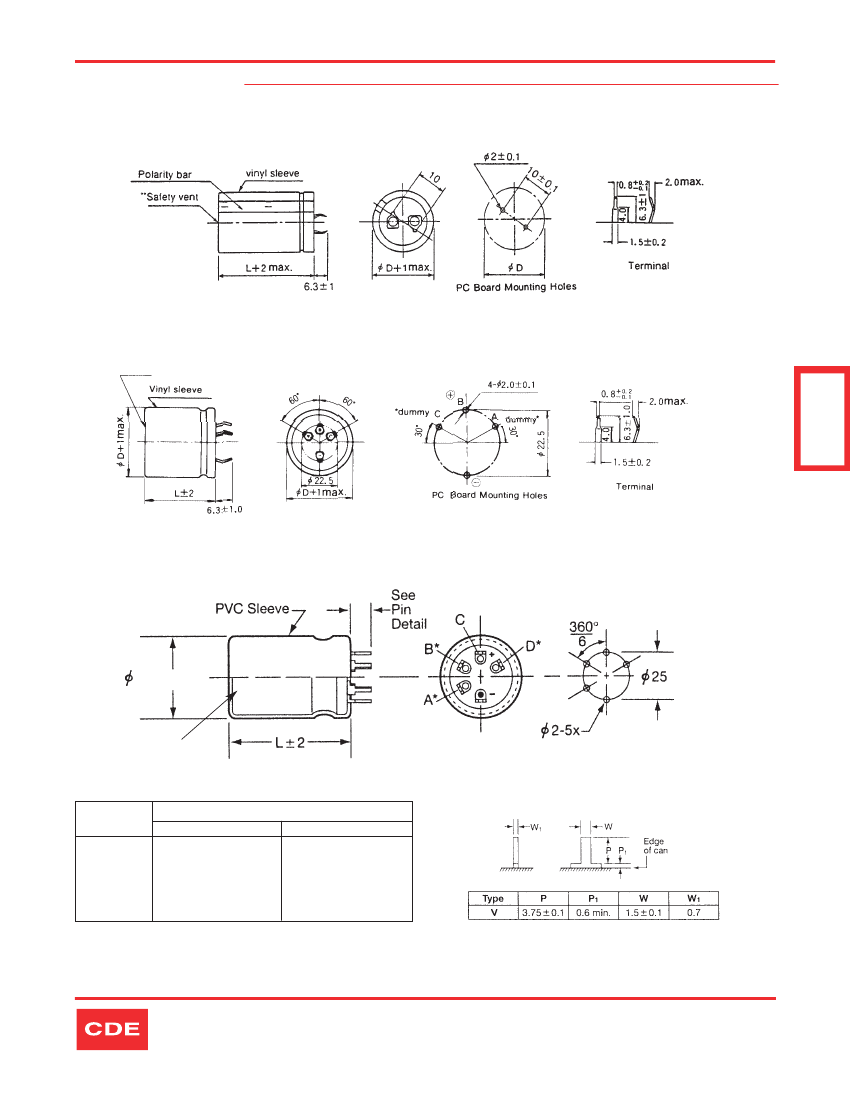

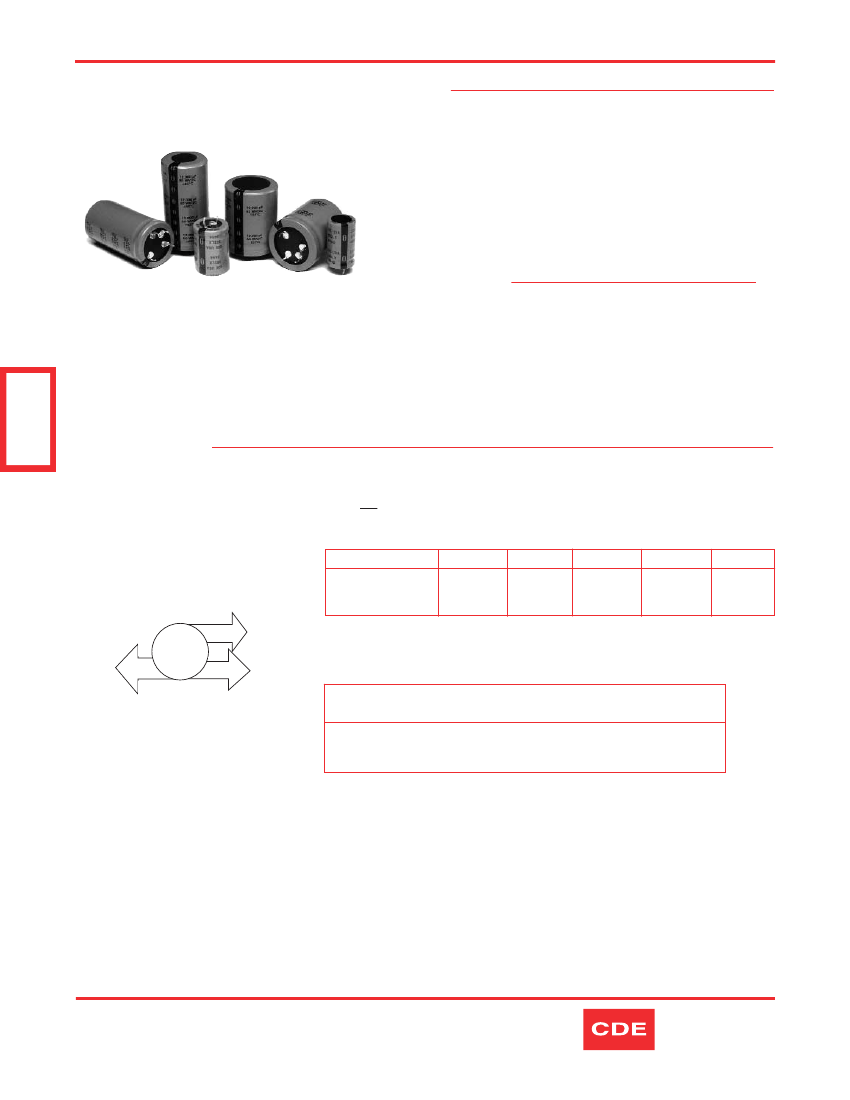

Types 381L, 383L, 381LX & 383LX, 105 C High-Ripple Snap-In

Types 381L/LX & 4-pin Mount 383LX (105 °C)

Adding longer-life and more ripple capability to the excel-

lent value of Type 380L/LX capacitors, the 381L/LX readily

handles tough switching power supply input and output

circuits and motor-drive bus capacitor applications where

the high surface area of multiple units in parallel equals the

ripple capability of our Type 520C inverter-grade capacitor.

Type 381LX delivers more capacitance per can size while

Type 381L gives lower ESR for the same capacitance rating.

Type 383L gives the choice of 4 or 5 leads for stable,

reverseproof mounting. Type 383LX has 5 leads available.

Highlights

Aluminum

Snap-In

Capacitors

Latest available ratings, worldwide

Top performance in power supplies and motor drives

4 times the life of Type 380L/LX

Big selection of 46 case sizes

2, 4 and 5 leads available

Specifications

Operating Temperature:

Rated Voltage:

Capacitance:

Leakage Current:

Ripple Current Multipliers:

40 °C to 105 °C up to 315 Vdc,

10 Vdc to 450 Vdc

µF

to150,000 F 20%

3 CV A

Ambient Temperature

45 °C

2.7

2.35

25 °C 350 Vdc and up

381L

381LX, 383 LX

Life

Type 381LQ

p 2.070 Smaller

Type 381EL

p 2.091

Type 381LR

p 2.087

60 °C

2.6

2.2

70 °C

2.5

2.0

85 °C

2.1

1.70

105°C

1.0

Ripple

Frequency

50 Hz

10-100 Vdc

160-400 Vdc

.93

.95

60 Hz 120 Hz

.95

.98

1.00

500 Hz

1.05

1.20

1 kHz 10 kHz

& up

1.08

1.25

1.15

1.40

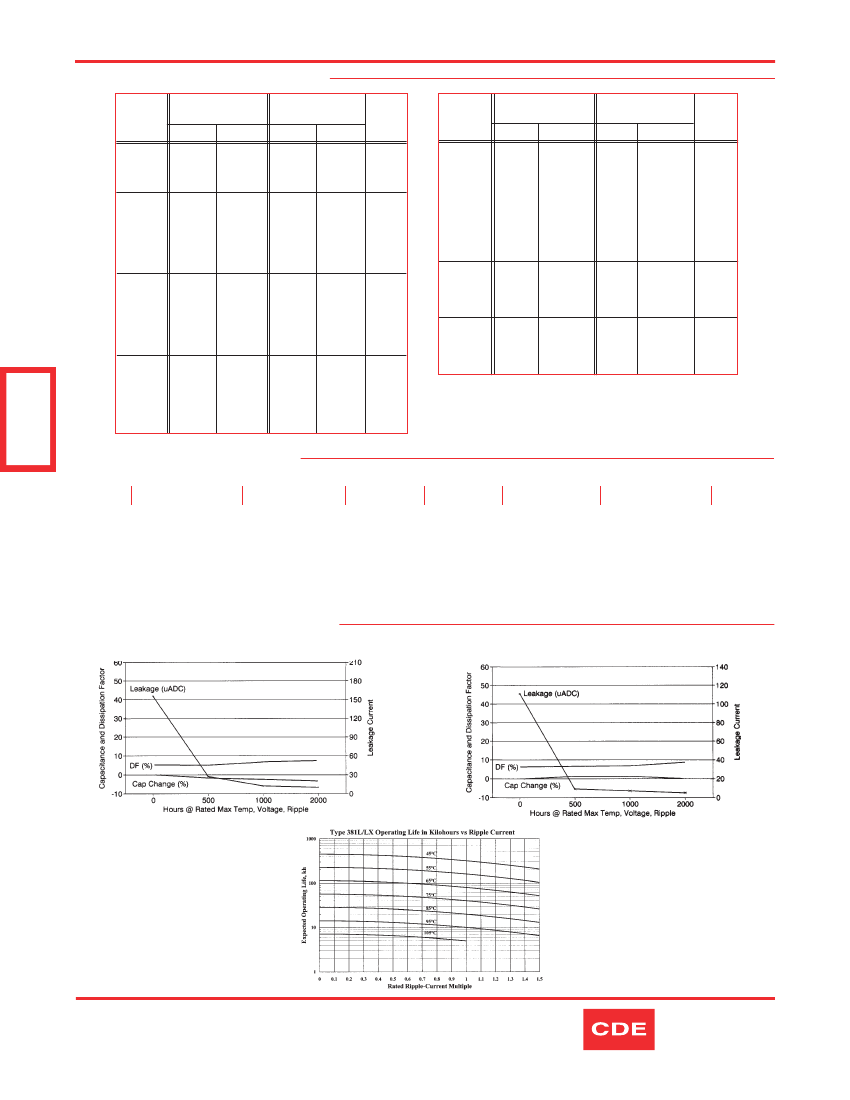

EIA Ripple Life:

Shelf Life:

Vibration:

12,000 h @ 85 °C, Full load as per EIA IS-749

Capacitance 20%,

ESR 200% of limit,

DCL 100% of limit

1000 h @ 105 °C, capacitance 20%, DF 200% of limit, DCL 100% of limit.

10 to 55 Hz, 0.06” and 10 g max, 2 h in each plane

Notice:

Type 381L is not for new design. Please substitute Type 381LX.

2.074

140 Technology Place

Liberty, SC 29657

(864) 843-2277, Fax (864) 843-3800

http://www.cornell-dubilier.com

E-mail: cde@cornell-dubilier.com

CORNELL

DUBILIER

Your Source For Capacitor Solutions
