T-11-155-R-SFC-AGC datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> T-11-155-R-SFC-AGC

T-11-155-R-SFC-AGC: DescriptionReceiver, 1100nm Min, 1650nm Max, 155Mbps, FC Connector, Panel Mount; CategoryWireless rf/communication Optical fiber; File Size449KB，2 Pages; ManufacturerSource Photonics

Download Datasheet Parametric Compare View All

T-11-155-R-SFC-AGC Overview

Receiver, 1100nm Min, 1650nm Max, 155Mbps, FC Connector, Panel Mount

T-11-155-R-SFC-AGC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
body height	13.5 mm
Body length or diameter	8 mm
Built-in features	AMPLIFIER
Communication standards	ATM, SDH, SONET
Connection Type	FC CONNECTOR
data rate	155 Mbps
Emitter/Detector Type	PIN PHOTODIODE
Fiber optic equipment types	RECEIVER
Fiber type	9/125, SMF
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum operating wavelength	1650 nm
Minimum operating wavelength	1100 nm
Nominal operating wavelength	1310 nm
Receive type	DIGITAL
Sensitivity	-38 dBm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

155 Mbps PIN-TIA Receiver Modules (5V)

T-11-155-P-SFC/ SC/ ST-AGC • T-11-155-R-SFC/ SC/ ST-AGC

Features

• InGaAs/ InP PIN Photodiode with transimpedance amplifier

• High sensitivity with AGC (Auto Gain Control)

• Differential ended output

• Single +5V operation

• -40 to +85ºC operating temperature

Packaging

• FC/ ST/ SC receptacle package

• SM/ MM fiber pigtailed with optional FC/ ST/ SC connector

Application

• ATM receiver/ transceiver

• Fast ethernet receiver/ transceiver

Absolute Maximum Ratings (T

= 25˚C)

Parameter

Symbol

Supply Voltage

Operating Temperature

Storage Temperature

opr

stg

Value

-40 to +85

Unit

ºC

DC Electrical Characteristics (T

= 25°C)

Parameter

Symbol Min

Power Supply

4.5

Differential Output Voltage

Supply Current (no load)

Typ

Max Unit

5.5

AC Optical and Electrical Characteristics (T

= 25ºC)

Parameter

Symbol

Detection Range

Gain @ 10 Mbps, Differential

Bandwidth, (to -3dB point)

Saturation Power

Sensitivity

Output Resistance

sat

Sens

out

Min

1100

0.17

120

-3

Typ

1310

140

-38

Max

1650

220

-36

Unit

V/mW

MHz

dBm

ohm

Test Condition

λ=

1310nm

λ=

1310nm

BER=10

-10

@ 155 Mbps

(Operating at Vcc = 5V, Tc = 25°C, RL = 3000Ω,

= 1310 nm, 9/125µm SM fiber)

Connector Options

Model

T-11-155-R-SFC-AGC

T-11-155-R-SST-AGC

T-11-155-R-SSC-AGC

T-11-155-P-SFC-AGC

T-11-155-P-SST-AGC

T-11-155-P-SSC-AGC

T-11-155-P-S-AGC

T-11-155-P-MFC-AGC

T-11-155-P-MST-AGC

T-11-155-P-MSC-AGC

T-11-155-P-M-AGC

Package

Receptacle

Fiber

Connector

(None)

Pigtailed

155 Mbps PIN-TIA Receiver Modules (5V)

T-11-155-P-SFC/ SC/ ST-AGC • T-11-155-R-SFC/ SC/ ST-AGC

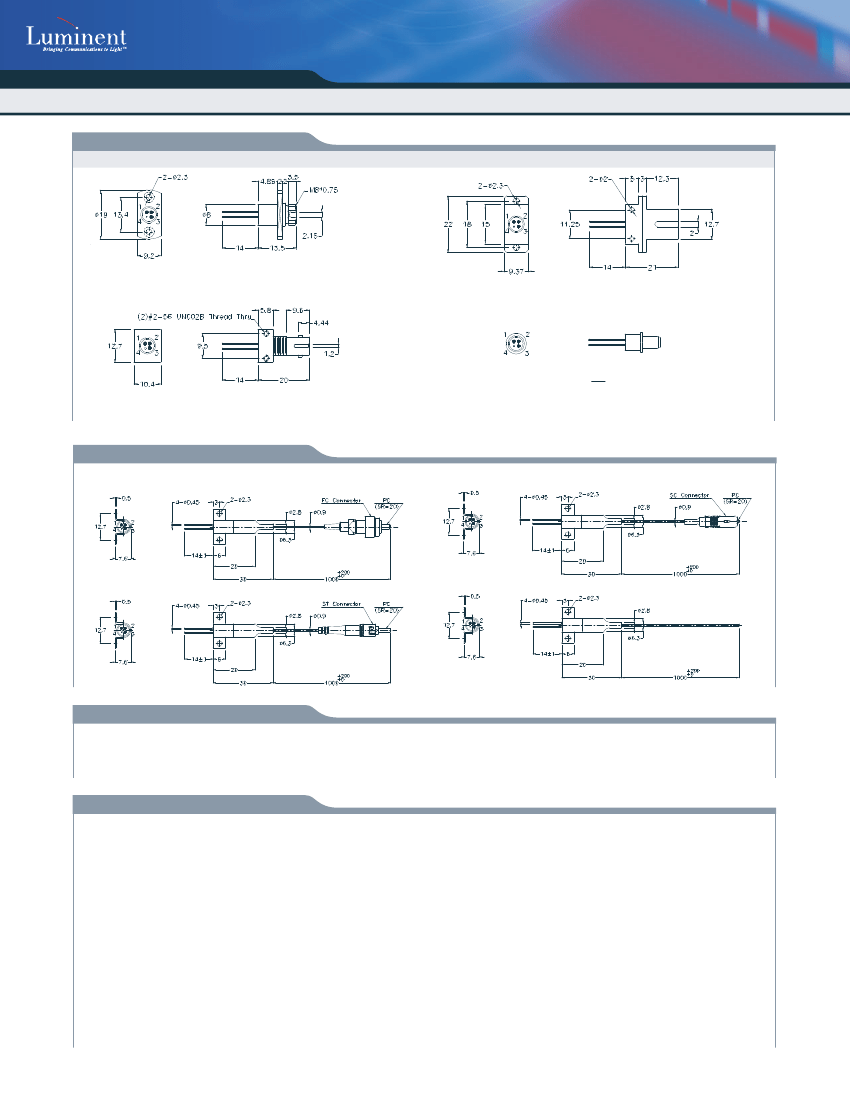

PIN-TIA Modules-receptacle

FC Receptacle

T-11-155-R-SFC-AGC

SC Receptacle

T-11-155-R-SSC-AGC

ST Receptacle

T-11-155-R-SST-AGC

PIN-TIA Modules-pigtailed

Pin Assignment can be customized.

1~V

2~D

out

*Units in mm

3~D

out

4~GND (case)

T-11-155-P-SFC-AGC

T-11-155-P-SSC-AGC

T-11-155-P-SST-AGC

T-11-155-P-S-AGC

Warnings

*Units in mm

Handling Precautions:

This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow guidelines

according to proper ESD procedures.

Legal Notice

IMPORTANT NOTICE!

All information contained in this document is subject to change without notice, at Luminent’s sole and absolute discretion. Luminent warrants performance of its products to

current specifications only in accordance with the company’s standard one-year warranty; however, specifications designated as “preliminary” are given to describe components

only, and Luminent expressly disclaims any and all warranties for said products, including express, implied, and statutory warranties, warranties of merchantability, fitness for a

particular purpose, and non-infringement of proprietary rights. Please refer to the company’s Terms and Conditions of Sale for further warranty information.

Luminent assumes no liability for applications assistance, customer product design, software performance, or infringement of patents, services, or intellectual property described

herein. No license, either express or implied, is granted under any patent right, copyright, or intellectual property right, and Luminent makes no representations or warranties

that the product(s) described herein are free from patent, copyright, or intellectual property rights. Products described in this document are NOT intended for use in

implantation or other life support applications where malfunction may result in injury or death to persons. Luminent customers using or selling products for use in such

applications do so at their own risk and agree to fully defend and indemnify Luminent for any damages resulting from such use or sale.

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS” BASIS. Customer agrees that Luminent is not liable for any actual,

consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this document. Customer must contact Luminent to

obtain the latest version of this publication to verify, before placing any order, that the information contained herein is current.

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486 •

LUMINENTINC.COM

LUMNDS086-0302

T-11-155-R-SFC-AGC Related Products

	T-11-155-R-SFC-AGC	T-11-155-P-SFC-AGC	T-11-155-P-MST-AGC	T-11-155-P-MFC-AGC	T-11-155-P-S-AGC	T-11-155-P-SST-AGC	T-11-155-R-SSC-AGC	T-11-155-R-SST-AGC
Description	Receiver, 1100nm Min, 1650nm Max, 155Mbps, FC Connector, Panel Mount	Receiver, 1100nm Min, 1650nm Max, 155Mbps, FC Connector, Through Hole Mount	Receiver, 1100nm Min, 1650nm Max, 155Mbps, ST Connector, Through Hole Mount	Receiver, 1100nm Min, 1650nm Max, 155Mbps, FC Connector, Through Hole Mount	Receiver, 1100nm Min, 1650nm Max, 155Mbps, Through Hole Mount	Receiver, 1100nm Min, 1650nm Max, 155Mbps, ST Connector, Through Hole Mount	Receiver, 1100nm Min, 1650nm Max, 155Mbps, SC Connector, Board/panel Mount	Receiver, 1100nm Min, 1650nm Max, 155Mbps, ST Connector, Board/panel Mount
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknow	unknow	unknow	unknow	unknow
body height	13.5 mm	30 mm	30 mm	30 mm	30 mm	30 mm	9.37 mm	20 mm
Body length or diameter	8 mm	6.3 mm	6.3 mm	6.3 mm	6.3 mm	6.3 mm	21 mm	7 mm
Built-in features	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Communication standards	ATM, SDH, SONET	ATM, SDH, SONET	ATM, SDH, SONET	ATM, SDH, SONET	ATM, SDH, SONET	ATM, SDH, SONET	ATM, SDH, SONET	ATM, SDH, SONET
data rate	155 Mbps	155 Mbps	155 Mbps	155 Mbps	155 Mbps	155 Mbps	155 Mbps	155 Mbps
Emitter/Detector Type	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE
Fiber optic equipment types	RECEIVER	RECEIVER	RECEIVER	RECEIVER	RECEIVER	RECEIVER	RECEIVER	RECEIVER
Fiber type	9/125, SMF	9/125, SMF	50/125, MMF	50/125, MMF	9/125, SMF	9/125, SMF	9/125, SMF	9/125, SMF
Installation features	PANEL MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	BOARD/PANEL MOUNT	BOARD/PANEL MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum operating wavelength	1650 nm	1650 nm	1650 nm	1650 nm	1650 nm	1650 nm	1650 nm	1650 nm
Minimum operating wavelength	1100 nm	1100 nm	1100 nm	1100 nm	1100 nm	1100 nm	1100 nm	1100 nm
Nominal operating wavelength	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm	1310 nm
Receive type	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL	DIGITAL
Sensitivity	-38 dBm	-38 dBm	-38 dBm	-38 dBm	-38 dBm	-38 dBm	-38 dBm	-38 dBm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Connection Type	FC CONNECTOR	FC CONNECTOR	ST CONNECTOR	FC CONNECTOR	-	ST CONNECTOR	SC CONNECTOR	ST CONNECTOR
Maker	-	Source Photonics	Source Photonics	Source Photonics	Source Photonics	Source Photonics	Source Photonics	Source Photonics

Recommended Resources

Household advance working remote control circuit-receiving circuit

Optocoupler controlled oscillator

Walkie-talkie fast charger

Set type pulse width circuit

Communication station power distribution system diagram

6L6A class tube push-pull amplifier
