A452F003500104: DescriptionGAS DISCHARGE TUBE - 8x10mm; File Size205KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet View All

A452F003500104 Overview

GAS DISCHARGE TUBE - 8x10mm

Preview

Download Datasheet

View All

ISCHARGE

UBE

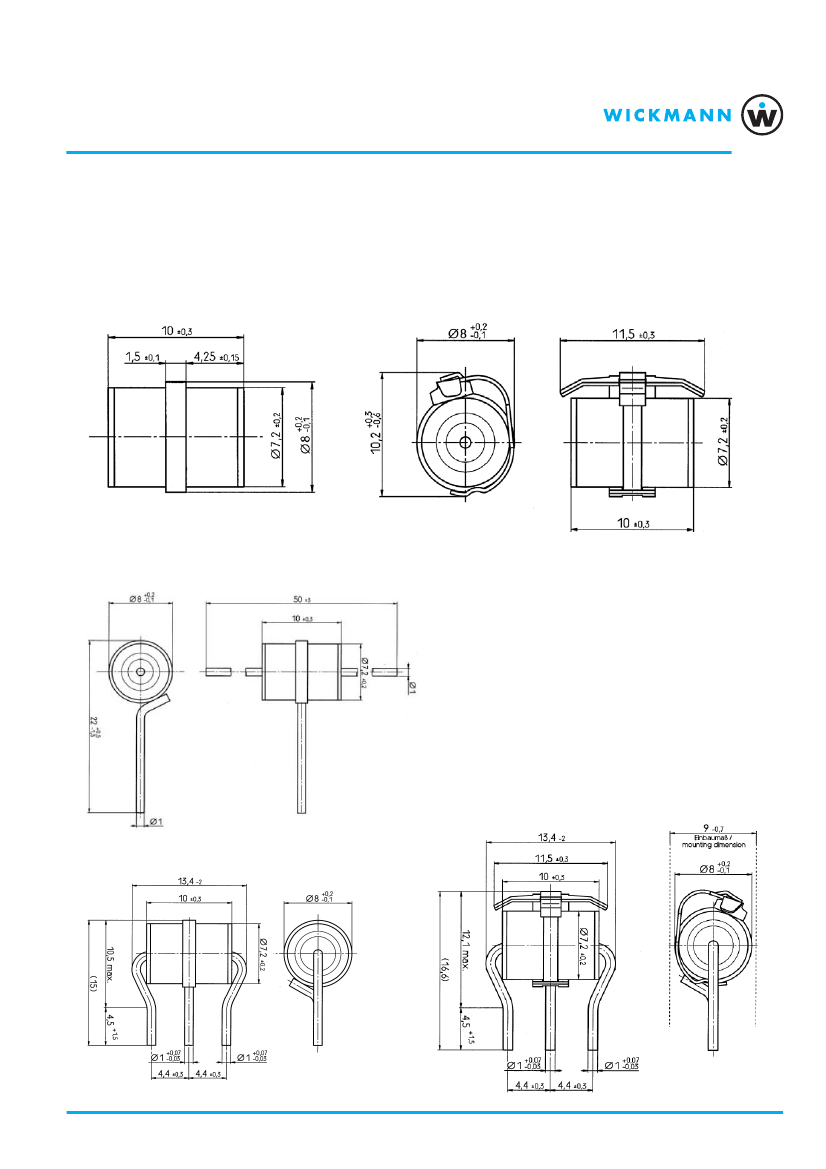

8x10mm

No. A45 0/A451/A452

A450/A451/A452

451/A

Littelfuse series SL1021A.

3-electrode (20kA/10A)

Enhanced Discharge

Series

This product is not recommended

Features

for new designs. Please refer to

Non-radioactive

Lead Free

Failsafe Option

Specifications

Packaging

A450:

00=Bulk (2.000 pcs.)

A450/F:

00_Bulk (500 pcs.)

A451:

04=Tray (250 pcs.)

A452/F:

04=Tray (500 pcs.)

Materials

Housing:

Ceramic

Gas:

non-radioactive

Leads:

tin plated

Arc Voltage @ 1A

~ 35V

Applications

Telecommunication

Data Transmission

Subscriber protection

Underground cables

Transition Glow to Arc @

~ 1.0A

Standard

UL-497B

complies to ITU-T K.12 (formerly CCITT)

complies to DIN 57845/VDE 0845

UL-rec.

Approvals

W ebLinks

Further info see:

http://www.wickmanngroup.com/

download/orderinfo_surgearr.pdf

http://www.wickmanngroup.com/

download/crossref_surgearr.pdf

Operating temperature

-40°C to +90°C

Climatic Category

complies to IEC 60068-1

+40°C, 21 days, <93% humidity

Soldering characteristics

complies to IEC 60068-2-20

Soldering Heat Resistance

complies to IEC 60068-2-58

Time

Transverse Delay Time

complies to

ITU-T K.12

< 0.2µs

Marking

, Type, Nom. Voltage, Date

Unit Weight

ca. 2.5g

8/20µs

Nominal

Single

Nominal Alternating

Impulse

Impulse Discharge Discharge

Discharge Discharge Current

Current

(50Hz; 1s;

(50Hz;

(10 times)

(1 time)

(10 times)

9 cycles)

E1+E2/M E1+E2/M E1+E2/M E1+E2/M

Approval

Characteristics

Type/

Order Code

sparkover

voltage

Tolerance

Impulse

sparkover

voltage

(1kV/µs)

typ.

Glow

Insulation

Voltage Resistance

(@100 Vdc)

E1/M;E2/M

Capacitance

(@1MHZ)

E1/M;E2/M

UL-rec.

A450 S0 0230 01 00

A450 F0 0230 01 00**

A451 S0 0230 01 04 230V

A452 S0 0230 01 04

A452 F0 0230 01 04**

A450 S0 0250 01 00**

A451 S0 0250 01 04

A452 S0 0250 01 04 250V

A452 F0 0250 01 04**

A450 S0 0350 01 00

A451 S0 0350 01 04

A452 S0 0350 01 04 350V

A452 F0 0350 01 04**

A450 S0 0420 11 00

A450 F0 0420 11 00** 420V

A452 S0 0420 11 04

other values on request

+/- 20%

< 450V

~ 200V

> 10GΩ

< 1.5 pF

20kA

25kA

10A

50A

•

+/- 20%

< 550V

~ 200V

> 10GΩ

< 1.5 pF

20kA

25kA

10A

50A

•

+/- 20%

< 600V

~ 200V

> 10GΩ

< 1.5 pF

20kA

25kA

10A

50A

•

-17/+30%

< 800V

~ 200V

> 10GΩ

< 1.5 pF

20kA

25kA

10A

50A

** with failsafe

Specifications are subject to change without notice.

Order

Example

Qty.

Order-

Number

Type

A450

Failsafe Option Sparkover Volt.

0230

Tolerance

Packaging

050915

WebSite

Europe

Tel: +49 2302 662-107

www.wickmanngroup.com E-mail: sales@wickmann.com

Americas

Tel: +1 404 699-7820

E-mail: service@wickmannusa.com

Asia

Tel: +852 26 14-1108

E-mail: sales@wickmann.com.hk

China

Tel: +86 21 6432 5146

E-mail: sales@wickmann.cn
