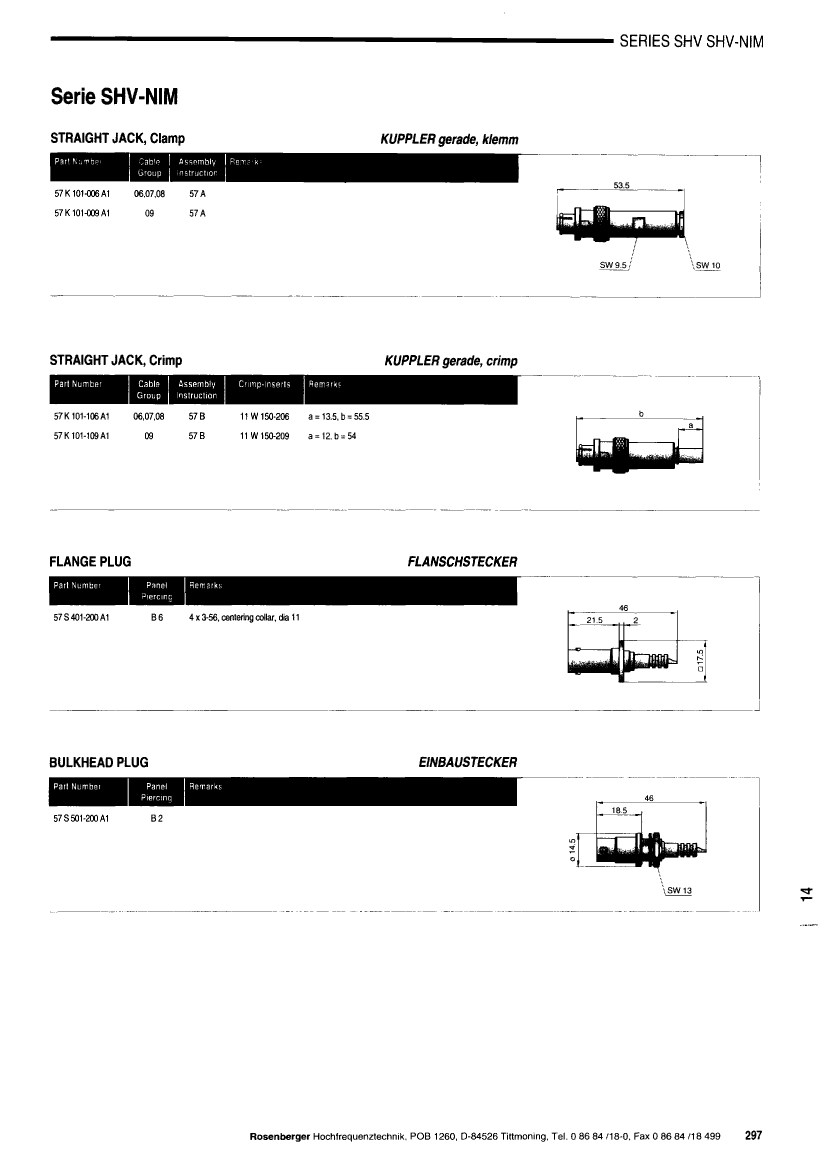

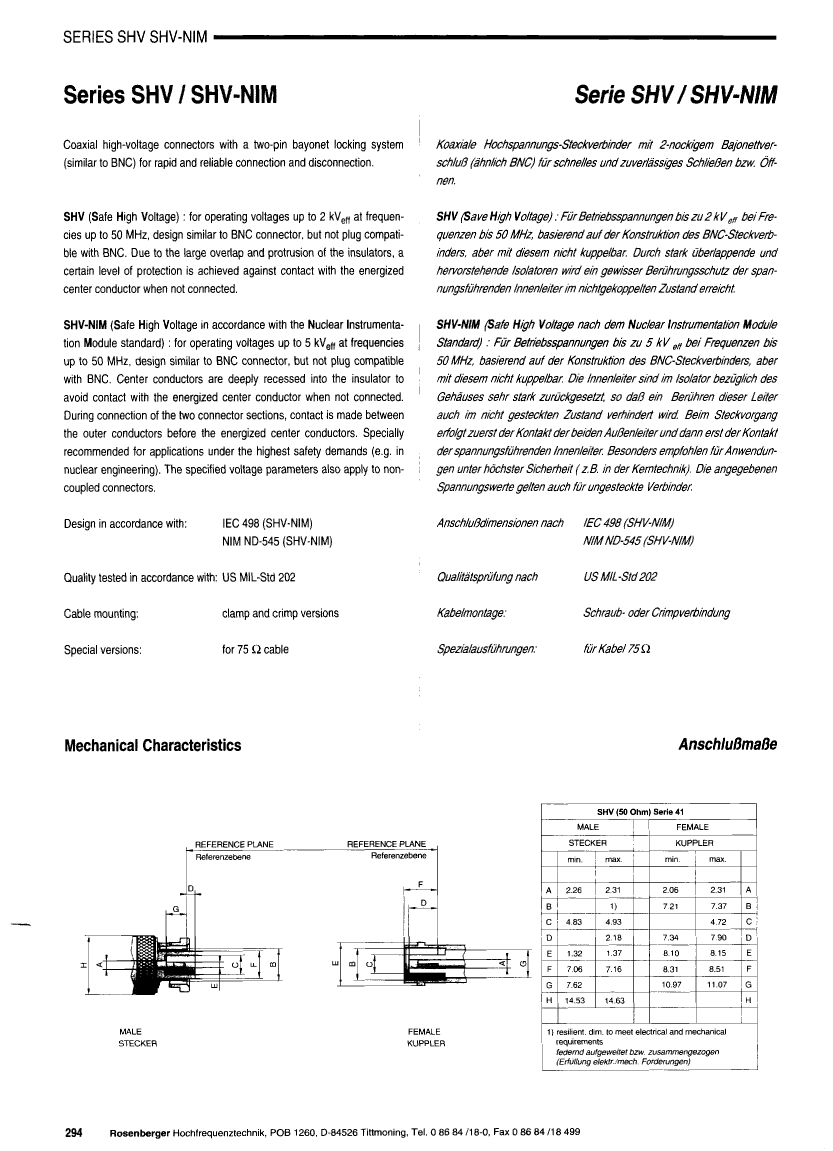

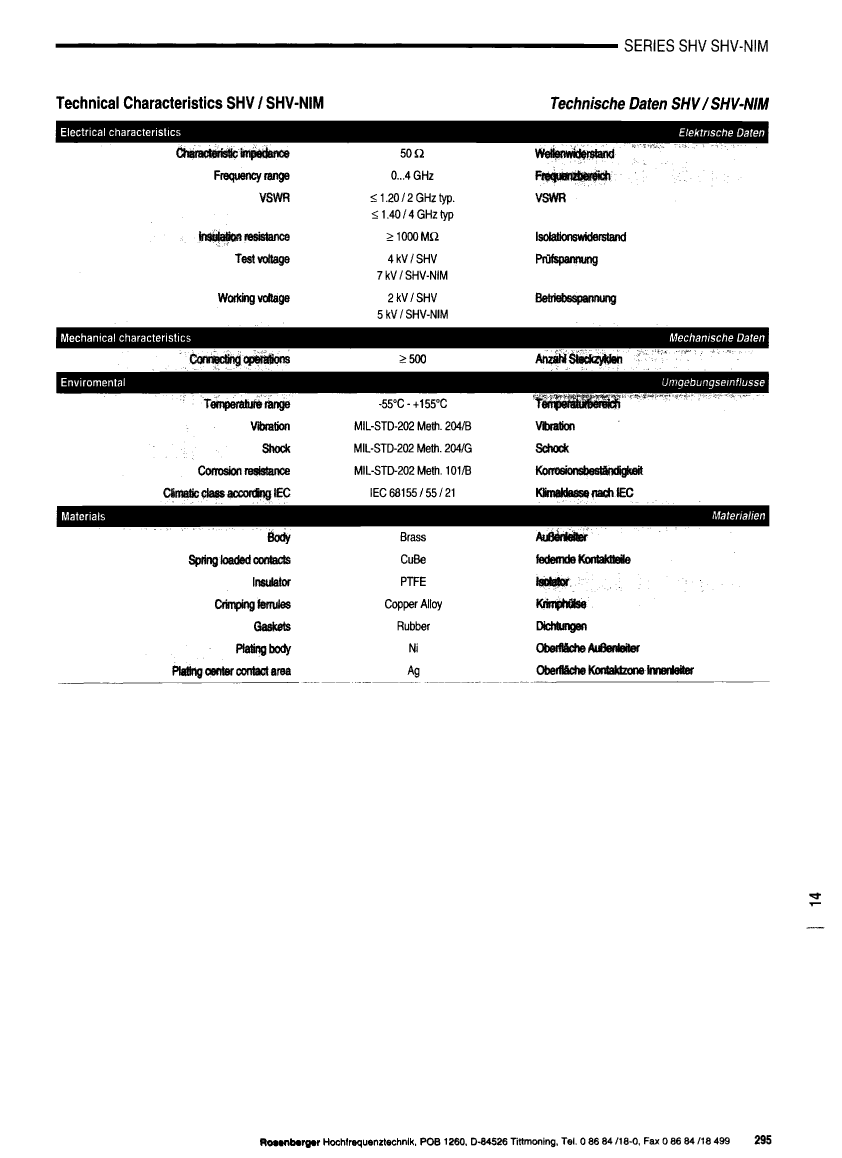

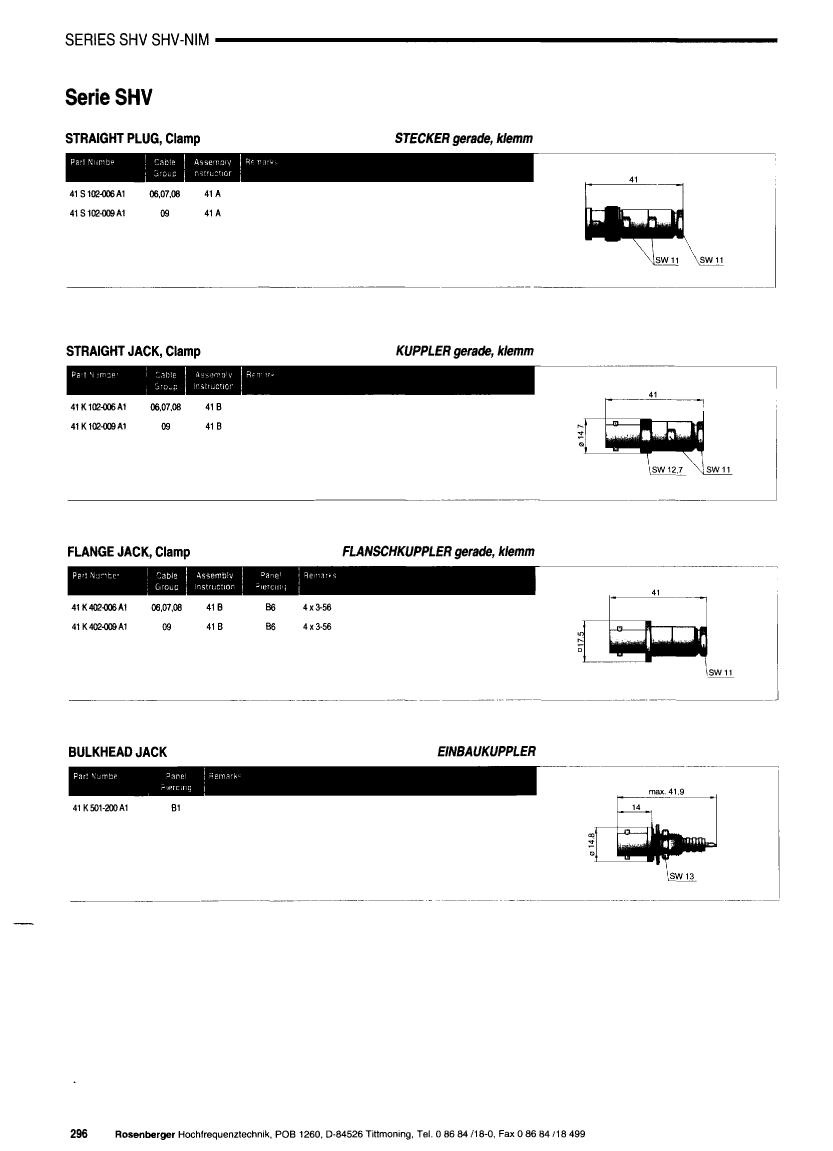

RF SHV Connector, Female, Cable Mount, Clamp Solder Terminal, Jack
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| Other features | VSWR AT 2GHZ:1.2 |
| Body/casing type | JACK |
| Characteristic impedance | 50 Ω |
| Connector type | RF SHV CONNECTOR |
| Contact to complete cooperation | SILVER |
| Contact completed and terminated | SILVER |
| Contact point gender | FEMALE |
| Contact material | BRASS |
| Coupling type | BAYONET |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| insulator material | POLYTETRAFLUORO ETHYLENE |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Manufacturer's serial number | SHV-NIM |
| Installation method | STRAIGHT |
| Installation type | CABLE |
| Maximum operating frequency | 4 GHz |
| Options | GENERAL PURPOSE |
| Panel mounting | NO |
| Termination type | CLAMP SOLDER |
| voltage standing wave ratio | 1.4 |
| Base Number Matches | 1 |
| 57K101-009A1 | 57K101-006A1 | 57K101-106A1 | 57K101-109A1 | 57S501-200A1 | 57S401-200A1 | |
|---|---|---|---|---|---|---|
| Description | RF SHV Connector, Female, Cable Mount, Clamp Solder Terminal, Jack | RF SHV Connector, Female, Cable Mount, Clamp Solder Terminal, Jack | RF SHV Connector, Female, Cable Mount, Crimp Terminal, Jack | RF SHV Connector, Female, Cable Mount, Crimp Terminal, Jack | RF SHV Connector, Male, Panel Mount, Solder Terminal, Plug | RF SHV Connector, Male, Panel Mount, Solder Terminal, Plug |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | VSWR AT 2GHZ:1.2 | APPLICABLE CABLES:RG 58; RG 141; RG 142; RG 223; RG 400 | APPLICABLE CABLES:RG 58; RG 141; RG 142; RG 223; RG 400 | VSWR AT 2GHZ:1.2 | VSWR AT 2GHZ:1.2 | VSWR AT 2GHZ:1.2 |
| Body/casing type | JACK | JACK | JACK | JACK | PLUG | PLUG |
| Characteristic impedance | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω |
| Connector type | RF SHV CONNECTOR | RF SHV CONNECTOR | RF SHV CONNECTOR | RF SHV CONNECTOR | RF SHV CONNECTOR | RF SHV CONNECTOR |
| Contact to complete cooperation | SILVER | SILVER | SILVER | SILVER | SILVER | SILVER |
| Contact completed and terminated | SILVER | SILVER | SILVER | SILVER | SILVER | SILVER |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | MALE | MALE |
| Contact material | BRASS | BRASS | BRASS | BRASS | BRASS | BRASS |
| Coupling type | BAYONET | BAYONET | BAYONET | BAYONET | BAYONET | BAYONET |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| insulator material | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE |
| JESD-609 code | e4 | e4 | e4 | e4 | e4 | e4 |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | SHV-NIM | SHV-NIM | SHV-NIM | SHV-NIM | SHV-NIM | SHV-NIM |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Maximum operating frequency | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Panel mounting | NO | NO | NO | NO | YES | YES |
| Termination type | CLAMP SOLDER | CLAMP SOLDER | CRIMP | CRIMP | SOLDER | SOLDER |
| voltage standing wave ratio | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| Installation type | CABLE | CABLE | CABLE | CABLE | - | - |
