533404-3 datasheet, PDF - EEWORLD Datasheet

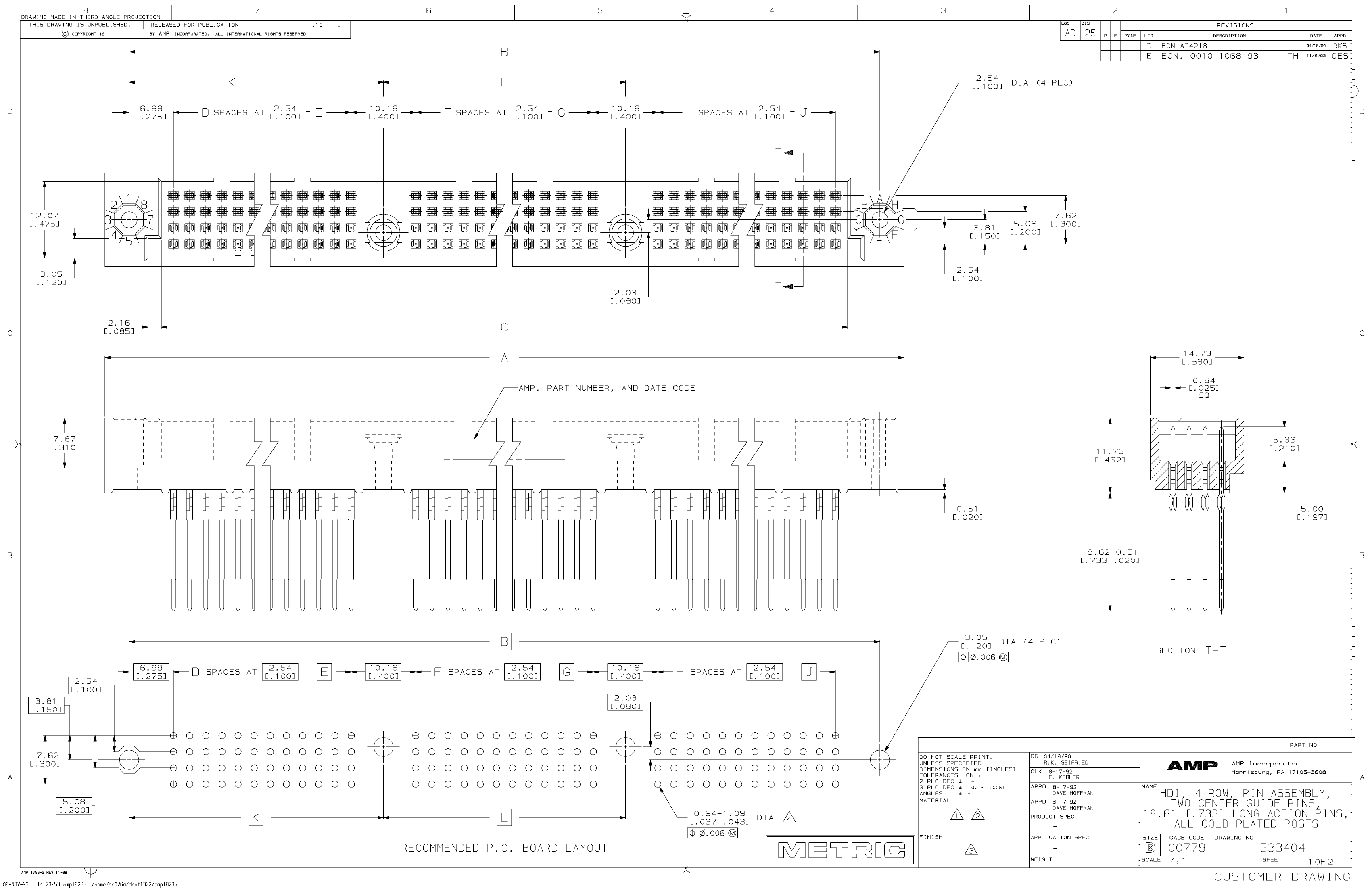

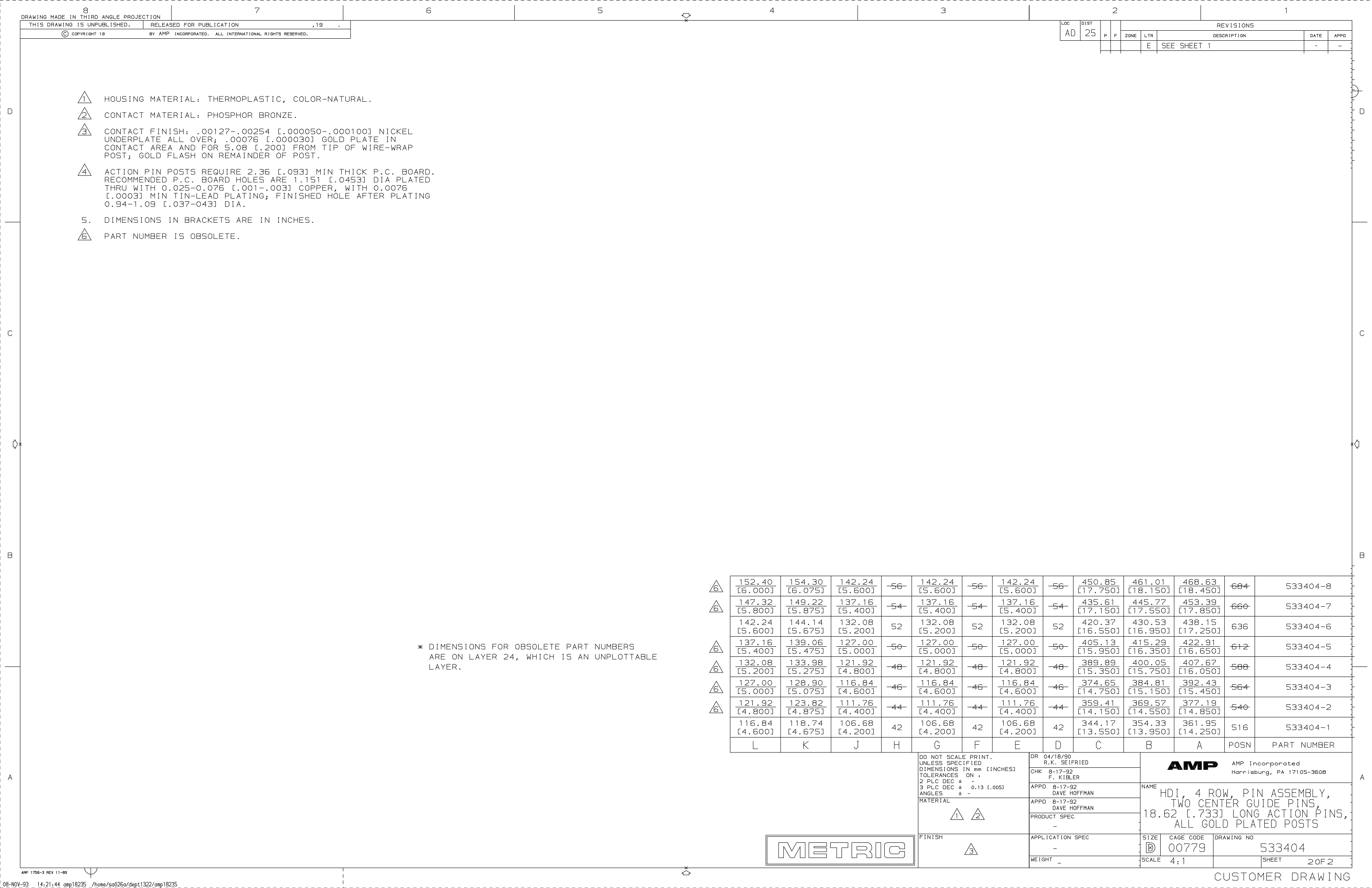

533404-3: Description564 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT; File Size153KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

533404-3 Overview

564 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT

Parameter Name	Attribute value
Objectid	1427133137
Reach Compliance Code	unknown
YTEOL	0
Other features	ACTION PIN
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	564

	533404-3	533404-5	533404-2	533404-4	533404-7	533404-8
Description	564 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT	612 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT	540 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT	CONNECTOR, 588 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT	CONNECTOR, 660 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT	684 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT
Objectid	1427133137	1427133143	2112917610	2112917611	2112917612	2112917613
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	564	612	540	588	660	684
