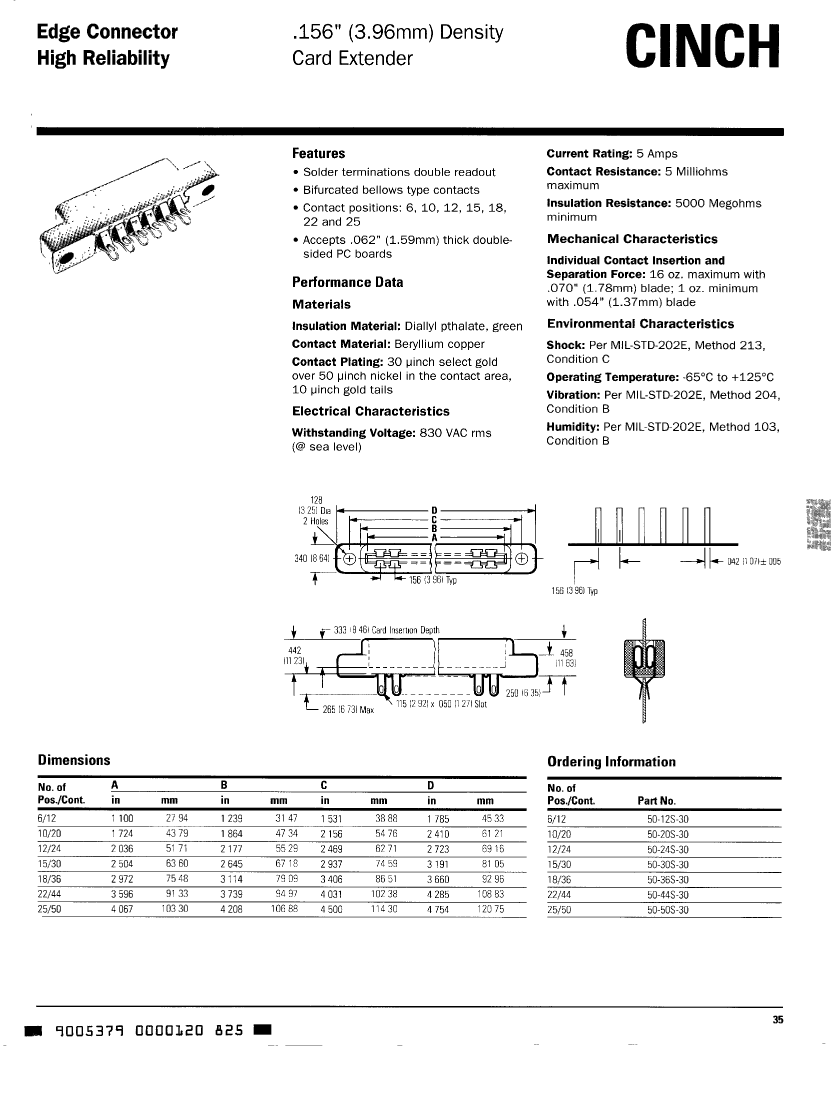

Card Edge Connector, 50 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Surface Mount Terminal, Hole .125-.137, Green Insulator, Receptacle
| Parameter Name | Attribute value |
| Reach Compliance Code | compliant |
| Other features | NONE |
| body width | 0.34 inch |
| subject depth | 0.458 inch |
| body length | 4.754 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact material | BERYLLIUM COPPER |
| contact mode | RECTANGULAR |
| Contact resistance | 5 mΩ |
| Contact style | BELLOWED TYPE |
| Dielectric withstand voltage | 830VAC V |
| maximum insertion force | 4.448 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | GREEN |
| insulator material | DIALLYL PHTHALATE |
| Manufacturer's serial number | 50-XXS-30 |
| Plug contact pitch | 0.156 inch |
| Installation option 1 | HOLE .125-.137 |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -65 °C |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 30u inch |
| Rated current (signal) | 5 A |
| reliability | COMMERCIAL |
| Terminal length | 0.265 inch |
| Terminal pitch | 3.9624 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 50 |
| Evacuation force-minimum value | .278 N |
| Base Number Matches | 1 |
| 50-50S-30 | 50-44S-30 | 50-12S-30 | 50-30S-30 | 50-36S-30 | |
|---|---|---|---|---|---|
| Description | Card Edge Connector, 50 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Surface Mount Terminal, Hole .125-.137, Green Insulator, Receptacle | Card Edge Connector, 44 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Surface Mount Terminal, Hole .125-.137, Green Insulator, Receptacle | Card Edge Connector, 12 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Surface Mount Terminal, Hole .125-.137, Green Insulator, Receptacle | Card Edge Connector, 30 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Surface Mount Terminal, Hole .125-.137, Green Insulator, Receptacle | Card Edge Connector, 36 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Surface Mount Terminal, Hole .125-.137, Green Insulator, Receptacle |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant |
| Other features | NONE | NONE | NONE | NONE | NONE |
| body width | 0.34 inch | 0.34 inch | 0.34 inch | 0.34 inch | 0.34 inch |
| subject depth | 0.458 inch | 0.458 inch | 0.458 inch | 0.458 inch | 0.458 inch |
| body length | 4.754 inch | 4.285 inch | 1.785 inch | 3.191 inch | 3.66 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI | NOT SPECIFIED | AU | NOT SPECIFIED | NOT SPECIFIED |
| Contact material | BERYLLIUM COPPER | NOT SPECIFIED | BERYLLIUM COPPER | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 5 mΩ | 5 mΩ | 5 mΩ | 5 mΩ | 5 mΩ |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE |
| Dielectric withstand voltage | 830VAC V | 830VAC V | 830VAC V | 830VAC V | 830VAC V |
| maximum insertion force | 4.448 N | 4.448 N | 4.448 N | 4.448 N | 4.448 N |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| Insulator color | GREEN | GREEN | GREEN | GREEN | GREEN |
| insulator material | DIALLYL PHTHALATE | DIALLYL PHTHALATE | DIALLYL PHTHALATE | DIALLYL PHTHALATE | DIALLYL PHTHALATE |
| Manufacturer's serial number | 50-XXS-30 | 50-XXS-30 | 50-XXS-30 | 50-XXS-30 | 50-XXS-30 |
| Plug contact pitch | 0.156 inch | 0.156 inch | 0.156 inch | 0.156 inch | 0.156 inch |
| Installation option 1 | HOLE .125-.137 | HOLE .125-.137 | HOLE .125-.137 | HOLE .125-.137 | HOLE .125-.137 |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Plating thickness | 30u inch | 30u inch | 30u inch | 30u inch | 30u inch |
| Rated current (signal) | 5 A | 5 A | 5 A | 5 A | 5 A |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.265 inch | 0.265 inch | 0.265 inch | 0.265 inch | 0.265 inch |
| Terminal pitch | 3.9624 mm | 3.9624 mm | 3.9624 mm | 3.9624 mm | 3.9624 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 50 | 44 | 12 | 30 | 36 |
| Evacuation force-minimum value | .278 N | .278 N | .278 N | .278 N | .278 N |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Is it Rohs certified? | - | conform to | - | conform to | conform to |
| ECCN code | - | EAR99 | - | EAR99 | EAR99 |
