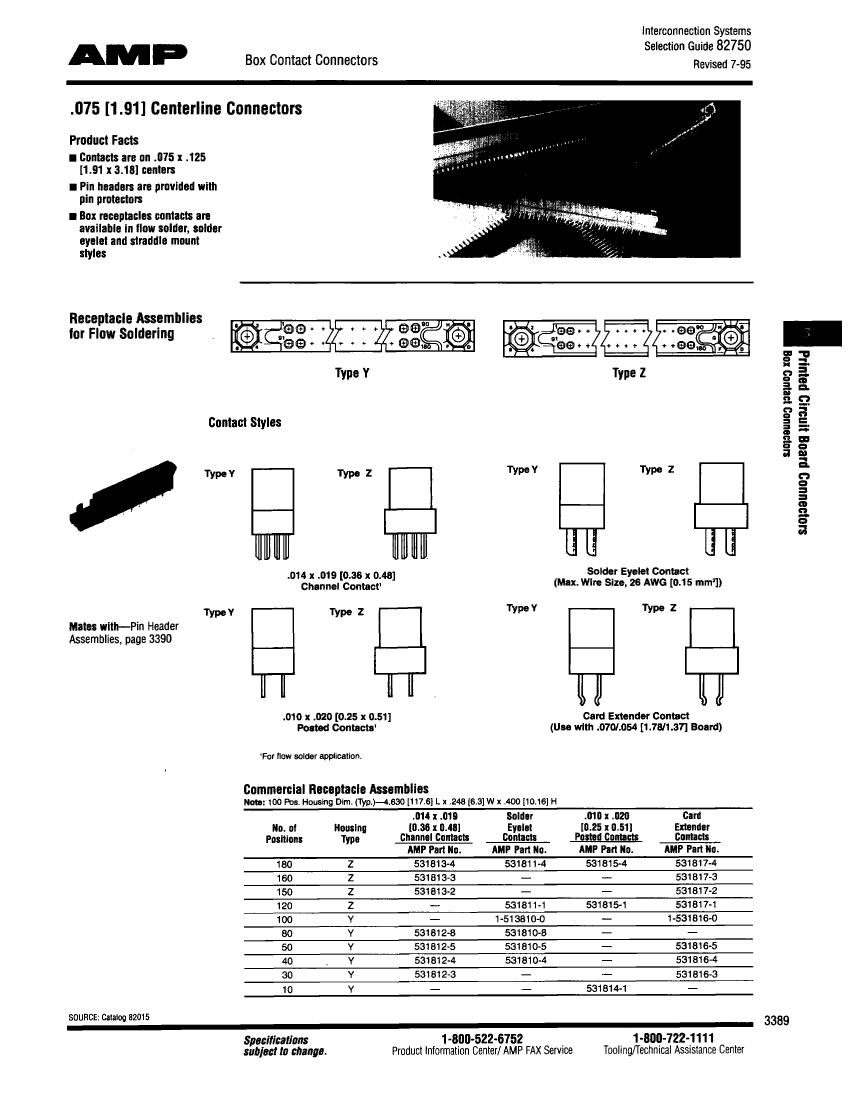

Preview

531809-4: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.075 PITCH,HOLE .087-.098; CategoryThe connector The connector; File Size170KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

531809-4 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.075 PITCH,HOLE .087-.098

531809-4 Parametric

Parameter Name	Attribute value
Objectid	300545215
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	HOLE .086-.098
body width	0.31 inch
subject depth	0.5 inch
body length	2.45 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Plug contact pitch	0.075 inch
Match contact row spacing	0.125 inch
Installation option 1	HOLE .087-.098
Installation option 2	NON-THREADED
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED KEY
Terminal pitch	1.905 mm
Total number of contacts	40

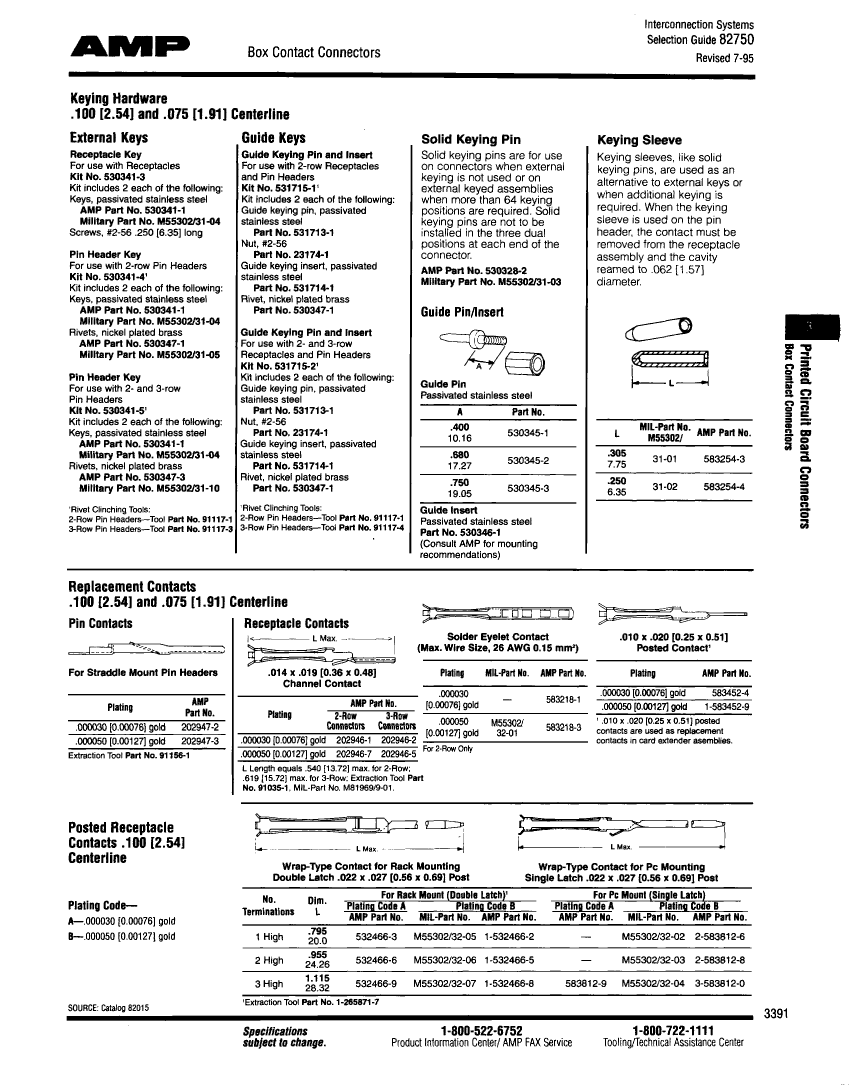

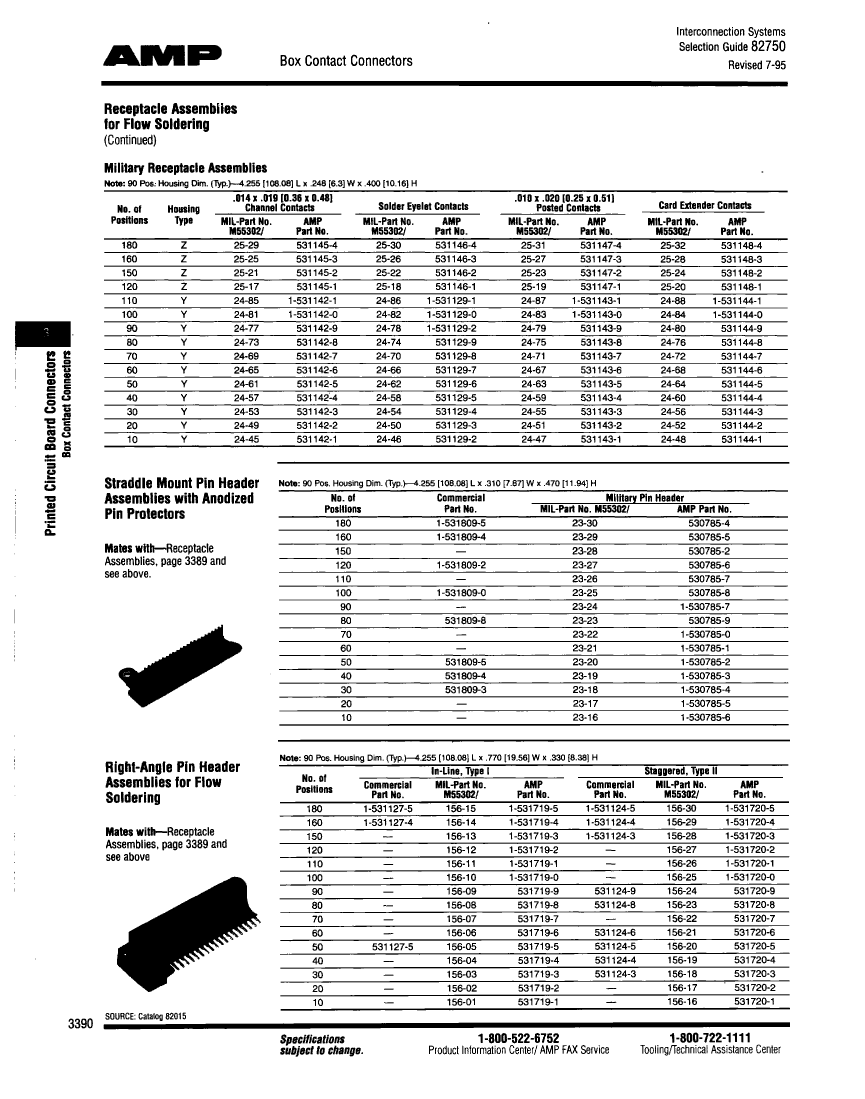

Preview

Download Datasheet

View All

531809-4 Related Products

	531809-4	1-531809-2	1-531809-4	1-531127-5	1-531124-4	531809-3	531809-8	531127-5
Description	HEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.075 PITCH,HOLE .087-.098	HEADER CONNECTOR,PCB MNT,RECEPT,120 CONTACTS,PIN,0.075 PITCH,HOLE .087-.098	HEADER CONNECTOR,PCB MNT,RECEPT,160 CONTACTS,PIN,0.075 PITCH,HOLE .087-.098	HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,PIN,0.075 PITCH,PC TAIL TERMINAL	160 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	HEADER CONNECTOR,PCB MNT,RECEPT,30 CONTACTS,PIN,0.075 PITCH,HOLE .087-.098	80 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	50 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code	unknown	unknown	unknown	unknow	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE
Number of rows loaded	2	2	2	2	2	2	2	2
Terminal pitch	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.91 mm	1.905 mm	1.9 mm	1.9 mm
Total number of contacts	40	120	160	180	160	30	80	50
Objectid	300545215	300545211	300545210	-	1417915945	300545216	1417916071	1417916027
Board mount options	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .099-.111	-	HOLE .086-.098	-	-
body width	0.31 inch	0.31 inch	0.31 inch	0.33 inch	-	0.31 inch	-	-
subject depth	0.5 inch	0.5 inch	0.5 inch	0.77 inch	-	0.5 inch	-	-
body length	2.45 inch	5.45 inch	6.95 inch	7.63 inch	-	2.075 inch	-	-
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	-	-
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	-	AU ON NI	-	-
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	-	GOLD	-	-
Contact material	BRASS	BRASS	BRASS	BRASS	-	BRASS	-	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	-	-
Plug contact pitch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	-	0.075 inch	-	-
Match contact row spacing	0.125 inch	0.125 inch	0.125 inch	0.125 inch	-	0.125 inch	-	-
Number of connectors	ONE	ONE	ONE	ONE	-	ONE	-	-
PCB row number	2	2	2	2	-	2	-	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-	-
Plating thickness	30u inch	30u inch	30u inch	30u inch	-	30u inch	-	-
polarization key	POLARIZED KEY	POLARIZED KEY	POLARIZED KEY	ENDS	-	POLARIZED KEY	-	-
