536366 datasheet, PDF - EEWORLD Datasheet

536366: DescriptionCONNECTOR,DIN-41612,PCB MNT,RECEPT,96 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size168KB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

536366 Overview

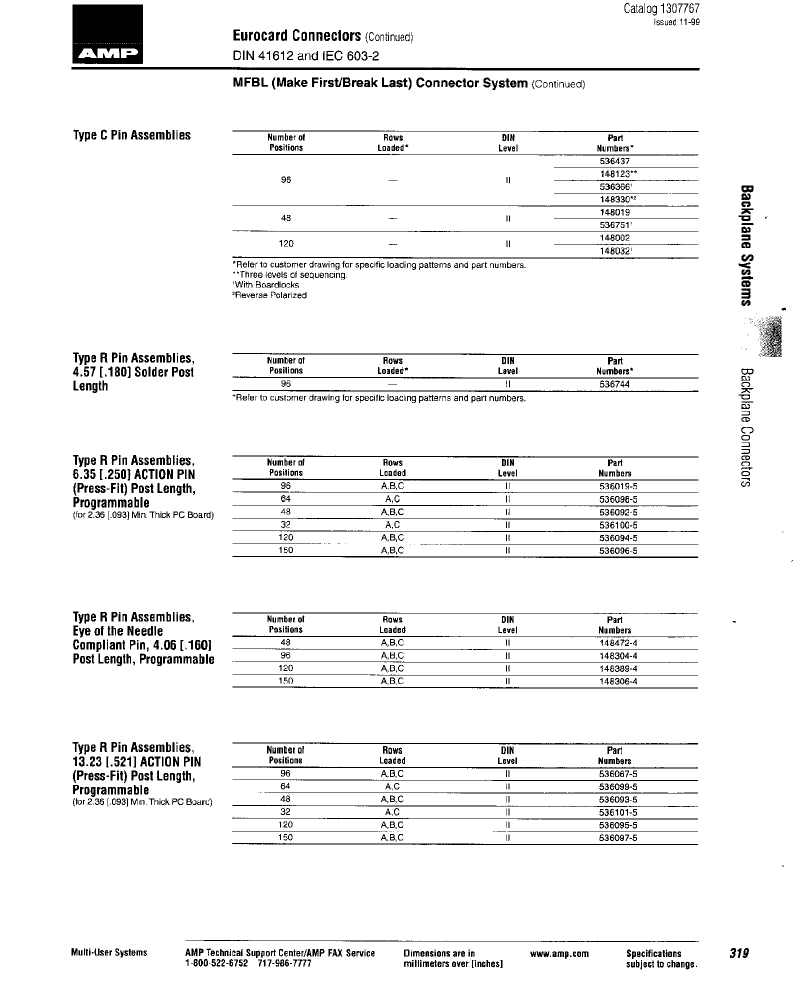

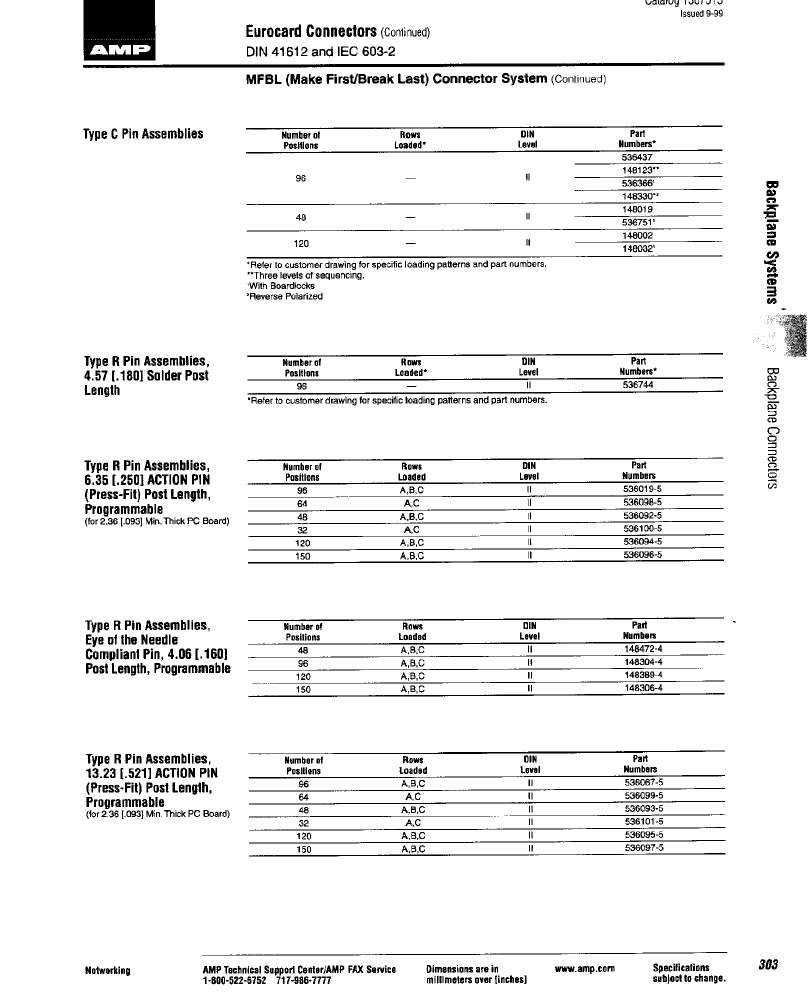

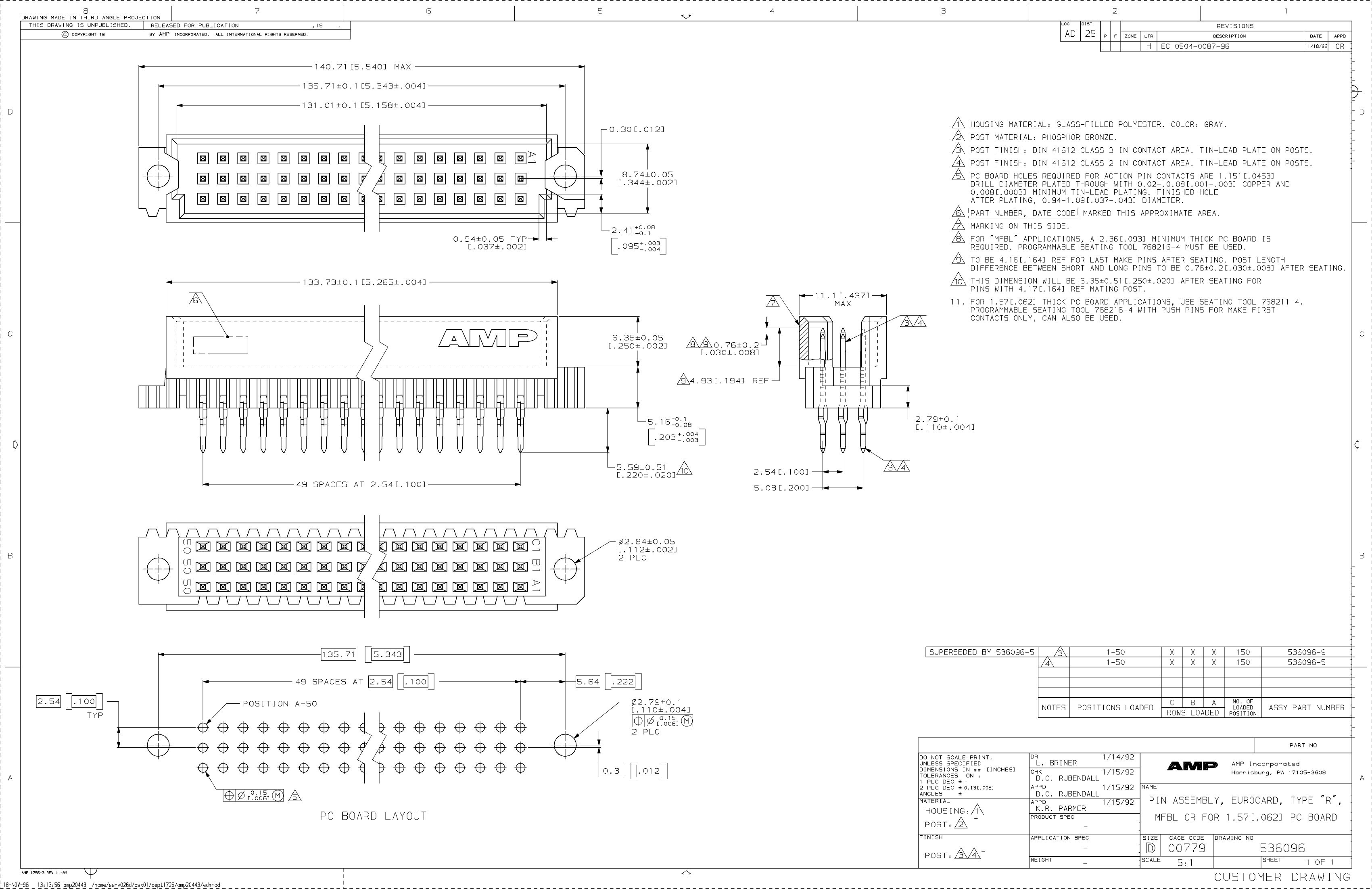

CONNECTOR,DIN-41612,PCB MNT,RECEPT,96 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL

Parameter Name	Attribute value
Objectid	300240717
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.9
body width	0.437 inch
subject depth	0.698 inch
body length	3.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	200 Cycles
Filter function	NO
maximum insertion force	.9174 N
Insulation resistance	1000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	1.5 A
Guideline	UL, CSA
Terminal length	0.104 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
Evacuation force-minimum value	.139 N
