5MDV-07 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5MDV-07

5MDV-07: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size127KB，4 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

5MDV-07 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, Solder Terminal

5MDV-07 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SHROUDED
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5MDV
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5 mm
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

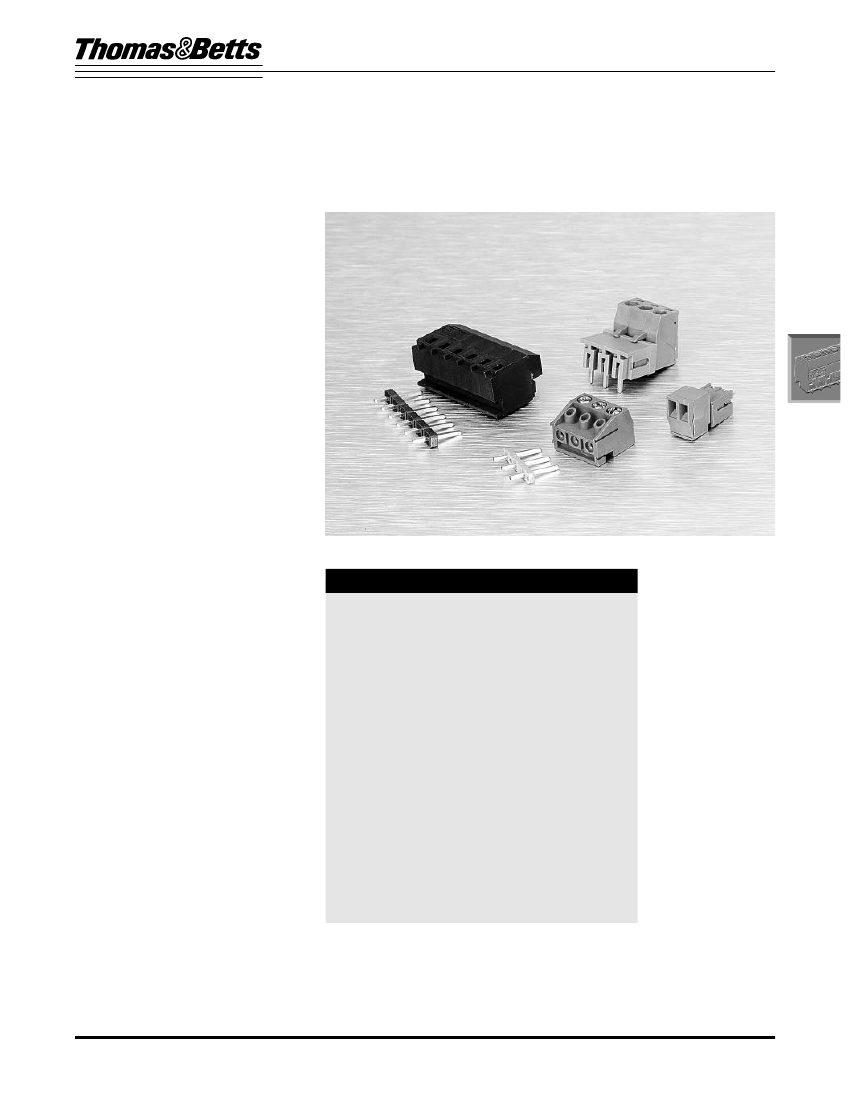

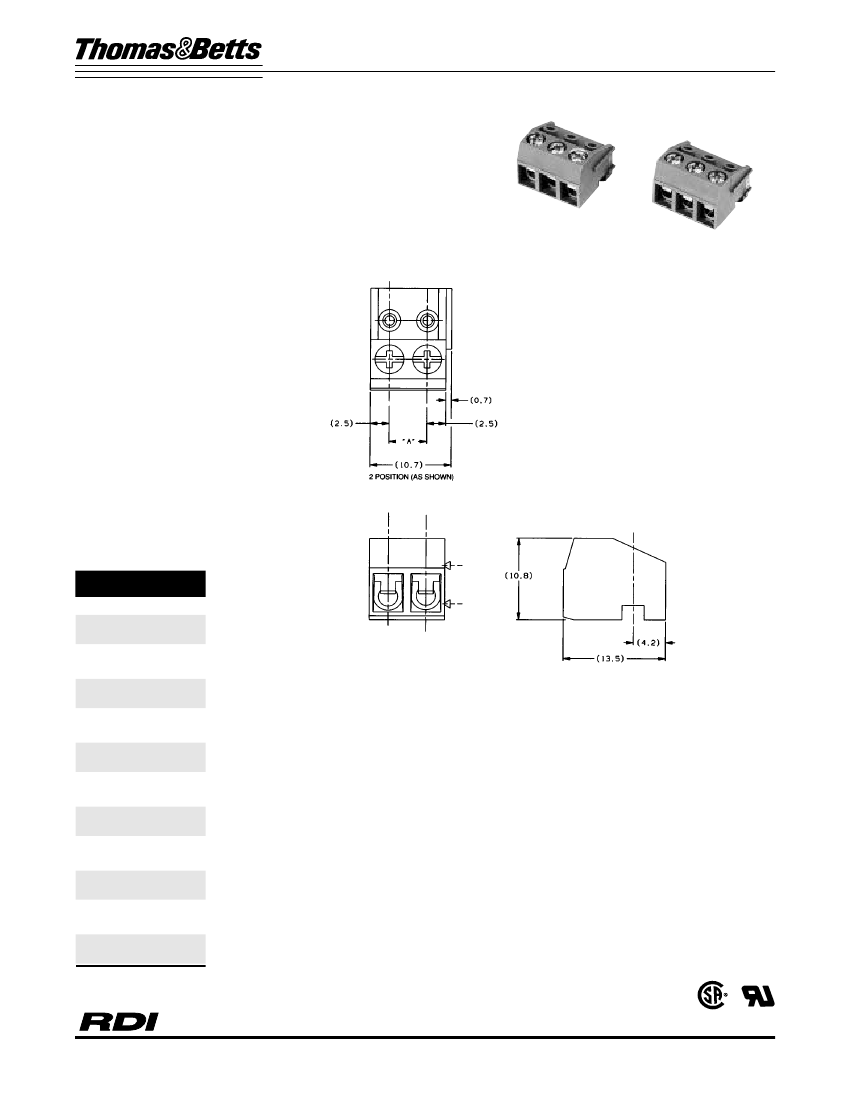

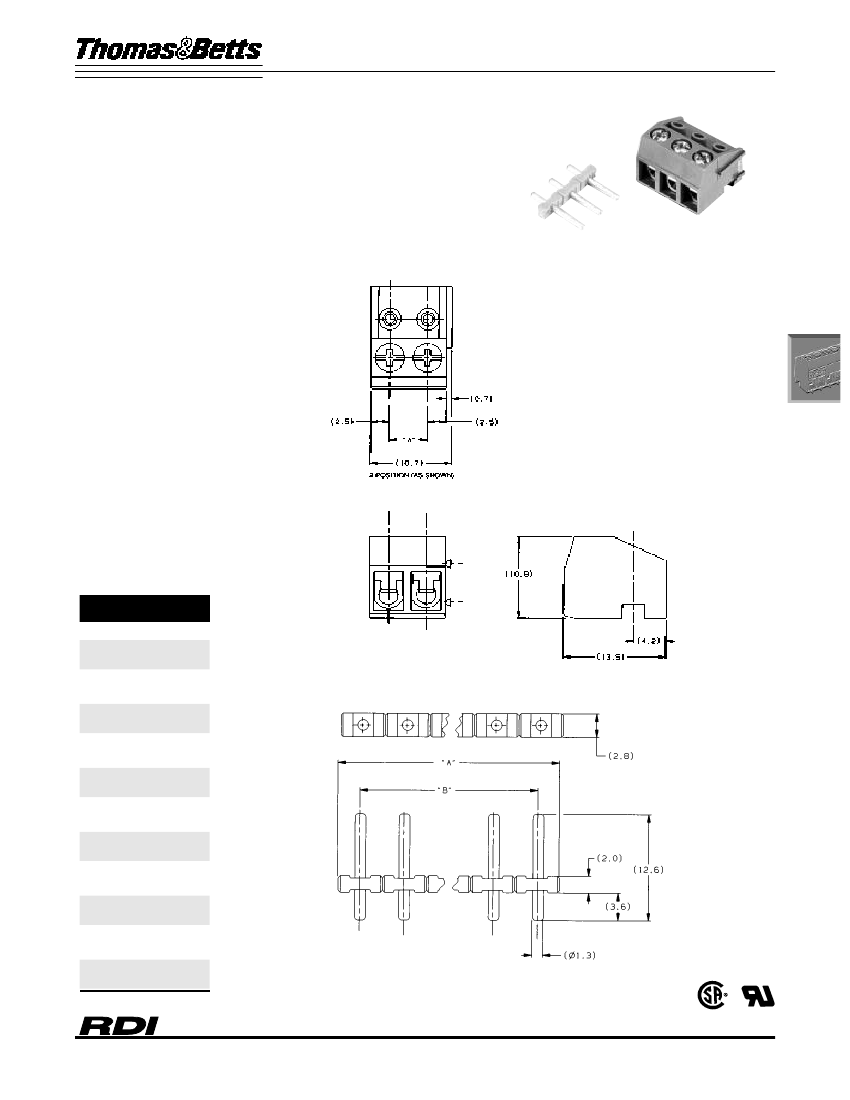

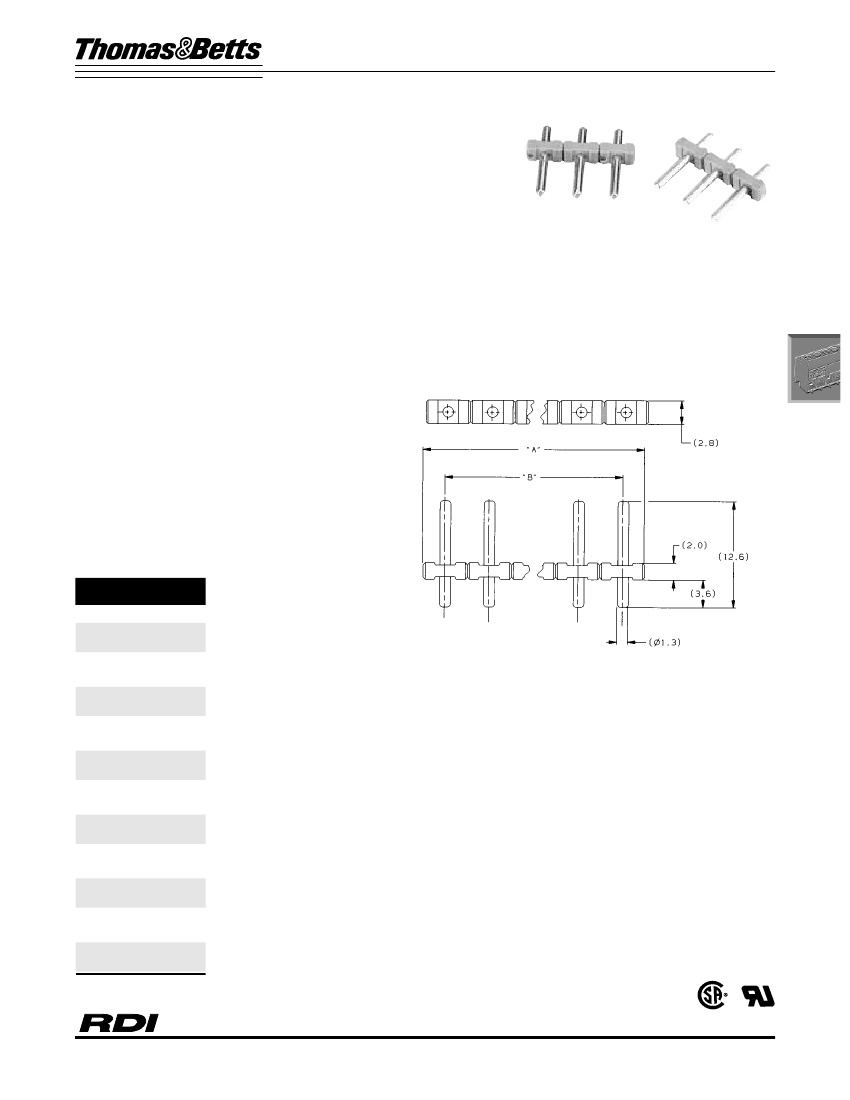

Eurostyle Electronic Connectors

Two Piece / Pluggable

ESCRIPTION

PPLICATION

Designed to European specifications,

these two piece blocks provide

interconnection between wire and PC

board. Wire is terminated at the

connector and the header is mounted

to the PC board. The pluggable

design expedites field servicing and

troubleshooting.

TWO PIECE / PLUGGABLE

CONNECTORS

ESIGN

DVANTAGES

• Pitches Available:

• 3,5mm (0.138")

• 5,0mm (0.197")

• 5,08mm (0.200")

• 7,0mm (0.276”)

• 10,0mm (0.394”)

• 10,16mm (0.400”)

• Locking fingers provide secure

“vibration-proof” connection.

• Mate with either closed-end or

open-end shrouded headers.

• Available in two connection styles:

• Cage clamp for superior

connection.

• Wire protection for economical

designs.

• Vertical, horizontal, or universal

mounting.

• Optional press-on coding key and

polarizing clip system for B52

series. Polarized feature of

connector and header allows for

varied applications.

• UL94V-0 rated

insulator housing.

thermoplastic

CONNECTOR INDEX

3,5mm Connector with Cage Clamp ......................................32

3,5mm Header ........................................................................33

5mm Flush Connector with Cage Clamp ................................34

5mm Flush Header ..................................................................35

5mm Locking Connector with Cage Clamp ............................36

5mm Open End Header ..........................................................37

5mm Closed End Header ..................................................38, 39

5mm Fastening Block, Latch ..................................................40

5mm Flush Connector and Header Combo ............................41

5mm Flush Connector with Wire Protector ............................42

5mm Flush Header ..................................................................43

5,08mm Flush Connector with Cage Clamp ..........................44

5,08mm Flush Header ............................................................45

5,08mm Locking Connector with Cage Clamp ......................46

5,08mm Header ......................................................................47

3,5mm Polarizing Accessories ................................................48

• Gold and silver plated terminals

available in addition to standard tin

plating.

• Terminal marking available.

• Shrouded headers provide

increased circuit isolation with 4

sided barrier protection.
