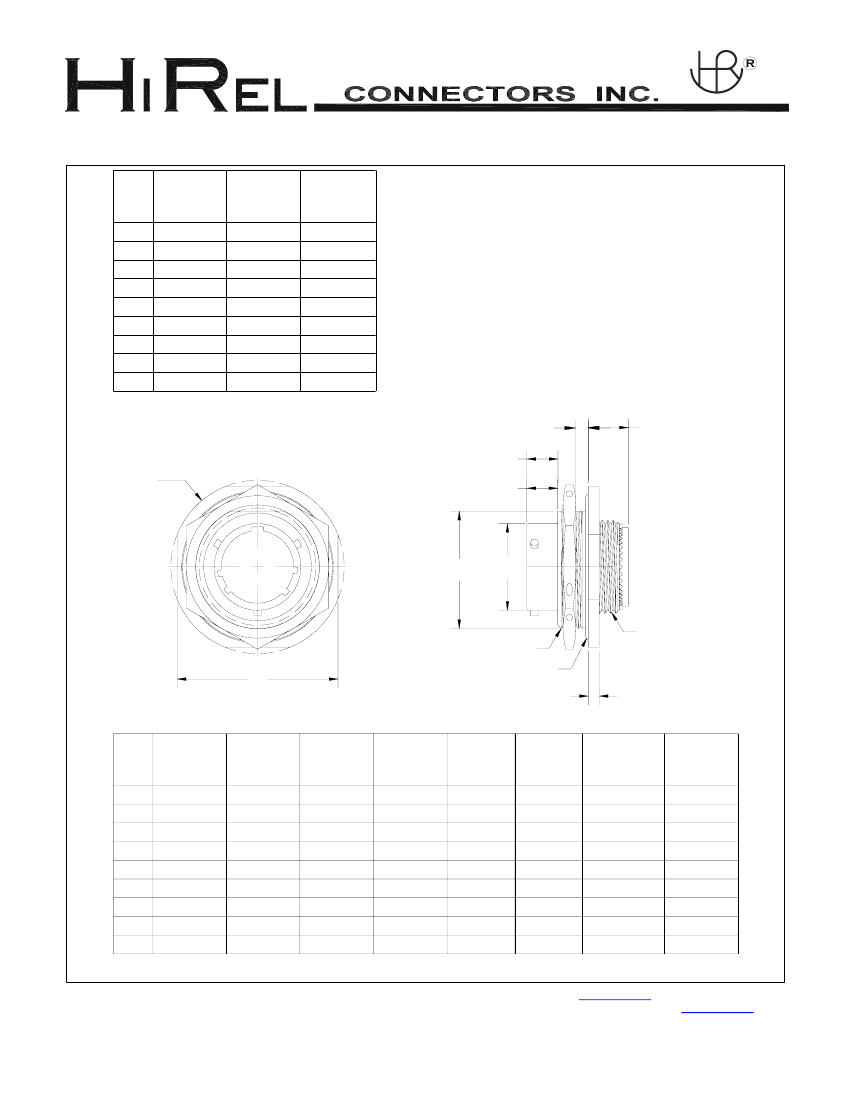

MS27474
Jam Nut Mount Environment Resisting Receptacle
SHELL
SIZE
8
10
12
14
16
18
20
22
24
MIL-DTL-38999
Series II Receptacles
ØQ
±.016
[±0.41]
S
±.016
[±0.41]
VV Thd
CLASS 2A
UNEF
.4375-28
.5625-24
.6875-24
.8125-20
.9375-20
1.0625-18
1.1875-18
1.3125-18
1.4375-18
1.375 [34.93] 1.250 [31.75]
1.500 [38.10] 1.375 [34.93]
1.625 [41.28] 1.500 [38.10]
1.750 [44.45] 1.625 [41.28]
1.938 [49.23] 1.781 [45.24]
2.016 [51.21] 1.890 [48.00]
2.140 [54.36] 2.016 [51.21]
2.265 [57.53] 2.140 [54.36]
2.390 [60.71] 2.265 [57.53]
.109/.062 [2.76/1.58]
PANEL THICKNESS
LE
LT
ØQ
F
EE
N Flat ØB
VV Thd
M Thd
S
O-Ring
K
SHELL
SIZE
+.001/-.005
8
10
12
14
16
18
20
22
24
ØB
EE
.140 [3.56]
.140 [3.56]
.140 [3.56]
.140 [3.56]
.140 [3.56]
.140 [3.56]
.166 [4.22]
.166 [4.22]
.166 [4.22]
F
±.005
[±0.13]
.438 [11.13]
.438 [11.13]
.438 [11.13]
.438 [11.13]
.438 [11.13]
.438 [11.13]
.464 [11.79]
.464 [11.79]
.464 [11.79]
K
+.011/-.010
[+0.28/-0.25]
.094 [2.39]
.094 [2.39]
.094 [2.39]
.094 [2.39]
.094 [2.39]
.094 [2.39]
.094 [2.39]
.094 [2.39]
.094 [2.39]
LE
MAX
(CLASS E)
.516 [13.11]
.516 [13.11]
.516 [13.11]
.516 [13.11]
.516 [13.11]
.516 [13.11]
.484 [12.29]
.484 [12.29]
.484 [12.29]
LT
MAX
(CLASS T)
.344 [8.74]
M Thd
CLASS 2A
.875-20 UNEF
N Flat
+.001/-.006
[+0.03/-0.15]
.817 [20.75]
.941 [23.90]
+.005/-.000
[+0.03/-0.13] [+0.13/-0.00]
.473 [12.01]
.590 [14.99]
.750 [190.5]
.875 [22.23]
1.000 [25.40]
1.125 [25.58]
1.250 [31.75]
1.375 [34.93]
1.500 [38.10]
.344 [8.74] 1.000-20 UNEF
.344 [8.74] 1.125-18 UNEF 1.065 [27.05]
.344 [8.74] 1.250-18 UNEF 1.190 [30.23]
.344 [8.74] 1.375-18 UNEF 1.320 [33.63]
.344 [8.74] 1.500-18 UNEF 1.440 [36.58]
.312 [7.92] 1.625-18 UNEF 1.565 [39.75]
.312 [7.92]
.375 [9.53]
1.750-18 UNS 1.690 [42.93]
1.875-16 UN 1.815 [46.10]
DIMENSIONS ARE IN INCHES [MILLIMETERS]
