V375A5M400A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> V375A5M400A

Preview

V375A5M400A: Description1-OUTPUT 400 W DC-DC REG PWR SUPPLY MODULE; Categoryaccessories; File Size191KB，8 Pages; ManufacturerVICOR; Websitehttp://www.vicorpower.com/

Download Datasheet View All

V375A5M400A Overview

1-OUTPUT 400 W DC-DC REG PWR SUPPLY MODULE

Preview

Download Datasheet

View All

Features

•

375Vin / 48Vout / 600Watts

DC-DC Converter Module

Model Number V375A48C600A*

DC input range: 250 - 425V

Input surge withstand: 500V for 100ms

DC output: 48V

Programmable output: 10 to 110%

Regulation: ±0.25% no load to full load

Efficiency: 90%

Maximum operating temperature:

100°C at full load

Power density: 119W/cubic inch

Height above board: 0.43 in. (10,9 mm)

Parallelable, with N+M fault tolerance

Low noise ZCS/ZVS architecture

Typical Applications:

distributed power;

off-line systems using power PFC front-ends;

electric vehicles

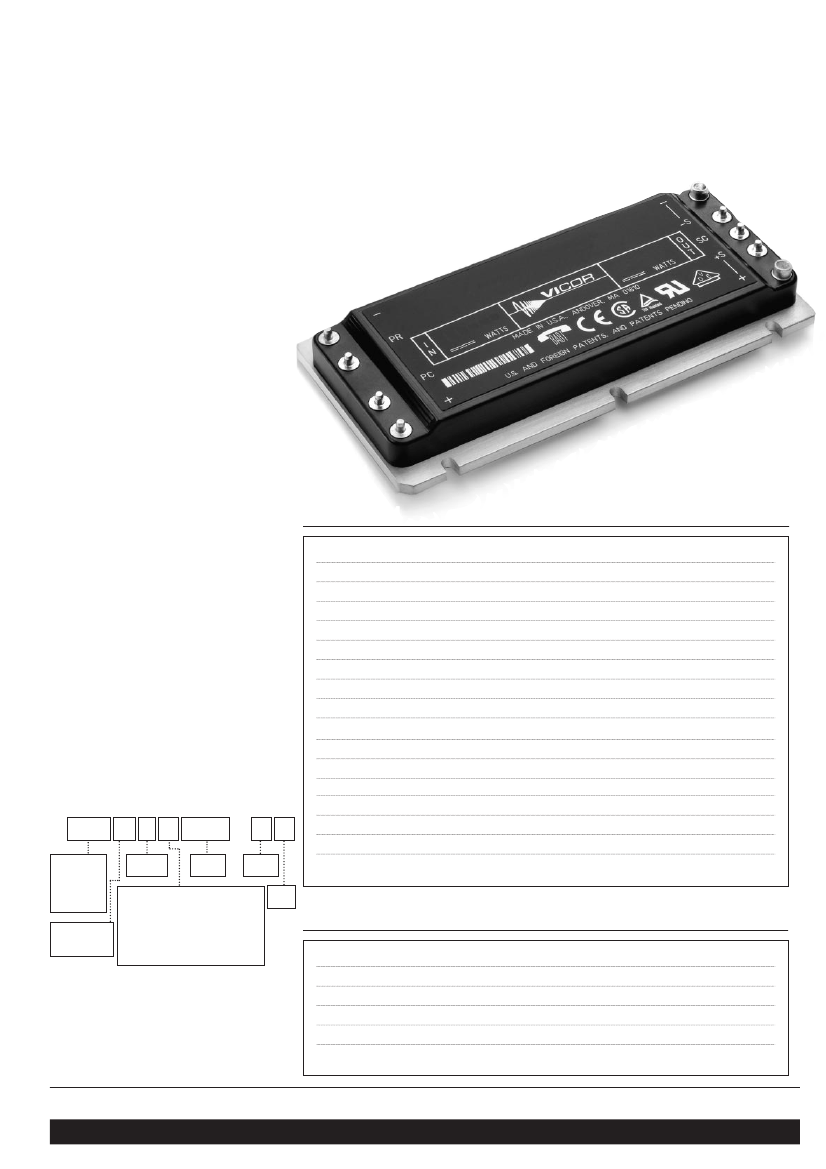

Shown actual size:

4.6 x 2.2 x 0.5 in

117 x 56 x 12,7 mm

Product Overview

This DC-DC converter module uses

2nd Generation power processing, control

and packaging technologies to provide the

performance, flexibility and cost effectiveness

expected of a mature power component.

For example, a plated-cavity core transformer

couples widely separated primary and

secondary windings, resulting in low in-to-

out parasitic capacitance and noise.

High frequency ZCS/ZVS switching,

advanced power semiconductor packaging

and thermal management provide high

power density with low temperature

gradients. Extensive use of silicon

integration results in 1/3 the part count

of a 1st Generation converter.

Absolute Maximum Ratings

Parameter

+In to –In voltage

PC to –In voltage

PR to –In voltage

+Out to –Out voltage

+Sense to –Out voltage

–Sense to –Out voltage

SC to –Out voltage

Isolation voltage (in to out)

Isolation voltage (in to base)

Isolation voltage (out to base)

Storage temperature (C–Grade)

Operating temperature (C–Grade)

Pin soldering temperature

Style

Base-

plate

Rating

-0.5 to +425

500

-0.5 to +7.0

-0.5 to +62.9

1.0

-0.5 to +1.5

3000

1550

500

-40 to +125

-20 to +100

500 (260)

750 (390)

5 (0.57)

Unit

Vdc

Vrms

°C

°F (°C)

in-lbs (N-m)

Notes

<100ms

* Part Numbering

See part numbering chart on this

page for other product grades.

Baseplate

<5 sec; wave solder

<7 sec; hand solder

6 each, # 4-40 or M3

V 375 A 5 C 400 A

Input Voltage

24 = 24Vin

48 = 48Vin

300 = 300Vin

375 = 375Vin

A = Maxi

B = Mini

C = Micro

Output

Voltage

Output

Power

Mounting torque

Product Grade Temperatures (°C)

Grade

Storage

Operating

C = - 40 to +125 - 20 to +100

T = - 40 to +125 - 40 to +100

H = - 55 to +125 - 40 to +100

M = - 65 to +125 - 55 to +100

Thermal Resistance and Capacity

Parameter

Baseplate to sink; flat, greased surface

Baseplate to sink; thermal pad (P/N 20263)

Baseplate to ambient

Baseplate to ambient; 1000 LFM

Thermal capacity

Min

Typ

0.08

0.07

4.9

1.1

165

Max

Unit

°C/Watt

Watt-sec/°C

For pin styles see page 6. Slotted baseplate

(style 1) requires no designator. For

threaded baseplate add a “2” to the end of

the part number. For thru-hole, add a “3”.

See page 7 for dimensions.

Vicor Corp.

Tel: 800-735-6200, 978-470-2900 Fax: 978-475-6715

V375A48C600A DC-DC Converter

Rev. 5.2

Page 1 of 8

Set your site on VICOR at www.vicorpower.com
