5205/AU: DescriptionRF Connector Adapter, SMA-SMA, Panel Mount, Male-Female, ROHS COMPLIANT; CategoryThe connector The connector; File Size38KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

5205/AU Overview

RF Connector Adapter, SMA-SMA, Panel Mount, Male-Female, ROHS COMPLIANT

5205/AU Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Adapter type	SMA-SMA
Other features	STANDARD: MIL-STD-348
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE-FEMALE
Contact material	BERYLLIUM COPPER
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	IN
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
voltage standing wave ratio	1.15
Base Number Matches	1

Preview

Download Datasheet

View All

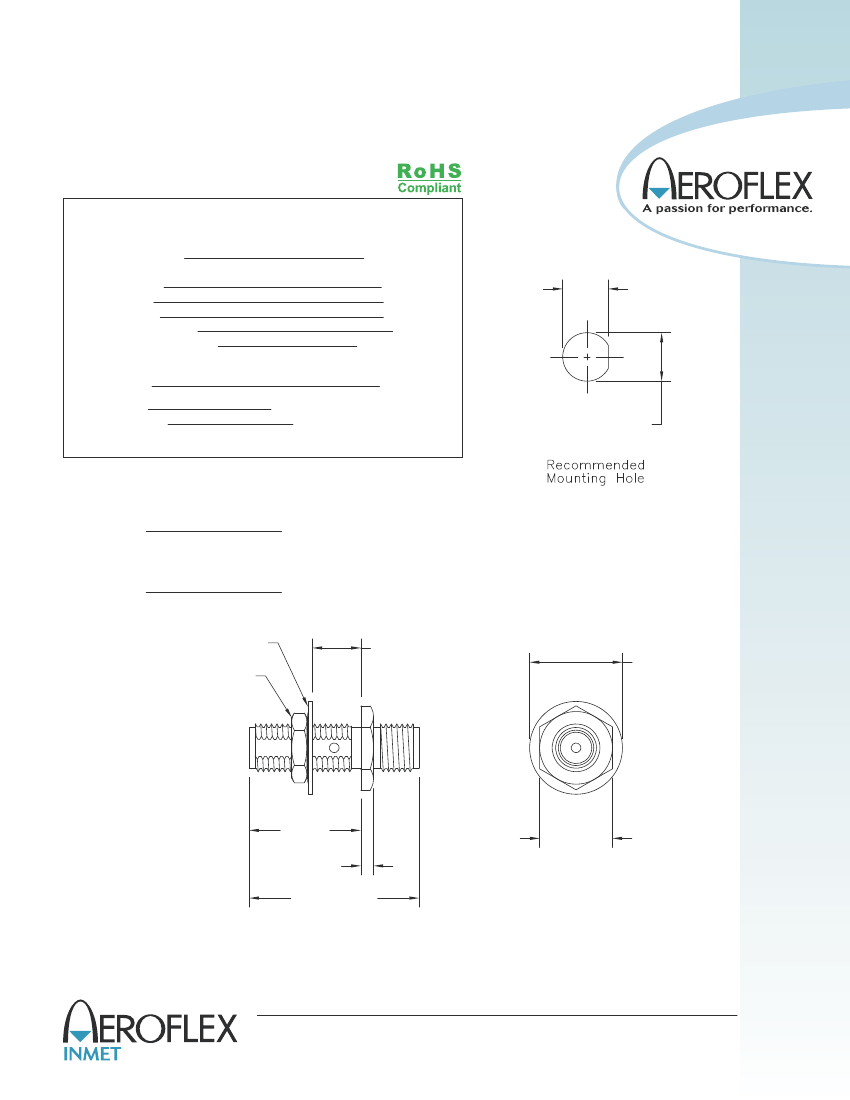

ADAPTERS, IN-SERIES

SMA, DC-18 GHz, Bulkhead Mount

SPECIFICATIONS:

Models: 5205, 5205/AU

Electrical:

Frequency Range

VSWR

DC - 4 GHz

4 - 8 GHz

8 - 18 GHz

Nominal Impedance

Operating Temp Range

DC - 18.0 GHz

1.05:1 Max.

1. 0:1 Max.

1

1. 5:1 Max.

1

50 Ohms

-55°C to +1

25°C

See Below

Gold Plated Beryllium Copper

Passivated Stainless Steel

.24

1

.236

[ ]

6. 2

1

5.99

Mechanical:

Connectors

Mates with MIL

-STD-348

Conductors

Nut & Washer:

1

Ø.250+.005 6.35+0. 3

-.000

-0.00

[

]

Model Number:

Connectors

5205

Passivated Stainless Steel

Model Number:

Connectors

5205/AU

Gold Plated Stainless Steel

Lockwasher

5/16 Hex

.25 [6.35] Max.

.09 [2.29] Min.

Panel Thickness

2. 4

Ø.478 1 1

.460 1

1.68

[

]

.575

[1

4.6]

.065 [1.7]

.875 [22.23]

3/8 Hex

Panel Nut, Lock Washer & O-Ring are Shipped Unassembled

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design, specifications are subject to change without notice. Contact factory for technical

specifications before purchasing and/or use.

5205 REV G

:

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com

5205/AU Related Products

	5205/AU
Description	RF Connector Adapter, SMA-SMA, Panel Mount, Male-Female, ROHS COMPLIANT
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Adapter type	SMA-SMA
Other features	STANDARD: MIL-STD-348
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE-FEMALE
Contact material	BERYLLIUM COPPER
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	IN
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
voltage standing wave ratio	1.15
Base Number Matches	1
