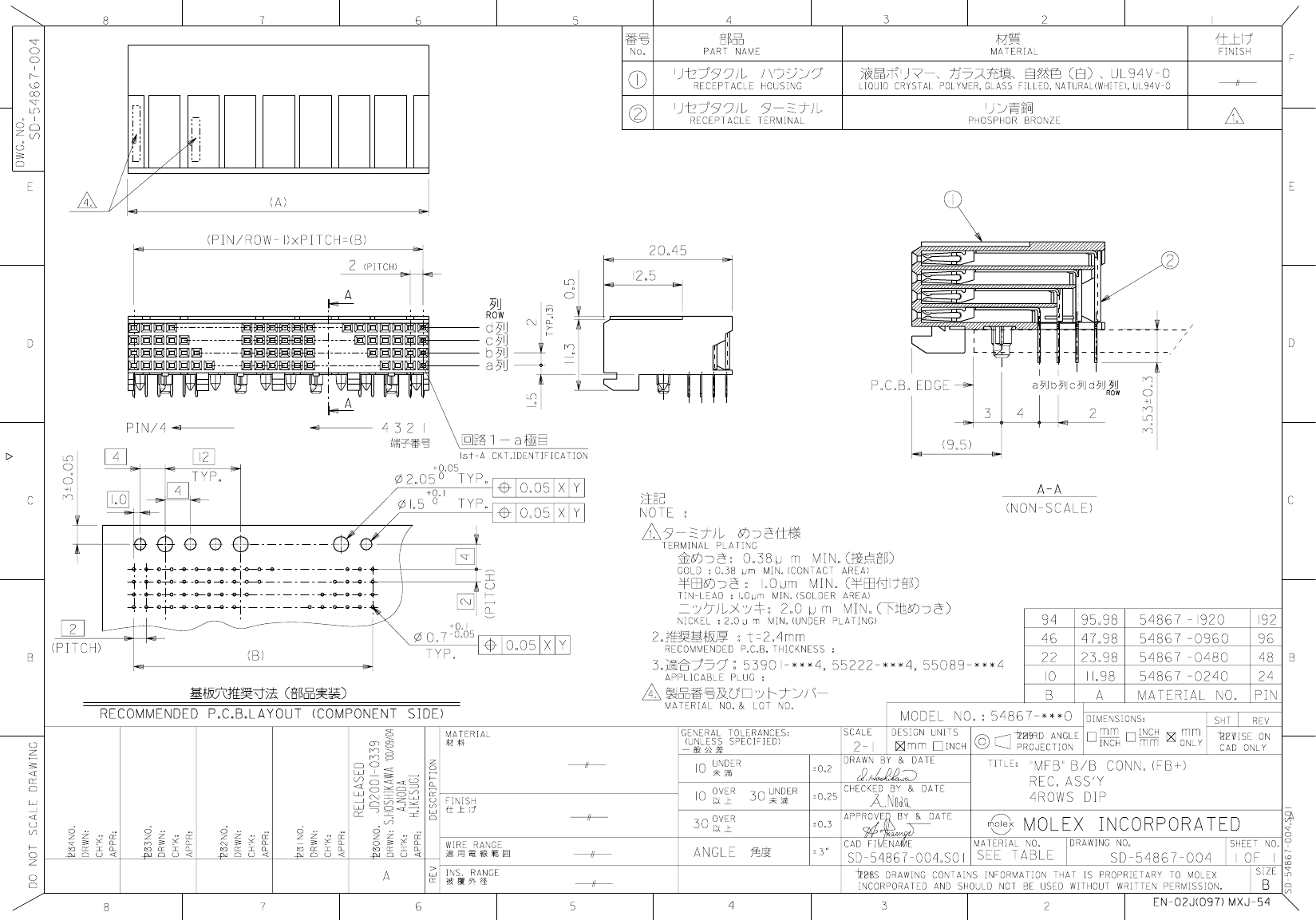

Board Connector, 96 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, White Insulator, Receptacle,
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | MFB |
| Board mount options | LOCATING POSTS |
| body width | 0.465 inch |
| subject depth | 0.805 inch |
| body length | 1.889 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 45 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 750VAC V |
| Durability | 250 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 1.0008 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | WHITE |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| MIL compliance | NO |
| Manufacturer's serial number | 54867 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 5 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 15u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.139 inch |
| Terminal pitch | 2 mm |
| Termination type | SOLDER |
| Total number of contacts | 96 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .139 N |
| Base Number Matches | 1 |
| 54867-0960 | 54867-0240 | 54867-0480 | 54867-1920 | |
|---|---|---|---|---|
| Description | Board Connector, 96 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, White Insulator, Receptacle, | Board Connector, 24 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, White Insulator, Receptacle, | Board Connector, 48 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, White Insulator, Receptacle, | Board Connector, 192 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, White Insulator, Receptacle, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | MFB | MFB | MFB | MFB |
| Board mount options | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS |
| body width | 0.465 inch | 0.465 inch | 0.465 inch | 0.465 inch |
| subject depth | 0.805 inch | 0.805 inch | 0.805 inch | 0.805 inch |
| body length | 1.889 inch | 0.472 inch | 0.944 inch | 3.779 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 45 mΩ | 45 mΩ | 45 mΩ | 45 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO |
| Dielectric withstand voltage | 750VAC V | 750VAC V | 750VAC V | 750VAC V |
| Durability | 250 Cycles | 250 Cycles | 250 Cycles | 250 Cycles |
| Filter function | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO |
| maximum insertion force | 1.0008 N | 1.0008 N | 1.0008 N | 1.0008 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | WHITE | WHITE | WHITE | WHITE |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER |
| MIL compliance | NO | NO | NO | NO |
| Manufacturer's serial number | 54867 | 54867 | 54867 | 54867 |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO | NO |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE |
| PCB row number | 4 | 4 | 4 | 4 |
| Number of rows loaded | 5 | 5 | 5 | 5 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Plating thickness | 15u inch | 15u inch | 15u inch | 15u inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A |
| Guideline | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.139 inch | 0.139 inch | 0.139 inch | 0.139 inch |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 96 | 24 | 48 | 192 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | .139 N | .139 N | .139 N | .139 N |
| Base Number Matches | 1 | 1 | 1 | 1 |
