518-50.000MHZ-BBD10010 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> 518-50.000MHZ-BBD10010

518-50.000MHZ-BBD10010: DescriptionParallel - Fundamental Quartz Crystal, 50MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size1MB，1 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

518-50.000MHZ-BBD10010 Overview

Parallel - Fundamental Quartz Crystal, 50MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

518-50.000MHZ-BBD10010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	10 pF
Manufacturer's serial number	518
Installation features	SURFACE MOUNT
Nominal operating frequency	50 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L4.0XB2.5XH0.8 (mm)/L0.157XB0.098XH0.031 (inch)
Series resistance	80 Ω
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

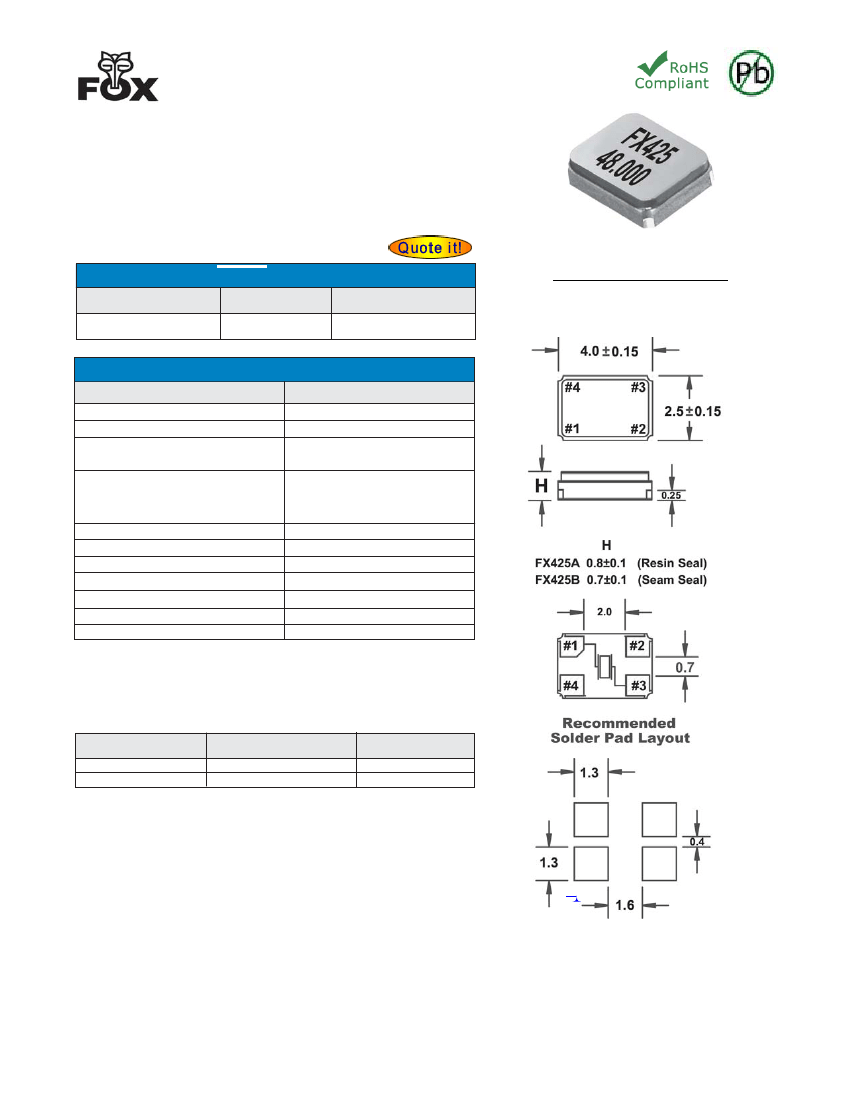

Preview

Download Datasheet

View All

Model: FX425A

SERIES

FEATURES

Frequency Range (MHz)

12.000 ~ 50.000

• Ultra Low Profile

• Fundamental

OPTIONS

• Tolerances to ± 10 PPM

• Stabilities to ± 10 PPM

• Temp Range to -40ºC ~ +85ºC

• PART NUMBER

Learn More - Internet Required

SELECTION

Part Number

518-Frequency-xxxxx

519-Frequency-xxxxx

Model Number

FX425A

FX425B

±50 PPM

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

OPR

)

Shunt Capacitance (Co)

Load Capacitance (C

Drive Level

Aging per year

Reflow Soldering Temperature

Moisture Sensitivity Level (MSL)

Termination Finish

MAX

(unless otherwise noted)

12.000 ~ 50.000 MHz

±50 PPM

-10ºC ~ +60ºC

-40ºC ~ +85ºC

7pF

10 pF ~ Series

0.1 mW

±5.0 PPM

260ºC x 10 Seconds (2 Cycles)

Ni/Au

Learn more about:

Part Marking Identification

Tape and Reel Specification

Internet required

CERAMIC SMD CRYSTAL

FX425B not discontinuted

Tighter tolerances, stabilities, and wider temp ranges available.

Note: The above specifications, having been carefully prepared and checked, is believed to be

accurate at the time of publication; however, no responsibility is assumed by Fox Electronics

for inaccuracies.

All specifications subject to change without notice.

Rev. 5/17/05

Frequency Range

(MHz)

12.000 ~ 12.999999

13.000 ~ 50.000

Operating Mode

Fundamental

Max ESR

Ω

120

All dimensions are in millimeters.

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1(239) 693.0099 FAX +1 (239) 693.1554

http://www.foxonline.com

EMEA

Munich, Germany +49 0 89.90936870 FAX +49 0 89.90936776

Asia

Hong Kong +852.2854.4285 FAX +852.2854.4282
