2381 66. 5...1/PTCCL..H....BE
Vishay BCcomponents
30 V to 60 V PTC Thermistors
For Overload Protection
FEATURES
•
Wide range of trip and non-trip currents:
From 94 mA up to 2 A for the trip current
•
Small ratio between trip and non-trip currents
(I
t
/I
nt
= 1.5 at 25 °C)
•
High maximum overload current (up to 23 A)
•
Leaded parts withstand mechanical stresses
and vibration
•
UL file E148885 according to XGPU standard UL1434
•
UL approved PTCs are guaranteed to withstand severe
test programs
• Long-life cycle tests (over 5000 trip cycles)
• Long-life storage tests (3000 h at 250 °C)
• Electrical cycle tests at low ambient temperatures
(- 40 °C or 0 °C)
• Damp-heat and water immersion tests
• Overvoltage tests at up to 200 % of rated voltage
•
Compliant to RoHS directive 2002/95/EC and
accordance to WEEE 2002/96/EC
in
APPLICATIONS
Over-temperature/over-load protection:
•
Telecommunications
•
Automotive systems
•
Industrial electronics
•
Consumer electronics
•
Electronic data processing
QUICK REFERENCE DATA
PARAMETER
Maximum voltage (DC or AC)
Holding current
Resistance at 25 °C (R
25
)
I
max.
Switch temperature
Operating temperature range
at max. voltage
Climatic category
VALUE
30 to 60
0.094 to 2
0.3 to 50
0.8 to 23
140
UNIT
V
A
Ω
A
°C

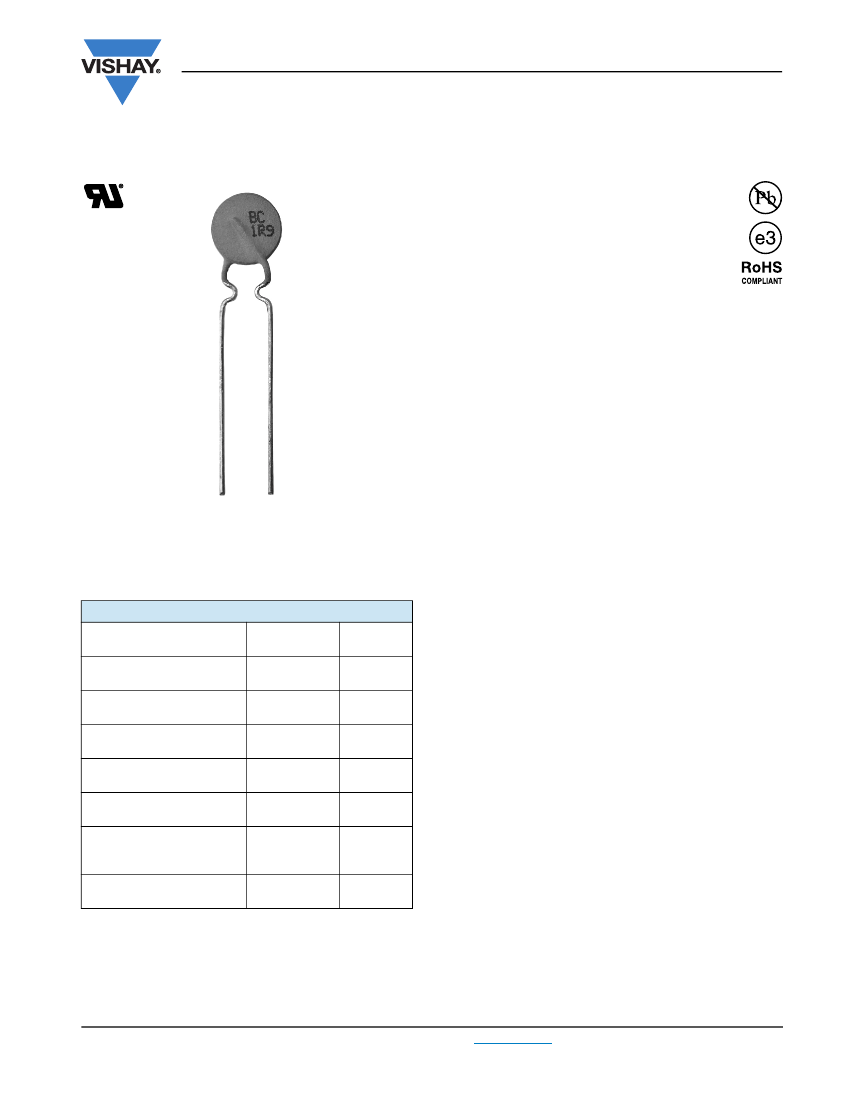

DESCRIPTION
These directly heated thermistors have a positive
temperature coefficient and are primarily intended for
overload protection. They consist of a naked disk with two
tinned brass or copper clad steel leads and are coated with
a high temperature silicone UL 94 V-0 coating. Leadless
disks and leaded disks without coating are available on
request.
MOUNTING
The PTC Thermistors are suitable for processing on
automatic insertion equipment.
Typical soldering
235 °C; duration: 5 s (Pb-bearing)
245 °C, duration: 5 s (Lead (Pb)-free)
Resistance to soldering heat
260 °C, duration: 10 s max.
- 40 to + 85
°C
40/125/56
MARKING
Only the grey lacquered thermistors with a diameter of
8.5 mm to 20.5 mm are marked with BC,
R
25
value (example
1R9) on one side and I
nt
, V
max.
on the other side.
Document Number: 29085
Revision: 29-Jul-09
For technical questions, contact:
nlr@vishay.com
www.vishay.com
15
2381 66. 5...1/PTCCL..H....BE
Vishay BCcomponents
30 V to 60 V PTC Thermistors
For Overload Protection
ELECTRICAL DATA AND ORDERING INFORMATION
for 2381 66. 5...1; max. voltage = 30 V to 60 V (AC or DC)
(1)
I
nt
MAX.
at 25 °C
(mA)
94
130
180
270
320
410
470
540
610
700
830
920
1170
1390
1770
2050
I
t
MIN.
at 25 °C
(mA)
145
195
270
405
480
615
705
810
915
1050
1245
1380
1755
2085
2655
3075
R
25
± 20 %
(Ω)
50
25
13
6
5
3
2.5
1.9
1.7
1.3
1.1
0.9
0.7
0.5
0.4
0.3
V
MAX.
(V)
60
60
30
30
30
30
30
30
30
30
30
30
30
30
30
30
I MAX.
(2)
at 25 °C
(mA)
800
1200
1700
2500
3500
4500
5000
6000
7000
8000
10 000
11 000
13 500
16 000
20 000
23 000
I
res
MAX.
at V
max.
and
25 °C (mA)
22
25
45
60
62
65
70
75
80
90
100
105
140
170
200
220
DISSIP.
FACTOR
(mW/K)
6.9
6.9
6.9
6.9
7.8
7.8
8.8
8.8
9.9
9.9
11.5
11.5
14.5
14.5
18.7
18.7
ØD
MAX.
(mm)
5
5
5
5
7
7
8.5
8.5
10.5
10.5
12.5
12.5
16.5
16.5
20.5
20.5
CATALOG NUMBERS
BULK
2381 660 59491
2381 660 51311
2381 660 51811
2381 660 52711
2381 661 53211
2381 661 54111
2381 661 54711
2381 661 55411
2381 662 56111
2381 662 57011
2381 662 58311
2381 662 59211
2381 663 51121
2381 663 51321
2381 664 51721
2381 664 52021
TAPE ON REEL
2381 660 69491
2381 660 61311
2381 660 61811
2381 660 62711
2381 661 63211
2381 661 64111
2322 661 64711
2381 661 65411
2381 662 66111
2381 662 67011
2381 662 68311
2381 662 69211
-
-
-
-
Notes
(1)
The thermistors are clamped at the seating plane.
(2)
I
max.
is the maximum overload current that may flow through the PTC when it passes from the low ohmic to the high ohmic state.
UL approval: I
max.
x 0.85
SAP AND 12NC PART NUMBERS
12NC
2381 660 x9491
2381 660 x1311
2381 660 x1811
2381 660 x2711
2381 661 x3211
2381 661 x4111
2381 661 x4711
2381 661 x5411
SAP CODING
PTCCL05H940EyE
PTCCL05H131EyE
PTCCL05H181DyE
PTCCL05H271DyE
PTCCL07H321DyE
PTCCL07H411DyE
PTCCL09H471DyE
PTCCL09H541DyE
12NC
2381 662 x6111
2381 662 x7011
2381 662 x8311
2381 662 x9211
2381 663 51121
2381 663 51321
2381 664 51721
2381 664 52021
SAP CODING
PTCCL11H611DyE
PTCCL11H701DyE
PTCCL13H831DyE
PTCCL13H921DyE
PTCCL17H112DBE
PTCCL17H132DBE
PTCCL21H172DBE
PTCCL21H202DBE
Notes
• For bulk parts replace x by “5” and y by “B”
• For taped on reel parts replace it x by “6” and y by “T”
CURRENT DEVIATION AS A FUNCTION OF THE AMBIENT TEMPERATURE
250
%
200
I
t
150
I
nt
100
I
max
50
0
- 50
- 25
0
25
50
75
T
amb
(°C)
100
www.vishay.com
16
For technical questions, contact:
nlr@vishay.com
Document Number: 29085
Revision: 29-Jul-09
2381 66. 5...1/PTCCL..H....BE
30 V to 60 V PTC Thermistors
For Overload Protection
Vishay BCcomponents
VOLTAGE DERATING AS A FUNCTION OF AMBIENT TEMPERATURE
V
max.
(%)
120
100
80
60
40
20
0
- 50
- 25
0
25
50
75
100
125
150
200
175
T
amb
(°C)
ELECTRICAL CHARACTERISTICS I
max.
AS A FUNCTION OF VOLTAGE
200
I
max
(%)
150
100
80
0
40 50
70
100
120
150
V
rated
(%)
I
max.
as stated in the electrical data and ordering information tables, is the maximum overload current that may flow through the
PTC when passing from the low ohmic to high ohmic state at rated voltage.
When other voltages are present after tripping, the I
max.
value can be derived from the above I
max.
as a function of voltage graph.
Voltages below V
rated
will allow higher overload currents to pass the PTC.
TYPICAL TRIP-TIME AS A FUNCTION OF TRIP CURRENT RATIO
10
2
t
s
10
Curve 1: Ø D
max.
= 20.5 mm
Curve 2: Ø D
max.
= 16.5 mm
Curve 3: Ø D
max.
= 12.5 mm
Curve 4: Ø D
max.
= 10.5 mm
Curve 5: Ø D
max.
= 8.5 mm
1
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Curve 6: Ø D
max.
= 7.0 mm
Curve 7: Ø D
max.
= 5.0 mm
Measured in accordance
with
“IEC 60738”.
16
10
-1
1
2
4
6
8
10
12
14
I
t
/I
nt
Trip-time or switching time (t
s
)
To check the trip-time for a specific PTC, refer to the Electrical Data and Ordering Information tables for the value I
nt
. Divide the
overload or trip current by this I
nt
and you realize the factor I
t
/I
nt
. This rule is valid for any ambient temperature between 0 °C
and 70 °C. Adapt the correct non-trip current with the appropriate curve in the Current Deviation as a Function of the Ambient
Temperature graph. The relationship between the I
t
/I
nt
factor and the switching time is a function of the PTC diameter; see the
above graphs.
Example
What will be the trip-time at I
ol
= 3 A and T
amb
= 0 °C of a thermistor type 2381 661 54711; 2.5
Ω;
Ø D
max.
= 8.5 mm:
I
nt
from the table: 470 mA at 25 °C
I
nt
: 470 x 1.12 = 526 mA (at 0 °C).
Overload current = 3 A; factor I
t
/I
nt
:
3
/
0.526
= 5.70. In the typical trip-time as a function of trip current ratio graph, at the 8.5 mm line
and I
t
/I
nt
= 5.70, the typical trip-time is 1.7 s.
Document Number: 29085
Revision: 29-Jul-09
For technical questions, contact:
nlr@vishay.com
www.vishay.com
17
2381 66. 5...1/PTCCL..H....BE
Vishay BCcomponents
30 V to 60 V PTC Thermistors
For Overload Protection

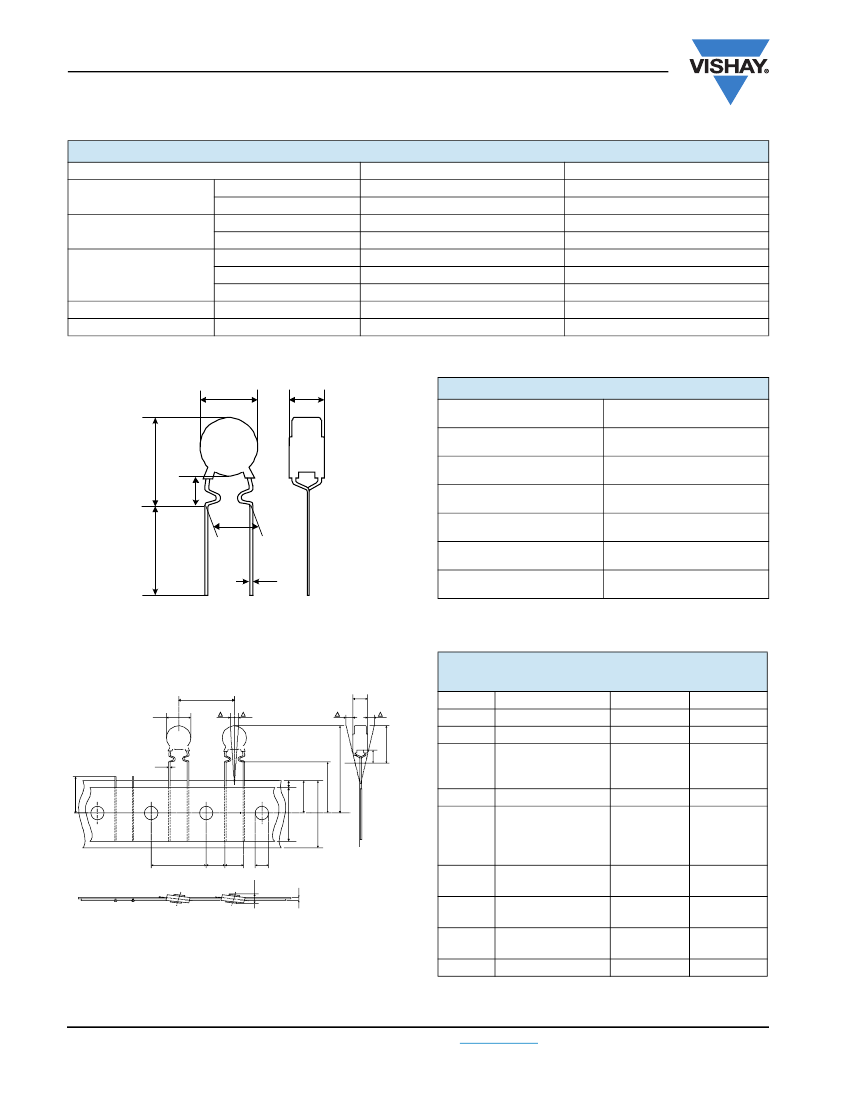

COMPONENTS OUTLINE
CODE NUMBER 2381
660
661
5...1
6...1
5...1
6...1
5...1
662
663
664
66111 to 67011
68311 to 69211
5...1
5...1
SPQ
500
1500
250
1500
250
1500
750
200
100
OUTLINE
Fig. 1a
Fig. 1b
Fig. 1a
Fig. 1b
Fig. 1a
Fig. 1b
Fig. 1b
Fig. 1a
Fig. 1a
PTC THERMISTORS IN BULK
D
T
DIMENSIONS OF BULK TYPE PTC’S
(in mm)
D
d
See table
0.6 ± 10 %
4.0 max.
4.0 ± 1.0
D + 5 max.
20 min.
5.0
H3
T
H2
H2
F
H3
L1
d
L1
F
Fig. 1a
PTC THERMISTORS ON TAPE ON REEL
P
D
P
P
h
T
h
TAPE AND REEL ACCORDING
TO IEC 60286-2
dimensions in millimeters
SYMBOL
D
d
H3
PARAMETER
Body diameter
Lead diameter
Pitch of components
Diameter < 12 mm
Diameter
≥
12 mm
Feedhole pitch
Leadcenter to
leadcenter distance
(between component
and tape)
Lead wire
clinch height
Component bottom
to seating plane
Component top
to seating plane
Total thinkness
DIMENSIONS TOLERANCE
See table
0.6
12.7
25.4
12.7
max.
± 10 %
± 1.0
± 2.0
± 0.3
+ 0.6
- 0.1
d
W2
L
W0 W1 W H0 H1
H2
P
P
0
F
5.0
P0
P1
F
D0
T1
H0
t
16.0
4.0
D+5
4.0
± 0.5
± 1.0
max.
max.
H2
Fig. 1b
H3
T
www.vishay.com
18
For technical questions, contact:
nlr@vishay.com
Document Number: 29085
Revision: 29-Jul-09
2381 66. 5...1/PTCCL..H....BE
30 V to 60 V PTC Thermistors
For Overload Protection
TYPICAL RESISTANCE/TEMPERATURE
CHARACTERISTIC
10
6
10
5
10
4
10
3
10
2
10
2381 660 52711
PTCCL05H271DBE
2381 660 59491
PTCCL05H940EBE
2381 660 51311
PTCCL05H131EBE
2381 660 51811
PTCCL05H181DBE
Vishay BCcomponents
TYPICAL RESISTANCE/TEMPERATURE
CHARACTERISTIC
10
5
10
4
Resistance [Ω]
2381 661 53211
PTCCL07H321DBE
2381 661 54111
PTCCL07H411DBE
2381 661 54711
PTCCL09H471DBE
Resistance [Ω]
10
3
10
2
10
2381 661 55411
PTCCL08H541DBE
1
0 25 50 75 100 125 150 175 200 225 250
Temperature [°C]
1
0 25 50 75 100 125 150 175 200 225 250
Temperature [°C]
TYPICAL RESISTANCE/TEMPERATURE
CHARACTERISTIC
10
4
TYPICAL RESISTANCE/TEMPERATURE
CHARACTERISTIC
10
4
2381 663 51121
PTCCL17H112DBE
10
3
Resistance [Ω]
2381 662 56111
PTCCL11H611DBE
2381 662 57011
PTCCL11H701DBE
10
3
2381 663 51321
PTCCL17H132DBE
Resistance [Ω]
10
2
10
2
2381 664 51721
PTCCL21H172DBE
10
2381 662 58311
PTCCL13H931DBE
10
1
2381 662 59211
PTCCL13H921DBE
1
2381 664 52021
PTCCL21H202DBE
10
-1
0 25 50 75 100 125 150 175 200 225 250
Temperature [°C]
10
-1
0 25 50 75 100 125 150 175 200 225 250
Temperature [°C]
Document Number: 29085
Revision: 29-Jul-09
For technical questions, contact:
nlr@vishay.com
www.vishay.com
19
京公网安备 11010802033920号
EEWORLD
