671-6304 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 671-6304

671-6304: DescriptionTelecom Transformer; CategoryPower management transformer; File Size128KB，2 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric Compare View All

671-6304 Overview

Telecom Transformer

671-6304 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TURNS RATIO: 2CT:1CT
high	10 mm
length	10.92 mm
Manufacturer's serial number	671-6304
Installation features	THROUGH HOLE MOUNTED
Maximum operating frequency	4000 kHz
Minimum operating frequency	100 kHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	10.92mm X 9.53mm X 10mm
main impedance	100 OHMS
surface mount	NO
Transformer type	TELECOM TRANSFORMER
width	9.53 mm
Base Number Matches	1

Preview

Download Datasheet

View All

TransformingMagnetics

DigitalTelecom

T1/E1 ISDN-PRI

through-hole transformers

EP7 - TH

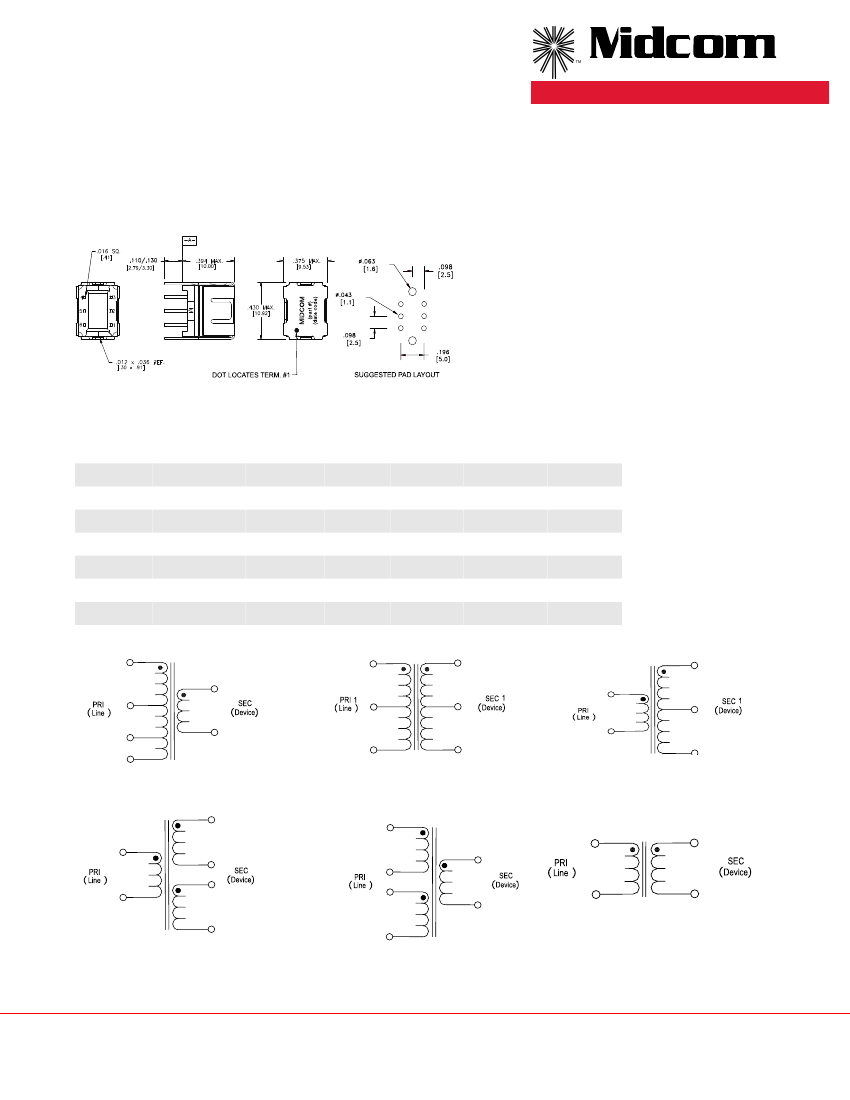

Features

• Small size

• Separate transmit and receive devices for

layout flexibility

• Low crosstalk: good for dense layouts

• Operating temperature range: -40 to +85C

• Matched to IC manufacturers' transceivers

• 100 ohm line

Part Number

Turns Ratio

(PRISEC)

20 C

(mH Min)

1:4

1.3

0.6

1.2

0.6

3.0

1.2

Leakage L

(uH Max.)

1.5

0.5

0.8

3.0

0.5

DCR PRI

(ohms Max.)

1.0

1.6

0.6

0.4

0.6

2.0

1.1

DCR SEC

(ohms Max.)

1.0

1.2

0.6

1.2

1.0

0.5

Schematic

671-5792

671-6599

671-5961

671-7740

671-5832

671-6304

671-6851

1CT:1CT

1:1,1

.26

1.36

1.41

1:1:1 OR 1:2 CT

2CT:1CT

2.3CT:1

11/22/05

Details subject to change. Contact your Midcom sales representative for additional information. Dimensions: in/mm. All tolerances are ± .010/0,25 and electrical specifications are @ 25°C unless otherwise specified.

Midcom, Inc. USA

121 Airport Drive - PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ F: 605.886.4486

www.midcom-inc.com ~ email:sales@midcom-inc.com

Midcom, Inc. China

10/F Spectrum Tower 53 Hung to Road

Kwun Tong, Kowloon, HK

T: 852.2320.4221 ~ F: 852.2352.3272

www.midcom.com.cn ~ email:sye@midcom-inc.com

671-6304 Related Products

	671-6304	671-5792	671-6851	671-7740
Description	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	TURNS RATIO: 2CT:1CT	TURNS RATIO: 1CT:1CT	TURNS RATIO: 2.3CT:1	TURNS RATIO: 1:1.41
high	10 mm	10 mm	10 mm	10 mm
length	10.92 mm	10.92 mm	10.92 mm	10.92 mm
Manufacturer's serial number	671-6304	671-5792	671-6851	671-7740
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
physical size	10.92mm X 9.53mm X 10mm	10.92mm X 9.53mm X 10mm	10.92mm X 9.53mm X 10mm	10.92mm X 9.53mm X 10mm
main impedance	100 OHMS	100 OHMS	100 OHMS	100 OHMS
surface mount	NO	NO	NO	NO
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	9.53 mm	9.53 mm	9.53 mm	9.53 mm
Base Number Matches	1	1	1	1
